Quick Start Guide

Advertisement

Table of Contents
loading

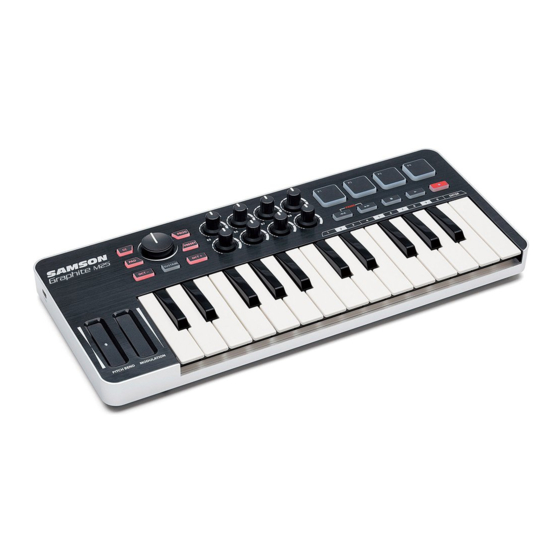

Summary of Contents for Samson Graphite M25

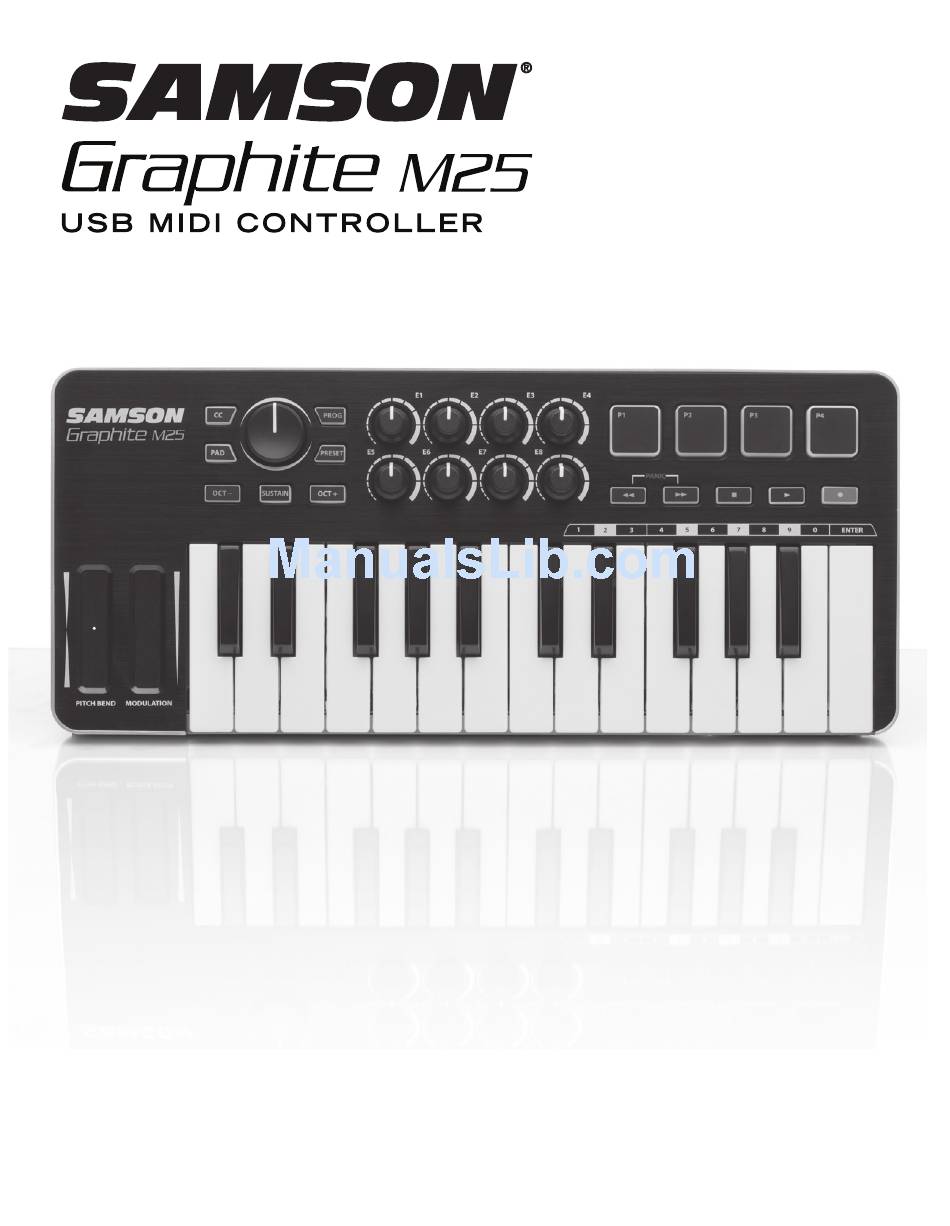

  • Page 1 Quick Start Guide...
  • Page 2 Copyright 2013 V1.5 Samson Technologies 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com Apple, Mac, Mac OS, and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is...
  • Page 3 CAUTION Any changes or modifications to the construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4: Important Safety Information

    Important Safety Information Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 5 Graphite M25 editor from the Samson website (www.samsontech.com). In these pages, you’ll find a detailed description of the features of the Graphite M25 keyboard controller, as well as a guided tour of its control panel, and inst ructions for setup and use.
  • Page 6: System Components

    Features The Samson Graphite M25 utilizes state-of-the-art technology and is engineered to the finest detail. Here are some of its main features: • 25-key velocity-sensitive keyboard • Pitch Bend and Modulation ribbon strips • Four velocity-sensitive trigger pads with aftertouch (two banks) for drum sounds and samples •...
  • Page 7: Quick Start

    MIDI data via the USB connection. If the Graphite M25 is connected to a non-powered USB hub, it may not receive enough power to turn on. It is recommended that you connect the Graphite M25 directly to your computer or to a powered USB hub.
  • Page 8: Front Panel Controls And Functions

    Front Panel Controls and Functions Trigger Pads - The four backlit velocity-sensitive trigger pads with aftertouch can send MIDI note, velocity, and aftertouch messages or when the CC button is pressed send control change information. The setting of the Trigger Pads note and control change information can be set using the computer editor, as either toggle or momentary style buttons.
  • Page 9 Graphite M25 · USB Keyboard Controller Front Panel Controls and Functions PAD Bank Button - The Trigger Pads are configured into two pad banks, with different set- tings configured to each pad. Press the PAD button to toggle between the two banks.
  • Page 10: Editing Parameters

    Editing Parameters The Graphite M25 features 19 controls which settings can be customized using the Graphite M25 computer editor, which can be found on the Samson website (www.samsontech.com). The following information outlines the available parameters for each control that can be adjusted.
  • Page 11: Specifications

    Graphite M25 · USB Keyboard Controller Specifications Keyboard 25-key, semi-weighted, velocity sensitive Controls Encoder Knobs Trigger Pads Transport Controls 5 (Rewind, Fast Forward, Stop, Play, Record) Ribbon Strips Pitch Bend, Modulation Key Range Octave +/– Operation Controls SUSTAIN, CC Mode, PROG, PRESET, PAD...
  • Page 12 Samson Technologies 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
