Specifications; Features/Benefits; Package Contents/Tools Required - ICM Controls SC2201 Installation, Operation & Application Manual

Input:
• Voltage: 24 VAC (18-30 VAC)
Output:
• Maximum: 1 amp maximum load per terminal
(4 amp total maximum load for all terminals)
• Temperature Ranges:
– Temperature control range: 45°F to 90°F Accuracy: ± 1°F
– Differential range: 1°F to 3°F
• System configurations: Multi-stage heat pump (two-stage heat, one-stage cool)
• Terminations: R, C, E, Y1, O, B, G, W2
• Second stage activation in heat mode: 2° below first stage (not adjustable)
• Multi-stage heating/cooling control
• Multi-colored LED indicators for system status
• Zone system compatible as a master thermostat
• Adjustable temperature differential: 1°F to 3°F
Package includes: SimpleComfort
labels, screws and wall anchors, Installation, Operation and Application Guide.
Tools required for installation: Drill with 3/16" bit, hammer, screwdriver.


Specifications

Features/Benefits

Package Contents/Tools Required

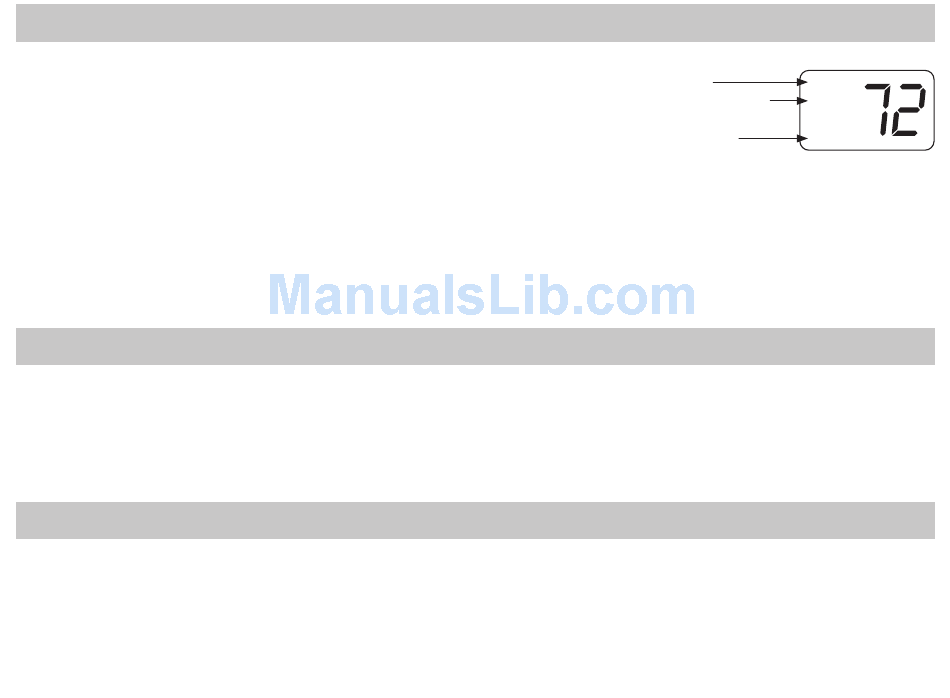

® 2201 non-programmable thermostat on base, thermostat cover, wiring
Room temperature
setpoint
Room temperature
Temperature
differential setting
• Automatic heating system shutdown if
temperature exceeds 90°F
• 30-minute power interruption memory retention
• Independent setpoints for heat and cool
SET
ROOM
DIFF
