Installing the Cable Management System for Direct Attach Copper (DAC)
Cables
1. Secure the cable management system into place on the 4–post rack frame above the I/O side of the
chassis by inserting screws and tightening with a #2 Phillips screwdriver.

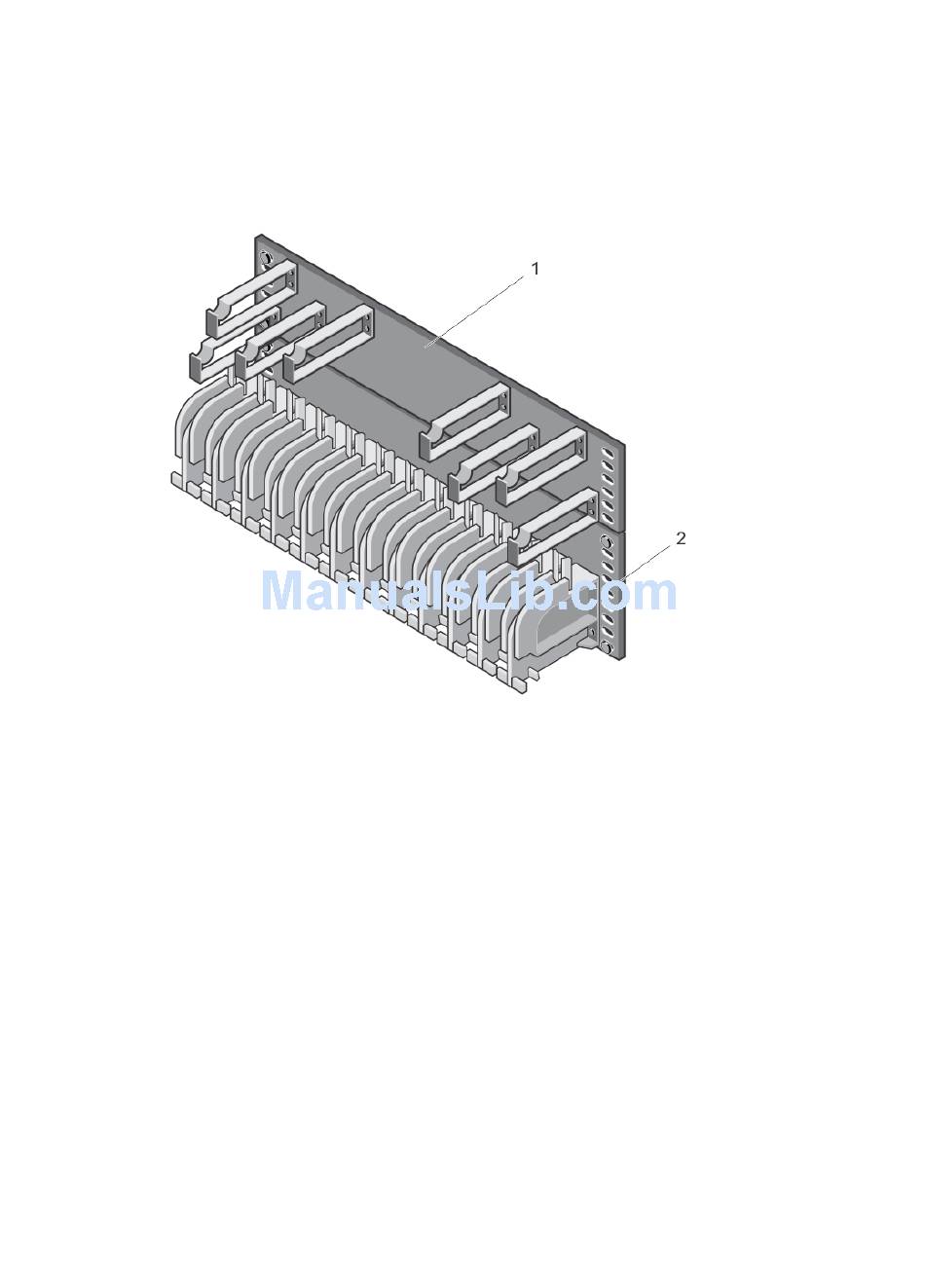

Figure 8. Installing the Cable Management System for DAC Cables
1. Pin rack unit for DAC cable routing
2. Insert a cable in a Z9500 port. then route the DAC cables up and along the line-card face between
the larger pins directly above the card. Position the cables so they follow the channel marked in the
figure below and exit to the right or left, depending on the chassis slot location. The cables should
emerge from right and left side of the panel.
20
2. Rack unit for DAC cable routing
