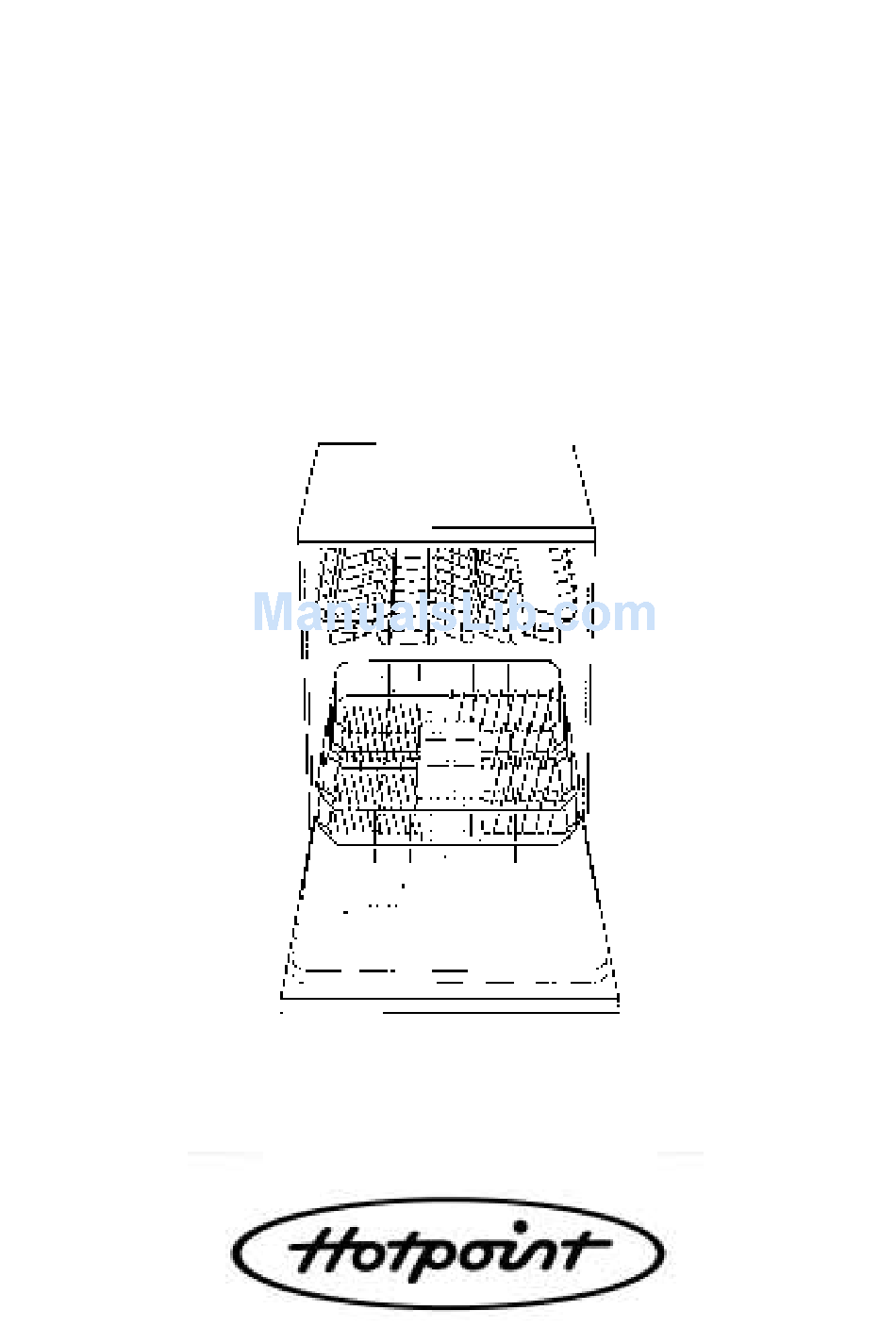

- Page 1 HOTPOINT 60cm FREESTANDING DISHWASHER USER & INSTALLATION INSTRUCTIONS MODELS DWF61 & DWF60...
-
Page 2: Table Of Contents
Book is also provided so the new owner can become familiar with the appliance and safety warnings. Recycling & Disposal Information... As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality recycled components to keep down customer costs and minimise material wastage. -
Page 3: Electricity Supply / Safety Information
Electrical Supply... WARNING: This appliance must be earthed. Fuses Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the fuse, only those rated at 13A and ASTA approved to BS1362 should be used. WARNING: Do not use the plug unless the fuse cover is fitted. -
Page 4: Installation
Installation... Follow the Installation Instructions, making sure the Dishwasher is correctly installed. When installing the Dishwasher, carry out tasks in the following order: - choose a location. - level the appliance (adjusting the feet). - connect to a drainage system. -
Page 5: Connect To A Drainage System
Installation... CONNECT TO A DRAINAGE SYSTEM... WARNING Connect your dishwasher drain hose to pipes which connect to the foul drain system, and not to surface water drains. IMPORTANT NOTES For the correct operation of your dishwasher, it is essential to comply with the following information. -
Page 6: Connect To The Water Supply
Installation... CONNECT TO THE WATER For your machine to operate correctly it requires water pressures in the range of 6-150 psi (100-1000 KPa). Most cold water supplies will be in this range. Ensure the fill hose is only connected to the cold water supply. WARNING Ensure the fill hose is NOT kinked. -
Page 7: Getting To Know Your Appliance
Getting to Know your Appliance... Model Serial Interior... Rating plate sample Salt Container, with level indicator. Filters. Lower Basket. Rinse Aid Container, with level indicator. Rating Plate. Upper Basket, with 2-tier cup rack. Upper Spray Arm. Lower Spray Arm. Cutlery Basket. Detergent Compartment Locking Mechanism. -
Page 8: Getting To Know Your Appliance..................7
Getting to Know your Appliance... DWF61 DWF60 Fascia. 1. Mains Switch (ON/OFF) 2. Time Delay Selector Switch 3. Numerical Indicator 4. Time to End Indicator 5. Salt Refill Indicator 6. Rinse Aid Indicator 7. Door Handle 8. Wash Basket Programme Selector* (DWF 61 only) 9. -
Page 9: Before Using Your Appliance
Before Using your Appliance... Before using your Dishwasher you must carry out the following steps to ensure you obtain the best possible wash performance from your appliance. Follow these 4 steps: - Adjust the Water Softener. - Fill the Salt Container. -
Page 10: Filling The Special Salt Container
The dissolved lime is pumped out of the dishwasher. The water softener system is then ready for the next load. This process of regeneration can only function when the salt is dissolved in water. -
Page 11: Filling The Rinse Aid Container
Low Rinse Aid Indicator... As long as the rinse aid indicator on the dis- penser is dark and the indicator 6 on the control panel is not lit, there is sufficient rinse aid in the dishwasher. LOW rinse aid indicator... -
Page 12: Detergents
We recommend Sun All in One for use in this (or your new) dishwasher... Sun All in One with built in salt function makes machine dishwashing even more convenient than ever. The tablets and rinse aid have a built in salt function guarantee- ing great results. - Page 13 (eg. in the cutlery basket, detergent compartment etc..). Ensure that the lid of the detergent compartment is firmly closed, even if...
-
Page 14: What Can I Wash
WARNING: Dishes or cutlery that have been soiled by tobacco ash, wax, lubricating grease or paint, should not be put in the dishwasher. Our recommendation: In future, only purchase table or kitchen- ware that has been confirmed as being dishwasher proof. -
Page 15: Programme Overview
14 - 19 Delicate Mixed Coffee, cakes, milk, sausage, cold drinks, salads. Rinse off if the dishes have been stacked for several days in very little the dishwasher prior to washing. loosely attached Quick Pre-rinse Delicate 35˚ 40˚ Pre-rinse Wash Wash 40˚... - Page 16 Laboratory measured value in accordance with European Standard EN 50242 Duration in minutes with- out heat exchanger Electricity consumption in kWh without heat exchanger Water consumption in litres with Aquasensor DWF60 Mixed Soups, potatoes, pasta, rice, eggs, roast or fried food. a lot a little loosely attached...
-
Page 17: Loading Your Dishwasher
(figs. A & B) Knife racks (special steel basket) (DWF61 only) Knife rack (plastic) (Long knives) (DWF60 only) Shelf Lean tall glasses and those with long stems against the shelf - not against other items to be washed. - Page 18 WARNING To prevent damage to crockery or risk of injury, slowly pull the baskets out of the dishwasher, ensuring they remain in the basket runners.
-
Page 19: Washing Dishes
If the water is dirty, it is pumped out of the dishwasher and replaced by fresh water. The effect is to reduce water consumption by approx. 4 litres when the dishes are only ‘slightly’... - Page 20 1 minute. When it has ended, set the mains switch 1 to OFF. Close the detergent compartment. To restart the dishwasher, set the mains switch 1 to ON again and select the desired programme. Changing the programme It is possible to change the programme within 2 minutes after you have switched the dishwasher on.
-
Page 21: Care And Maintenance
This saves time and aggravation. You should therefore carefully inspect the inside of your dishwasher from time to time. Overall condition of appliance. Check that no grease or scale has accumulated on the inside of the dishwasher. - Page 22 Pull out the appliance, carefully, withdrawing hoses at the same time. Transporting the Dishwasher... Drain water from the dishwasher. Secure all loose parts. The dishwasher should only be transported in an upright position. If not kept upright during transport, any...
-
Page 23: Troubleshooting
Improper repairs can lead to considerable equipment damage as well as danger to the user. - The dishwasher must first be disconnected from the electricity supply before any repairs or other work can be carried out. Switch off at the mains socket and water supply and remove the plug. - Page 24 Too much salt spilt whilst filling the container. Glasses become clouded and discoloured; coating cannot be wiped off. Unsuitable detergent was used. Glasses are not dishwasher proof. Smears left behind on glasses and cutlery; glasses have acquired a metallic appearance. Amount of rinse-aid set too high.
-
Page 25: Important Information
Fig A Fig B DWF61 only Example of loaded dishwasher see figs A, B, C and D. For loading of baskets and special cutlery baskets. Capacity: 12 place settings. Comparability programme: Eco Rinse-aid setting: between 3 and 4. -
Page 26: Hotpoint After Sales Service
Hotpoint product. If there is a technical problem with your Hotpoint appliance, call Hotpoint Service. If necessary we will arrange for an engineer to call. If the technical problem is not resolved under this Guarantee, Hotpoint will replace your appliance or, if you prefer, give you your money back. -
Page 27: Hotpoint Guarantee
Hotpoint Guarantee... From the moment your appliance is delivered, Hotpoint guarantees it for five years. Hotpoint appliances carry a fully inclusive 12 months parts and labour guarantee plus FREE replacement parts for the first five years provided that they are fitted by our own Service Engineer (evidence will be required of date and place of purchase). -
Page 28: Key Contacts
Republic of Ireland: 1850 502 200 For further product information 08701 50 60 70 All Hotpoint Services are offered as an extra benefit and do not affect your statutory rights. General Domestic Appliances Limited, Morley Way, Peterborough, PE2 9JB. Part No. FP026-01...
