Communications Systems | LB1‑UW06‑Fx‑US Unidirectional Cabinet Loudspeaker

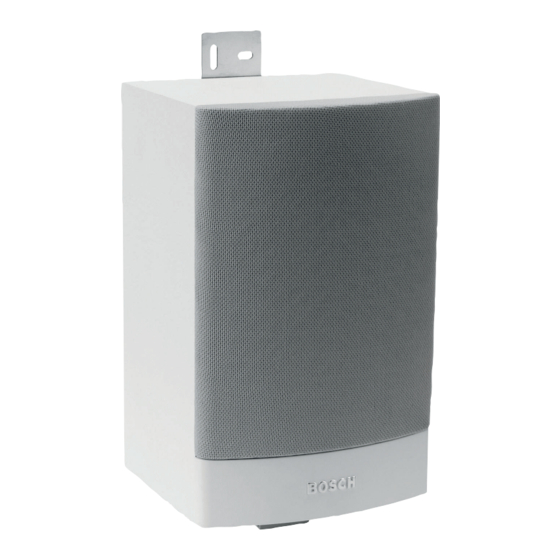

LB1‑UW06‑Fx‑US Unidirectional Cabinet
Loudspeaker
The LB1‑UW06‑Fx‑US is a 6 W, general-purpose, cost-
effective loudspeaker for indoor use. Two brackets, fixed to
the rear panel, are provided for quick and easy mounting on
a wall or ceiling. The cabinet is available in black or white.
Functions
The robust, solid MDF (medium density fiberboard)
enclosure is covered with a durable, easy-to-clean vinyl in a
choice of black or white. The ABS front is covered with fine
woven cloth in matching color.
Certifications and Approvals
All Bosch loudspeakers are designed to withstand operating
at their rated power for 100 continuous hours in
accordance with IEC 268-5 Power Handling Capacity (PHC)
standards. Bosch has also developed the Simulated
Acoustical Feedback Exposure (SAFE) test to demonstrate
that they can withstand two times their rated power for
short durations. This ensures improved reliability under
extreme conditions, leading to higher customer
satisfaction, longer operating life, and lessens the chance
of failure or performance deterioration.
Safety according to EN 60065
▶ Excellent speech intelligibility and music reproduction
▶ Finished in black or white
▶ MDF construction
▶ Mounting brackets for wall or ceiling mounting
▶ Complies with international installation and safety
regulations
Installation/Configuration Notes
Two rear panel mounting brackets provide easy and quick
wall or ceiling mounting. If not desired, they can be
removed, and the unit can be wall mounted using the three
keyholes in the rear panel.
A convenient, easy-to-use, 4-pole push-in terminal block is
mounted on the rear panel for on-site wiring. This terminal
block provides for power tapping on the 70‑volt matching
transformer in the cabinet. It allows selection of nominal
full-power, half-power or quarter-power radiation (in 3 dB
steps).
