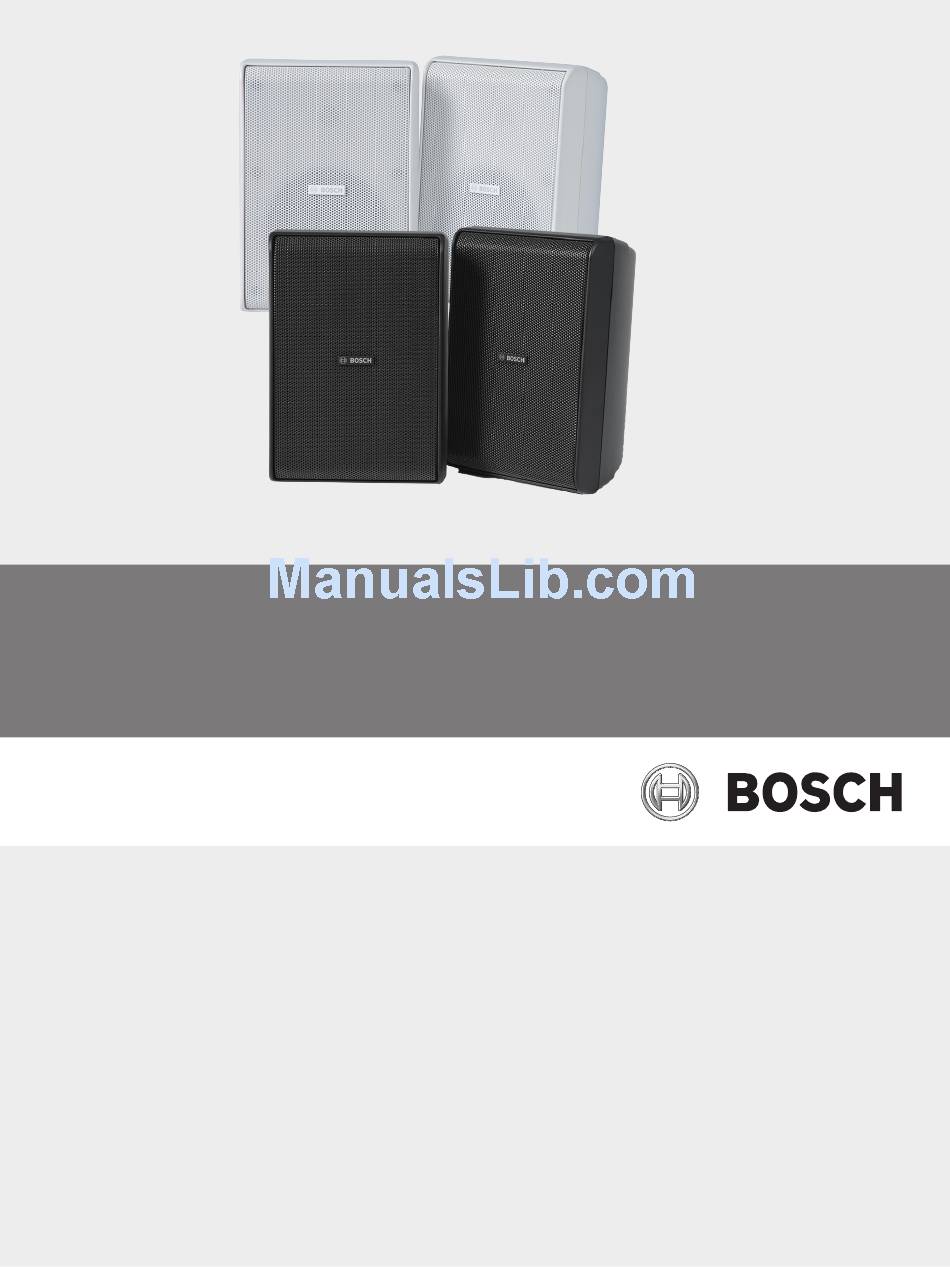

- Page 1 LB20 EVAC Cabinet Loudspeaker Models LB20-PC60EW-5D | LB20-PC60EW-5L Installation manual...
- Page 3 Product information Packing list Installation and wiring Installing the speaker U-Bracket installation options Wiring Transformer taps Replacing the logo Troubleshooting Technical data Dimensions Frequency response and impedance U-Bracket dimensions Bosch Security Systems B.V. Installation manual 2017.09 | V.02 | F.01U.345.361...
-
Page 4: Safety
The user is responsible for making sure the wall, ceiling, or structure is capable of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker not associated with Bosch is the responsibility of others. -
Page 5: Introduction
LB20 EVAC Cabinet Loudspeaker Models Introduction | en Introduction The LB20 premium cabinet loudspeakers from Bosch Security Systems, Inc is a line of compact, high-performance, two-way, full-range surface mount loudspeakers with excellent wide and uniform coverage, and outstanding performance. Their design makes these... -
Page 6: Packing List
U-bracket Weather covers Weather cover screws Grille logos (spares) Installation manual Tab. 2.2: Components list A (x2) C (x4) D (x2) E (x2) F (x8) G (x2) Figure 2.2: Components list 2017.09 | V.02 | F.01U.345.361 Installation manual Bosch Security Systems B.V. -
Page 7: Installation And Wiring
Loosely tighten the two screws using the Allen wrench (provided). Aim the speaker. Tighten the two screws to secure the U-Bracket to the speaker. Ensure the speaker is secured to the U-Bracket. Bosch Security Systems B.V. Installation manual 2017.09 | V.02 | F.01U.345.361... -
Page 8: U-Bracket Installation Options
Wiring, page 9 U-Bracket installation options Using a U-Bolt The U-Bracket can be mounted using a standard 2-inch or 4-inch U-Bolt. Figure 3.2: U-Bolt — 2-inch Figure 3.3: U-Bolt — 4-inch 2017.09 | V.02 | F.01U.345.361 Installation manual Bosch Security Systems B.V. - Page 9 The speaker can be wired using either 2-wires, for input only, or 4-wires, for input and parallel output. Reference the polarity markers on the Euroblock. To wire the speaker using the weather cover, do the following: Bosch Security Systems B.V. Installation manual 2017.09 | V.02 | F.01U.345.361...
-
Page 10: Transformer Taps
Configuring the transformer settings To configure the transformer settings, do the following: Select the desired power tap by using the rotary switch on the input panel. 2017.09 | V.02 | F.01U.345.361 Installation manual Bosch Security Systems B.V. -
Page 11: Replacing The Logo
Remove the existing logo. Clean the surface with alcohol. Align the logo with the square guide. Remove the paper backing. Insert the logo. Press firmly to ensure the logo is applied. Bosch Security Systems B.V. Installation manual 2017.09 | V.02 | F.01U.345.361... -
Page 12: Troubleshooting
Evaluate each component Hissing, Humming Device as necessary to isolate the problem. Poor System Check and correct the system grounding, as required. Grounding or Ground Loop 2017.09 | V.02 | F.01U.345.361 Installation manual Bosch Security Systems B.V. -
Page 13: Technical Data
Included hardware: U-Bracket, 5-mm Allen wrench and input cover Packaged quantity: 2 Half space (wall mounting). Half space (on wall) averaged 100 Hz – 10 kHz, 1 W. Without U-Bracket. Bosch Security Systems B.V. Installation manual 2017.09 | V.02 | F.01U.345.361... -
Page 14: Frequency Response And Impedance
171.1 mm [6.74 in] 255.0 mm [10.04 in] 150.1 mm [5.91 in] 195.1 mm [7.68 in] Figure 5.1: LB20-PC60EW-5 dimensions Frequency response and impedance Figure 5.2: LB20-PC60EW-5 frequency response and impedance 2017.09 | V.02 | F.01U.345.361 Installation manual Bosch Security Systems B.V. -
Page 15: U-Bracket Dimensions
30.2 mm [1.19 in] 4.0 X 7.25 SLOT 55.6 mm [2.19 in] ∅10.5 mm [∅0.413 in] 99.3 mm [ 3.91 in] ∅10.5 mm [∅0.413 in] 4.0 X 7.25 SLOT Bosch Security Systems B.V. Installation manual 2017.09 | V.02 | F.01U.345.361... - Page 16 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2017...
