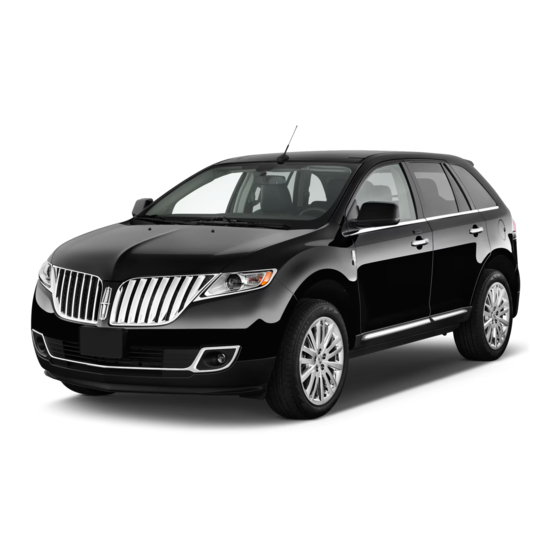

Lincoln MKX 2014 Owner's Manual

Table of Contents

Quick Links

Download this manual

2 0 1 4 M K X

O w n e r ' s M a n u a l

lincolnowner.com

lincolncanada.com

October 2013

First Printing

Owner's Manual

Lincoln MKX

Litho in U.S.A.

EA1J 19A321 AA

Table of Contents

Summary of Contents for Lincoln MKX 2014

Page 1 2 0 1 4 M K X O w n e r ’ s M a n u a l lincolnowner.com lincolncanada.com October 2013 First Printing Owner’s Manual Lincoln MKX Litho in U.S.A. EA1J 19A321 AA...
Page 2: Table Of Contents
Table of Contents Introduction Child Safety Child seat positioning ........19 Booster seats .
Page 3 Table of Contents MyKey Settings, MyKey ........63 Creating.
Page 4: Table Of Contents
Table of Contents Windows and Mirrors Power windows ........94 Exterior mirrors .
Page 5 Table of Contents Starting and Stopping the Engine Engine block heater ........149 Fuel and Refueling Fuel quality .
Page 6: Table Of Contents
Table of Contents Driving Aids Blind Spot Information System (BLIS) with Cross Traffic Alert (CTA) ..........194 Collision warning system .
Page 7 Table of Contents Maintenance General information ........249 Opening and closing the hood .
Page 8: Table Of Contents
Table of Contents Wheels and Tires Tire care ......... . .284 Using snow chains .
Page 9 Table of Contents Appendices Scheduled Maintenance Normal scheduled maintenance and log .....431 Index The information contained in this publication was correct at the time of going to print.
Page 10: Introduction
Introduction ABOUT THIS MANUAL Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.
Page 11 Introduction SYMBOL GLOSSARY WARNING: You risk death or serious injury to yourself and others if you do not follow the instruction highlighted by the warning symbol. These are some of the symbols you may see on your vehicle. Symbol Description Symbol Description Symbol Description Safety alert...
Page 12 Introduction Symbol Description Symbol Description Symbol Description Fuel pump Fuse Hazard reset compartment warning flasher Heated rear Interior Jack window luggage compartment release Lighting Low tire Maintain control pressure correct fluid warning level Panic alarm Parking aid Parking system brake system Power Power Power...
Page 13 Introduction DATA RECORDING Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems.
Page 14 Introduction Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, Directions and Information privacy below).
Page 15 LINCOLN AUTOMOTIVE FINANCIAL SERVICES (U.S. ONLY) Lincoln Automotive Financial Services offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Lincoln Automotive Financial Services, thank you for your business.
Page 16 Introduction Scheduled Maintenance and Mechanical Repairs One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this owner’s manual.
Page 17 Introduction MOBILE COMMUNICATIONS EQUIPMENT Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations.
Page 18: Child Safety
Child Safety GENERAL INFORMATION See the following sections for directions on how to properly use safety restraints for children. WARNING: Always make sure your child is secured properly in a device that is appropriate for their height, age and weight. Child safety restraints must be bought separately from your vehicle.
Page 19 Child Safety Recommendations for Safety Restraints for Children Child size, height, weight, or Recommended restraint type Infants Children weighing 40 lb (18 kg) or Use a child safety seat less (generally age four or (sometimes called an toddlers younger). infant carrier, convertible seat, or toddler seat).
Page 20: Child Seat Positioning
Child Safety CHILD SEAT POSITIONING WARNING: Airbags can kill or injure a child in a child seat. Never place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat upon which the child seat is installed all the way back.
Page 21 Child Safety WARNING: Never place, or allow a child to place, the shoulder belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash. WARNING: To avoid risk of injury, do not leave children or pets unattended in your vehicle.
Page 22: Booster Seats
Child Safety BOOSTER SEATS WARNING: Never place, or allow a child to place, the shoulder belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.
Page 23 Child Safety Types of Booster Seats • Backless booster seats If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child’s head (as measured at the tops of the ears) above the top of the seat.
Page 24 Child Safety Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder.
Page 25: Installing Child Seats
Child Safety INSTALLING CHILD SEATS Child Seats Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers or children weighing 40 pounds (18 kilograms) or less (generally age four or younger). Using Lap and Shoulder Belts WARNING: Airbags can kill or injure a child in a child seat.
Page 26 Child Safety • Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling. • Place the vehicle seat upon which the child seat will be installed in the upright position.
Page 27 Child Safety 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted. 4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until...
Page 28 Child Safety 8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that will exist once the extra weight of the child is added to the child restraint.
Page 29 Child Safety Using Lower Anchors and Tethers for CHildren (LATCH) WARNING: Never attach two child safety seats to the same anchor. In a crash, one anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death.
Page 30 Child Safety The LATCH anchors are located at the rear section of the rear seat between the cushion and seatback below the symbols as shown. Follow the child seat manufacturer’s instructions to properly install a child seat with LATCH attachments. Follow the instructions on attaching child safety seats with tether straps.
Page 31 Child Safety Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety Seats When used in combination, either the safety belt or the LATCH lower anchors may be attached first, provided a proper installation is achieved. Attach the tether strap afterward, if included with the child seat. Using Tether Straps Many forward-facing child safety seats include a tether strap which extends from the back of the child safety seat and hooks...
Page 32 Child Safety 2. Locate the correct anchor behind the gap cover for the selected seating position. 3. Pull the gap cover to expose the anchors. Clip the tether strap to the anchor as shown. 4. Tighten the child safety seat tether strap according to the manufacturer’s instructions.
Page 33: Child Safety Locks
Child Safety CHILD SAFETY LOCKS The childproof locks are located on the rear edge of each rear door and must be set separately for each door. When these locks are set, the rear doors cannot be opened from the inside. •...
Page 34: Safety Belts
Safety Belts PRINCIPLES OF OPERATION WARNING: Never let a passenger hold a child on his or her lap while your vehicle is moving. The passenger cannot protect the child from injury in a crash. WARNING: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle.
Page 35 Safety Belts WARNING: When possible, all children 12 years old and under should be properly restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death. WARNING: Safety belts and seats can become hot in a vehicle that has been closed up in sunny weather;...
Page 36: Fastening The Safety Belts
Safety Belts FASTENING THE SAFETY BELTS The front outboard and rear safety restraints in your vehicle are combination lap and shoulder belts. 1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch.
Page 37 Safety Belts To adjust the comfort guide: 1. Slip the shoulder belt into the belt guide. 2. Slide the guide up or down along the webbing so that the belt is centered on the occupant’s shoulder. Restraint of Pregnant Women WARNING: Always ride and drive with your seatback upright and the safety belt properly fastened.
Page 38 Safety Belts WARNING: The belt and retractor assembly must be replaced if the safety belt assembly automatic locking retractor feature or any other safety belt function is not operating properly when checked by an authorized dealer. Failure to replace the belt and retractor assembly could increase the risk of injury in crashes.
Page 39 Safety Belts How to Use the Automatic Locking Mode 1. Buckle the combination lap and shoulder belt. 2. Grasp the shoulder portion and pull downward until the entire belt is pulled out. 3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound.
Page 40: Safety Belt Height Adjustment
Safety Belts SAFETY BELT HEIGHT ADJUSTMENT WARNING: Position the safety belt height adjusters so that the belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a crash. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.
Page 41: Safety Belt-Minder
Safety Belts SAFETY BELT-MINDER® This feature supplements the safety belt warning function by providing additional reminders by intermittently sounding a chime and illuminating the safety belt warning light when the driver’s or front passenger’s seat is occupied and the safety belt is unbuckled. The system uses information from the front passenger sensing system to determine if a front seat passenger is present and therefore potentially in need of a warning.
Page 42 Safety Belts Deactivating and Activating the Belt-Minder® Feature WARNING: While the system allows you to deactivate it, this system is designed to improve your chances of being safely belted and surviving an accident. We recommend you leave the system activated for yourself and others who may use the vehicle. To reduce the risk of injury, do not deactivate or activate the system while driving the vehicle.
Page 43: Child Restraint And Safety Belt Maintenance
Safety Belts One-time Belt-Minder® Disable If at any time the driver or front passenger quickly buckles then unbuckles the safety belt for that seating position, the system is disabled for the current ignition cycle. The feature will enable during the same ignition cycle if the occupant buckles and remains buckled for about 30 seconds.
Page 44: Personal Safety System
Personal Safety System PERSONAL SAFETY SYSTEM™ The Personal Safety System provides an improved overall level of frontal crash protection to front seat occupants and is designed to help further reduce the risk of airbag-related injuries. The system is able to analyze different occupant conditions and crash severity before activating the appropriate safety devices to help better protect a range of occupants in a variety of frontal crash situations.
Page 45: Supplementary Restraints System
Supplementary Restraints System PRINCIPLES OF OPERATION WARNING: Airbags do not inflate slowly or gently, and the risk of injury from a deploying airbag is the greatest close to the trim covering the airbag module. WARNING: All occupants of your vehicle, including the driver, should always properly wear their safety belts, even when an airbag supplemental restraint system is provided.
Page 46 Supplementary Restraints System The airbags are a supplemental restraint system and are designed to work with the safety belts to help protect the driver and right front passenger from certain upper body injuries. Airbags do not inflate slowly; there is a risk of injury from a deploying airbag. Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys.
Page 47: Driver And Passenger Airbags
Supplementary Restraints System DRIVER AND PASSENGER AIRBAGS WARNING: Never place your arm or any objects over an airbag module. Placing your arm over a deploying airbag can result in serious arm fractures or other injuries. Objects placed on or over the airbag inflation area may cause those objects to be propelled by the airbag into your face and torso causing serious injury.
Page 48 Supplementary Restraints System Proper Driver and Front Passenger Seating Adjustment WARNING: The National Highway Traffic Safety Administration recommends a minimum distance of at least 10 inches (25 centimeters) between an occupant’s chest and the driver airbag module. Failure to follow this could seriously increase the risk of injury or death.
Page 49: Front Passenger Sensing System
Supplementary Restraints System FRONT PASSENGER SENSING SYSTEM WARNING: Even with Advanced Restraints Systems, children 12 and under should be properly restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death. WARNING: Sitting improperly out of position or with the seat back reclined too far can take off weight from the seat cushion and affect the decision of the front passenger sensing system, resulting in serious injury or death in a crash.
Page 50 Supplementary Restraints System The front passenger sensing system uses a passenger airbag status indicator which will illuminate indicating that the front passenger frontal airbag is either ON (enabled) or OFF (disabled). The indicator lamp is located in the center stack of the instrument panel.
Page 51 Supplementary Restraints System • Restart the vehicle and have the person remain in this position for about two minutes. This will allow the system to detect that person and enable the passenger’s frontal airbag. • If the indicator OFF lamp remains lit even after this, the person should be advised to ride in the rear seat.
Page 52 Supplementary Restraints System The conditions listed above may cause the weight of a properly seated occupant to be incorrectly interpreted by the front passenger sensing system. The person in the front passenger seat may appear heavier or lighter due to the conditions described in the previous list. Make sure the front passenger sensing system is operating properly.
Page 53: Side Airbags
Supplementary Restraints System SIDE AIRBAGS WARNING: Do not place objects or mount equipment on or near the airbag cover, on the side of the seatbacks (of the front seats), or in front seat areas that may come into contact with a deploying airbag.
Page 54: Safety Canopy Curtain Airbags
Supplementary Restraints System The system consists of the following: • A fabric tag or embossed letters in the plastic trim on the seat with the word AIRBAG. • Side airbags located inside the seatback of the driver and front passenger seats. •...
Page 55 Supplementary Restraints System WARNING: All occupants of your vehicle including the driver should always wear their safety belts even when an airbag supplemental restraint system and curtain airbag is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.
Page 56: Crash Sensors And Airbag Indicator
Supplementary Restraints System Children 12 years old and under should always be properly restrained in the rear seats. The Safety Canopy will not interfere with children restrained using a properly installed child or booster seat because it is designed to inflate downward from the headliner above the doors along the side window opening.
Page 57: Airbag Disposal
Supplementary Restraints System If any of these things happen, even intermittently, have the supplemental restraint system serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a crash. The safety belt pretensioners and the airbag supplemental restraint system are designed to activate when the vehicle sustains frontal or sideways deceleration sufficient to cause the restraints control module to deploy a safety device or when a certain likelihood of a rollover event is...
Page 58: Keys And Remote Control
Keys and Remote Control GENERAL INFORMATION ON RADIO FREQUENCIES This device complies with part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 59: Remote Control
Keys and Remote Control REMOTE CONTROL Intelligent Access Key Your intelligent access keys operate the power locks and the remote start system. The key must be in your vehicle to activate the push-button start system. The intelligent access key also contains a removable mechanical key blade that you can use to unlock the driver door.
Page 60 Keys and Remote Control Intelligent Access Transmitter 1. Remove the backup key from the transmitter. 2. Twist a thin coin under the tab hidden behind the backup key head to remove the battery cover. Do not use the backup key to remove the cover or you could damage the intelligent access key.
Page 61 Keys and Remote Control 3. Press and hold memory button 1 for about five seconds. A tone will sound after about two seconds. Continue to hold until you hear a second tone. 4. Press the lock button on the remote control within three seconds.
Page 62 Keys and Remote Control Vehicles with automatic climate control can be configured to operate when the vehicle is remote started. See the Climate Control chapter for more information. A manual climate control system will run at the setting it was set to when your vehicle was last turned off. Many states and provinces have restrictions for the use of remote start.
Page 63: Replacing A Lost Key Or Remote Control
Keys and Remote Control The parking lamps will remain on and your vehicle will run for 5, 10, or 15 minutes, depending on the setting. See the Information Displays chapter to select the duration of the remote start system. Extending the Vehicle Run Time Repeat Steps 1 and 2 with your vehicle still running to extend the run time for another remote start duration.
Page 64: Mykey
MyKey PRINCIPLES OF OPERATION MyKey allows you to program keys with restricted driving modes to promote good driving habits. All but one of the keys programmed to the vehicle can be activated with these restricted modes. Any keys that have not been programmed are referred to as administrator keys or admin keys.
Page 65: Creating
MyKey • Audio system maximum volume of 45%. A message will be shown in the display when you attempt to exceed the limited volume. Also, the speed-sensitive or compensated automatic volume control will be disabled. • Always on setting. When this is selected, you will not be able to turn off AdvanceTrac (if your vehicle is equipped with this feature).
Page 66: Clearing
MyKey Note:You can clear or change your MyKey settings at any time during the same key cycle as you created the MyKey. Once you have switched the engine off, however, you will need an admin key to change or clear your MyKey settings.
Page 67: Troubleshooting, Mykey
MyKey MYKEY TROUBLESHOOTING Condition Potential causes • The key or fob used to start the vehicle I cannot create a MyKey. does not have admin privileges. • The key or fob used to start the vehicle is the only admin key (there always has to be at least one admin key).
Page 68: Locks
Locks LOCKING AND UNLOCKING You can use the power door lock control or the remote control to lock and unlock your vehicle. Power Door Locks The power door lock control is located on the driver and front passenger door panels. A.
Page 69 Locks Note: If any door or the luggage compartment is open, or if the hood is open on vehicles with an anti-theft alarm or remote start, the horn sounds twice and the lamps will not flash. Power Liftgate WARNING: Make sure all persons are clear of the liftgate area before using power liftgate control.
Page 70 Locks At the Liftgate Press the exterior liftgate release button on the top of the liftgate pull-cup handle. Smart Unlocks The smart unlock feature is intended to prevent you from unintentionally locking your intelligent access key inside your vehicle’s passenger compartment or rear cargo area.
Page 71 Locks Autounlock Feature (If Enabled) The autounlock feature unlocks all the doors when: • the ignition is on, all the doors are closed, and your vehicle has been in motion at a speed greater than 12 mph (20 km/h); • your vehicle has then come to a stop and you switch the off ignition or to accessory;...
Page 72 Locks Battery Saver If you leave the courtesy lamps, dome lamps or headlamps on, the battery saver shuts them off 10 minutes after you switch the ignition off. Accessory Mode Battery Saver for Intelligent Access Keys If you leave your vehicle in the run ignition state, it will shut off once it detects a certain amount of battery drain or after 45 minutes.
Page 73 Locks Opening and Closing the Power Liftgate Note: You can reverse the liftgate movement direction with a second press of the instrument panel button or the button on the liftgate, or a second double press of the transmitter button. The liftgate will only operate with the vehicle in P. Three tones will sound as the liftgate begins to power close.
Page 74 Locks Obstacle Detection When closing: The system will reverse to full open when it detects an obstacle. A chime will sound three times as the liftgate begins to reopen. Remove the obstacle to close the liftgate. Note: Entering your vehicle while the liftgate is closing can cause your vehicle to bounce and activate obstacle detection.
Page 75: Securicode™ Keyless Entry Keypad
Locks Note: Do not hang anything, for example a bike rack, from the spoiler, glass or liftgate. This could damage the liftgate and its components. Note: Do not leave the liftgate open while driving. This could damage to the liftgate and its components. The liftgate area is only intended for cargo, not passengers.
Page 76 Locks Programming a Personal Entry Code To create your own personal entry code: 1. Enter the factory-set code. 2. Press the 1•2 on the keypad within five seconds. 3. Enter your personal 5-digit code. You must enter each number within five seconds of each other.
Page 77 Locks Anti-Scan Feature The keypad will go into an anti-scan mode if you enter the wrong code seven times (35 consecutive button presses). This mode disables the keypad for one minute and the keypad lamp will flash. The anti-scan feature will turn off after: •...
Page 78: Security
Security SECURILOCK® PASSIVE ANTI-THEFT SYSTEM Note: The system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Note: Metallic objects, electronic devices or a second coded key on the same key chain may cause vehicle starting issues if they are too close to the key when starting your vehicle.
Page 79 Security Programming a Spare Intelligent Access Key Note: A maximum of four intelligent access keys can be programmed to your vehicle. You must take your vehicle and all access keys to your authorized dealer to be erased and reprogrammed if you would like to replace a previously programmed access key with a new access key, or if you already have four access keys programmed to your vehicle.
Page 80: Anti-Theft Alarm
Security 8. Verify that the remote entry functions operate (press lock then unlock, making sure you end in unlock) and that the vehicle starts with new intelligent access key. ANTI-THEFT ALARM The system will warn you of unauthorized entry to your vehicle. The turn signal lamps will flash and sound the horn up to a total of 10 times when: •...
Page 81: Steering Wheel
Steering Wheel ADJUSTING THE STEERING WHEEL WARNING: Do not adjust the steering wheel when your vehicle is moving. Note: Make sure that you are sitting in the correct position. See Sitting in the Correct Position in the Seats chapter. 1. Unlock the steering column. 2.
Page 82 Steering Wheel Use the control on the side of the steering column to adjust the position. To adjust: • tilt: press the top or bottom of the control • telescope: press the front or rear of the control. Easy Entry and Exit Feature When you switch the ignition off, the steering column will move to the full up and forward position to allow extra room to exit your vehicle.
Page 83: Steering Wheel Controls
Steering Wheel AUDIO CONTROL SEEK: Press to select the next or previous stored preset or track. Press and hold to select the next or previous frequency or seek through a track. MEDIA: Press repeatedly to scroll through available audio modes. MUTE: Press to silence the radio.
Page 84 Steering Wheel CRUISE CONTROL Type 1 Type 2 CNCL See the Cruise Control chapter for information on this feature. INFORMATION DISPLAY CONTROL See the Information Displays chapter for more information. 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 85 Steering Wheel Cluster Display Control Features Use this control to adjust the right side of the cluster display. Navigate through the screen and press OK to select. See the MyLincoln Touch chapter. HEATED STEERING WHEEL (IF EQUIPPED) See the MyLincoln Touch chapter. 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 86: Wipers And Washers
Wipers and Washers WINDSHIELD WIPERS Note: Fully defrost the windshield in icy conditions before turning on the windshield wipers. Note: Make sure the windshield wipers are switched off before entering a car wash. Note: Clean the windshield and wiper blades if they begin to leave streaks or smears.
Page 87: Windshield Washers
Wipers and Washers Keep the outside of the windshield clean, especially the area around the interior mirror where the sensor is located, or sensor performance may be affected. WINDSHIELD WASHERS Note: Do not operate the wipers on a dry windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to burn out.
Page 88: Lighting
Lighting LIGHTING CONTROL A. Off B. Parking lamps, instrument panel lamps, license plate lamps and tail lamps C. Headlamps High Beams Push the lever forward to switch the high beams on. Push the lever forward again or pull the lever toward you to switch the high beams off.
Page 89: Instrument Lighting Dimmer
Lighting The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. The headlamps will remain on for a period of time after you switch the ignition off. You can adjust the time delay using the message center in the instrument cluster.
Page 90: Daytime Running Lamps
Lighting 7. Turn the lighting control to the off position when the desired delay time has been reached. The headlamps and parking lamps will turn off. You can set the headlamp exit delay to one of the following settings: • Off •...
Page 91: Front Fog Lamps
Lighting FRONT FOG LAMPS The fog lamps can be turned on when the lighting control is in the headlamps, parking lamps or autolamps positions and the high beams are not turned on. ADAPTIVE HEADLAMPS (if equipped) The headlamp beams move in the same direction as the steering wheel which provides more visibility when driving around curves.
Page 92: Direction Indicators
Lighting The system will only work with the lighting control switch in the autolamp position. Note: There is a delay of two to five seconds before the adaptive headlamp system will operate when the vehicle is driven. Note: The system is only active at speeds above 3 mph (5 km/h).
Page 93: Interior Lamps
Lighting INTERIOR LAMPS Dome Lamp Control Without fog lamps With fog lamps Use to manually turn the dome lamp on. • Press the control. This will turn on the interior courtesy lights. The lights will remain on until the control is pressed again. 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 94 Lighting Front Row Map Lamps (If Equipped) To turn on the map lamps, press the outer edge of the clear lens. The front row map lamp lights when: • any door is opened. • the dome lamp button on the instrument panel is activated.
Page 95: Windows And Mirrors
Windows and Mirrors POWER WINDOWS WARNING: Do not leave children unattended in your vehicle and do not let children play with the power windows. They may seriously injure themselves. WARNING: When closing the power windows, you should verify they are free of obstructions and make sure that children and pets are not in the proximity of the window openings.
Page 96 Windows and Mirrors Bounce-Back The window will stop automatically while closing and reverse some distance if there is an obstacle in the way. Overriding the Bounce-Back Feature WARNING: When you override the bounce-back feature the window will not reverse if it detects an obstacle. Take care when closing the windows to avoid personal injury or damage to your vehicle.
Page 97: Exterior Mirrors
Windows and Mirrors EXTERIOR MIRRORS Power Exterior Mirrors WARNING: Do not adjust the mirror while your vehicle is in motion. A. Left mirror B. Off C. Right mirror To adjust your mirrors: 1. Select the mirror you want to adjust. 2.
Page 98 Windows and Mirrors Integrated Blind Spot Mirrors (If Equipped) WARNING: Objects in the blind spot mirror are closer than they appear. Blind spot mirrors have an integrated convex mirror built into the upper outboard corner of the exterior mirrors. They are designed to assist you by increasing visibility along the side of your vehicle.
Page 99: Interior Mirrors
Windows and Mirrors INTERIOR MIRROR WARNING: Do not adjust the mirror when your vehicle is moving. Note: Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum or ammonia based cleaning products. You can adjust the interior mirror to your preference. Some mirrors also have a second pivot point.
Page 100: Moonroof
Windows and Mirrors Illuminated Visor Vanity Mirror Lift the cover to switch on the lamp. PANORAMIC VISTA ROOF® AND POWER SUNSHADES (IF EQUIPPED) WARNING: Do not let children play with the panoramic Vista Roof® and power sunshade or leave children unattended in the vehicle.
Page 101: Moonroof
Windows and Mirrors Opening the Sunshade and Moonroof Note: The moonroof will only open after sunshades are completely open. Press and release the control to open the sunshade. The front and rear sunshades open simultaneously. Press and release the control to open the moonroof. The moonroof will stop short of the fully opened position.
Page 102: Instrument Cluster
Instrument Cluster GAUGES Cluster shown in standard measure – metric clusters similar. A. Left information display. See Information displays for more information. B. Speedometer C. Right information display. See MyLincolnTouch™ for more information. WARNING LAMPS AND INDICATORS These lights can alert you to a vehicle condition that may become serious enough to cause expensive repairs.
Page 103 Instrument Cluster Adaptive cruise control (if equipped) (RTT) The speed control system indicator light changes color to indicate what mode the system is in: • On (gray light): Illuminates when the adaptive cruise control system is turned on. Turns off when the speed control system is turned off.
Page 104 Instrument Cluster Charging system (RTT) Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.
Page 105 Instrument Cluster High beams Illuminates when the high-beam headlamps are on. Low fuel (RTT) Illuminates when the fuel level in the fuel tank is at or near empty. Low tire pressure warning Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked.
Page 106 Instrument Cluster Service engine soon The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the “service engine soon” light will stay on until the engine is cranked, then turn itself off if no malfunctions are present.
Page 107: Audible Warnings And Indicators
Instrument Cluster Stability Control System Displays when the AdvanceTrac®/Traction control is active. If the light remains on, have the system serviced immediately. Stability Control System Off Illuminates when AdvanceTrac®/Traction control has been disabled by the driver. AUDIBLE WARNINGS AND INDICATORS Key In Ignition Warning Chime Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.
Page 108: Information Displays
Information Displays GENERAL INFORMATION WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
Page 109 Information Displays • Settings Scroll up/down to highlight one of the categories, then press the right arrow key or OK to enter into that category. Press the left arrow key as needed to exit back to the main menu. Display Mode Use the up/down arrow buttons to choose between the following display options.
Page 110 Information Displays • Bar/Round tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. During SelectShift Automatic™ transmission (SST) use, the currently selected gear will appear in the display.
Page 111 Information Displays Fuel Economy Use the left/right arrow buttons to choose the desired fuel economy display. Fuel Economy Inst. Fuel XX. Min Fuel Fuel Economy Economy History Instantaneous fuel usage Fuel usage over a 30 minute time span Average MPG Always Present XXX mi (km) to Always Present...
Page 112 Information Displays Settings In this mode, you can configure different driver setting choices. Note: Some items are optional and may not appear. Settings Vehicle Normal or Towing Calculation Easy Entry/Exit — check enabled (default) / uncheck disabled Lighting Autolamp Off or number of seconds Delay Locks Autolock —...
Page 113 Information Displays Settings (cont’d) *MyKey Create Press and hold OK to create MyKey MyKey 911 Assist Always On / User Selectable Traction Always On / User Selectable Control Max Speed Choose desired speed or off Speed Choose desired speed or off Warning Volume On / Off...
Page 114: Information Messages
Information Displays INFORMATION MESSAGES Note: Depending on the vehicle options equipped with your vehicle, not all of the messages will display or be available. Certain messages may be abbreviated or shortened depending upon which cluster type you have. Press the OK button to acknowledge and remove some messages from the information display.
Page 115 Information Displays Alarm/Security Action / Description Messages To Stop Alarm, Start Displayed when the perimeter alarm system is Vehicle armed and the vehicle is entered using the key on the driver’s side door. In order to prevent the perimeter alarm system from triggering, the ignition must be turned to start or on before the 12 second chime expires.
Page 116 Information Displays Battery and Action / Description Charging System Messages Check Charging Displayed when the charging system needs System servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. Turn Power Off to Displayed when the battery management Save Battery system determines that:...
Page 117 Information Displays BLIS® Messages Action / Description Cross Traffic System Displayed when a fault with the cross traffic Fault alert system has occurred. Contact your authorized dealer as soon as possible. Vehicle Coming From Displayed when the blind spot information system with cross traffic alert (CTA) system is operating and senses a vehicle.
Page 118 Information Displays Collision Warning Action / Description System Messages Collision Warning Displayed when there is a system malfunction Malfunction with the collision warning system. The system will be disabled. Contact your authorized dealer as soon as possible. Collision Warning Displayed when there is a system malfunction Display Fault with the collision warning system display.
Page 119 Information Displays Keys and Intelligent Action / Description Access Messages No Key Detected Displayed if the intelligent access key is not detected by the system in the following three scenarios: •When the start/stop button is pressed in an attempt to either start the engine or cycle through the ignition states.
Page 120 Information Displays Maintenance Action / Description Messages LOW Engine Oil Stop the vehicle as soon as safely possible, Pressure turn off the engine. Check the oil level. If the warning stays on or continues to come on with your engine running, contact your authorized dealer as soon as possible.
Page 121 Information Displays MyKey® Messages Action / Description Vehicle Near MyKey Displayed when a MyKey® is in use and the Top Speed MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Vehicle Near MyKey Displayed when a MyKey® is in use and the Top Speed MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h).
Page 122 Information Displays Reminder Messages Action / Description Steering Lock Turn Displays when you need to turn the steering Wheel to Unlock wheel in order to disengage the steering lock. Shift to Park Displayed when the engine is turned off and shift select lever is in any position other than P (Park).
Page 123: Climate Control
Climate Control DUAL AUTOMATIC TEMPERATURE CONTROL SYSTEM DUAL TEMP AUTO Note: You can switch temperature units between Fahrenheit and Celsius. See Settings in the MyLincoln Touch chapter. A. MyTemp: Allows you to quickly adjust to a frequently used setting with a single touch. Press + and - to increase and decrease the temperature.
Page 124 Climate Control F. A/C: Press to turn air conditioning off and on. Air conditioning cools the vehicle using outside air. To improve air conditioning when starting your vehicle, drive with the windows slightly open for two to three minutes. Use air conditioning with recirculated air to improve cooling performance and efficiency.
Page 125: Rear Window Defroster
Climate Control During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the air conditioning in the MAX A/C mode, adjust the blower fan speed to the lowest setting and put the vehicle’s transmission into position P to continue to receive cool air from your air conditioning system.
Page 126: Cabin Air Filter
Climate Control CABIN AIR FILTER Note: A cabin air filter must be installed at all times to prevent foreign objects from entering the system. Running the system without a filter in place could result in degradation or damage to the system. Your vehicle is equipped with a filter;...
Page 127 Climate Control Automatic Climate Systems Automatic Settings You can set the climate control to operate in AUTO mode through the information display setting: Remote Start > Climate Control > Heater – A/C > Auto. The climate control system automatically sets the interior temperature to 72°F (22°C).
Page 128: Seats
Seats SITTING IN THE CORRECT POSITION WARNING: Sitting improperly out of position or with the seat back reclined too far can take off weight from the seat cushion and affect the decision of the passenger sensing system, resulting in serious injury or death in a crash. Always sit upright against your seat back, with your feet on the floor.
Page 129: Head Restraints
Seats • Position the shoulder strap of the safety belt over the center of your shoulder and position the lap strap tightly across your hips. Make sure that your driving position is comfortable and that you can maintain full control of your vehicle. HEAD RESTRAINTS WARNING: To minimize the risk of neck injury in the event of a crash, the driver and passenger occupants should not sit in or...
Page 130 Seats Rear Seat Center Head Restraint The head restraints consist of: A. an energy absorbing head restraint B. two steel stems C. guide sleeve unlock and remove button D. guide sleeve adjust and release button To adjust the head restraint, do the following: •...
Page 131: Power Seats
Seats Tilting Head Restraints (If Equipped) The front head restraints may tilt for extra comfort. To tilt the head restraint, do the following: 1. Adjust the seatback to an upright driving or riding position. 2. Tilt the head restraint forward by gently pulling the top of the head restraint.
Page 132 Seats Power Lumbar 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 133: Memory Function
Seats MEMORY FUNCTION The memory control, located on the instrument panel, allows automatic positioning of the following features to two programmable positions: • Driver seat. • Power mirrors. • Optional power steering column. Programming a Memory Position 1. Switch the ignition on. 2.
Page 134: Heated And Ventilated Seats
Seats • you switch the keyless ignition off. The seat and steering wheel will move to their original positions when: • you place the transmission in position N or P, and • you switch the keyless ignition on. Turn the Easy Entry/Exit feature on or off through the information display settings menu.
Page 135 Seats Ventilated Seats The ventilated seats will only function when the engine is running. To operate the ventilated seats: Press the ventilated seat symbol located on the touchscreen to cycle through the various cooling settings and off. Cooler settings are indicated by more indicator lights. If the engine falls below 350 RPM while the ventilated seats are on, the feature will turn itself off.
Page 136: Rear Seats
Seats REAR SEATS WARNING: To prevent possible damage to the seat or safety belts, make sure that the safety belts are not buckled when folding the seatback. • Reclining the seatback: With the seat occupied, pull the lever up to recline the seatback.
Page 137 Seats REAR SEAT ARMREST Fold the armrest down to use the armrest and cupholder. Lift up one of the slotted areas on the cover to access the cup holder. To close the armrest, close the cupholder cover and rotate the armrest rearward until the latch clicks.
Page 138 Seats • Operate the seat heater if water or any other liquid is spilled on the seat. Allow the seat to dry thoroughly. The rear seat heat controls are located on the rear door panels. The heated seats only operate when the ignition is on. To operate the heated seats: •...
Page 139: Universal Garage Door Opener
Universal Garage Door Opener HOMELINK® WIRELESS CONTROL SYSTEM (IF EQUIPPED) WARNING: Make sure that the garage door and security device are free from obstruction when you are programming. Do not program the system with the vehicle in the garage. WARNING: Do not use the system with any garage door opener that does not have the safety stop and reverse feature as required by U.S.
Page 140 Universal Garage Door Opener Programming Note: Put a new battery in the hand-held transmitter. This will ensure quicker training and accurate transmission of the radio-frequency signal. 1. With your vehicle parked outside of the garage and your key in the ignition, turn the key so that the ignition is in the on position.
Page 141 Universal Garage Door Opener After programming the HomeLink button, follow Steps 5 – 7 as listed below to program your garage door opener. Note: You may need a ladder to reach the unit and you may need to remove the cover or lamp lens on your garage door opener.
Page 142 Universal Garage Door Opener Programming HomeLink to a Genie Intellicode 2 garage door opener Note: The Genie Intellicode 2 transmitter must already be programmed to operate with the garage door opener. Programing the transmitters To program HomeLink to the transmitter you must first put the transmitter into programming mode.
Page 143 Universal Garage Door Opener Programming HomeLink to the Genie Intellicode garage door opener motor Note: You may need a ladder to access the garage door opener motor. To program HomeLink to the garage door opener motor: 1. Press and hold the PROGRAM button on the garage door opener motor until both blue LED’s turn on.
Page 144: Auxiliary Power Points
Auxiliary Power Points AUXILIARY POWER POINTS Note: Do not insert objects other than an accessory plug into the power point. This will damage the outlet and blow the fuse. Note: Do not hang any type of accessory or accessory bracket from the plug.
Page 145: Storage Compartments
Storage Compartments CENTER CONSOLE Stow items in the cupholder carefully as items may become loose during hard braking, acceleration or collisions, including hot drinks which may spill. Available console features include: A. Cupholders B. Cover: Two pen holders, travel tissue pack holder, and business card or paper holder.
Page 146: Starting And Stopping The Engine
Starting and Stopping the Engine GENERAL INFORMATION WARNING: Extended idling at high engine speeds can produce very high temperatures in the engine and exhaust system, creating the risk of fire or other damage. WARNING: Do not park, idle, or drive your vehicle on dry grass or other dry ground cover.
Page 147 Starting and Stopping the Engine Ignition Modes ENGINE START STOP Off: Turns the ignition off. • Without applying the brake pedal, press and release the button once when the ignition is in the on mode, or when the engine is running but the vehicle is not in motion.
Page 148 Starting and Stopping the Engine The system does not function if: • The key frequencies are jammed. • The key battery has no charge. If you are unable to start your vehicle, do the following: 1. Locate the key backup slot at the front of the center console storage compartment.
Page 149 Starting and Stopping the Engine Stopping the Engine When Your Vehicle Is Stationary 1. Move the transmission selector lever to position P. 2. Press the button once. 3. Apply the parking brake. Note: This switches off the ignition, all electrical circuits, warning lamps and indicators.
Page 150: Engine Block Heater
Starting and Stopping the Engine ENGINE BLOCK HEATER (IF EQUIPPED) WARNING: Failure to follow engine block heater instructions could result in property damage or physical injury. WARNING: Do not use your heater with ungrounded electrical systems or two-pronged (cheater) adapters. There is a risk of electrical shock.
Page 151 Starting and Stopping the Engine • Keep plug terminals clean and free of dirt and corrosion. • Make sure the heater system is checked for proper operation before winter. Using the Engine Block Heater Make sure the receptacle terminals are clean and dry before use. To clean them, use a dry cloth.
Page 152: Fuel And Refueling
Fuel and Refueling SAFETY PRECAUTIONS WARNING: Do not overfill the fuel tank. The pressure in an overfilled tank may cause leakage and lead to fuel spray and fire. WARNING: The fuel system may be under pressure. If you hear a hissing sound near the fuel filler inlet, do not refuel until the sound stops.
Page 153: Fuel Quality
Fuel and Refueling • Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes, remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury.
Page 154: Running Out Of Fuel
Fuel and Refueling Choosing the Right Fuel With a Flex Fuel Vehicle (If Equipped) Use only UNLEADED gasoline or UNLEADED gasoline blended with a maximum of 85% ethanol (E-85) in your Flex Fuel Vehicle (FFV). If your vehicle is flex fuel capable, it will have a yellow bezel placed over the fuel fill inlet.
Page 155 Fuel and Refueling • Normally, adding 1 gallon (3.8 liters) of fuel is enough to restart the engine. If the vehicle is out of fuel and on a steep grade, more than 1 gallon (3.8 liters) may be required. • The service engine soon indicator may come on. For more information on the service engine soon indicator, see Warning Lamps and Indicators in the Instrument Cluster chapter.
Page 156: Refueling
Fuel and Refueling REFUELING WARNING: Fuel vapor burns violently and a fuel fire can cause severe injuries. To help avoid injuries to you and others: • Read and follow all the instructions on the pump island. • Turn off your engine when you are refueling. •...
Page 157: Fuel Consumption
Fuel and Refueling 4. After you are done pumping fuel, wait about five seconds before slowly removing the fuel filler nozzle. This allows residual fuel to drain back into the fuel tank and not spill onto the vehicle. Note: A fuel spillage concern may occur if overfilling the fuel tank. Do not overfill the tank to the point that the fuel is able to bypass the fuel filler nozzle.
Page 158 Fuel and Refueling For consistent results when filling the fuel tank: • Turn the ignition off before fueling; an inaccurate reading results if the engine is left running. • Use the same fill rate (low–medium–high) each time the tank is filled. •...
Page 159 Fuel and Refueling Your vehicle is equipped with various emission control components and a catalytic converter which will enable your vehicle to comply with applicable exhaust emission standards. To make sure that the catalytic converter and other emission control components continue to work properly: •...
Page 160 Fuel and Refueling On-board Diagnostics (OBD-II) Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the on-board diagnostics system (OBD-II). The OBD-II system protects the environment by ensuring that your vehicle continues to meet government emission standards.
Page 161 Fuel and Refueling Readiness for Inspection/Maintenance (I/M) Testing Some state, provincial and local governments may have Inspection/Maintenance (I/M) programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. If the service engine soon indicator is on or the bulb does not work, the vehicle may need to be serviced.
Page 162: Transmission
Transmission AUTOMATIC TRANSMISSION WARNING: Always set the parking brake fully and make sure the gearshift is latched in P (Park). Turn the ignition to the off position and remove the key whenever you leave your vehicle. Your vehicle has been designed to improve fuel economy by reducing fuel usage while coasting or decelerating.
Page 163 Transmission S (Sport) Moving the gearshift lever to S (Sport): • Provides additional grade (engine) braking and extends lower gear operation to enhance performance for uphill climbs, hilly terrain or mountainous areas. This will increase engine RPM during engine braking. •...
Page 164 Transmission When using the paddles for manual shifting: • Pull the right paddle (+) to upshift. • Pull the left paddle ( – ) to downshift. Upshift to the recommended shift speeds according to the following chart: Upshifts when accelerating (recommended for best fuel economy) Shift from: 1 - 2 15 mph (24 km/h)
Page 165 Transmission Brake-shift interlock WARNING: Do not drive your vehicle until you verify that the brakelamps are working. WARNING: When doing this procedure, you will be taking the vehicle out of park which means the vehicle can roll freely. To avoid unwanted vehicle movement, always fully set the parking brake prior to doing this procedure.
Page 166 Transmission 2. Locate the brake shift interlock lever in front of the shifter assembly. 3. Apply the brake pedal. Gently push and hold the brake shift interlock lever while pulling the gearshift lever out of the P (Park) position and into the N (Neutral) position.
Page 167: All-Wheel Drive (If Equipped)
All-Wheel Drive (If Equipped) USING YOUR ALL-WHEEL DRIVE (AWD) SYSTEM (IF EQUIPPED) AWD uses all four wheels to power the vehicle. This increases traction, enabling you to drive over terrain and road conditions that a conventional two-wheel drive vehicles cannot. The AWD system is active all the time and requires no input from the operator.
Page 168 All-Wheel Drive (If Equipped) Driving In Special Conditions With All-Wheel Drive (AWD) AWD vehicles are equipped for driving on sand, snow, mud and rough roads and have operating characteristics that are somewhat different from conventional vehicles, both on and off the highway. When driving at slow speeds in deep sand under high outside temperatures, use a low gear when possible.
Page 169 All-Wheel Drive (If Equipped) WARNING: Do not spin the wheels at over 35 mph (56 km/h). The tires may fail and injure a passenger or bystander. Note: Do not rock the vehicle if the engine is not at normal operating temperature or damage to the transmission may occur.
Page 170 All-Wheel Drive (If Equipped) To resume normal AWD function as soon as possible, stop the vehicle in a safe location and stop the engine for at least 10 minutes. After the engine has been restarted and the AWD system has adequately cooled, the AWD Off message will turn off and normal AWD function will return.
Page 171 All-Wheel Drive (If Equipped) “Tread Lightly” is an educational program designed to increase public awareness of land-use regulations and responsibilities in our nations wilderness areas. Ford Motor Company joins the U.S. Forest Service and the Bureau of Land Management in encouraging you to help preserve our national forest and other public and private lands by “treading lightly.”...
Page 172 All-Wheel Drive (If Equipped) Driving on Snow and Ice WARNING: If you are driving in slippery conditions that require tire chains or cables, then it is critical that you drive cautiously. Keep speeds down, allow for longer stopping distances and avoid aggressive steering to reduce the chances of a loss of vehicle control which can lead to serious injury or death.
Page 173 All-Wheel Drive (If Equipped) Maintenance and Modifications The suspension and steering systems on your vehicle have been designed and tested to provide predictable performance whether loaded or empty and durable load carrying capability. For this reason, Ford Motor Company strongly recommends that you do not make modifications such as adding or removing parts (such as lift kits or stabilizer bars) or by using replacement parts not equivalent to the original factory equipment.
Page 174: Brakes
Brakes GENERAL INFORMATION Note: Occasional brake noise is normal. If a metal-to-metal, continuous grinding or continuous squeal sound is present, the brake linings may be worn out. Have them inspected by an authorized dealer. If your vehicle has continuous vibration or shudder in the steering wheel while braking, have your vehicle inspected by an authorized dealer.
Page 175: Hints On Driving With Anti-Lock Brakes
Brakes Anti-Lock Brake System This system helps you maintain steering control during emergency stops by keeping the brakes from locking. This lamp momentarily illuminates when you turn the ignition on. If the light does not illuminate during start-up, remains on or flashes, the anti-lock brake system may be disabled and may need to be serviced.
Page 176: Hill Start Assist
Brakes HILL START ASSIST WARNING: The hill start assist feature does not replace the parking brake. When you leave the vehicle, always apply the parking brake and shift the transmission into park (P). WARNING: You must remain in the vehicle once you have activated the hill start assist feature.
Page 177: Traction Control
Traction Control PRINCIPLES OF OPERATION The traction control system helps avoid drive wheel spin and loss of traction. If your vehicle begins to slide, the system applies the brakes to individual wheels and, when needed, reduces engine power at the same time. If the wheels spin when accelerating on slippery or loose surfaces, the system reduces engine power in order to increase traction.
Page 178 Stability Control PRINCIPLES OF OPERATION WARNING: Vehicle modifications involving braking system, aftermarket roof racks, suspension, steering system, tire construction or wheel and tire size may change the handling characteristics of the vehicle and may adversely affect the performance of the AdvanceTrac® system. In addition, installing any stereo loudspeakers may interfere with and adversely affect the AdvanceTrac®...
Page 179: Stability Control Advancetrac
Stability Control A Vehicle without AdvanceTrac® with RSC® skidding off its intended route. B Vehicle with AdvanceTrac® with RSC® maintaining control on a slippery surface. USING ADVANCETRAC® WITH RSC® The system automatically activates when you start your engine. The AdvanceTrac® with RSC® system cannot be completely turned off, but the electronic stability control and roll stability control portions of the system are disabled when the transmission is in reverse (R).
Page 180: Parking Aids
Parking Aids SENSING SYSTEM WARNING: To help avoid personal injury, please read and understand the limitations of the system as contained in this section. Sensing is only an aid for some (generally large and fixed) objects when moving in reverse on a flat surface at parking speeds. Traffic control systems, inclement weather, air brakes, and external motors and fans may also affect the function of the sensing system;...
Page 181 Parking Aids The system can be turned off using the information display control. Refer to the Information Display chapter. If a fault is present in the system, a warning message appears in the information display and does not allow the driver to switch the faulted system on.
Page 182: Rear-View Camera System
Parking Aids REAR VIEW CAMERA SYSTEM WARNING: The rear view camera system is a reverse aid supplement device that still requires the driver to use it in conjunction with the interior and exterior mirrors for maximum coverage. WARNING: Objects that are close to either corner of the bumper or under the bumper, might not be seen on the screen due to the limited coverage of the camera system.
Page 183 Parking Aids Using the Rear View Camera System The rear view camera system displays what is behind your vehicle when you place the transmission in R (Reverse). The system uses two types of guides to help you see what is behind your vehicle: 1.
Page 184 Parking Aids Guidelines and the Centerline Note: Fixed guidelines are only available when the transmission is in R (Reverse). Note: The centerline is only available if Fixed guidelines are on. A. Rear bumper B. Fixed guideline: Red zone C. Fixed guideline: Yellow zone D.
Page 185 Parking Aids Manual Zoom WARNING: When manual zoom is on, the full area behind the vehicle is not shown. Be aware of your surroundings when using the manual zoom feature. Note: Manual zoom is only available when the transmission is in R (Reverse).
Page 186: Cruise Control
Cruise Control PRINCIPLES OF OPERATION Cruise control lets you maintain a set speed without keeping your foot on the accelerator pedal. USING CRUISE CONTROL WARNING: Do not use cruise control in heavy traffic, on winding roads or when the road surface is slippery. This could result in loss of vehicle control, serious injury or death.
Page 187: Using Adaptive Cruise Control
Cruise Control Changing the Set Speed Note: If you accelerate by pressing the accelerator pedal, the set speed will not change. When you release the accelerator pedal, you will return to the speed that you previously set. • Press SET up or down and hold to increase or decrease the set speed. Release the control when you reach the desired speed.
Page 188 Cruise Control WARNING: Do not use the adaptive cruise control when entering or leaving a highway, in heavy traffic or on roads that are winding, slippery or unpaved. WARNING: Do not use in poor visibility, specifically fog, rain, spray or snow. Note: It is your responsibility to stay alert, drive safely and be in control of your vehicle at all times.
Page 189 Cruise Control 4. Take your foot off the accelerator pedal. 5. A lead vehicle graphic will illuminate if there is a vehicle detected in front of you. Note: When adaptive cruise control is active, the set speed displayed in the information display may vary slightly from the speedometer. Following a Vehicle WARNING: When following a vehicle in front of you, your vehicle will not decelerate automatically to a stop, nor will your...
Page 190 Cruise Control If the system predicts that its maximum braking level will not be sufficient, an audible warning will sound while the system continues to brake. This is accompanied by a heads-up display; a red warning bar illuminating on the windshield. You should take immediate action. Setting the Gap Distance Note: It is your responsibility to select a gap appropriate to the driving conditions.
Page 191 Cruise Control When you are overriding the system, the green indicator light illuminates and the follow vehicle does not show in the information display. The system will resume operation when you release the accelerator pedal. The vehicle speed will decrease to the set speed, or a lower speed if following a slower vehicle.
Page 192 Cruise Control Switching Off Adaptive Cruise Control Note: The set speed memory will erase when you switch the system off. Press and release OFF or turn off the ignition. Detection Issues The radar sensor has a limited field of vision. It may not detect vehicles at all or detect a vehicle later than expected in some situations.
Page 193 Cruise Control Adaptive Cruise Control Not Available Several conditions exist which can cause the system to deactivate or prevent the system from activating when requested. These conditions include: • a blocked sensor • high brake temperature • a failure in the system or a related system. Blocked Sensor WARNING: Do not use ACC when towing a trailer with brake controls.
Page 194 Cruise Control Cause Action The surface of the radar in the Clean the grille surface in front of grille is dirty or obstructed in the radar or remove the object some way. causing the obstruction. The surface of the radar in the Wait a short time.
Page 195: Driving Aids
Driving Aids BLIND SPOT INFORMATION SYSTEM (BLIS®) WITH CROSS TRAFFIC ALERT (CTA) (IF EQUIPPED) WARNING: To help avoid injuries, NEVER use the BLIS® as a replacement for using the interior and exterior mirrors and looking over your shoulder before changing lanes. BLIS® is not a replacement for careful driving and only an assist.
Page 196 Driving Aids Using the Systems BLIS® turns on when the engine is started and the vehicle is driven forward above 3 mph (5 km/h); it remains on while the transmission is in D (Drive) and N (Neutral). If shifted out of D (Drive) or N (Neutral), the system enters CTA mode.
Page 197 Driving Aids Zone coverage also decreases when parking at shallow angles. Here, the left sensor is mostly obstructed; zone coverage on that side is severely limited. System Lights and Messages The BLIS® and CTA systems illuminate a yellow alert indicator in the outside mirror on the side of the vehicle the approaching vehicle is coming from.
Page 198 Driving Aids System Sensors WARNING: Just prior to the system recognizing a blocked condition and alerting the driver, the number of missed objects will increase. To help avoid injuries, NEVER use the BLIS® as a replacement for using the side and rear view mirrors and looking over your shoulder before changing lanes.
Page 199 Driving Aids Reasons for messages being displayed Heavy rainfall/snowfall No action required. The system automatically interferes with the resets to an unblocked state once the radar signals rainfall/snowfall rate decreases or stops. Do not use BLIS® and/or CTA in these conditions. System Limitations The BLIS®...
Page 200: Collision Warning System
Driving Aids Switching the Systems Off and On One or both systems can be switched off temporarily by using the information display control; refer to the Information Display chapter. When the BLIS® is switched off, the driver does not receive alerts and the information display shows BLIND SPOT SYS OFF and/or CTA SYSTEM OFF.
Page 201 Driving Aids If it is, a red warning light illuminates and an audible warning chime sounds. The brake support system assists the driver in reducing the collision speed by charging the brakes. If the risk of collision further increases after the warning light illuminates, the brake support prepares the brake system for rapid braking.
Page 202 Driving Aids Blocked Sensors If a message regarding a blocked sensor appears in the information display, the radar signals from the sensor have been obstructed. The sensors are located behind a fascia cover near the driver side of the lower grille.
Page 203 Driving Aids System Limitations WARNING: The collision warning system’s brake support can only help reduce the speed at which a collision occurs if the driver applies the vehicle’s brakes. The brake pedal must be pressed just like any typical braking situation. Due to the nature of radar technology, there may be certain instances where vehicles do not provide a collision warning.
Page 204: Steering
Driving Aids STEERING To help prevent damage to the power steering system: • Never hold the steering wheel at its furthest turning points (until it stops) for more than three to five seconds while the engine is running. • Do not operate the vehicle with a low power steering pump fluid reservoir level (below the MIN mark on the reservoir).
Page 205: Load Carrying
Load Carrying CARGO NETS WARNING: This net is not designed to restrain objects during a collision or heavy braking. The cargo net secures lightweight objects in the cargo area. Attach the net to the anchors provided in one of the two configurations. Repeat the attachment on both sides of the vehicle.
Page 206 Load Carrying Type 2 CARGO MANAGEMENT SYSTEM The system is located in the floor of the cargo area. Lift the release handle to open. 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 207: Roof Racks And Load Carriers
Load Carrying ROOF RACKS AND LOAD CARRIERS (IF EQUIPPED) WARNING: When loading the roof racks, we recommend you evenly distribute the load, as well as maintain a low center of gravity. Loaded vehicles, with higher centers of gravity, may handle differently than unloaded vehicles.
Page 208: Utility Hooks
Load Carrying UTILITY HOOK You can use the utility hook to hang small items such as grocery bags. Do not hang more than 10 pounds (4.5 kilograms) on the hook. LOAD LIMIT Vehicle Loading – With and Without a Trailer This section will guide you in the proper loading of your vehicle and/or trailer, to keep your loaded vehicle weight within its design rating capability, with or without a trailer.
Page 209 Load Carrying Payload – is the combined weight of cargo and passengers that the vehicle is carrying. The maximum payload for your vehicle can be found on the Tire Label on the B-Pillar or the edge of the driver’s door (vehicles exported outside the US and Canada may not have a Tire Label).
Page 210 Load Carrying Example only: Cargo Weight – includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load weight is also part of cargo weight. GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) –...
Page 211 Load Carrying GAWR (Gross Axle Weight Rating) – is the maximum allowable weight that can be carried by a single axle (front or rear). These numbers are shown on the Safety Compliance Certification Label. The label shall be affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position.
Page 212 Load Carrying • Example only: WARNING: Exceeding the Safety Compliance Certification Label vehicle weight rating limits could result in substandard vehicle handling or performance, engine, transmission and/or structural damage, serious damage to the vehicle, loss of control and personal injury. 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 213 Load Carrying GCW (Gross Combined Weight) – is the weight of the loaded vehicle (GVW) plus the weight of the fully loaded trailer. GCWR (Gross Combined Weight Rating) – is the maximum allowable weight of the vehicle and the loaded trailer – including all cargo and passengers –...
Page 214 Load Carrying Steps for determining the correct load limit: 1. Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s placard. 2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 215 Load Carrying • Suppose your vehicle has a 1400 lb. (635 kg) cargo and luggage capacity. You and one of your friends decide to pick up cement from the local home improvement store to finish that patio you have been planning for the past 2 years.
Page 216: Towing
Towing TOWING A TRAILER WARNING: Do not exceed the GVWR or the GAWR specified on the certification label. WARNING: Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of your vehicle and could result in engine damage, transmission damage, structural damage, loss of vehicle control, vehicle rollover and personal injury.
Page 217 Towing TRAILER SWAY CONTROL WARNING: Turning off trailer sway control increases the risk of loss of vehicle control, serious injury or death. Ford does not recommend disabling this feature except in situations where speed reduction may be detrimental (such as hill climbing), the driver has significant trailer towing experience, and can control trailer sway and maintain safe operation.
Page 218 Towing Your vehicle may tow a Class I or II trailer provided the maximum trailer weight is less than or equal to the maximum trailer weight listed for your vehicle configuration on the following chart. Powertrain Maximum GCWR Maximum trailer weight 3.7L TiVCT front-wheel drive 6770 lb (3071 kg)
Page 219 Towing Trailer Towing Connector (Vehicles Equipped with a Trailer-towing or Prep Package) The trailer towing connector is located under the rear bumper, on the left side of your vehicle. You must use a four-pin trailer wiring connector for your vehicle and the trailer lighting equipment. Color Function 1.
Page 220 Towing Trailer Brakes WARNING: Do not connect a trailer’s hydraulic brake system directly to your vehicle’s brake system. Your vehicle may not have enough braking power and your chances of having a collision greatly increase. Electric brakes and manual, automatic or surge-type trailer brakes are safe if you install them properly and adjust them to the manufacturer’s specifications.
Page 221 Towing • Turn off the speed control with heavy loads or in hilly terrain. The speed control may turn off automatically when you are towing on long, steep grades. • Shift to a lower gear when driving down a long or steep hill. Do not apply the brakes continuously, as they may overheat and become less effective.
Page 222: Wrecker Towing
Towing TRANSPORTING THE VEHICLE If you need to have your vehicle towed, contact a professional towing service or, if you are a member of a roadside assistance program, your roadside assistance service provider. We recommend the use of a wheel lift and dollies or flatbed equipment to tow your vehicle.
Page 223: Recreational Towing
Towing Front-wheel drive vehicles must have the front wheels placed on a tow dolly when towing your vehicle from the rear using wheel lift equipment. This prevents damage to the transmission. Towing an all-wheel drive vehicle requires that all wheels be off the ground, such as using a wheel lift and dollies or flatbed equipment.
Page 224 Towing If you tow your vehicle with all four wheels on the ground: • Tow only in the forward direction. • Release the parking brake. • Place the transmission in position N. • Place the ignition in the accessory mode. See Ignition in the Starting and Stopping the Engine chapter.
Page 225: Driving Hints
Driving Hints BREAKING-IN You need to break in new tires for approximately 300 miles (480 kilometers). During this time, your vehicle may exhibit some unique driving characteristics. Avoid driving too fast during the first 1000 miles (1600 kilometers). Vary your speed frequently and change up through the gears early.
Page 226: Driving Through Water
Driving Hints • Carry unnecessary weight (approximately 1 mpg [0.4 km/L] is lost for every 400 pounds [180 kilograms] of weight carried). • Add particular accessories to your vehicle (e.g.; bug deflectors, rollbars or light bars, running boards, ski racks). •...
Page 227: Floor Mats
Driving Hints FLOOR MATS WARNING: Always use floor mats that are designed to fit the foot well of your vehicle, leaving the pedal area unobstructed, and which can be firmly secured to retention posts so that they cannot slip out of position and interfere with the pedals or impair safe operation of your vehicle in other ways.
Page 228: Roadside Emergencies
• Winch out – available within 100 feet (30.5 meters) of a paved or county maintained road, no recoveries. • Towing – Lincoln eligible vehicles will be towed to the client’s selling or preferred dealer within 100 miles (161 kilometers) of the disablement location or to the nearest Lincoln dealer.
Page 229: Hazard Warning Flashers
Ford Motor Company will reimburse a reasonable amount for towing to the nearest Lincoln dealership within 100 miles (161 kilometers). To obtain reimbursement information, United States Lincoln vehicle clients, call 1-800-521-4140. Clients will be asked to submit their original receipts. Vehicles Sold in Canada: Getting Roadside Assistance Canadian clients who require roadside assistance, call 1–800–665–2006.
Page 230: Jump-Starting The Vehicle
Roadside Emergencies Should your vehicle shut off after a collision, you may restart your vehicle by doing the following: 1. Turn the ignition off. 2. Turn the ignition on. 3. Repeat steps 1 and 2 to re-enable fuel pump. Note: If your vehicle has the push button start system, press the stop/start button twice to reactivate the fuel system.
Page 231 Roadside Emergencies Connecting the Jumper Cables WARNING: Do not connect the end of the second cable to the negative (-) terminal of the battery to be jumped. A spark may cause an explosion of the gases that surround the battery. Note: Do not attach the negative (-) cable to fuel lines, engine rocker covers, the intake manifold or electrical components as grounding points.
Page 232 Roadside Emergencies Removing the Jumper Cables Note: In the illustration, the vehicle on the bottom is used to designate the assisting (boosting) battery. Remove the jumper cables in the reverse order that they were connected. 1. Remove the jumper cable from the ground metal surface.
Page 233: Customer Assistance
Customer Assistance GETTING THE SERVICES YOU NEED Warranty repairs to your vehicle must be performed by an authorized dealer. While any authorized dealer handling your vehicle line will provide warranty service, we recommend you return to your selling authorized dealer who wants to ensure your continued satisfaction. Please note that certain warranty repairs require special training, equipment or both, so not all authorized dealers are authorized to perform all warranty repairs.
Page 234 Customer Assistance In Canada: Mailing address Lincoln Customer Relationship Centre Ford Motor Company of Canada, Limited P.O. Box 2000 Oakville, Ontario L6K 1C8 Telephone 1-800-387-9333 Online www.lincolncanada.com Additional assistance If you have questions or concerns, or are unsatisfied with the service you are receiving, follow these steps: 1.
Page 235 Customer Assistance IN CALIFORNIA (U.S. ONLY) California Civil Code Section 1793.2(d) requires that, if a manufacturer or its representative is unable to repair a motor vehicle to conform to the vehicle’s applicable express warranty after a reasonable number of attempts, the manufacturer shall be required to either replace the vehicle with one substantially identical or repurchase the vehicle and reimburse the buyer in an amount equal to the actual price paid or payable by the consumer (less a reasonable allowance for consumer...
Page 236 Customer Assistance THE BETTER BUSINESS BUREAU (BBB) AUTO LINE PROGRAM (U.S. ONLY) Your satisfaction is important to Ford Motor Company and to your dealer. If a warranty concern has not been resolved using the three-step procedure outlined earlier in this chapter in the Getting the Services You Need section, you may be eligible to participate in the BBB AUTO LINE program.
Page 237 Customer Assistance UTILIZING THE MEDIATION or ARBITRATION PROGRAM (CANADA ONLY) This pertains to vehicles delivered to authorized Canadian dealers. In those cases, where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation or arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 238 Customer Assistance If your vehicle must be serviced while you are traveling or living in Asia-Pacific Region, Sub-Saharan Africa, U.S. Virgin Islands, Central America, the Caribbean, and Israel, contact the nearest authorized dealer. If the authorized dealer cannot help you, contact: FORD MOTOR COMPANY FORD EXPORT OPERATIONS &...
Page 239 Customer Assistance If your vehicle must be serviced while you are traveling or living in the Middle East, contact the nearest authorized dealer. If the authorized dealer cannot help you, contact: Ford Middle East Customer Relationship Center P.O. Box 21470 Dubai, United Arab Emirates Telephone: +971 4 3326084 Toll-Free Number of the Kingdom of Saudi Arabia: 800 8971409...
Page 240: Reporting Safety Defects (U.s. Only)
Customer Assistance Obtaining a French Owner’s Manual A French owner’s manual can be obtained from your authorized dealer or by contacting Helm, Incorporated using the contact information listed previously in this section. REPORTING SAFETY DEFECTS (U.S. ONLY) If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the...
Page 241: Fuses
Fuses CHANGING A FUSE Fuses WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. If electrical components in your vehicle are not working, a fuse may have blown.
Page 242: Fuse Specification Chart
Fuses FUSE SPECIFICATION CHART Power Distribution Box WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. The power distribution box is located in the engine compartment.
Page 243 Fuses Fuse or relay Fuse amp Protected components number rating 40A** Anti-lock brake system pump — Not used 30A** Power liftgate 20A** Moonroof 20A** Power point #2 (console rear) — Not used — Rear window defroster and heated mirror relay —...
Page 244 Fuses Fuse or relay Fuse amp Protected components number rating — Not used — Rear seat relay — Right trailer tow stop/turn lamps relay — Not used 40A** Cooling fan (vehicles with trailer tow) 60A** Cooling fan (vehicles without trailer tow) 40A** Cooling fan (trailer tow only) —...
Page 245 Fuses Fuse or relay Fuse amp Protected components number rating 10A* Rear seat release 10A* Air conditioner clutch 15A* Trailer tow stop/turn lamps relay 20A* Rear wiper motor 15A* Fuel pump — Powertrain control module relay 20A* Vehicle power #2 15A* Vehicle power #4 15A*...
Page 246 Fuses Fuse or relay Fuse amp Protected components number rating Adaptive lighting 10A* Powertrain control module 10A* Adaptive cruise control 10A* Anti-lock brake system module Blower motor/rear defroster relay 30A** Passenger compartment fuse panel run/start — Not used — Not used —...
Page 247 Fuses To remove a fuse, use the fuse puller tool provided on the fuse panel cover. Fuse or relay Fuse amp Protected components number rating Driver front smart window Not used (spare) Passenger front smart window Demand lamps relay Subwoofer Radio frequency module 7.5A Power mirror switch, Memory seat...
Page 248 Fuses Fuse or relay Fuse amp Protected components number rating Interior lighting, Puddle lamps, Backlighting Right turn/stop lamps and turn signals Left turn/stop lamps and turn signals Reverse lamps, High-mounted stop lamps Low beam headlamps (right) Low beam headlamps (left) Keypad illumination, Brake shift interlock, Start button LED, Passive anti-theft system,...
Page 249 Fuses Fuse or relay Fuse amp Protected components number rating Front park lamps Not used (spare) Moonroof, Power windows (front), Compass/auto-dimming rear view mirror Not used (spare) Reverse sensing system, Rearview camera, Blind spot monitor, Rear heated seat module Heads-up display Heated steering wheel Climate control Not used (spare)
Page 250: Maintenance
Maintenance GENERAL INFORMATION Have your vehicle serviced regularly to help maintain its roadworthiness and resale value. There is a large network of Ford authorized dealers who are there to help you with their professional servicing expertise. We believe that their specially trained technicians are best qualified to service your vehicle properly and expertly.
Page 251: Opening And Closing The Hood
Maintenance OPENING AND CLOSING THE HOOD 1. Inside the vehicle, pull the hood release handle located under the bottom of the instrument panel near the steering column. 2. Go to the front of the vehicle and release the secondary hood latch located under the front passenger side of the hood.
Page 252: Under Hood Overview
Maintenance UNDER HOOD OVERVIEW A. Engine coolant reservoir B. Power steering fluid reservoir C. Brake fluid reservoir D. Battery E. Power distribution box F. Air filter assembly G. Transmission fluid dipstick H. Engine oil dipstick I. Engine oil filler cap J.
Page 253: Engine Oil Dipstick
Maintenance ENGINE OIL DIPSTICK 2.0L EcoBoost A. MIN B. MAX 3.5L, 3.7L and 3.5L EcoBoost A. MIN B. MAX ENGINE OIL CHECK Note: Check the level before starting the engine. Note: Make sure that the level is between the MIN and MAX marks. 1.
Page 254: Engine Coolant Check
Maintenance Adding Engine Oil Note: Do not remove the filler cap when the engine is running. Note: Do not add engine oil further than the MAX mark. Oil levels above the MAX mark may cause engine damage. Only use oils certified for gasoline engines by the American Petroleum Institute (API).
Page 255 Maintenance Adding Engine Coolant WARNING: Do not add engine coolant when the engine is hot. Steam and scalding liquids released from a hot cooling system can burn you badly. Also, you can be burned if you spill coolant on hot engine parts.
Page 256 Maintenance • Do not use alcohol, methanol, brine or any engine coolants mixed with alcohol or methanol antifreeze (coolant). Alcohol and other liquids can cause engine damage from overheating or freezing. • Do not add extra inhibitors or additives to the coolant. These can be harmful and compromise the corrosion protection of the engine coolant.
Page 257 Maintenance What You Should Know About Fail-Safe Cooling If the engine coolant supply is depleted, this feature allows the vehicle to be driven temporarily before incremental component damage is incurred. The fail-safe distance depends on ambient temperatures, vehicle load and terrain. How Fail-Safe Cooling Works If the engine begins to overheat, the engine coolant temperature gauge will move to the red (hot) area and:...
Page 258: Automatic Transmission Fluid Check
Maintenance You have limited engine power when in the fail-safe mode, so drive the vehicle with caution. The vehicle will not be able to maintain high-speed operation and the engine will run rough. Remember that the engine is capable of completely shutting down automatically to prevent engine damage, therefore: 1.
Page 259 Maintenance 5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If necessary, refer to Under hood overview in this chapter for the location of the dipstick. 6. Install the dipstick making sure it is fully seated in the filler tube by turning it to the locked position.
Page 260: Brake Fluid Check
Maintenance Note: Use of a non-approved automatic transmission fluid may cause internal transmission component damage. If necessary, add fluid in 1/2 pint (250 ml) increments through the filler tube until the level is correct. If an overfill occurs, excess fluid should be removed by an authorized dealer.
Page 261: Fuel Filter
Maintenance FUEL FILTER Your vehicle is equipped with a lifetime fuel filter that is integrated with the fuel tank. Regular maintenance or replacement is not needed. WASHER FLUID CHECK WARNING: If you operate your vehicle in temperatures below 40°F (5°C), use washer fluid with antifreeze protection. Failure to use washer fluid with antifreeze protection in cold weather could result in impaired windshield vision and increase the risk of injury or accident.
Page 262 Maintenance WARNING: Keep batteries out of reach of children. Batteries contain sulfuric acid. Avoid contact with skin, eyes or clothing. Shield your eyes when working near the battery to protect against possible splashing of acid solution. In case of acid contact with skin or eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical attention.
Page 263 Maintenance When the battery is disconnected or a new battery installed, the automatic transmission must relearn its adaptive strategy. As a result of this, the transmission may shift firmly when first driven. This operation is considered normal and will fully update transmission operation to its optimum shift feel.
Page 264: Checking The Wiper Blades
Maintenance CHECKING THE WIPER BLADES Run the tip of your fingers over the edge of the blade to check for roughness. Clean the wiper blades with washer fluid or water applied with a soft sponge or cloth. CHANGING THE WIPER BLADES 1.
Page 265: Air Filter(S)
Maintenance Changing rear window wiper blade The rear wiper arm is designed without a service position. This reduces the risk of damage to the blade in an automatic car wash. To replace the wiper blade: 1. Grab the wiper arm with one hand close to the arm/blade joint and pull it as far away from the glass as possible.
Page 266: Adjusting The Headlamps
Maintenance Changing the air filter element 1. Release the clamps that secure the air filter housing cover. 2. Carefully separate the two halves of the air filter housing. 3. Remove the air filter element from the air filter housing. 4. Wipe the air filter housing and cover clean to remove any dirt or debris and to ensure good sealing.
Page 267 Maintenance • (1) 8 feet (2.4 meters) • (2) Center height of lamp to ground • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height.
Page 268: Changing A Bulb
Maintenance 4. Locate the vertical adjuster on each headlamp. Using a Hex head driver, turn the adjuster either clockwise or counterclockwise in order to adjust the vertical aim of the headlamp. 5. Close the hood and turn off the lamps. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.
Page 269 Maintenance Replacing headlamp bulbs WARNING: Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated. Note: If the bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used.
Page 270 Maintenance Replacing front parking lamp/turn signal bulbs 1. Make sure that the headlamp control is in the off position. 2. Open the hood. 3. At the wheel well, remove the fasteners from the splash shield, then pull the splash shield back to gain access to the bulbs.
Page 271 Maintenance Replacing backup lamp bulbs 1. Make sure the headlamp switch is in the off position, then open the liftgate to expose the lamp assembly bolts. 2. Remove the two bolts from the lamp assembly. 3. Carefully remove the lamp assembly away from the vehicle by pulling the assembly straight out to expose the bulb socket.
Page 272: Bulb Specification Chart
Maintenance Replacing license plate lamp bulbs 1. Make sure the headlamp switch is in the off position. 2. Remove the two screws and the license plate lamp assembly from the bumper. 3. Carefully pull the bulb straight out from the lamp assembly. 4.
Page 273 Maintenance Trade Function Number of Bulbs Number Front row map lamp 1600XB Second row dome/reading 211-2XB lamp Rear courtesy lamp 211-2XB Visor vanity lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer. * To replace these lamps - see your authorized dealer.
Page 274: Vehicle Care
Vehicle Care GENERAL INFORMATION Your Ford or Lincoln authorized dealer has many quality products available to clean your vehicle and protect its finishes. CLEANING PRODUCTS For best results, use the following products or products of equivalent quality: Motorcraft Bug and Tar Remover (ZC-42)
Page 275 Vehicle Care • Note: Suntan lotions and insect repellents can damage any painted surface; if these substances come in contact with your vehicle, wash it off as soon as possible. • Remove any exterior accessories before entering a car wash. Stripes or Graphics (if equipped) Do not use a commercial or high-pressure wand on the surface or edge of stripes and graphics.
Page 276: Waxing
Vehicle Care WAXING Regular waxing is necessary to protect the paint on your car from the elements. We recommend that you wash and wax the painted surface once or twice a year. When washing and waxing, park your vehicle in a shaded area out of direct sunlight.
Page 277: Cleaning The Windows And Wiper Blades
Vehicle Care • Spray Motorcraft Engine Shampoo and Degreaser on all parts that require cleaning and pressure rinse clean. In Canada, use Motorcraft Engine Shampoo. • Never wash or rinse the engine while it is hot or running; water in the running engine may cause internal damage.
Page 278: Cleaning The Interior
Vehicle Care CLEANING THE INTERIOR WARNING: Do not use cleaning solvents, bleach or dye on the vehicle’s safety belts, as these actions may weaken the belt webbing. WARNING: On vehicles equipped with seat-mounted airbags, do not use chemical solvents or strong detergents. Such products could contaminate the side airbag system and affect performance of the side airbag in a collision.
Page 279: Cleaning Leather Seats
Vehicle Care • Be certain to wash or wipe your hands clean if you have been in contact with certain products, such as insect repellent and suntan lotion, in order to avoid possible damage to the interior painted surfaces. • Do not use household or glass cleaners as these may damage the finish of the instrument panel, interior trim and cluster lens.
Page 280: Cleaning The Alloy Wheels
Vehicle Care CLEANING THE ALLOY WHEELS Note: Do not use chrome cleaner, metal cleaner or polish on wheels and wheel covers. A clearcoat paint finish coats aluminum wheels and wheel covers. In order to maintain their condition: • Clean weekly with Motorcraft Wheel and Tire Cleaner. Use a sponge to remove heavy deposits of dirt and brake dust accumulation.
Page 281 Vehicle Care Body • Wash vehicle thoroughly to remove dirt, grease, oil, tar or mud from exterior surfaces, rear-wheel housing and underside of front fenders. • Periodically wash vehicles stored in exposed locations. • Touch up raw or primed metal to prevent rust. •...
Page 282 Vehicle Care Brakes • Make sure brakes and parking brake are fully released. Tires • Maintain recommended air pressure. Miscellaneous • Make sure all linkages, cables, levers and pins under vehicle are covered with grease to prevent rust. • Move vehicles at least 25 feet (8 meters) every 15 days to lubricate working parts and prevent corrosion.
Page 283: Wheels And Tires
Wheels and Tires GENERAL INFORMATION Important Information for P265/40R22 Low-profile Tires and Wheels If your vehicle is equipped with P265/40R22 tires, they are low-profile tires. These tires and wheels are designed to give your vehicle a sport appearance. With low-profile tires, you may notice an increase in road noise and faster tire wear, depending on road conditions and driving styles.
Page 284 Wheels and Tires Study your owner’s manual for specific information about equipment features, instructions for safe driving and additional precautions to reduce the risk of an accident or serious injury. All-Wheel Drive System (If Equipped) WARNING: Do not become overconfident in the ability of all-wheel drive vehicles.
Page 285: Tire Care
Wheels and Tires How Your Vehicle Differs from Other Vehicles Crossover vehicles can differ from some other vehicles in a few noticeable ways. Your vehicle may be: • Higher – to allow higher load carrying capacity. • Shorter – to give it the capability to approach inclines.
Page 286 Wheels and Tires U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford Motor Company to give you the following information about tire grades exactly as the government has written it. Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course.
Page 287 Wheels and Tires Glossary of Tire Terminology • Tire label: A label showing the OE (Original Equipment) tire sizes, recommended inflation pressure and the maximum weight the vehicle can carry. • Tire Identification Number (TIN): A number on the sidewall of each tire providing information about the tire brand and manufacturing plant, tire size and date of manufacture.
Page 288 Wheels and Tires INFORMATION CONTAINED ON THE TIRE SIDEWALL Both U.S. and Canada Federal regulations require tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire and also provides a U.S. DOT Tire Identification Number for safety standard certification and in case of a recall.
Page 289 Wheels and Tires E. 15: Indicates the wheel or rim diameter in inches. If you change your wheel size, you will have to purchase new tires to match the new wheel diameter. F. 95: Indicates the tire’s load index. It is an index that relates to how much weight a tire can carry.
Page 290 Wheels and Tires H. U.S. DOT Tire Identification Number (TIN): This begins with the letters DOT and indicates that the tire meets all federal standards. The next two numbers or letters are the plant code designating where it was manufactured, the next two are the tire size code and the last four numbers represent the week and year the tire was built.
Page 291 Wheels and Tires M. Maximum Inflation Pressure: Indicates the tire manufacturer’s maximum permissible pressure or the pressure at which the maximum load can be carried by the tire. This pressure is normally higher than the vehicle manufacturer’s recommended cold inflation pressure, which can be found on the Safety Compliance Certification Label (affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position), or Tire Label which...
Page 292 Wheels and Tires Information on T Type Tires T type tires have some additional information beyond those of P type tires. These differences are described below. T145/80D16 is an example of a tire size. Note: The temporary tire size for your vehicle may be different from this example.
Page 293 Wheels and Tires INFLATING YOUR TIRES Safe operation of your vehicle requires that your tires are properly inflated. Remember that a tire can lose up to half of its air pressure without appearing flat. Every day before you drive, check your tires. If one looks lower than the others, use a tire gauge to check pressure of all tires and adjust if required.
Page 294 Wheels and Tires on the Safety Compliance Certification Label (affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position), or Tire Label which is located on the B-Pillar or the edge of the driver’s door. The cold inflation pressure should never be set lower than the recommended pressure on the Safety Compliance Certification Label or Tire Label.
Page 295 Wheels and Tires 6. Visually inspect the tires to make sure there are no nails or other objects embedded that could poke a hole in the tire and cause an air leak. 7. Check the sidewalls to make sure there are no gouges, cuts or bulges. Inspecting Your Tires and Wheel Valve Stems Periodically inspect the tire treads for uneven or excessive wear and remove objects such as stones, nails or glass that may be wedged in the...
Page 296 Wheels and Tires Damage Periodically inspect the tire treads and sidewalls for damage (such as bulges in the tread or sidewalls, cracks in the tread groove and separation in the tread or sidewall). If damage is observed or suspected, have the tire inspected by a tire professional. Tires can be damaged during off-road use, so inspection after off-road use is also recommended.
Page 297 Wheels and Tires Tire Replacement Requirements WARNING: Only use replacement tires and wheels that are the same size, load index, speed rating and type (such as P-metric versus LT-metric or all-season versus all-terrain) as those originally provided by Ford. The recommended tire and wheel size may be found on either the Safety Compliance Certification Label (affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position), or the Tire Label...
Page 298 Wheels and Tires WARNING: To reduce the risk of serious injury, when mounting replacement tires and wheels, you should not exceed the maximum pressure indicated on the sidewall of the tire to set the beads without additional precautions listed below. If the beads do not seat at the maximum pressure indicated, re-lubricate and try again.
Page 299 Wheels and Tires Safety Practices WARNING: If your vehicle is stuck in snow, mud, or sand, do not rapidly spin the tires. Spinning the tires can tear the tire and cause an explosion. A tire can explode in as little as three to five seconds. WARNING: Do not spin the wheels at over 35 mph (56 km/h).
Page 300: Using Snow Chains
Wheels and Tires Tire Rotation Note: If your tires show uneven wear ask an authorized dealer to check for and correct any wheel misalignment, tire imbalance or mechanical problem involved before tire rotation. Note: Your vehicle may be equipped with a dissimilar spare tire and wheel assembly.
Page 301: Tire Pressure Monitoring System (Tpms)
Wheels and Tires The tires on your vehicle have all-weather treads to provide traction in rain and snow. However, in some climates, you may need to use snow tires and chains. Follow these guidelines when using snow tires and cable chains: •...
Page 302 Wheels and Tires Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling and stopping ability.
Page 303 Wheels and Tires Changing Tires with a Tire Pressure Monitoring System Note: Each road tire is equipped with a tire pressure sensor located inside the tire and wheel assembly cavity. The pressure sensor is attached to the valve stem. The pressure sensor is covered by the tire and is not visible unless the tire is removed.
Page 304 Wheels and Tires When You Believe Your System Is Not Operating Properly The main function of the tire pressure monitoring system is to warn you when your tires need air. It can also warn you in the event the system is no longer capable of functioning as intended.
Page 305 Wheels and Tires Low tire Possible cause Customer action required pressure warning light Flashing Spare tire in use Repair the damaged road wheel warning light and tire assembly and reinstall it on the vehicle to restore system function. For a description on how the system functions, see When Your Temporary Spare Tire is Installed in this section.
Page 306: Changing A Road Wheel
Wheels and Tires CHANGING A ROAD WHEEL WARNING: The use of tire sealants may damage your tire pressure monitoring system and should not be used. However, if you must use a sealant, have an authorized dealer install a new tire pressure monitoring system sensor and valve stem.
Page 307 Wheels and Tires 2. Full-size dissimilar spare with label on wheel: This spare tire has a label on the wheel that states: THIS TIRE AND WHEEL FOR TEMPORARY USE ONLY When driving with one of the dissimilar spare tires listed above, do not: •...
Page 308 Wheels and Tires • Ground clearance and parking at curbs • Winter weather driving capability • Wet weather driving capability • All-wheel driving capability (if applicable) • Load leveling adjustment (if applicable) When driving with the full-size dissimilar spare tire and wheel assembly, additional caution should be given to: •...
Page 309 Wheels and Tires WARNING: Always use the jack provided as original equipment with your vehicle. If using a jack other than the one provided as original equipment with your vehicle, make sure the jack capacity is adequate for the vehicle weight, including any vehicle cargo or modifications.
Page 310 Wheels and Tires 9. The vehicle jacking points are shown here, and are depicted on the yellow warning label on the jack. Note: Jack at the specified locations to avoid damage to the vehicle. 10. Small arrow-shaped marks on the sills show the location of the jacking points.
Page 311: Technical Specifications
Wheels and Tires Stowing the Flat/Spare Tire and Jack Note: If you are stowing a flat 22 inch tire and wheel assembly, temporarily remove the load floor, plastic stowage bins, and the foam load floor supports to make space. Place the 22 inch tire and wheel assembly in the spare tire well with the valve stem facing down.
Page 312 Wheels and Tires Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as rotation, flat tire, wheel removal). Lug nut socket Wheel lug nut torque* size/Bolt size ft-lb N•m ⁄ x 20 * Torque specifications are for nut and bolt threads free of dirt and rust.
Page 313: Capacities And Specifications
Capacities and Specifications ENGINE SPECIFICATIONS Engine 3.7L V6 engine Cubic inches Required fuel Minimum 87 octane Firing order 1–4–2–5–3–6 Ignition system Coil on plug Compression ratio 10.5:1 Spark plug gap 0.049–0.053 inch (1.25–1.35 mm) Engine drivebelt routing 1. Short drivebelt is on first pulley groove closest to engine.
Page 314 Capacities and Specifications 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 315 Capacities and Specifications 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 316 Capacities and Specifications 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 317: Part Numbers
Capacities and Specifications Motorcraft part numbers Component 3.7L V6 engine Air filter element FA-1884 Battery BXT-65-650 Oil filter FL-500-S Spark plugs SP-520 Cabin air filter FP65 Seat air filter FS-104 WW-2601-PF (driver side) Windshield wiper blade WW-2001-PF (passenger side) WW-1401-PF (rear) Refer to scheduled maintenance information for the appropriate intervals for changing the spark plugs.
Page 318: Vehicle Identification Number
Capacities and Specifications VEHICLE IDENTIFICATION NUMBER The vehicle identification number is located on the driver’s side instrument panel. XXXXXXXXXXXXXXXXX Please note that in the graphic, XXXX is representative of your vehicle identification number. The Vehicle Identification Number (VIN) contains the following information: A.
Page 319: Vehicle Certification Label
Capacities and Specifications VEHICLE CERTIFICATION LABEL The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label shall be affixed to either the door hinge pillar, the door latch post, or the edge of the door near the door latch,...
Page 320: Accessories
(United States only). Lincoln Motor Company will repair or replace any properly authorized dealer-installed Lincoln Genuine Accessories found to be defective in factory-supplied materials or workmanship during the warranty period, as well as any component damaged by the defective accessories.
Page 321 • If you or an authorized Lincoln dealer add any non-Lincoln custom electrical or electronic accessories or components to the vehicle, you may adversely affect battery performance and durability. In addition, you may adversely affect the performance of other electrical systems in the vehicle.
Page 322: Ford Extended Service Plan
3. BaseCARE – Covers 84 components 4. PowertrainCARE – Covers 29 critical components Ford ESP is honored by all Ford and Lincoln Dealers in the United States and Canada. It is the only Extended Service Plan authorized and backed by Ford Motor Company. That means you get: •...
Page 323 Ford Extended Service Plan Roadside Assistance Exclusive 24/7 roadside assistance, including: • Towing, flat-tire change and battery jump starts • Out of fuel and lock-out assistance • Travel Expense reimbursement for lodging, meals and rental car • Destination assistance for taxi, shuttle, rental car coverage and emergency transportation Transferable Coverage If you sell your vehicle before your Ford Extended Service Plan coverage...
Page 324 Canada and the United States, provided by a network of participating Ford Motor Company dealers. The Lincoln Maintenance Protection Plan is honored at authorized Lincoln dealers. Note: Repairs performed outside of Canada and the United States are not eligible for Ford Extended Service Plan coverage.
Page 325: Audio System
Audio System GENERAL INFORMATION Radio Frequencies and Reception Factors AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.9–107.7, 107.9 MHz Radio reception factors Distance and The further you travel from an FM station,...
Page 326 Audio System MP3 Track and Folder Structure Audio systems capable of recognizing and playing MP3 individual tracks and folder structures work as follows: • There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. •...
Page 327: Mylincoln Touch™ System
Audio System AM/FM/CD PREMIUM AUDIO SYSTEM SEEK TUNE WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road.
Page 328 Audio System D. TUNE + and TUNE - : • In radio mode, press these buttons to manually search through the radio frequency band. • In Sirius mode, press these buttons to find the next or previous available satellite radio station. E.
Page 329: Mylincoln Touch
MyLincoln Touch™ INTRODUCTION WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
Page 330 MyLincoln Touch™ This system uses a four-corner strategy to provide quick access several vehicle features and settings. The touchscreen provides easy interaction with your cellular phone, multimedia, climate control and navigation system. The corners display any active modes within those menus, such as phone status or the climate temperature.
Page 331 MyLincoln Touch™ SETTINGS Press to select any of the following: • Clock • Display • Sound • Vehicle • Settings • Help HOME Press to access your home screen. Depending on your vehicle’s option package and software, your screens may vary in appearance from the descriptions in this section.
Page 332 MyLincoln Touch™ Using the Touch-sensitive Controls on Your System To turn a feature on and off, just touch the graphic with your finger. To get the best performance from the touch-sensitive controls, keep in mind: • Do not press hard on the controls. They are sensitive to light touch. •...
Page 333 MyLincoln Touch™ Support The SYNC support team is available to help you with any questions you cannot answer on your own. Monday-Saturday, 8:30am-9:00pm EST. Sunday, 10:30am-7:30pm EST. In the United States, call: 1–800–392–3673. In Canada, call: 1–800–565–3673. Times are subject to change due to holidays. Safety Information WARNING: Driving while distracted can result in loss of vehicle control, crash and injury.
Page 334 MyLincoln Touch™ Speed-restricted Features Some features of this system may be too difficult to use while your vehicle is moving so they are restricted from use unless your vehicle is stationary. • Screens that are too crowded with information, such as Point of Interest reviews and ratings, Sirius Travel Link sports scores, movie times and ski conditions.
Page 335 MyLincoln Touch™ Privacy Information When a cellular phone is connected to SYNC, the system creates a profile within your vehicle that is linked to that cellular phone. This profile is created in order to offer you more cellular features and to operate more efficiently.
Page 336: Infotainment Display
MyLincoln Touch™ ACCESSING AND ADJUSTING MODES THROUGH YOUR RIGHT VEHICLE INFORMATION DISPLAY The display is located on the right side of your instrument cluster. You can use your steering wheel controls to view and make minor adjustments to active modes without taking your hands off the wheel. For example: •...
Page 337: Voice Recognition
MyLincoln Touch™ Note: If your vehicle is not equipped with Navigation, Compass appears in the display instead of Navigation. If you press the right arrow to go into the Compass menu, you can see the compass graphic. The compass displays the direction in which the vehicle is traveling, not true direction (i.e., if the vehicle is traveling west, the middle of the compass graphic displays west;...
Page 338 MyLincoln Touch™ What Can I Say? To access the available voice commands for the current session, do one of the following: • During a voice session, press the Help icon (?) in the lower left status bar of the screen. •...
Page 339 MyLincoln Touch™ Voice command list “SD card list of commands” “Sirius satellite list of commands” “Travel link list of commands” “USB list of commands” “Voice instructions list of commands” “Voice settings list of commands” “Help” This command is only available when your vehicle is equipped with the navigation system, and the navigation system SD card is in the card slot.
Page 340 MyLincoln Touch™ To access these settings using voice commands: Press the voice icon. Wait for the prompt “Please say a command”. Another tone sounds to let you know the system is listening. Voice settings using voice commands “Interaction Mode Novice” “Interaction Mode Advanced”...
Page 341: Listening To Music
MyLincoln Touch™ ENTERTAINMENT A. AM 1 and AM AST B. FM 1, FM 2 and FM AST C. SIRIUS D. CD E. USB F. Touch this button to scroll down for more options, such as: • SD Card • BT Stereo •...
Page 342 MyLincoln Touch™ Browsing Device Content When listening to audio on a device, you can browse through other devices without having to change sources. For example, if you are currently listening to audio on an SD card, you can browse all the artists that are stored on your USB device.
Page 343 MyLincoln Touch™ device, then want to switch to a satellite radio channel, simply press the voice button on the steering wheel controls and say the name of the Sirius station (such as, “the Highway”). The following voice commands are available at the top level of the voice session no matter which current audio source you are listening to (such as a USB device or Sirius satellite radio).
Page 344 MyLincoln Touch™ Options Sound Settings allows you to adjust settings for: • Bass • Midrange • Treble • Balance and Fade • DSP (Digital Signal Processing) • Occupancy Mode • Speed Compensated Volume. Note: Your vehicle may not have all these sound settings. Set PTY for Seek/Scan allows you to select a category of music you would like to search for.
Page 345 MyLincoln Touch™ When HD Radio is on and you tune to a station broadcasting HD Radio technology, you may notice the following indicators on your screen: HD) logo blinks when acquiring a digital station and stays solid when digital audio is playing. When this logo is available, you may also see Title and Artist fields on-screen.
Page 346 MyLincoln Touch™ HD Radio Reception and Station Troubleshooting Potential Reception Issues Reception area If you are listening to a multicast station and you are on the fringe of the reception area, the station may mute due to weak signal strength. If you are listening to HD1, the system switches back to the analog broadcast until the digital broadcast is available again.
Page 347 MyLincoln Touch™ Potential station issues Issue Cause Action Sound fading or The radio is shifting No action required. blending in and out. between analog and The reception issue digital audio. may clear up as you continue to drive. There is an audio The digital multicast is No action required.
Page 348 MyLincoln Touch™ Radio Voice Commands If you are listening to the radio, press the voice button on the steering wheel control. When prompted, say any of the commands in the following chart. If you are not listening to the radio, press the voice button and, after the tone, say “Radio”, then any of the commands in the following chart.
Page 349 MyLincoln Touch™ Sirius Satellite Radio (If Activated) Press the lower left corner of the touchscreen, then select the SIRIUS tab. Presets Save a channel by pressing and holding one of the memory preset areas. There is a brief mute while the radio saves the channel. Sound returns when finished.
Page 350 MyLincoln Touch™ Set Category for Seek/Scan allows you to select a category of music you would like to search for. You can then choose to either seek or scan for the stations playing that category. Parental Lockout allows you to lock and unlock channels, change or reset your PIN or unlock all channels.
Page 351 MyLincoln Touch™ Satellite Radio Voice Commands If you are listening to Sirius satellite radio, press the voice button on the steering wheel control. When prompted, say any of the commands in the following chart. If you are not listening to Sirius satellite radio, press the voice button and, after the tone, say “Sirius”, then any of the commands in the following chart.
Page 352 MyLincoln Touch™ “TUNE” “SAT 2 preset <#>” “SAT 3” “SAT 3 preset <#>” “Help” Sirius Satellite Radio Information Note: Sirius reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Page 353 MyLincoln Touch™ Potential satellite radio reception issues Station overload When you pass a ground-based broadcast-repeating tower, a stronger signal may overtake a weaker one and the audio system may mute. Your display may show ACQUIRING . . . to Satellite radio signal interference indicate the interference and the audio system may mute.
Page 354 MyLincoln Touch™ Sirius troubleshooting tips Radio display Condition Possible action Updating. Update of channel No action required. programming in The process may take progress. up to three minutes. Call SIRIUS Your satellite service is Contact Sirius at 1–888–539–7474. no longer available. 1-888-539-7474 to resolve subscription issues.
Page 355 MyLincoln Touch™ Options Sound Settings allows you to adjust settings for: • Bass • Midrange • Treble • Balance and Fade • DSP (Digital Signal Processing) • Occupancy Mode • Speed Compensated Volume. Note: Your vehicle may not have all these sound settings. Compression allows you to turn the compression feature on and off.
Page 356 MyLincoln Touch™ SD Card Slot and USB Port SD Card Slot Note: Your SD card slot is spring-loaded. To remove the SD card, press the card in and the system ejects it. Do not attempt to pull the card to remove it as this could cause damage.
Page 357 MyLincoln Touch™ Playing Music from Your Device Insert your device and select the SD Card or USB tab once the system recognizes it. You can then select from the following options: Repeat replays the currently playing song or album. Shuffle plays music on the selected album or folder in random order. Similar Music allows you to choose music similar to what is currently playing.
Page 358 MyLincoln Touch™ SD Card and USB Voice Commands If you are listening to a USB device or an SD card, press the voice button on the steering wheel control. When prompted, say any of the commands in the following chart. If you are not listening to a USB device or an SD card, press the voice button and, after the tone, say “USB”...
Page 359 MyLincoln Touch™ “BROWSE” “All artists” “Artist <name>” “All audiobooks” “Audiobook <name>” “All authors” “Author <name>” “All composers” “Composer <name>” “All folders” “Folder <name>” “All genres” “Genre <name>” “All movies” “Playlist <name>” “All music videos” “Podcast <name>” “All playlists” “TV show <name>” “All podcasts”...
Page 360 MyLincoln Touch™ Bluetooth Audio Your system allows you to stream audio over your vehicle’s speakers from your connected, Bluetooth-enabled cellular phone. To access, press the lower left corner on the touchscreen, then select the BT Stereo tab. Bluetooth Audio Voice Commands If you are listening to a Bluetooth audio device, press the voice button on the steering wheel control.
Page 361 MyLincoln Touch™ Your A/V inputs allow you to connect an auxiliary audio/video source (such as a gaming systems or a personal camcorder) by connecting RCA cords (not included) to these input jacks. The jacks are yellow, red and white and are located either behind a small access door on the instrument panel or in your center console.
Page 362: Phone Features
MyLincoln Touch™ Troubleshooting • Do not connect the audio input jack to a line level output. The jack only works correctly with devices that have a headphone output with a volume control. • Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio as this causes distortion and reduces sound quality.
Page 363 MyLincoln Touch™ Hands-free calling is one of the main features of SYNC. Once you pair your phone, you can access many options using the touchscreen or voice commands. While the system supports a variety of features, many are dependent on your cellular phone’s functionality. At a minimum, most cellular phones with Bluetooth wireless technology support the following functions: •...
Page 364 MyLincoln Touch™ 3. If you are prompted to enter a PIN on your device, it does not support Secure Simple Pairing. To pair, enter the PIN displayed on the touchscreen. Skip the next step. 4. When prompted on your phone’s display, confirm that the PIN provided by SYNC matches the PIN displayed on your cellular phone.
Page 365 MyLincoln Touch™ Receiving Calls During an incoming call, an audible tone sounds. Call information appears in the display if it is available. Accept the call by pressing Accept on the touchscreen or by pressing this phone button on your steering wheel controls. Reject the call by pressing Reject on the touchscreen or by pressing this phone button on your steering wheel controls.
Page 366 MyLincoln Touch™ Messaging Send text messages using your touchscreen. See Text messaging later in this section. Settings Touch this button to access various phone settings, such turning Bluetooth on and off, managing your phonebook and more. See Phone settings later in this section. Text Messaging Note: Downloading and sending text messages using Bluetooth are phone-dependent features.
Page 367 MyLincoln Touch™ You can then preview the message, verify the recipient as well as update the message list. Pre-defined text message options I’ll call you back in a few minutes. I just left, I’ll be there soon. Can you give me a call? I’m on my way.
Page 368 MyLincoln Touch™ Phone Settings Press Phone > Settings. Bluetooth Devices Touch this tab to connect, disconnect, add or delete a device, as well as save it as a favorite. Bluetooth Touch this tab to turn Bluetooth off or on. Do Not Disturb Touch this tab if you want all calls to go directly to your voice mail and not ring in the vehicle.
Page 369 MyLincoln Touch™ Phone Voice Commands Press the voice button on the steering wheel control. After the tone, say any of the following commands: “PHONE” “Call” “Join calls” “Call <name>” “Listen to text message <#>” “Call <name> at home” “Listen to text messages” “Call <name>...
Page 370: Information Menu
MyLincoln Touch™ INFORMATION If your vehicle is equipped with Navigation, touch the i (Information) button to access these features. If your vehicle is not equipped with Navigation, touch the corner of the touchscreen with the green tab. Under the Information menu, you can access features, such as: A.
Page 371 MyLincoln Touch™ Note: The driver is ultimately responsible for the safe operation of the vehicle, and therefore, must evaluate whether it is safe to follow the suggested directions. Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and existing traffic regulations.
Page 372 MyLincoln Touch™ Connecting to SYNC Services Using the Touchscreen If your vehicle is equipped with Navigation, touch the i (Information) button to access these features. If your vehicle is not equipped with Navigation, touch the corner of the touchscreen with the green tab. Press Services.
Page 373 MyLincoln Touch™ If you miss a turn, SYNC automatically asks if you want the route updated. Just say, “Yes” when prompted and the system delivers a new route to your vehicle. If your vehicle is equipped with Navigation, SYNC Services downloads your requested destination to the navigation system.
Page 374 MyLincoln Touch™ SYNC Services Voice Commands When a route has been downloaded (non-navigation systems), press the voice button on the steering wheel control. When prompted, say any of the following commands: “SERVICES” “Cancel route” “Navigation voice off” “Navigation voice on” “Next turn”...
Page 375 MyLincoln Touch™ When you subscribe to Sirius Travel Link, it can help you locate the best gas prices, find movie listings, get current traffic alerts, view the current weather map, get accurate ski conditions and see scores to current sports games. If your vehicle is equipped with Navigation, touch the i (Information) button to access these features.
Page 376 MyLincoln Touch™ Sirius Travel Link Voice Commands Note: In order to use Sirius Travel Link, your vehicle must be equipped with navigation and your navigation SD card must be in the SD card slot. Press the voice button on the steering wheel controls and, when prompted, say any of the following: Travel Link voice commands “5–day weather forecast”...
Page 377 MyLincoln Touch™ “TRAVEL LINK” “College basketball “Motor sports order” “NHL schedule” schedule” “College basketball “Motor sports “NHL scores” scores” schedule” “College football “Movie listings” “Traffic” headlines” “College football “My team headlines” “Weather” schedule” “College football “My teams schedule” “Weather map” scores”...
Page 378 MyLincoln Touch™ 911 Assist® (If Equipped) WARNING: Unless the 911 Assist setting is set on before a crash, the system will not dial for help, which could delay response time, potentially increasing the risk of serious injury or death after a crash. WARNING: Do not wait for 911 Assist to make an emergency call if you can do it yourself.
Page 379 MyLincoln Touch™ Setting 911 Assist On If your vehicle is equipped with Navigation, touch the i (Information) button to access these features. If your vehicle is not equipped with Navigation, touch the corner of the touchscreen with the green tab. Press Apps >...
Page 380 MyLincoln Touch™ to provide your name, phone number and location immediately, because not all 911 systems are capable of receiving this information electronically. 911 Assist May Not Work If • Your cellular phone or 911 Assist hardware sustains damage in a crash.
Page 381 MyLincoln Touch™ Note: In order to allow a break-in period for your vehicle, you may not be able to create a Vehicle Health Report until your vehicle odometer has reached 200 miles. Note: Cellular phone and SMS charges may apply when making a report. Register for Vehicle Health Report and set your report preferences at www.SYNCMyRide.com.
Page 382: Settings
MyLincoln Touch™ SETTINGS A. Clock B. Display C. Sound D. Vehicle E. Settings F. Help Under this menu, you can set your clock, access and adjust the display, sound and vehicle settings as well as access settings for specific modes or the help feature. Clock Note: You cannot manually set the date.
Page 383 MyLincoln Touch™ You can also turn the outside air temperature display on and off. It appears at the top center of the touchscreen, next to the time and date. The system automatically saves any updates you make to the settings. Display You can adjust the touchscreen display through the touchscreen or by pressing the voice button on your steering wheel controls and when...
Page 384 MyLincoln Touch™ Sound Press the Settings icon > Sound, then select from the following: Sound Settings Bass Midrange Occupancy Mode Treble Speed Compensated Volume Set Balance and Fade If equipped. Vehicle Press the Settings icon > Vehicle, then select from the following: •...
Page 385 MyLincoln Touch™ Rear View Camera This menu allows you to access settings for your rear view camera. Press the Settings icon > Vehicle > Rear View Camera, then select from the following settings: • Rear Camera Delay • Visual Park Aid Alert •...
Page 386 MyLincoln Touch™ System Keyboard Layout Have the touchscreen keyboard display in QWERTY or ABC format. Install Applications Install any downloaded applications or view the current software licenses. Master Reset Select to restore factory defaults. This erases all personal settings and personal data. Voice Control Press the Settings icon >...
Page 387 MyLincoln Touch™ Media Player Press the Settings icon > Settings > Media Player, then select from the following: Media player Autoplay When this feature is on, the system automatically switches to the media source upon initial connection. This allows you to listen to music during the indexing process.
Page 388 MyLincoln Touch™ Navigation Press the Settings icon > Settings > Navigation, then select from the following: Navigation Map Preferences Turn breadcrumbs on and off. Have the system display your turn list top to bottom or bottom to top. Turn the Parking POI notification on and off. Route Preferences Preferred Route allows you to choose to have the system display the Shortest,...
Page 389 MyLincoln Touch™ Navigation Traffic Preferences Have the system display areas where roadwork occurs. Have the system display incident icons. Have the system display areas where difficult driving conditions may occur. Have the system display areas where snow and ice on the road may occur. Have the system display any smog alerts.
Page 390 MyLincoln Touch™ Phone Phone Ringer Select the type of notification for phone calls - ring tone, beep, text to speech, or have it be silent. Text Message Select the type of notification for text Notification messages - alert tone, beep, text to speech, or have it be silent.
Page 391 MyLincoln Touch™ Wireless & Internet Your system has a Wi-Fi feature that creates a wireless network within your vehicle, thereby allowing other devices (such as personal computers or phones) in your vehicle to speak to each other, share files or play games.
Page 392 MyLincoln Touch™ Wireless & Internet USB Mobile Instead of using Wi-Fi, your system can also Broadband use a USB mobile broadband connection to access the internet. (You must turn on your mobile broadband device on your personal computer before connecting it to the system.) This screen allows you to set up what is your typical area for your USB mobile broadband connection.
Page 393 MyLincoln Touch™ Help Press the Settings icon > Help, then select from the following: Help Where Am I? View your vehicle’s current location, if your vehicle is equipped with navigation. If your vehicle is not equipped with navigation, nothing displays. System Information Touchscreen system serial number.
Page 394: Climate Features
MyLincoln Touch™ CLIMATE Press the lower right corner on the touchscreen to access your climate control features. Depending on your vehicle line and option package, your climate screen may look different from the screen shown here. A. Power: Touch to switch the system off and on. Outside air cannot enter your vehicle when you switch off the system.
Page 395 MyLincoln Touch™ F. A/C: Touch to turn the air conditioning on or off. • Use with recirculated air to improve cooling performance and efficiency. • Engages automatically in MAX A/C, defrost and floor/defrost. G. AUTO: Touch to engage automatic operation, then set the temperature using the temperature control.
Page 396 MyLincoln Touch™ Climate Control Voice Commands The following voice commands are available at the main menu level of a voice session. For example, press the voice button and after the prompt, “Say a command”; say any of the following commands: Climate control voice commands “Climate automatic”...
Page 397: Navigation System
MyLincoln Touch™ Additional climate control voice commands “Off” “Windshield floor on” “On” “Help” “Panel floor on” If you have said “Temperature”, you can say any of the commands in the following “Temperature” chart. “TEMPERATURE” “High” “Low” “<15.5–29.5> degrees” “<60–85> degrees” “Help”...
Page 398 MyLincoln Touch™ Destination selections Point of Interest Emergency Edit Route Cancel Route 1. Enter the necessary information into the highlighted text fields (in any order). For address destination entry, Go! appears once you enter all the necessary information. Pressing Go! makes the address location appear on the map.
Page 399 MyLincoln Touch™ Point of Interest (POI) Categories Your system offers a variety of points of interest categories. Main categories Food/Drink & Dining Automotive Travel & Transportation Shopping Financial Entertainment & Arts Emergency Recreation & Sports Community Government Health & Medicine Domestic Services Within these main categories, there are subcategories which contain more listings:...
Page 400 MyLincoln Touch™ cityseekr (If Available) Note: cityseekr point of interest information is limited to approximately 912 cities (881 in the United States, 20 in Canada and 11 in Mexico). cityseekr, when available, is a service that provides more information about certain points of interest such as restaurants, hotels and attractions.
Page 401 MyLincoln Touch™ This icon appears when your selection exists in multiple categories within the system. When you are viewing more information for hotels, cityseekr also tells you if the hotel has certain services and facilities using icons. Hotel services and facilities Restaurant 24 Hr Room Service Business Center...
Page 402 MyLincoln Touch™ Route Preferences Preferred Route allows you to choose to have the system display the Shortest, Fastest or most Ecological route first. If you set Always Use Preferred Route to Yes, the system uses the selected route type to calculate only one route to the desired destination. Always Use Preferred Route bypasses route selection in destination programming.
Page 403 MyLincoln Touch™ Avoid Areas Avoid Areas allows you to choose areas which you want the system to avoid when calculating a route for you. Press Add to program an entry. Once you make a selection, the system tries to avoid the area(s) if possible for all routes. To delete a selection, choose the listing on the screen.
Page 404 MyLincoln Touch™ 3D map mode provides an elevated perspective of the map. This viewing angle can be adjusted and the map can be rotated 180 degrees by touching the map twice, and then dragging your finger along the shaded bar with arrows at the bottom of the map. View switches between full map, street list and exit view in route guidance.
Page 405 MyLincoln Touch™ Home indicates the location on the map currently stored as the home position. You can only save one address from the Address Book as your Home entry. You cannot change this icon. POI (Point Of Interest) icons indicate locations of any point of interest categories you choose to display on the map.
Page 406 MyLincoln Touch™ Save to Favorites Touch this button to save the current location to your favorites. POI Icons Touch this button to select icons to display on the map. You can select up to three icons to display on the map at the same time. Turn these ON or OFF.
Page 407 MyLincoln Touch™ Navigation Voice Commands When in navigation mode, press the voice button on the steering wheel control. After the tone, say any of the following commands: Navigation system voice commands “Cancel next waypoint” “Navigation” “Cancel route” “Navigation voice volume decrease”...
Page 408 MyLincoln Touch™ “DESTINATION” “Intersection” “Nearest <POI category>” “Nearest POI” “Play nametags” “POI category” “Previous destination” “Street address” “Help” “NAVIGATION” “Destination” “Zoom city” “Zoom country” “Zoom in minimum” “Zoom out maximum” “Zoom province” “Zoom state” “Zoom street” “Zoom to <distance>” “Help” If you have said, “Destination”, you may say any of the commands in the Destination chart.
Page 409: Appendices
Appendices GENERAL INFORMATION SYNC® End User License Agreement (EULA) • You have acquired a device (“DEVICE”) that includes software licensed by FORD MOTOR COMPANY from an affiliate of Microsoft Corporation (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“MS SOFTWARE”) are protected by international intellectual property laws and treaties.
Page 410 Appendices DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS: • Speech Recognition: If the SOFTWARE includes speech recognition component(s), you should understand that speech recognition is an inherently statistical process and that recognition errors are inherent in the process. Neither FORD MOTOR COMPANY nor its suppliers shall be liable for any damages arising out of errors in the speech recognition process.
Page 411 Appendices SOFTWARE’s ability to use WMDRM to play or copy protected content. This action does not affect unprotected content. When your DEVICE downloads licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade the SOFTWARE on your DEVICE to access their content.
Page 412 Appendices provided, then the terms of this EULA shall apply, except that the MS, Microsoft Corporation or affiliate entity providing the Supplemental Component(s) shall be the licensor of the Supplemental Component(s). FORD MOTOR COMPANY, MS, Microsoft Corporation, their affiliates and/or their designated agent reserve the right to discontinue without liability any Internet-based services provided to you or made available to you through the use of the SOFTWARE.
Page 413 Appendices property rights in and to the content which may be accessed through use of the SOFTWARE is the property of the respective content owner and may be protected by applicable copyright or other intellectual property laws and treaties. This EULA grants you no rights to use such content. All rights not specifically granted under this EULA are reserved by MS, Microsoft Corporation, FORD MOTOR COMPANY, third party software and service providers, their affiliates and suppliers.
Page 414 Appendices End user notice Microsoft® Windows® Mobile for Automotive Important Safety Information This system Ford SYNC™ contains software that is licensed to Manufacturer FORD MOTOR COMPANY by an affiliate of Microsoft Corporation pursuant to a license agreement. Any removal, reproduction, reverse engineering or other unauthorized use of the software from this system in violation of the license agreement is strictly prohibited and may subject you to legal action.
Page 415 Appendices access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous if your attention has been diverted away from your driving task at a critical time. Volume Setting Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while driving.
Page 416 Appendices Emergency Services Do not rely on any navigation features included in the system to route you to emergency services. Ask local authorities or an emergency services operator for these locations. Not all emergency services such as police, fire stations, hospitals and clinics are likely to be contained in the map database for such navigation features.
Page 417 Appendices 2. Account Information You agree: (a) when registering the TeleNav Software, to provide TeleNav with true, accurate, current, and complete information about yourself, and (b) to inform TeleNav promptly of any changes to such information, and to keep it true, accurate, current and complete. 3.
Page 418 Appendices Software. TeleNav also does not warrant the accuracy of the map or other data used for the TeleNav Software. Such data may not always reflect reality due to, among other things, road closures, construction, weather, new roads and other changing conditions. You are responsible for the entire risk arising out of your use of the TeleNav Software.
Page 419 Appendices 6. Arbitration and Governing Law You agree that any dispute, claim or controversy arising out of or relating to this Agreement or the TeleNav Software shall be settled by independent arbitration involving a neutral arbitrator and administered by the American Arbitration Association in the County of Santa Clara, California.
Page 420 Appendices 8.3 By using the TeleNav Software, you consent to receive from TeleNav all communications, including notices, agreements, legally required disclosures or other information in connection with the TeleNav Software (collectively, “Notices”) electronically. TeleNav may provide such Notices by posting them on TeleNav’s Website or by downloading such Notices to your wireless device.
Page 421 Appendices The Data is provided for your personal, internal use only and may not be resold. It is protected by copyright, and is subject to the following terms (this “End User License Agreement”) and conditions which are agreed to by you, on the one hand, and NAVTEQ North America, LLC (“NT”) and its licensors (including their licensors and suppliers) on the other hand.
Page 422 Appendices Additional License Limitations: Except where you have been specifically licensed to do so by NT in a separate written agreement, and without limiting the preceding paragraph, your license is conditioned on use of the Data as prescribed in this agreement, and you may not (a) use this Data with any products, systems, or applications installed or otherwise connected to or in communication with vehicles capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet...
Page 423 Appendices OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THIS DATA, ANY DEFECT IN THIS DATA, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF NT OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Page 424 Appendices furnished shall be marked and embedded as appropriate with the following “Notice of Use”, and be treated in accordance with such Notice: NOTICE OF USE CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME: NAVTEQ CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: 425 West Randolph Street, Chicago, IL 60606. This Data is a commercial item as defined in FAR 2.101 and is subject to the EndUser License Agreement under which this Data was provided.
Page 425 Appendices perform other functions. You may use Gracenote Data only by means of the intended End User functions of this device This device may contain content belonging to Gracenote’s providers. If so, all of the restrictions set forth herein with respect to Gracenote Data shall also apply to such content and such content providers shall be entitled to all of the benefits and protections set forth herein that are available to Gracenote.
Page 426 Appendices CONTENT FROM THE COMPANIES’ RESPECTIVE SERVERS OR, IN THE CASE OF GRACENOTE, CHANGE DATA CATEGORIES FOR ANY CAUSE THAT GRACENOTE DEEMS SUFFICIENT. NO WARRANTY IS MADE THAT EITHER GRACENOTE CONTENT OR THE GRACENOTE SOFTWARE OR GRACENOTE SERVERS ARE ERROR-FREE OR THAT THE FUNCTIONING OF THE GRACENOTE SOFTWARE OR GRACENOTE SERVERS WILL BE UNINTERRUPTED.
Page 427: Scheduled Maintenance
Scheduled Maintenance GENERAL MAINTENANCE INFORMATION Why Maintain Your Vehicle? Carefully following the maintenance schedule helps protect against major repair expenses resulting from neglect or inadequate maintenance and may help to increase the value of your vehicle when you sell or trade it. Keep all receipts for completed maintenance with your vehicle.
Page 428 Scheduled Maintenance Protecting Your Investment Maintenance is an investment that will pay dividends in the form of improved reliability, durability and resale value. To maintain the proper performance of your vehicle and its emission control systems, it is imperative that scheduled maintenance be completed at the designated intervals.
Page 429 Scheduled Maintenance Oils, Fluids and Flushing In many cases, fluid discoloration is a normal operating characteristic and, by itself, does not necessarily indicate a concern or that the fluid needs to be changed. However, discolored fluids that also show signs of overheating and foreign material contamination should be inspected immediately by a qualified expert, such as the factory-trained technicians at your dealership.
Page 430 Scheduled Maintenance Multi-point Inspection In order to keep your vehicle running right, it is important to have the systems on your vehicle checked regularly. This can help identify potential issues and prevent major problems. Ford Motor Company recommends the following multi-point inspection be performed at every scheduled maintenance interval to help make sure your vehicle keeps running great.
Page 431 Scheduled Maintenance 2014 MKX (mkx) Owners Guide gf, 1st Printing, November 2013 USA (fus)
Page 432: Normal Scheduled Maintenance And Log
Scheduled Maintenance NORMAL SCHEDULED MAINTENANCE AND LOG Intelligent Oil-Life Monitor® Your vehicle is equipped with an Intelligent Oil-Life Monitor that determines when the engine oil needs to be changed based on how your vehicle is used. By using several important factors in its calculations, the monitor helps reduce the cost of owning your vehicle and reduce environmental waste at the same time.
Page 433 Scheduled Maintenance Normal scheduled maintenance At every oil change Change engine oil and filter. interval as indicated by Rotate tires, inspect tire wear and measure the information display tread depth. Perform multi-point inspection (recommended). Inspect automatic transmission fluid level (if equipped with dipstick).
Page 434 Scheduled Maintenance Other maintenance items Every 20000 miles Replace cabin air filter, or clean screen. (32000 km) Every 30000 miles Replace engine air filter. (48000 km) At 100000 miles Change engine coolant. (160000 km) Every 100000 miles Replace spark plugs. (160000 km) Inspect accessory drive belt(s).
Page 435 Scheduled Maintenance Maintenance Schedule Log EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS...
Page 436 Scheduled Maintenance EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE...
Page 437 Scheduled Maintenance EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE...
Page 438 Scheduled Maintenance SPECIAL OPERATING CONDITIONS If you operate your vehicle primarily in any of the following conditions, you need to perform additional maintenance as indicated. If you occasionally operate your vehicle under any of these conditions, it is not necessary to perform the additional maintenance. For specific recommendations, see your dealership service advisor or technician.
Page 439 Scheduled Maintenance Extensive idling or low-speed driving for long distances as in heavy commercial use (such as delivery, taxi, patrol car or livery) As required Change engine oil and filter as indicated by the information display and perform services listed in the Normal Scheduled Maintenance chart.
Page 440 Scheduled Maintenance Special Operating Condition Log EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#:...
Page 441 Scheduled Maintenance EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE...
Page 442 Scheduled Maintenance EXCEPTIONS There are several exceptions to the Normal Schedule. They are listed below: Normal vehicle axle maintenance: Rear axles and power take-off units with synthetic fluid and light-duty trucks equipped with Ford-design axles are lubricated for life; do not check or change fluid unless a leak is suspected, service is required or the assembly has been submerged in water.
Page 443 Scheduled Maintenance Engine air filter & cabin air filter replacement: Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these conditions require frequent inspection and replacement of the engine air filter and cabin air filter. ENGINE COOLANT CHANGE RECORD Initial change Six years or 100000 miles (160000 km)
Page 444: Index
Index 911 Assist™ ......377 Automatic transmission driving an automatic overdrive .........161 fluid, adding ......258 ABS (see Brakes) .....174 fluid, checking ......258 Accessing and using your fluid, refill capacities ....313 USB port ........355 fluid, specification ....313 Accessing your calendar ..376 Selectshift (SST) ....162 Accessory delay ......95 Auxiliary Input Jack ....351 Adaptive Cruise Control ...186...
Page 445 Index specifications ......313 Cross Traffic Alert ....194 Capacities for refilling fluids ..313 Cruise control ......185 Cargo management system ..205 Customer Assistance ....227 Cargo net ........204 Ford Extended Service CD ..........326 Plan ..........321 Getting roadside assistance ...227 CD player ......324, 353 Getting the service you CD voice commands ....354 need .........232...
Page 446 Index Emergency brake fuel pump shut-off ....228 (see Parking brake) ....174 octane rating ....153, 312 Emission control system ..157 quality ........152 running out of fuel ....153 End user license agreement ..408 safety information relating to Engine ........312 automotive fuels .....151 cleaning ........275 coolant ........253 Fuel - flex fuel vehicle...
Page 447 Index Listening to music ....340 Load limits .........207 Ignition ........312 Locks Illuminated visor mirror ..98–99 autolock ........69 Information displays ....107 childproof ........32 Inspection/maintenance (I/M) doors ..........67 testing ........160 Lubricant specifications ...313 Instrument panel Lug nuts ........310 cleaning ........277 cluster ........101 Intelligent Access Key ....58 Making and receiving calls ..363 MAP DVD - Loading and...
Page 448 Index Octane rating ......153 Radio ..........326 AM/FM ........342 Single CD ........326 Radio reception ......324 Pairing other phones ....363 Radio voice commands .....347 Pairing your phone ....362 Rear heated seats .....136 Pairing your phone for the Rear view camera first time ........362 display ........181, 384 Parental MyKey programming ...63 Rear window defroster .....122...
Page 449 Index Belt-Minder®, Setting a destination by deactivating/activating .....41 voice ...........396 extension assembly ....38 Settings ........381 for adults ......35–36 Setting the clock ....326, 381 for children .......24 Occupant Classification Side air curtain ......53 Sensor ........48 Side-curtain airbags system ..53 safety belt maintenance ...42 seat belt maintenance ....42 SIRIUS®...
Page 450 Index fluid, checking and adding (automatic) ......258 fluid, refill capacities ....313 Temperature control (see Climate control) ..122, 393 lubricant specifications ..313 Text messaging ......365 Turn signal ........91 Tilt steering wheel ......80 Tires ......284–285, 305 alignment ........298 USB port ......327, 355 care ..........284 changing ......305, 307 checking the pressure ....294...

This manual is also suitable for:

2014 mkx

Lincoln MKX 2014 Owner's Manual

Table of Contents

Table of Contents

Table of Contents

Table of Contents

Introduction

Child Safety

Safety Belts

Personal Safety System

Supplementary Restraints System

Keys and Remote Control

Mykey

Locks

Security

Steering Wheel

Wipers and Washers

Lighting

Windows and Mirrors

Instrument Cluster

Information Displays Controls

Climate Control

Seats

Universal Garage Door Opener

Auxiliary Power Points

Storage Compartments

Starting and Stopping the Engine

Fuel and Refueling

Transmission

All-Wheel Drive (if Equipped)

Brakes

Traction Control

Stability Control Advancetrac

Parking Aids

Cruise Control

Driving Aids

Load Carrying

Towing

Driving Hints

Roadside Emergencies

Customer Assistance

Fuses

Maintenance

Vehicle Care

Wheels and Tires

Capacities and Specifications

Accessories

Ford Extended Service Plan

Audio System

Mylincoln Touch

Quick Links

Related Manuals for Lincoln MKX 2014

Summary of Contents for Lincoln MKX 2014
