ELITE SERIES
2.1E
4.1E
Elliptical User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Horizon Fitness ELITE 2.1E

Summary of Contents for Horizon Fitness ELITE 2.1E

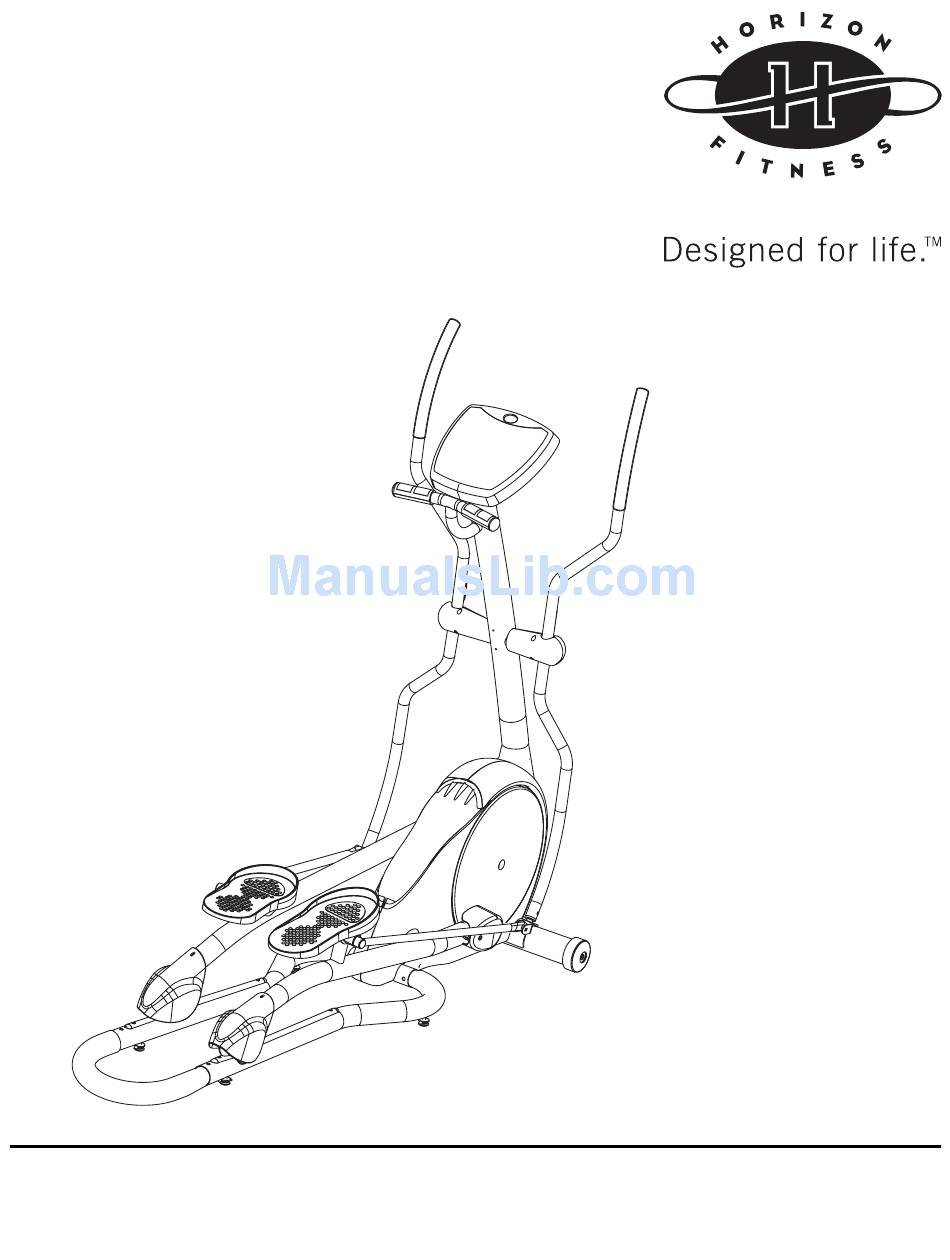

  • Page 1 ELITE SERIES 2.1E 4.1E Elliptical User’s Guide...

  • Page 2: Table Of Contents

    Table of Contents IMPORTANT PRECAUTIONS ........3 BEFORE YOU BEGIN .

  • Page 3: Important Precautions

    • Do not remove the elliptical trainer's side covers. Service should be performed only by an author- ized Horizon Fitness service provider. • Never operate this elliptical trainer if it has a damaged cord or plug, if it is not working properly, if it has been damaged, or immersed in water.
  • Page 4 OPERATION It is essential that your elliptical trainer is used only indoors, in a climate controlled room. If your elliptical trainer has been exposed to colder temperatures or high moisture climates, it is strongly rec- ommended that the elliptical trainer is warmed up to room temperature before first time use.
  • Page 5 Guide before using your new elliptical trainer. WARRANTY REGISTRATION Your warranty card must be completed and sent to Horizon Fitness within thirty days of purchase or regis- tered on line at www.horizonfitness.com, before a warranty claim can be processed. Please keep receipt with owner’s guide as it may be required for a warranty claim.

  • Page 6: Before You Begin

    • Help In Countering Anxiety and Depression • An Improved Self Image The key to reaping these benefits is to develop the exercise habit. Your new elliptical trainer will help you eliminate the obstacles that prevent you from getting in your exercise time. Inclement weather and darkness won't interfere with your workout when you use your elliptical trainer in the comfort of your home.

  • Page 7: Assembly (2.1E)

    Assembly 2.1E ASSEMBLY UNPACKING Unpack the product where you will be using it. Place the product on a level flat surface. It is recom- mended that you place a protective covering on your floor. Note: It is recommended that you apply grease to the threads of each bolt as you assemble the product, to prevent loosening and noise.
  • Page 8 2.1E HARDWARE A) 20mm Bolt Quantity: 2 K) 25mm Teflon Coated Washer Quantity: 4 B) 70mm Bolt Quantity: 3 L) Wavy Washer Quantity: 2 P) 15/13mm Wrench Quantity: 1 C) 12mm Bolt D) 15mm Bolt Quantity: 3 Quantity: 6 G) 13mm Nut Quantity: 3 H) 20mm Screw Quantity: 2...
  • Page 9 STEP 1: ATTACH FRONT TUBE. Note: Make sure not to tighten bolts until all assembly steps have been completely assembled and aligned. STEP 4: ATTACH LEFT & RIGHT PEDAL ARMS AND PEDAL ARM COVERS. Note: Black ‘Teflon’ surface of K should be facing the pedal arm.

  • Page 10: Assembly (4.1E)

    Assembly 4.1E ASSEMBLY UNPACKING Unpack the product where you will be using it. Place the product on a level flat surface. It is recom- mended that you place a protective covering on your floor. Note: It is recommended that you apply grease to the threads of each bolt as you assemble the product, to prevent loosening and noise.
  • Page 11 4.1E HARDWARE C) 12mm Bolt E) 8mm Set Screw Quantity: 3 Quantity: 4 F) 17mm Nut A) 20mm Bolt Qauntity: 6 Quantity: 2 D) 15mm Bolt I) 15mm Screw Quantity: 6 Quantity: 4 J) Arc Washer Quantity: 3 V) Arc Washer H) 20mm Screw Quantity: 4 Quantity: 2...
  • Page 12 STEP 1: ATTACH FRONT TUBE. Note: Make sure not to tighten bolts until all assembly steps have been completely assembled and aligned. STEP 3: ATTACH CONSOLE MAST AND CONSOLE MAST BOOT. Note: Make sure to loosen the water bottle screws in order to fit the console cable through the mast.

  • Page 13: Elliptical Operation & Adjustment

    Your elliptical trainer also allows you to pedal both forward and backwards to offer a variation to your workout and to focus on other major leg muscle groups such as your hamstrings and calves.
  • Page 14 MOVING Your elliptical trainer has a pair of transport wheels built into the front of the frame. To move, firmly grasp the back end of the frame, carefully lift and roll. CAUTION CAUTION! Our elliptical trainers are well built and heavy, weighing up to 200lbs.! Use care and additional help...

  • Page 15: Console Features & Display (2.1E & 4.1E)

    Console Features & Display 2.1E QUICK START UP Simply begin exercising. The console will automatically begin counting up and tracking your informa- tion. RESET Press and hold the reset button on the console.
  • Page 16 PROGRAMMING CHOOSING YOUR TIME Press the ‘SET TIME’ button on the console to select your workout time (time is set in 1 minute increments). STARTING YOUR WORKOUT Start pedaling, the console will automaticly begin counting down. CHOOSING A RESISTANCE At any time during your workout you can change your resistance by adjusting the tension knob locat- ed on the console mast.
  • Page 17 TIME Shown as Minutes:Seconds. View the time remaining or the time elapsed in your workout. DISTANCE Shown as Miles. View the accumulated distance during your workout. SPEED Shown as your speed in miles per hour. Shown as Revolutions per Minute. Improve striding technique while reducing leg muscle fatigue by striding between 60 &...
  • Page 18 4.1E QUICK START UP Simply press the “Start” button to begin exercising. The console will automatically default to the Manual program unless another program is selected. RESET Press and hold the “Stop” button to reset the elliptical trainer. 4.1E CONSOLE VIEW...
  • Page 19 TIME Shown as Minutes:Seconds. View the time remaining or the time elapsed in your workout. DISTANCE Shown as Miles. View the accumulated distance during your workout. SPEED Speed shown as speed in miles per hour. CALORIES Shown as total accumulated calories burned during your work- out.
  • Page 20 RESISTANCE During a workout, the amount of resistance can be adjusted by pressing the quick resistance or up/down buttons on the console. The resistance levels vary from level 1 to 16 (level 1 being the easi- est and level 16 being the most difficult). WATTS A measurement of your energy expenditure.
  • Page 21 CHOOSING A PROGRAM To choose a program, press the quick program key. The program name will scroll across the display. Press “Select” to choose your program. Once you choose a program, you will see the level flashing in the Distance/Speed window. CHOOSING A LEVEL With the level flashing, press the up or down buttons to adjust your level.

  • Page 22: Program Profiles

    Program Profiles P1 MANUAL Customized workouts, allowing the user to adjust resistance level to the user's preference. P2 INTERVALS Improves your strength, speed, and endurance by raising and lowering the resistance levels through- out your workout to involve both your heart and muscles. P3 ROLLING Maintains weight by gradually raising and lowering the resistance level to gradually raise and lower your heart rate.

  • Page 23: Program Charts

    Program Charts P2 INTERVALS Time-based goal with 10 difficulty levels to choose from. Peak segments last 30 seconds, valley segments last 90 seconds. Warm-up and cool-down last 5:00 minutes each and are included in program times. Warm Up Resistance Level 1 Level 2 Level 3 Level 4...
  • Page 24 P4 WEIGHT LOSS Time-based goal with 10 difficulty levels to choose from. All segments last 10 seconds. Warm-up and cool-down last 5:00 minutes each and are included in program times. Warm Up Resistance Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7...

  • Page 25: Using Your Race Program

    USING YOUR RACE PROGRAM (4.1E only) Your Race Program is designed to add motivation to a workout by allowing you to compete against a selected pacer. To use your Race Program, follow these instructions: 1. Choose the Race program by pressing the quick program buttons. Press “Select”. 2.

  • Page 26: Using Your Thr Zone Programs 1 & 2

    USING YOUR THR ZONE PROGRAMS 1 & 2 (4.1E only) The THR zone program is designed to keep the user at an optimum exercise level, while adjusting the resistance levels to keep the user at a target heart rate. To choose the THR zone program, follow these instructions.

  • Page 27: Using Your Custom User Programs 1 & 2

    USING YOUR CUSTOM USER PROGRAMS 1 & 2 (4.1E only) Your Custom User 1 & 2 programs are designed to allow you to create your own programming, with the ability to save your program settings for future workouts. To use your Custom User 1 & 2 program, follow these instructions: 1.

  • Page 28: Troubleshooting & Maintenance Procedures

    Clean with soap and water cleaners only. Never use solvents on plastic parts. Cleanliness of your elliptical trainer and its operating environment will keep maintenance problems and service calls to a minimum. For this reason, Horizon Fitness recommends that the following pre- ventive maintenance schedule be followed.
  • Page 29 Your Horizon Fitness elliptical is designed to be reliable and maintenance free. However, if you do experience problems with your elliptical, please reference the troubleshooting guide listed below. PROBLEM: There is no display on the console. SOLUTION: Remove the console and verify that the console cable is attached properly (check batter- ies 2.1E model only), making sure that the cable is securely inserted into the console.
  • Page 30 If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off. DO NOT RETURN TO THE STORE, PLEASE CONTACT THE HORIZON FITNESS CUSTOMER ASSISTANCE CENTER TOLL-FREE @ 1-800-244-4192 Mon.-Fri., 8 a.m.-5 p.m. CST (excluding holidays).

  • Page 31: Common Product Questions

    CAN I MOVE THE TRAINER EASILY ONCE IT IS ASSEMBLED? Your elliptical trainer has a pair of transport wheels built into the front legs. It is easy to move your elliptical trainer by rolling it on the front transport wheels. It is important that you place your ellipti- cal trainer in a comfortable and inviting room.

  • Page 32: Conditioning Guidelines

    Conditioning Guidelines Always consult your physician before beginning an exercise program. HOW OFTEN? The American Heart Association recommends that you exercise at least 3 to 4 days per week to main- tain cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with more frequent exercise.
  • Page 33 HOW HARD? How hard you workout is also determined by your goals. If you use your elliptical trainer to prepare for a 5K run, you will probably work out at a higher intensity than if your goal is general fitness.

  • Page 34: Monitoring Your Heart Rate

    Center the chest strap just below the breast or pectoral muscles, directly over your sternum, with the Horizon Fitness logo facing out. Note: The chest strap must be tight and properly placed to receive an accurate and consistent readout. If the chest strap is too loose, or positioned improperly, you may receive an erratic or inconsistent heart rate readout.

  • Page 35: Heart Rate Chart

    Heart Rate Chart TARGET HEART RATE ZONE Your ‘Target Heart Rate Zone’ is a percentage of your maximum heart rate. Target Zones will vary for each individual, depending on age, current level of conditioning, and personal fitness goals. The American Heart Association recommends working-out at a ‘Target Heart Rate Zone’ of between 60% and 75% of your maximum heart rate.

  • Page 36: Developing A Fitness Program

    Developing A Fitness Program STRETCH FIRST Before using your Horizon Fitness product, it is best to take a few minutes doing a few gentle stretch- ing exercises. Stretching prior to exercise will improve flexibility and reduce chances of exercise relat- ed injury.

  • Page 37: Warm Up & Cool Down

    Warm Up & Cool Down THE IMPORTANCE OF WARM UP AND COOL DOWN WARM UP The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your Horizon Fitness product at a slow pace.

  • Page 38: Achieving Your Fitness Goals

    An important step in developing a long term fitness program is to determine your goals. Is your pri- mary goal for exercising on your elliptical trainer to lose weight? Improve muscle? Burn Stress? Prepare for the spring racing schedule? Knowing what your goals are will help you develop a more successful exercise program.

  • Page 39: Weekly Log Sheets

    Weekly Log Sheets...

  • Page 40: Monthly Log Sheets

    Monthly Log Sheets...

  • Page 41: Limited Warranty

    LABOR • 1 YEAR Horizon Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of the original purchase, so long as the device remains in the possession of the original owner.
  • Page 42 HORIZON FITNESS | 800 BURTON BOULEVARD | DEFOREST, WI 53532 Phone 1-800-244-4192 Fax 1-608-842-1660 www.horizonfitness.com Elite Series. Rev. 1.3...
