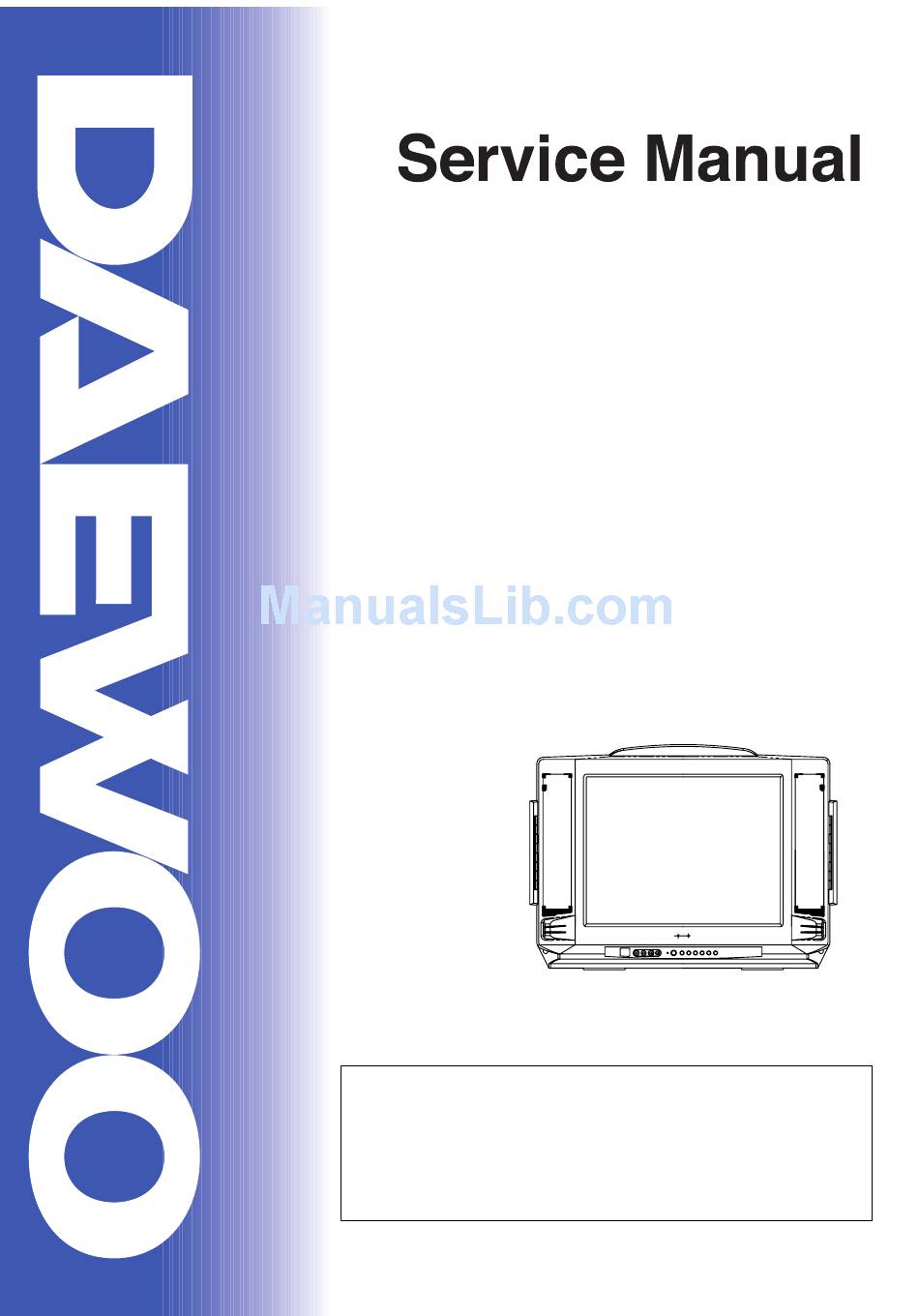

Daewoo DTR-14D3VG Service Manual

Hide thumbs Also See for DTR-14D3VG:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
 Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS CO., LTD.
S/M No:CP490P-010

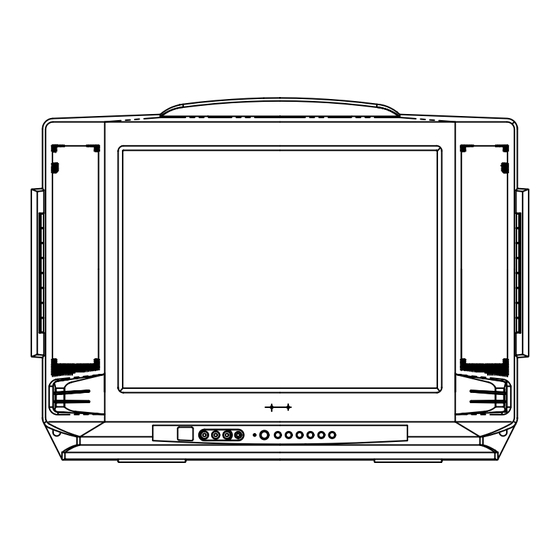

Colour Television

CHASSIS : CP-490
MODEL : DTR-14D3VG
DTR-14D3TM
DTR-16D3VG
DTR-20D3VG
DTR-20D3TM
DTR-21D3TMW
DTR-21D3VGW
DTR-21D3TGW

Advertisement

Table of Contents
loading

Related Manuals for Daewoo DTR-14D3VG

Summary of Contents for Daewoo DTR-14D3VG

  • Page 1: Colour Television

    S/M No:CP490P-010 Colour Television CHASSIS : CP-490 MODEL : DTR-14D3VG DTR-14D3TM DTR-16D3VG DTR-20D3VG DTR-20D3TM DTR-21D3TMW DTR-21D3VGW DTR-21D3TGW  Caution : In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information,please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr).

  • Page 2: Table Of Contents

    CONTENTS Specifications ....................1 Safety Instruction ..................2 Circuit block Diagram ..................3 Alignment Instructions ................. 4 IC Description ....................8 Circuit Description ..................34 Trouble Shooting Charts ................49 Electrical Parts List ..................56 CP-490 each model Parts List ..............62 Mechanical Exploded View and Parts List ..........

  • Page 3: Specifications

    Specifications VG : WITHOUT TXT. MODEL, TM : WITH TXT. MODEL TV Standard PAL/SECAM-B/G, D/K, I, H, NTSC-3.58/4.43 Mains Voltage 100~250V AC, 50/60Hz Power Consumption 14”, 16” = 85W 20”, 21” = 90W Sound output . 2 Speaker (at 80% MOD. 10% THD) : 5W + 5W (TWITTER 2.5W + 2.5W) 14”, 16”...

  • Page 4: Safety Instruction

    Safety Instruction WARNING: Before servicing this chassis, read the “X-RAY RADIATION precaution”, “safety precaution” and “product safety notice” below. X-RAY RADIATION PRECAUTION 1. Excessive high voltage can produce potentially voltage should be checked. It is recommended hazardous X-RAY RADIATION.To avoid such the reading of the high voltage recorded as a part hazards, the high voltage must not exceed the of the service records.

  • Page 5: Circuit Block Diagram

    Circuit Block Diagram...

  • Page 6: Alignment Instructions

    Alignment Instructions 1. AFT 1.1 Standard B/G,D/K,I 1) Set a Signal Generator with - RF FREQUENCY = 38.9 MHz, - RF OUTPUT LEVEL = 80 5 dBuV - System = PAL / SECAM - B/G, D/K, I NTSC - 3.58/4.43 2) Connect the Signal Generator RF Output to P101 (Tuner IF Output).
  • Page 7 6. GEOMETRY 6.1 VERTICAL CENTER 1) Set the TV to NOR I mode. 2) Pressing the V-SIZE UP/DOWN KEY, the lower half of the screen is blanked. 3) Adjust the border line of blanked picture coincident with the mechanical center marks of the CRT using the V-CENTER UP/DOWN KEY.
  • Page 8 If EEPROM(I702) has been changed ; - Option data has to be changed and - all alignment function has to be readjusted. The initial state of adjustment are as follows; - V-Center, V-Slope V-Size, H-Center, R, G, B, AFT = Center (30/64 - 33/64) - S-Correction = 00/64 - AGC = 15~60/64 Service Remocon...

  • Page 9: Ic Description

    IC Description DW90244-AS/(Z8 DIGITAL TELEVISION CONTROLLER) = Z9024106PSC (ZILOG TYPE NO.) (1) General Description The Z9023X Digital Television Controller (DTC) family is ZILOG’s latest and most powerful Z8-based DTC product offering, These parts feature larger system RAM and Rom Options, together with a host of new features including a newcolor palette systen, flexible inter-row spacing, higher character cell resolution, background mesh effect, dedicated I.
  • Page 10 (3) Block Diagram...
  • Page 11 (4) PIN CONFIGURATION(Z90241) P47/PWM10 P46/PWM9 F BLANK P24(SCLØ) P25(SDAØ) V-SYNC P26(SCL1) H-SYNC P27(SDA1) P45/PWM8 P44/PWM7 X-TAL1 X-TAL2 P55/PWM6 OSD X2 RESET OSD X1 P56/PWM6 P54/PWM5 IR IN P53/PWM4 AGND P52/PWM3 P62/ADCO P51/PWM2 P61/ADC2 P50/PWM1 P60/ADC3 (5) PIN DESCRIPTION Table 1. Z90231/233/234 42-Pin SDIP Package Pin Number Pin Function I/O/PWR...
  • Page 12 DW5255MBI (TVTEXT 8-bit Micro controller, Rom-version) =SDA5254 (SIEMENS Type No.) (1) General Description The SDA 525x contains a slicer for TTX, VPS and WSS, an accelerating acquisition hardware modul, a display gener- ator for “Level 1” TTX data and an 8 bit microcontroller running at 333 ns cycle time. The controller with dedicated hard- ware guarantees flexibility, does most of the internal processing of TTX acquisition, transfers data to/from the external memory interface and receives/transmits data via I C and UART user interfaces.
  • Page 13 • Microcontroller - 8 bit C500-CPU (8051 compatible) - 18 MHz internal clock - 0.33 µs instruction cycle - Eight 16-bit data pointer registers (DPTR) - Two 16-bit timers - Watchdog timer - Capture comprare timer for infrared remote control decoding - Serial interface (UART) - 256 bytes on-chip RAM - 8 Kbyte on-chip on-chip display-RAM (access via MOVX) for SDA 5250, SDA 5254 and SDA 5252...
  • Page 14 (4) Pin Configuration P-SDIP-52-1 (ROM-Versions) Pin Configuration P-SDIP-52-1 (ROM-Versions) (top view)
  • Page 15 24LC08B (EEPROM) (1) Features • Single supply with operation down to 2.5V • Page-write buffer for up to 16 bytes • Low power CMOS technology • 2ms typical write cycle time for page-write - 1mA active current typical • Hardware write protect for entire memory - 10 A standby current typical at 5.5V •...
  • Page 16 TDA884X ( One Chip TV-processor ) (1) General Description The TDA884X family is a pin-aligned range of single chip video and audio processors. With this family it is possible to cover in one layout a whole range of applications from simple small screen single standard sets (as well PAL as NTSC with built-in delay line) to full multi-standard (including SECAM) 16:9 sets.
  • Page 17 - All automatic controls have an option for forced mode. • Power consumption - Low power consumption. • Packaging - SDIP-56 (Shrinked Dual In Line Package, 56 pins). (3) Block Diagram...
  • Page 18 (4) Pin Description Name Description SOUND IF INPUT The sound equivalent input impedance is 8k5 ohm // 5pF which has to be taken into account for proper termination of the ceramic filters. The DC impedance is very high. The minimum input signal for catching is l mV rms. EXT AUDIO INPUT An external sound signal (500mVrms) for example from SCART can be applied to this pin via a coupling capacitor.
  • Page 19 Name Description Power-up : If the 8V increases >6.8V then; (after IC-initialization and auto re-calibration) Hout starts at 2fH Hout continues at fH Power-down : If the 8V drops <6.8V then; a power on reset, POR, is generate. The Hout is disabled immediately and RGB blanked IC must be re-initialized for correct re-start of the set INT CVBS INPUT...
  • Page 20 Name Description LUMINANCE in, The Luminance out, B-Y / R-Y out signals from the output pins from the device itself or B-Y / R-Y in from YUV signal processing IC’s MUST be DC coupled to the Luminance in, B-Y / R-Y inputs pin 27,31 and 32.
  • Page 21 Name Description blanking pulse is only present when the external flyback pulse is fed to this pin.The line flyback pulse, fed to this pin is used for two functions: - input signal for the PHI-2 1oop and - RGB line blanking. (without flyback pulse blanking occurs only during the burstkey pulse) Because of the combined input/output function, the connected circuit should be carefully designed for optimal performance.
  • Page 22 Name Description VERT DRIVE + The vertical drive has a current output. The output is balanced which ensures VERT DRIVE - a good common mode behavior with temperature and makes the output signal less sensitive for disturbances. IF INPUT The PLL frequency range is 32-60MHz with corresponding VCO frequency 64-120MHz.
  • Page 23 TDA6106Q ( Video Output Amplifier ) (1) General Description The TDA6106Q is a monolithic video output amplifier (5MHz bandwidth) in a SIL 9 MPpackage, using high-voltage DMOS technology, and is intended to drive the cathode of CRT directly . To obtain maximum performance, the amplifier should be used with black-current control. (2) Feature •...
  • Page 24 I804 PC817 (1) General Description The specification applies to the structures and characteristics of Model No. PC817 (2) Block Diagram (3) Absolute maximum ratings Parameter Symbol Rating Unit Forward current *1) Peak forward current Input Reverse voltage Power dissipation Collector-emitter voltage VCEO Output Emitter-collector voltage...
  • Page 25 TDA8356 (DC-coupled vertical deflection circuit) (1) General Description The TDA8356 is power circuit for use in 90 and 110 color deflection systems for field frequencies of 50 to 120 Hz. The circuit provides a DC driven vertical deflection output circuit, operating as a high efficient class G system. (2) Feature •...
  • Page 26 TA8218AH (AUDIO IC AMP) : 3 SPEAKER MODEL (CONTAINS WOOFER) (1) General Description The TA8218AH is 3 channel audio amplifier for consumer applications. This IC provides an output power of 6 watts per channel.(at Vcc=20V, f=1kHz, THD=10%, R =8Ω) It is suitable for power amplifier of TV and Home stereo.
  • Page 27 (4) MAXIMUM RATINGS (Ta = 25˚C) CHARACYERISTIC SYMBOL RATING UNIT Supply Voltage Output Current (Peak/ch) IO(peak) Power Dissipation Operating Temperature Topr -20~75 ˚C Storage Temperature Tstg -55~150 ˚C Note: Derated above Ta=25˚C in the proportion of 400mW/˚C (5) Electrical Characteristics Unless otherise specified, Vcc = 20V, R = 8Ω, Rg = 600Ω, f = 1 KHz, Ta = 25˚C CHARACTERISTIC...
  • Page 28 UPC1406HA(Audio output Amplifier) (1) Feature • Each attenuator is completely separate and is very easy to control with remote control (e.g Volume, Balance) • This IC’s characteristic control curve is linear against logarithmic output and offers smooth control. • Channel Seperation : 64dB MIN •...
  • Page 29 KA4558H/A/I (1) General Description The KA4558 series is a monolithic integrated circuit designed for dual operational amplifier. (2) Features • No frequency compensation reguired. • No latch-up. • Large common mode and differential voltage range. • Gain and phase match between amplifiers. •...
  • Page 30 (5) ABSOLUTE MAXIMUM RATINGS CHARACYERISTIC SYMBOL RATING UNIT Supply Voltage (KA4558A/AI) ± 22 (KA4558/I) ± 18 Differential Input Voltage ± 30 DIFF Input Voltage ± 15 Power Dissipation Operating Temperature Range (KA4558I/AI) -40 ~ +85 ˚C (KA4558/KA4558A) 0 ~ +70 ˚C Storage Temperature Range -65 ~ +150...
  • Page 31 STR-S6708 (Hybrid IC for a Switching Regulator) (1) General Description The STR-S6708 is a Hybrid IC with a built in power transistor and a separate excitation control IC, designed for converter type switching mode power supply applications. The IC is capable of quasi-resonant mode and requires small number of external component. (2) Feature •...
  • Page 32 Other Function Symbol Function Overvoltage Protection Circuit Built-in Thermal Shutdown Circuit Built-in (5) Electrical Characteristics of Control Part (Ta = 25˚C) Rating Description Terminal Symbol Unit Min. Typ. Max. On-State Voltage VIN(ON) Off-State Voltage VIN(OFF) Operating Circuit Current I IN(ON) Stand-by Circuit Current I IN(OFF) –...
  • Page 33 PCA84C 122A(IC REMOCON) (1) Features • ROM, RAM and I/O is device dependent • Two test inputs T0, T1 • 3 Single-level vectored interrupt sources • 8 bit programmable timer/counter with 5-bit pre-scaler • Single supply voltage from 2.0V to 5.5V •...

  • Page 34: Circuit Description

    Circuit Description Vision IF amplifier, AFC, video demodulator The IF signal from the tuner is fed through a SAW filter to the differential IF input (pin 48 and 49). The first IF stage consists of 3 AC-coupled amplifiers with a total gain control range of over 66 dB. The reference carrier for the video demodulator is obtained by a PLL carrier regenerator (eliminating notch filter compromises, as in reference tuned circuits for passive carrier regeneration).
  • Page 35 Circuit Description Sound The main functions are : - Limiter - PLL-Demodulator - Pre-amplifier and mute - Audio switch - Volume controlled amplifier • Limiter The sound carrier signal is supplied to this limiter input via an external bandpass filter. This external bandpass filter is used for selectivity, the internal filter at the pin is used for noise reduction.
  • Page 36 The charge (or attack) current is 1mA, the discharge (or decay) current is 200nA. This equals a current ratio of 5000. The time constant is defined by the AVL capacitor. The DC voltage (1-5V) across the AVL capacitor controls a gain stage that stabilizes the audio output level. Horizontal and vertical synchronization The main functions are : - Horizontal sync separator...
  • Page 37 The PHI-2 circuit shifts the horizontal drive, pin 40, such that the picture position on screen is constant. The flyback input pin 41 is combined with the sandcastle output. This combined function provides a three level sand- castle signal and is available starting with the highest level : burstkey, line blanking (=flyback pulse) and vertical blank- ing.
  • Page 38 • Coincidence detector (Synchronization Lock SL) The coincidence detector detects whether the incoming CVBS signal is synchronized with the horizontal oscillator, thus whether the PHI-1 loop is in-lock. The output is available by I C bus, SL, and can be used for search tuning and OSD.
  • Page 39 3. Standard TV-norm : divider ratio 525(60Hz) or 625(50Hz) When the system is switched to the narrow window (standard mode) it is checked whether the incoming vertical sync pulses are according to the TV norm, if so IVW=1, When 15 standard TV-norms are counted the divider system is switched to the standard divider ratio mode.
  • Page 40 • EHT tracking + overvoltage protection Both the vertical and the E-W drive can be modulated for EHT compensation. This tracking makes the picture size independent of EHT variations due to the beam current. The compensation range is -5 to +5%. The horizontal tracking can be switched off by I C bus function HCO(Horiz.

  • Page 41: Colour Decoder

    • Luminance signal processing For luminance processing, the selected video signal is supplied to the H/V sync circuits for sync processing and also to an adjustable delay line (Ons - 320ns, minimum step is 40ns, controlled via bus bits YD0-YD3). The chroma trap is bypassed for no burst transmissions when in own intelligence mode (automode).
  • Page 42 • PAL/NTSC demodulation The 0˚ and 90˚ reference signals from the VCXO are supplied to the HUE phase rotator; it’s outputs (H0, H90) are supplied to the (B-Y) and (R-Y) burst demodulators respectively. The demodulated burst from the (B-Y) demodulator supplies NTSC ident information to the ASM(IDN signal). The demodulated burst from (R-Y) demodulator supplies PAL ident information to the ASM(IDP signal).
  • Page 43 RGB processing and control This paragraph can be divided into : - YUV/RGB processing - RGB-control (1) YUV/RGB processing • The main functions are : - Y-signal processing/black stretcher - (B-Y)/(R-Y) signal processing/matrixing - Dynamic skin tone correction - Second RGB insertion •...
  • Page 44 RGB signal selection has three modes to choose from: - RGB (composite) - fast RGB insertion (R1 - OSD mode Before the RGB signal selection the RGB signals are clamped to a similar DC level during burstkey period. Selection is controlled by the RGB insertion input switch. Fast insertion on the RGB inputs is made active/inactive via the I C bus(IE1).
  • Page 45 For fast insertion on R inputs then brightness, contrast and white point RGB is possible RGB output illustration during OSD mode During OSD, the DC level on RGB outputs is 200mV less then DC level on RGB outputs during black current measurement (contrast, brightness and white point RGB are inactive) •...
  • Page 46 • Continuous Cathode Calibration (CCC) The Continuous Cathode Calibration (CCC) loop (or two point stabilisation loop) is an auto-tuning loop which stabilises th black level (offset) as well as the cathode drive level (gain) of each gun of the CRT sequentially and independently on alternating fields.
  • Page 47 Power Supply STR-S6708 (1) V terminal, start-up circuit Astart-up circuit is to start and stop a operation of a control IC by detectiong a voltage appearing at a V terminal (pin-9). At start up of a power supply, when a voltage at the Vin terminal reaches to 8V (typical) by charging up C6 by the function of a start-up resistor, Rs, a control circuit starts operating by the function of the start-up circuit.
  • Page 48 (5) Stand-By Mode When going into light load mode such as remote control standby mode, internal impedance at a signal terminal of a microcomputer gets higher. Then the microcomputer have the current, I1, which has been bypassed from C9 through R11 and D10 by the function of a microcomputer, flow into the base of Q4 to turn it on.
  • Page 49 (7) OCP (overcurrent protection) function Overcurrent protection is performed pulse by pulse by directly detecting collector current of the power transistor. Configuration of the OCP circuit is shown at the right. Detecting voltage is set to -1V below a reference point of GND(ground).

  • Page 50: Trouble Shooting Charts

    Trouble Shooting Charts 1. NO RASTER CHECK MAIN B+(+124V/+110V) LINE ABNORMAL NORMAL CHECK VOLTAGE AT CHECK HEATER VOLTAGE, (+) OF C807(220 F 400V) VIDEO B+(200V) LINE, 310Vdc AT AC 220V 16.5V & 48V LINE NORMAL ABNORMAL NORMAL ABNORMAL CHECK / REPLACE CHECK HORIZONTAL CHECK / REPLACE F801 I801(STR-S6708)
  • Page 51 2. NO PICTURE(RASTER OK) CHECK VIDEO SIGNAL AT PIN 13 OF I501(TDA8842) [REFER TO WAVEFORM ¤Ø] ABNORMAL NORMAL CHANGE INPUT MODE CHECK WAVEFORM AT RF¤AAV ¤AAV ¤ARF PIN 29, PIN 30 OF I501 CHECK / REPLACE I701 ABNORMAL ABNORMAL NORMAL ABNORMAL &...
  • Page 52 3. NO VERTICAL SCANING(ONE HORIZONTAL LINE ON SCREEN) CHECK / REPLACE P401 & DY ¤Ø] CHECK VERTICAL Vcc +16.5V AT PIN3 & +48V AT PIN6 OF I301(TDA 8356) NORMAL ABNORMAL CHECK SIGNAL CHECK / REPLACE AT PIN1 & PIN2 D401(RGP 15J) OF I301 [REFER TO D409(RGP 15J) WAVEFORM §...
  • Page 53 4. NO COLOR CHECK VIDEO SIGNAL AT PIN13 OF I501(TDA8842) [REFER TO WAVEFORM ¤Ø] REFER TO ABNORMAL NO PICTURE CHART NORMAL CHECK SYSTEM MODE AUTO¤APAL¤ASECAM ¤AN3¤AN4¤AN5 CHECK SIGNAL AT PIN29, PIN30 OF I501 ABNORMAL NORMAL CHECK / REPLACE CHECK / REPLACE I501 X501(4.43MHz X-TAL) X502(3.58MHz X-tal) CHECK SIGNAL...
  • Page 54 5. NO SOUND(PICTURE OK) CHECK AUDIO SIGNAL AT PIN15 OF I501 ABNORMAL CHECK MUTE VOLTAGE AT PIN20 OF I701 *MUTE : HIGH ABNORMAL NORMAL CHECK SIF SIGNAL CHECK /REPLACE AT PIN1 OF I501 R619, C657, Q635, Q640, Q641, D640, I701 ABNORMAL NORMAL CHECK SIGNAL WAVEFORM...
  • Page 55 6. NO EXTERNAL A/V(RF OK) CHECK EXTERNAL AUDIO SIGNAL AT PIN4, 5, 11, 14 OF I604 / VIDEO SIGNAL AT PIN 11, 17 OF I501 ABNORMAL NORMAL CHECK WAVEFORM CHECK RCA JACK AT PIN7 & 8 OF I501 ABNORMAL CHECK / REPLACE I701 CHECK / REPLACE I501 7.
  • Page 56 8. REMOTE CONTROL UNIT TROUBLE(LOCAL CONTROL OK) CHECK PULSE AT COLLECTOR OF Q1(TRANSMITTER BOARD) ABNORMAL CHECK / REPLACE CHECK PULSE Q1 / LED1 AT PIN36 OF I701 (TRANSMITTER BOARD) CHECK IC1 (DHR-001S) ABNORMAL NORMAL CHECK / REPLACE CHECK / REPLACE CHECK / REPLACE I701 &...

  • Page 57: Electrical Parts List

    100V 0.1MF J (TP) M821 4858213800 BAG INSTRUCTION L.D.P.E T0.05X250X400 C302 CCZB1H181K C CERA 50V B 180PF K (AXIAL) ZZ120 PTBCSHA607 COVER BACK AS DTR-14D3VG C303 CCZB1H181K C CERA 50V B 180PF K (AXIAL) M211 4852152321 COVER BACK HIPS BK C304 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
  • Page 58 PART-CODE PART-NAME PART TYPE REMARK PART-CODE PART-NAME PART TYPE REMARK C635 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C723 CZSL1H360J C CERA 50V SL 36PF J (AXIAL) C636 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C724 CCZF1E103Z C CERA 25V F 0.01MF Z (AXIAL) C638 CEXF1H100V C ELECTRO...
  • Page 59 PART-CODE PART-NAME PART TYPE REMARK PART-CODE PART-NAME PART TYPE REMARK D633 DMTZJ6R8B- DIODE ZENER MTZJ 6.8B (TAPPING) I806 1PQ5RS1A— IC REGULATOR PQ5RS1A D634 DMTZJ5R6B- DIODE ZENER MTZJ 5.6B (TAPPING) I808 1SE125N—- SE125N D635 DUZ9R1BM— DIODE ZENER UZ-9.1BM 9.1V I810 PTT2SW6900 HEAT SINK ASS`Y 1PQ12RF11- + 7174300811 D636 DUZ9R1BM—...
  • Page 60 PART-CODE PART-NAME PART TYPE REMARK PART-CODE PART-NAME PART TYPE REMARK Q631 TKTC3198Y- KTC3198Y R413 RS01Z109J- R M-OXIDE FILM 1W 1 OHM J (TAPPING) Q632 TKTC3198Y- KTC3198Y R414 RD-2Z273J- R CARBON FILM 1/2 27K OHM J Q633 TKTC3198Y- KTC3198Y R415 RS02Z209JS R M-OXIDE FILM 2W 2 OHM J SMALL Q635...
  • Page 61 PART-CODE PART-NAME PART TYPE REMARK PART-CODE PART-NAME PART TYPE REMARK R619 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R696 RD-2Z152J- R CARBON FILM 1/2 1.5K OHM J R623 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J R697 RD-4Z471J- R CARBON FILM 1/4 470 OHM J R624 RD-AZ103J-...
  • Page 62 1/4 33 OHM J Z801 DSVC471D14 VARISTOR SVC471D14A R812 RD-4Z912J- R CARBON FILM 1/4 9.1K OHM J ZZ300 PTCPMSA607 PCB CRT MANUAL AS DTR-14D3VG R813 RD-4Z202J- R CARBON FILM 1/4 2K OHM J C904 CMXL2E104K C MYLAR 250V MEU 0.1MF K R814...
  • Page 63 CP-490 Each Model Difference Parts List LOC. PART NAME DTR-14D3VG DTR-14D3TM DTR-20D3VG DTR-20D3TM DTR-21D3VG DTR-21D3TM DTR-21D3VGM DTR-21D3TMW C722 C CERA 50V B 120PF K 50V SL 39PF J 50V B 120PF K 50V SL 39PF J 50V B 120PF K...
  • Page 64 LOC. PART NAME DTR-14D3VG DTR-14D3TM DTR-20D3VG DTR-20D3TM DTR-21D3VG DTR-21D3TM DTR-21D3VGM DTR-21D3TMW R783 R CARBONFILM 1/6 10K OHM J NONE 1/6 10K OHM J NONE 1/6 10K OHM J NONE 1/6 10K OHM J NONE RD-AZ103J- RD-AZ103J- RD-AZ103J- RD-AZ103J- P603 CONNWAFER...
  • Page 65 LOC. PART NAME DTR-14D3VG DTR-14D3TM DTR-20D3VG DTR-20D3TM DTR-21D3VG DTR-21D3TM DTR-21D3VGM DTR-21D3TMW P602 CONNWAFER YW025-03(STICK) NONE NONE NONE NONE 485923162S WIRELEAD 1007 AWG22 1/0.65 NONE AWG22 1/0.65 NONE AWG22 1/0.65 NONE AWG22 NONE BK5-170-5 BK5-170-5 BK5-170-5 1/0.65 BK5-170-5 WP-1BK1715 WP-1BK1715 WP-1BK1715...
  • Page 66 Mechanical Exploded View 1. 14D3...
  • Page 67 2. 20D3...
  • Page 68 3. 21D3...
  • Page 69 4. 16D3...
  • Page 70 Printed Circuit Boards...
  • Page 71 Circuit Schematics CP-490 SCHEMATIC DIAGRAM...
  • Page 72 ENGINEER NOTE...
  • Page 73 DAEWOO ELECTRONICS CO., LTD. 686, AHYEON-DONG, MAPO-GU, SEOUL, KOREA. C.P.O. BOX 8003 SEOUL KOREA TELEX : DWELEC K28177-8 T E L : 82-2-360-8179 F A X : 82-2-360-8184 PRINTED DATE : MAY. 1999...
