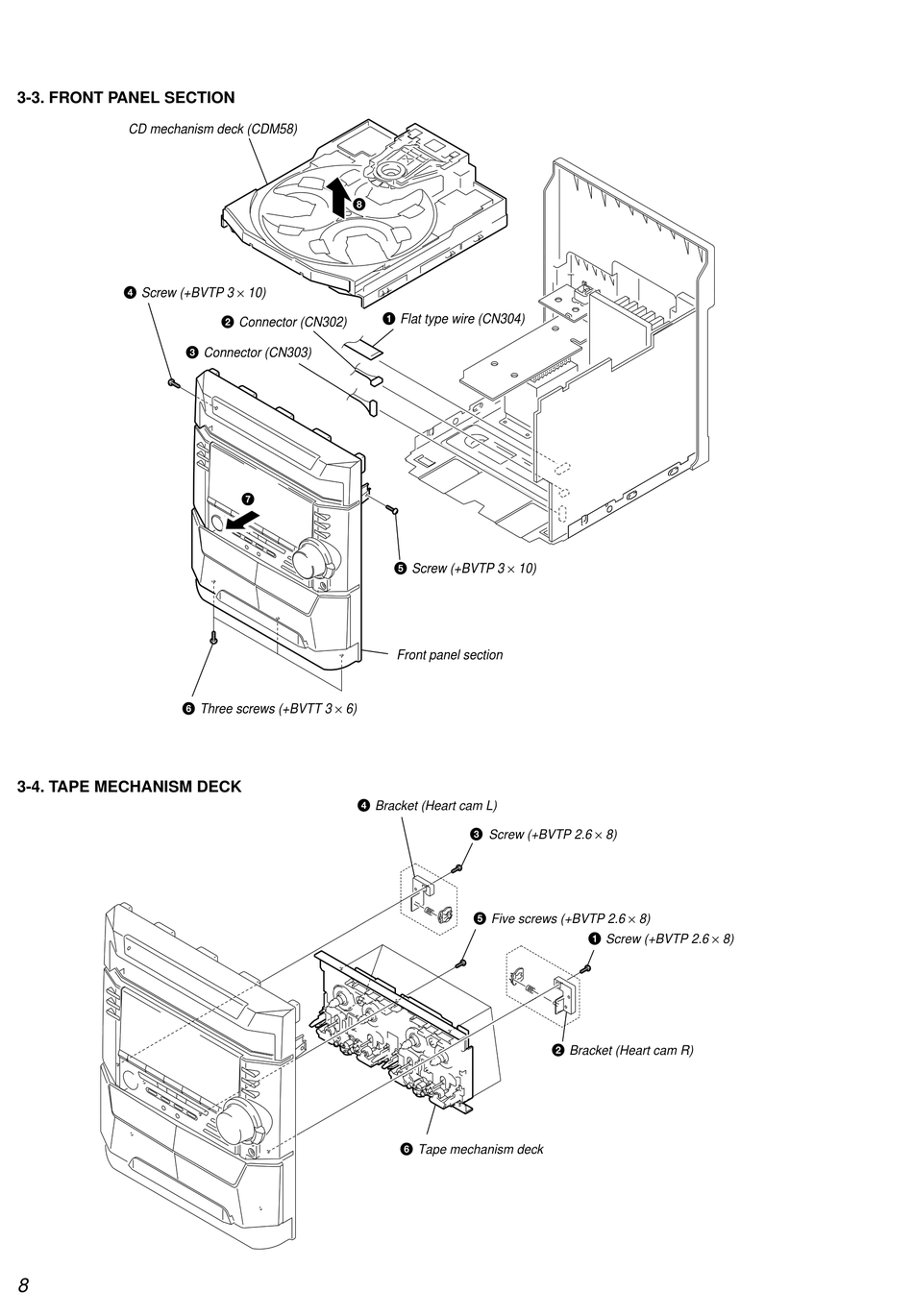

3-3. FRONT PANEL SECTION
CD mechanism deck (CDM58)
8
4 Screw (+BVTP 3 × 10)
1 Flat type wire (CN304)
2 Connector (CN302)
3 Connector (CN303)
7
5 Screw (+BVTP 3 × 10)
Front panel section
6 Three screws (+BVTT 3 × 6)
3-4. TAPE MECHANISM DECK
4 Bracket (Heart cam L)
3 Screw (+BVTP 2.6 × 8)
5 Five screws (+BVTP 2.6 × 8)
1 Screw (+BVTP 2.6 × 8)
2 Bracket (Heart cam R)
6 Tape mechanism deck
