SERVICE MANUAL
Ver 1.0 2001.02
HCD-XG60/XG500 is the amplifier, CD
player, tape deck and tuner section in
LBT-XG60/XG500.
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol ; are trade-
marks of Dolby Laboratories Licensing Corporation.
AUDIO POWER SPECIFICATIONS:
(US model only)
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 6 ohm loads both channels driven, from
120-10,000 Hz; rates 140 watts per channel
minimum RMS power, with no more than 10%
total harmonic distortion.
Amplifier section
Canadian model:
Continuous RMS power output (reference)
160 + 160 watts (6 ohms at
1 kHz, 10% THD)
Total harmonic distortion less than 0.07%
(6 ohms at 1 kHz, 70 W)
AEP, UK models:
DIN power output (rated) 110 + 110 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
140 + 140 watts
(6 ohms at 1 kHz, 10% THD)
Music power output (reference)
240 + 240 watts
(6 ohms at 1 kHz, 10% THD)
Other models:
The following measured at AC 120/220/240V, 50 Hz
DIN power output (rated) 150 + 150 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
200 + 200 watts
(6 ohms at 1 kHz, 10% THD)
Sony Corporation
9-929-577-11
2001B0500-1
Audio Entertainment Group
C 2001.2
General Engineering Dept.
HCD-XG60/XG500

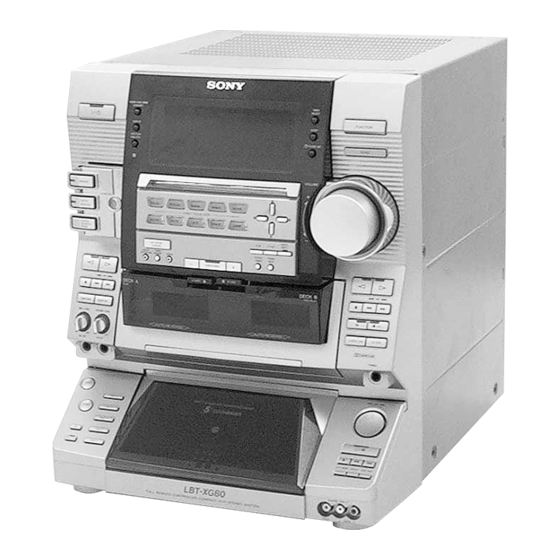

Photo: HCD-XG60
CD
Section
TAPE
Section
SPECIFICATIONS
Inputs
DJ MIX*:
(phono jacks)
GUITAR IN:
(phone jack)
PHONO IN:
(phono jacks)
MIX MIC:
(phone jack)
VIDEO IN:
(phono jacks)
GAME IN:
(phono jacks)
MD IN:
(phono jack)
Outputs
DJ MIX*:
(phono jacks)
PHONES:
(stereo phone jack)
Model Name Using Similar Mechanism
CD Mechanism Type
Base Unit Name
Optical Pick-up Name
Model Name Using Similar Mechanism
Tape Transport Mechanism Type
VIDEO OUT:
(phono jack)
sensitivity 250 mV,
impedance 47 kilohms
MD OUT:
(phono jacks)
sensitivity 75 mV,
impedance 470 kilohms
FRONT SPEAKER:
sensitivity 3 mV,
impedance 47 kilohms
* US, Canadian, AEP, UK, and Mexican models
only
sensitivity 1 mV,
impedance 10 kilohms
CD player section
sensitivity 250 mV,
System
impedance 47 kilohms
Laser
sensitivity 250 mV,
impedance 47 kilohms
Wavelength
sensitivity 450 mV,
Frequency response
impedance 47 kilohms
Signal-to-noise ratio
Dynamic range
CD OPTICAL DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength:
sensitivity 250 mV,
Output level
impedance 1 kilohms
accepts headphones of 8
ohms or more
COMPACT DISC DECK RECEIVER
US Model
Canadian Model
AEP Model
UK Model
HCD-XG500
E Model
HCD-XG60
HCD-LX6/LX50/LX70
CDM37M-5BD32L
BU-5BD32L
KSS-213DH
NEW
TCM-230PWR42
voltage 250 mV
impedance 1 kilohm
voltage 250 mV
impedance 1 kilohm
accepts impedance of 6 to
16 ohms
Compact disc and digital
audio system
Semiconductor laser
(λ=780nm), Emission
duration: continuous
780 – 790 nm
2 Hz – 20 kHz (±0.5 dB)
More than 90 dB
More than 90 dB
660 nm
–18 dBm
– Continued on next page –

Advertisement

loading

Summary of Contents for Sony HCD-XG60

  • Page 1 Canadian Model Ver 1.0 2001.02 AEP Model UK Model HCD-XG500 E Model HCD-XG60 HCD-XG60/XG500 is the amplifier, CD player, tape deck and tuner section in LBT-XG60/XG500. Photo: HCD-XG60 Dolby noise reduction manufactured under license Model Name Using Similar Mechanism HCD-LX6/LX50/LX70 from Dolby Laboratories Licensing Corporation.
  • Page 2: Section 4 Test Mode

    HCD-XG60/XG500 SECTION 4 TEST MODE [MC Cold Reset] [CD Delivery Mode] • The cold reset clears all data including preset data stored in the • This mode moves the optical pick-up to the position durable to RAM to initial conditions. Execute this mode when returning vibration.
  • Page 3 HCD-XG60/XG500 [Aging Mode] 2. Tape Deck Section This mode can be used for operation check of tape deck section. • The sequence during the aging mode is following as below. Tape deck section work in parallel. • If an error occurred, stop display that step.
  • Page 4: Optical Pick-Up Block

    HCD-XG60/XG500 7-7. SCHEMATIC DIAGRAM – BD Board – • • See page 35 for Waveforms. See page 47 for IC Block Diagrams. OPTICAL PICK-UP BLOCK (KSS-213DH) D+5V (SW) L-CH R-CH A+5V (SW) CD-DATA CD-CLK MAIN BOARD CN411 SQ-DATA (Page 32)
  • Page 5 HCD-XG60/XG500 7-9. SCHEMATIC DIAGRAM – CD MOTOR Section – • See page 47 for IC Block Diagram. TABLE MOTOR DRIVER LED DRIVE (Page 32) MAIN BOARD CN412 DISC TABLE SENSOR • Voltages and waveforms are dc with respect to ground under no-signal conditions.
  • Page 6 HCD-XG60/XG500 7-11. SCHEMATIC DIAGRAM – AUDIO Board – • See page 47 for IC Block Diagram. (PALYBACK) PB EQ AMP (DECK A) PB LEVEL (L) (DECK A) R492 1.5K –7 R491 820 PB EQ AMP (DECK B) PB LEVEL (L) (DECK B) R482 1.5K...
  • Page 7 HCD-XG60/XG500 7-12. PRINTED WIRING BOARD – LEAF SW Board – • See page 23 for Circuit Boards Location. DECK B DECK A PLUNGER PLUNGER (DECK B PLAY) (DECK B 120/70) (DECK A PLAY) (DECK B HALF) (DECK A REC) (DECK A 120/70)
  • Page 8 HCD-XG60/XG500 7-14. SCHEMATIC DIAGRAM – MAIN Board (1/3) – • See page 47 for IC Block Diagram. (Page 33) (Page 32) (Page 32) (Page 39) (Page 32) (Page 33) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions.
  • Page 9 HCD-XG60/XG500 7-15. SCHEMATIC DIAGRAM – MAIN Board (2/3) – • See page 35 for Waveforms. (Page 33) (Page 31) (Page 33) (Page 31) (Page 41) (Page 25) (Page 27) (Page (Page 30) (Page 29) (Page 33) (Page 31) • Voltages and waveforms are dc with respect to ground } : TAPE PLAY (DECK A) under no-signal (detuned) conditions.
  • Page 10 HCD-XG60/XG500 7-16. SCHEMATIC DIAGRAM – MAIN Board (3/3) – (Page 32) (Page 39) (Page 31) (Page 32) (Page 32) (Page 37) (Page 32) (Page 31) (Page 37) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions.
  • Page 11 HCD-XG60/XG500 • Semiconductor • Waveforms Location – BD Board – – MAIN Board – Ref. No. Location 1 IC101 yj (XTAO) 5 IC101 wh (MDP) (CD Play Mode) 1 IC501 0 (XC-IN) D191 D192 D193 D194 D501 D534 3.1 Vp-p 2.5 Vp-p...
  • Page 12 HCD-XG60/XG500 7-19. SCHEMATIC DIAGRAM – PA Board – (Page 39) (Page 46) (Page (Page 46) (Page (Page 33) The components identified by mark 0 or dotted Les composants identifiés par une marque 0 sont • Voltages and waveforms are dc with respect to ground line with mark 0 are critical for safety.
  • Page 13 HCD-XG60/XG500 7-21. SCHEMATIC DIAGRAM – MIC/FRONT INPUT/HEADPHONES Boards – (Page 45) (Page 33) (Page 31) (Page 37) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : TUNER (FM/AM)
  • Page 14 HCD-XG60/XG500 7-23. SCHEMATIC DIAGRAM – PANEL FL Board – • • See page 35 for Waveform. See page 47 for IC Block Diagram. (Page 45) (Page 45) (Page 32) • Voltages and waveforms are dc with respect to ground (Page 43) under no-signal (detuned) conditions.
  • Page 15 HCD-XG60/XG500 7-25. SCHEMATIC DIAGRAM – PANEL VR/ILLUMINATION Boards – • See page 47 for IC Block Diagram. (Page 41) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : TUNER (FM/AM)
  • Page 16 HCD-XG60/XG500 7-27. SCHEMATIC DIAGRAM – TC-A/TC-B/CD-L/CD-R (1)/CD-R (2) Boards – (Page 41) (Page 39) (Page 41)
  • Page 17 HCD-XG60/XG500 7-28. PRINTED WIRING BOARDS – TRANSFORMER Section– 7-29. SCHEMATIC DIAGRAM – TRANSFORMER Section – • See page 23 for Circuit Boards Location. (XG60) PA BOARD NO702 (Page 36) (XG60) (Page 37) TRANS BOARD (Page 37) PA BOARD CN801 (Page 36)
