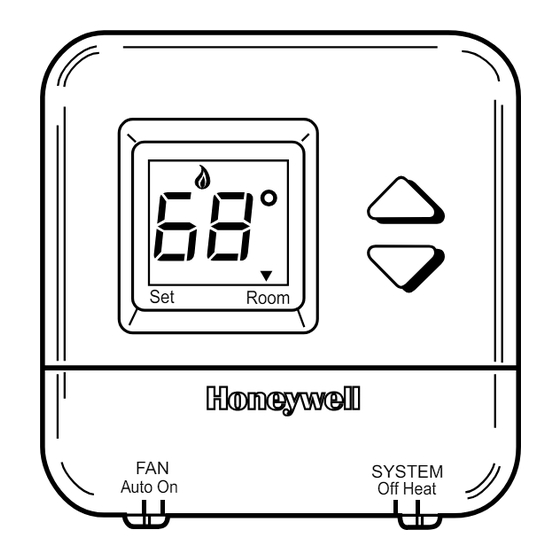

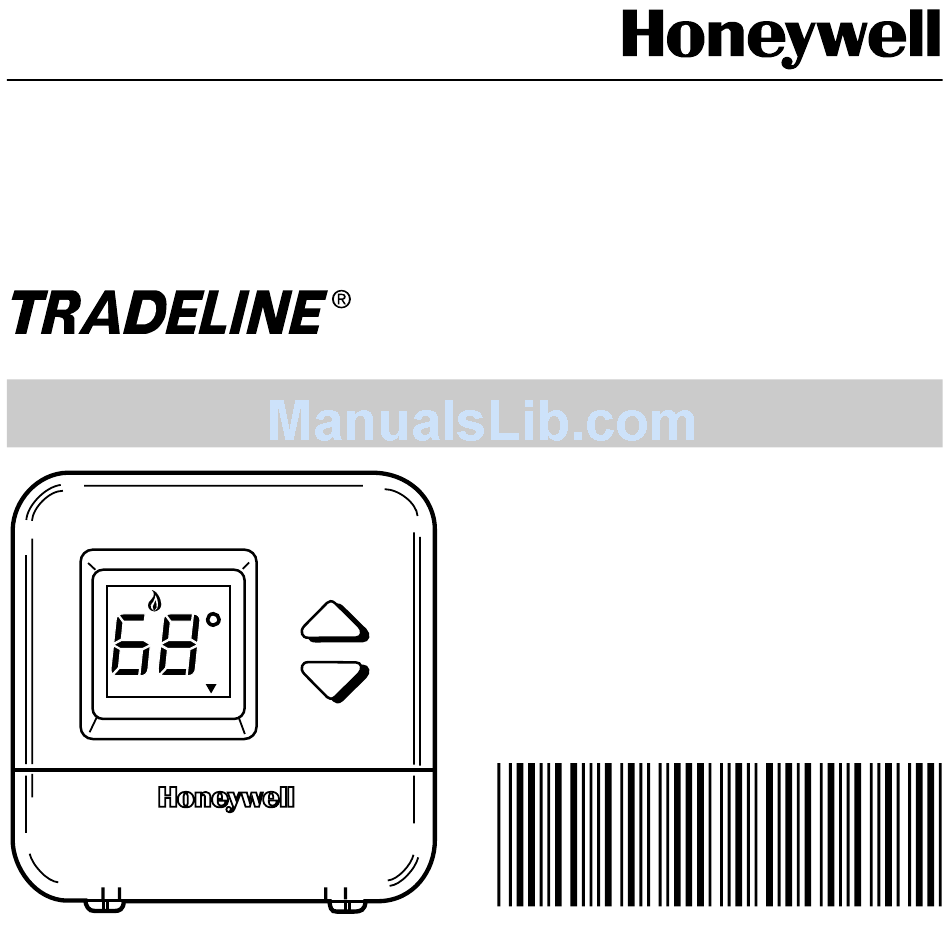

- Page 1 Electronic Thermostat OWNER’S GUIDE Room SYSTEM Auto On Off Heat 69-1492 69-1492 M14750...
- Page 2 Congratulations on the purchase of your new thermostat! Over 100 years of Honeywell engineering expertise went into the making of this thermostat in an effort to provide you with a more comfortable and convenient living environment. • Simple and easy to use . The for you to change your temperature setting.
-
Page 3: Setting Fan And System Switches
Settings Setting FAN and SYSTEM Switches Fan and system settings are controlled by using FAN and SYSTEM switches located on the bottom of the thermostat case. First set the FAN switch (not available on all models): Auto: Normal setting for most homes. In heating, the fan may start a few minutes after the heating equipment comes on. - Page 4 Then set the SYSTEM switch: Off: Heating is off. Heat: Normal setting for months when your home needs heating. Digital display shows a flame when heating is on. 69-1492 SYSTEM Off Heat SYSTEM SWITCH M10975...
- Page 5 Displaying Temperature Setting NOTE: Your temperature setting can be set anywhere from 40 to 99 F (5 to 37 C). The temperature setting and the room temperature are shown separately on the digital display. The indicator points to Set when the temperature setting is displayed and to Room when the room temperature is displayed.
-
Page 6: Changing Temperature Setting
Changing Temperature Setting 1. To lower the temperature setting, press the 2. To raise the temperature setting, press the When in the heating mode, lowering the temperature at night or during the day can lower your energy costs. 69-1492 Room Room key. -
Page 7: Troubleshooting Guide
Troubleshooting Guide Heating does not come on. • Check that the SYSTEM switch on the thermostat is set to Heat. • Check the system fuse or circuit breaker and replace or reset if necessary. • Check for air movement at the register. - Page 8 Copyright © 2000 Honeywell All Rights Reserved ® U.S. Registered Trademark 69-1492 G.H. 9-00 Home and Building Control Honeywell Limited - Honeywell Limitée 35 Dynamic Drive Scarborough, Ontario M2H 3N7 Printed in U.S.A. on recycled paper containing at least 10% post-consumer paper fibers.
