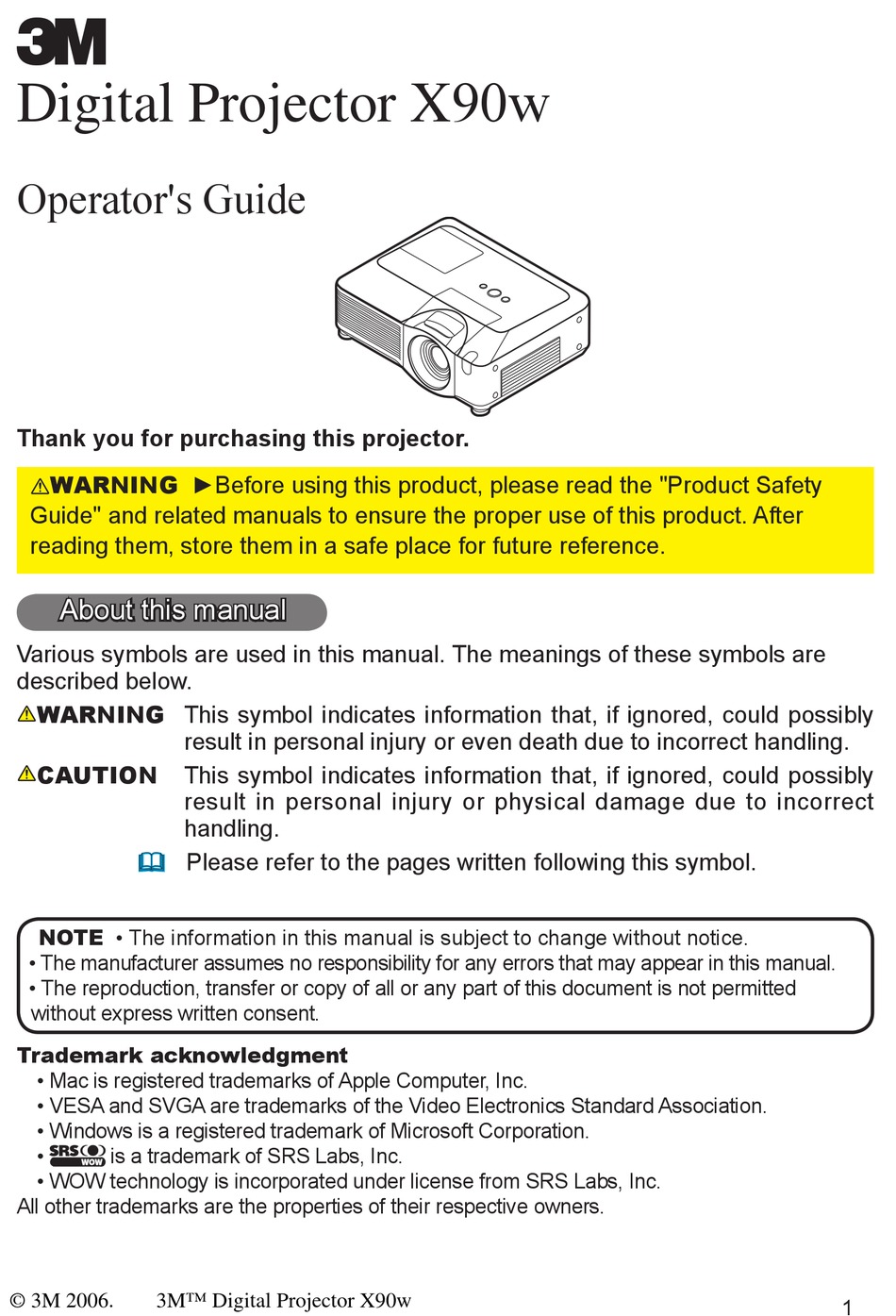

Digital Projector X90w
Multimedia Projector
Operator's Guide
Thank you for purchasing this projector.
WARNING ►Before using this product, please read the "Product Safety
Guide" and related manuals to ensure the proper use of this product. After
reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING This symbol indicates information that, if ignored, could possibly
CAUTION
 Please refer to the pages written following this symbol.
NOTE • The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transfer or copy of all or any part of this document is not permitted
without express written consent.
Trademark acknowledgment
• Mac is registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
•
is a trademark of SRS Labs, Inc.
• WOW technology is incorporated under license from SRS Labs, Inc.
All other trademarks are the properties of their respective owners.
© 3M 2006.
3M™ Digital Projector X90w
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.


Advertisement

Table of Contents
loading

Related Manuals for 3M X90w

Summary of Contents for 3M X90w

  • Page 1: About This Manual

    • Windows is a registered trademark of Microsoft Corporation. • is a trademark of SRS Labs, Inc. • WOW technology is incorporated under license from SRS Labs, Inc. All other trademarks are the properties of their respective owners. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 2: Table Of Contents

    EASY MENU . . . . . . . . . . . . . . 25 (Please see the end of this book, although only in English.) spect uto keystone execute © 3M 2006. 3M™ Digital Projector X90w...

  • Page 3: Projector Features

    X90w Projecteur multimedia - Guide de Sécurité de Produit X90w Multimedia-Projektor - Sicherheitsanleitung des Geräts X90w Proyector de Multimedia - Guiá de Seguridad del Producto X90w Proiettore Multimediale - Guida di Sicurezza del Prodotto X90w Multimedia Projector - Veiligheidsgids op Product X90w Projector dos Multimedia - Guia da Segurança de Produto...

  • Page 4: Part Names

    Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air filter periodically. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 5: Control Panel

    ►Use the shutdown switch only when the projector is not turned off by normal procedure, since pushing this switch stops operation of the projector without cooling it down. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 6: Remote Control

    LASER button, since the beam is not good for eyes. CAUTION ►Note that the laser beam may result in hazardous radiation exposure. Use the laser pointer only for pointing on the screen. (3) © 3M 2006. 3M™ Digital Projector X90w...

  • Page 7: Setting Up

    Placing the projector in such places could cause fire, electric shock and/or malfunction of the projector. • Do not place the projector near humidifiers, smoking spaces or a kitchen. ►Position the projector to prevent light from directly hitting the projector's remote sensor. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 8: Arrangement

    9. (363) . (437) 46 (8) 4 (6) 0.0 (395) . (476) - (-5) 386 (5) 350 (8.9) 0.8 (44) 3.0 (50) 53 () 480 (89) .7 (46) 4. (556) -5 (-6) 450 (77) © 3M 2006. 3M™ Digital Projector X90w...

  • Page 9: Adjusting The Projector's Elevator

    Security slot NOTE • The security bar and the security slot are not RGB1 RGB2 M1-D comprehensive theft prevention measures. They are intended VIDEO to be used as supplemental theft prevention measure. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 10: Connecting Your Devices

    For cables with a core only at one end, connect the end with the core to the projector. ►Make sure that devices are connected to the correct ports. An incorrect connection may result in malfunction or damage to the device and the projector. © 3M 2006. 3M™ Digital Projector X90w...
  • Page 11 • Take advantage of this feature by connecting an RGB cable to the RGB port (DDC B compatible). Plug-and-Play may not work properly if any other type of connection is attempted. • Please use the standard drivers in your computer as this projector is a Plug-and-Play monitor. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 12: Usb Memory

    0 cm from all persons and must not be co- llocated or operating in conjunction with any other antenna or transmitter. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 13: How To Use The Slot Cover Lock

    • Only plug the power cord into an outlet rated for use with the power cord's specified voltage range.The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation. • Never modify the power cord. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 14: Remote Control

    • If you observe a leakage of a battery, wipe out the flower and then replace a battery. If the flower adheres your body or clothes, rinse well with water immediately. • Obey the local laws on disposing the battery. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 15: About The Remote Control Signal

    To set the mode of the remote control, slide the knob of the frequency switch inside the battery cover into the position indicated by the mode number to choose. Frequency switch © 3M 2006. 3M™ Digital Projector X90w...

  • Page 16: Using As A Wired Remote Control

    PC’s configurations and mouse drivers. - Operating simultaneously two or more keys is void except for mouse drag and drop operation. - This function is activated only when the projector is working properly. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 17: Power On/Off

    POWER indicator begin blinking (43) • Use the shutdown switch only when the projector is not turned off by (66) normal procedure. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 18: Operating

    RGB 1 port first. If no input is detected at the port, the projector will check other port in above order. ASPECT ENTER PUSH (continued on next page) PAGE UP PAGE DOWN © 3M 2006. 3M™ Digital Projector X90w MENU RESET POSITION AUTO...

  • Page 19: Searching An Input Signal

    VOLUME  For no signal 4:3 (fixed) MUTE FREEZE KEYSTONE SEARCH ● The NORMAL mode keeps the original aspect ratio of the signal. ● Performing the automatic adjustment initializes the aspect ratio setting. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 20: Adjusting The Zoom And Focus

     For a component video signal The horizontal phase will be automatically set to default. ● The automatic adjustment operation requires about 10 seconds. Also please note that it may not function correctly with some input. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 21: Adjusting The Position

    ), this function may not work well. (46) ● When the horizontal lens shift is not set to the center, this function may not work well. ● This function will be unavailable when Transition Detector is on (52). © 3M 2006. 3M™ Digital Projector X90w...

  • Page 22: Using The Magnify Feature

    ● If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 23: Temporarily Blanking The Screen

    PAGE DOWN MENU RESET NOTE • The sound is not connected with the blank screen function. If POSITION AUTO necessary, set the volume or mute first. MAGNIFY MY BUTTON VOLUME MUTE FREEZE KEYSTONE SEARCH © 3M 2006. 3M™ Digital Projector X90w...

  • Page 24: Using The Menu Function

    Even if you do not do anything, the dialog will automatically disappear after about 0 seconds. ● Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 25: Easy Menu

    PICTURE MODE is “CUSTOM”. Please refer to the GAMMA (27) and COLOR TEMP (28) items in PICTURE menu. • When this function is performed, a certain extra such as a line may appear. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...

  • Page 26: (Easy Menu Continued

    Select “Go to Advanced Menu…” on the menu, and press the ► Go to or ENTER button to use the menu of PICTURE, IMAGE, INPUT, Advanced Menu... SETUP, AUDIO, SCREEN, OPTION or NETWORK. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 27: Picture Menu

    “”. The darkest tone at the left end of the test pattern cannot be controlled with any of equalizing adjustment bar. • When this function is performed, lines or other distortion may appear. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 28 Using the ▲/▼ buttons adjusts the sharpness. Strong ó Weak SHARPNESS • There may be some noise and/or the screen may flicker for a moment when an adjustment is made. This is not a malfunction. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 29 • Remember that the current data being stored of a memory will be lost by saving a new data into the memory. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 30: Image Menu

    55i (480i) or 65i (576i), the range of this adjustment depends on the OVER SCAN (above) setting. It is not possible to adjust when the OVER SCAN is set to 0. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 31 For a Component video signal The horizontal phase will be automatically set to default. • The automatic adjustment operation requires about 0 seconds. Also please note that it may not function correctly with some input. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 32: Input Menu

    • The AUTO mode automatically selects the optimum mode. • The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 33 Suitable for DVD signals (6-35) ENHANCED Suitable for VGA signals (0-55) • If the contrast of the screen image is too strong or too weak, try finding a more suitable mode. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...

  • Page 34: D , F Rame Lock

    In such a case, remove the signal connector so that no signal is received and turn the SYNC ON G mode off, and then reconnect the signal. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 35 ◄ button. The screen will then return to the RESOLUTION menu displaying the previous resolution. • For some pictures, this function may not work well. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 36: Setup Menu

    • When the horizontal lens shift is not set to the center, this function may not work well. • This function will be unavailable when the Transition Detector is on (52). (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 37 NORMAL ó H:INVERT ó V:INVERT ó H&V:INVERT MIRROR If the Transition Detector is TURN ON and MIRROR status is changed, Transition Detector Alarm (52) will be displayed when projector is restarted after the power switch is turned off. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 38: Audio Menu

    ó M “M” is abbreviation of MIU. When is selected to an input port, any audio ports do not work interlocking with the input port, and any items in AUDIO menu are invalid. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 39: Screen Menu

    BLUE, WHITE, Plain screens in each color. BLACK • To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the plain black screen after several minutes. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...

  • Page 40: Tart Up

    • When the TURN ON is selected to the MyScreen PASSWARD of SECURITY item in OPTION menu (49), the START UP is fixed to MyScreen. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 41 MyScreen. • This function cannot be selected when the TURN ON is selected to the MyScreen PASSWARD of SECURITY item in OPTION menu (49). (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 42 (5) Select and press the ENTER or INPUT buttons when finished entering text. To revert to the previous name without saving changes press the ESC or ◄ button and the INPUT button simultaneously. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 43: Option Menu

    • After turning the lamp on by the AUTO ON function, if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO OFF function (44) is disabled. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 44 • Please reset the filter time only when you have cleaned or replaced the air filter, for a suitable indication about the air filter. • For the air filter cleaning, see the section "Air filter" (61, 62). (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 45 Using the ▲/▼ buttons switches the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. Note that the projector is noisier when the HIGH is selected. HIGH ó NORMAL (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 46 4: for a long throw lens (Type LL-603) 5: for an ultra long throw lens (Type UL-604) • This setting has an influence on the keystone distortion etc. • About the optional lens, ask you dealer. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 47 Note that the items LAMP TIME, FILTER TIME, LANGUAGE and SECURITY are not reset. RESET  CANCEL (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 48 Pressing the ENTER button on the remote controll or INPUT button on the projector will NOTE NEW close the NOTE NEW PASSWORD BOX. PASSWORD BOX • Please do not forget your PASSWORD. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...

  • Page 49: Using The Myscreen Password Function

    PASSWORD. Move the cursor to the right side of the ENTER PASSWORD BOX (small) and press the ► button to display the CHECK PASSWORD BOX, enter the same PASSWORD again. CHECK PASSWORD (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...

  • Page 50: Using The Pin Lock Function

    ENTER button to display the PIN LOCK on/off menu. PIN LOCK on/off 3.1-2 Use the ▲/▼ buttons on the PIN LOCK on/off menu menu to select TURN ON and the PIN BOX will be displayed. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 51 Inquiring Code is displayed the projector will turn off. 3.3- Contact your dealer with the 0 digit Inquiring Code. Your PASSWORD will be sent after your user registration information is confirmed. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 52 Pressing the ENTER button on the remote control or the INPUT button on the projector will return to the PASSWORD BOX Transition Detector on/off menu. • Please do not forget your Transition Detector PASSWORD. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 53 Inquiring Code will be displayed inside the BOX. ENTER PASSWORD BOX 4.4-3 Contact your dealer with the 0 digit Inquiring (large) Code. Your PASSWORD will be sent after your user registration information is confirmed. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 54: Miu Menu

    PC-LESS display the images stored in SD card or USB PRESENTATION memory, and realizes a presentation without PC. ( 1.2 PC-LESS Presentation of the User’s Manual - Network Functions) (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 55 DHCP (Dynamic Host Configuration Protocol) Use the ▲/▼ buttons to turn DHCP on/off. TURN ON ó TURN OFF • Select TURN OFF when the network does not have DHCP enabled. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 56 • The projector will override this setting and retrieve DATE AND TIME information from the Timeserver when SNTP is enabled. ( 2.5.7 Date/Time Settings of the User’s Manual - Network Functions) (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 57 • The WIRELESS will be enabled when the wireless network card is installed. • The WIRED will be enabled when the wireless network card is not installed. (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 58 The network communication will be cut off once and EXECUTE CANCEL restarted. EXECUTE  CANCEL • After selecting the EXECUTE, the MIU menu may not be controlled approximately 0 seconds. • If DHCP is ON, IP address may be changed. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 59: Maintenance

    (5) Press the ▲ button to select “RESET” on the dialog. It performs resetting the lamp time. NOTE • Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 60: Lamp Warning

    When the pictures appear dark, or when the color tone is poor, please replace the lamp as soon as possible. Do not use old (used) lamps; this is a cause of breakage. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 61: Air Filter

    Put the filter frame back. The fluted surface of the air filter Put the filter unit back into the projector. The filter cover (continued on next page) © 3M 2006. 3M™ Digital Projector X90w...
  • Page 62 • The projector may display the message such as “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 63: Internal Clock Battery

    • The internal clock’s time will be reset when the battery is removed. Please reconfigure the time via the menu or a web browser after replacing the battery. ( 2.5.7 Date/Time Settings of the User’s Manual - Network Functions) © 3M 2006. 3M™ Digital Projector X90w...

  • Page 64: Other Care

    Incorrect care could cause not only an injury but adverse influence such as discoloration, peeling paint, etc. ►Do not use cleaners or chemicals other than those specified in this manual. ►Do not polish or wipe with hard objects. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 65: Troubleshooting

    FILTER MAINTENANCE IS ESSENTIAL (61). After you have cleaned or changed the air filter, please be sure to reset the filter timer (26, 62). TO REMOVE WARNING MESSAGE, RESET FILTER TIMER. SEE MANUAL FURTHER INFO. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 66: Regarding The Indicator Lamps

    After performing Lighting any needed maintenance, turn the power on again. If the same indication is displayed after the remedy, please contact your dealer or service company. © 3M 2006. 3M™ Digital Projector X90w...
  • Page 67 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp door, and then turn the power on again. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 68: Phenomena That May Be Easy To Be Mistaken For Machine Defects

    Correctly set up the signal source device by referring to the outputted. manual of the source device. The input changeover settings are mismatched. 8, 9 Select the input signal, and correct the settings. © 3M 2006. 3M™ Digital Projector X90w...
  • Page 69 TEMP, COLOR, TINT and/or COLOR SPACE settings, faded- out using the menu functions. appearance, or Color tone is COLOR SPACE setting is not suitable. poor. Change the COLOR SPACE setting to AUTO, RGB, SMPTE40, REC709 or REC60. © 3M 2006. 3M™ Digital Projector X90w...
  • Page 70 Remove any objects from front side of the projector. NOTE • Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and it does not constitute or imply a machine defect. © 3M 2006. 3M™ Digital Projector X90w...

  • Page 71: Specifications

    ..RCA x3 AUX I/O ....USB(A) x S-VIDEO ....S-video x SD card slot ......x VIDEO .......Video x REMOTE CONTROL ......Stereo mini x NOTE • These specifications are subject to change without notice. © 3M 2006. 3M™ Digital Projector X90w...
  • Page 72 Specifications Specifications (continued) [unit: mm] © 3M 2006. 3M™ Digital Projector X90w...
  • Page 73 The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equip- ment and/or create a potentially unsafe operating condition. 3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment. • 16° to 29°C (60° to 85° F) •...
