IBM Flex System x222 Compute Node
IBM Redbooks Product Guide
The IBM® Flex System™ x222 Compute Node is a high-density dual-server offering that is designed for
virtualization, dense cloud deployments, and hosted clients. The x222 has two independent servers in
one mechanical package, which means that the x222 has a double-density design that allows up to 28
servers to be housed in a single 10U Flex System Enterprise Chassis.
Suggested use : For clients looking to virtualize their workloads while maximizing the density of their
computing resources.
The following figure shows the IBM Flex System x222 Compute Node.

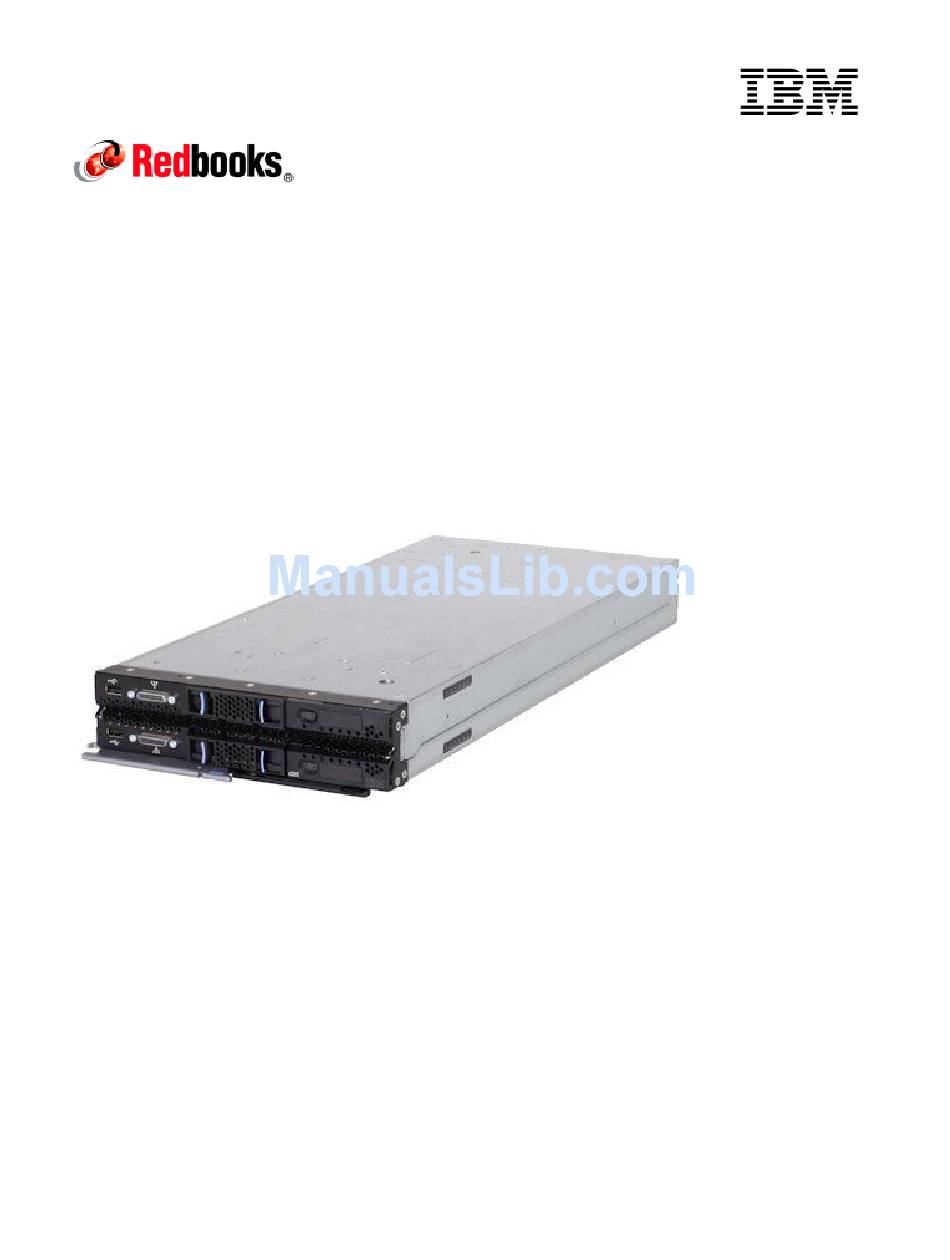

Figure 1. The IBM Flex System x222 Compute Node
Did you know?
IBM Flex System is a new category of computing that integrates multiple server architectures, networking,
storage, and system management capability in to a single system that is easy to deploy and manage. IBM
Flex System has full and built-in virtualization support of servers, storage, and networking to speed
provisioning and increased resiliency. In addition, it supports open industry standards, such as operating
systems, networking and storage fabrics, virtualization, and system management protocols, to easily fit
within existing and future data center environments. IBM Flex System is scalable and extendable with
multigenerational upgrades to protect and maximize IT investments.
IBM Flex System x222 Compute Node
1
Advertisement
Table of Contents
Related Manuals for IBM Flex System x222
Summary of Contents for IBM Flex System x222
- Page 1 IBM Flex System is a new category of computing that integrates multiple server architectures, networking, storage, and system management capability in to a single system that is easy to deploy and manage. IBM Flex System has full and built-in virtualization support of servers, storage, and networking to speed provisioning and increased resiliency.
-
Page 2: Key Features
Key features The IBM Flex System x222 Compute Node is a high-density offering that is designed to maximize the computing power that is available in the data center. With a balance between cost and system features, the x222 is an ideal platform for dense workloads, such as virtualization. This section describes the key features of the x222. - Page 3 Energy efficiency The x222 offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to a green environment: The component-sharing design of the IBM Flex System chassis provides ultimate power and cooling savings.
- Page 4 Solid-state drives (SSDs) consume as much as 80% less power than traditional spinning 2.5-inch HDDs. The server uses hexagonal ventilation holes, a part of IBM Calibrated Vectored Cooling™ technology. Hexagonal holes can be grouped more densely than round holes, providing more efficient airflow through the system.
-
Page 5: Locations Of Key Components And Connectors
Locations of key components and connectors The following figure shows the front of the server. Figure 2. Front view of the IBM Flex System x222 Compute Node The following figure shows how the two servers connect together. Figure 3. Open view of the IBM Flex System x222 Compute Node The following figure shows the locations of key components inside the upper server. - Page 6 Figure 4. Inside view of the upper server The following figure shows the locations of key components inside the lower server. Figure 5. Inside view of the lower server IBM Flex System x222 Compute Node...
-
Page 7: Standard Specifications
Specification Form factor Standard Flex System form factor with two independent servers. Chassis support IBM Flex System Enterprise Chassis. Processor Up to four processors in a standard (half-width) Flex System form factor. Each server: Up to two Intel Xeon Processor E5-2400 product family CPUs with eight-core (up to 2.3 GHz) or six-core (up to 2.4 GHz) or quad-core (up to 2.2 GHz), one QPI link running at 8.0... - Page 8 Each server: UEFI, IBM Integrated Management Module II (IMM2) with Renesas SH7757 management controller, Predictive Failure Analysis, light path diagnostics panel, automatic server restart, and remote presence. Support for IBM Flex System Manager, IBM Systems Director, and IBM ServerGuide. Security Power-on password and admin password, Trusted Platform Module (TPM) 1.2.
-
Page 9: Standard Models
** The 1600 MHz memory DIMMs that are standard in these models operate at most at 1333 MHz or 1066 MHz as indicated, matching the memory speed of the processor. † Model H6x includes the IBM Flex System IB6132D 2-port FDR InfiniBand Adapter. IBM Flex System x222 Compute Node... -
Page 10: Chassis Support
6 power rating supplies supplies supplies supplies supplies supplies supplies supplies Expansion Node support The x222 does not support the IBM Flex System Storage Expansion Node or the IBM Flex System PCIe Expansion Node. IBM Flex System x222 Compute Node... -
Page 11: Processor Options
* The first feature code is for processor 1 and the second feature code is for processor 2. Memory options IBM DDR3 memory is compatibility tested and tuned for optimal performance and throughput. IBM memory specifications are integrated into the light path diagnostics panel for immediate system performance feedback and optimum system uptime. - Page 12 1066 MHz 1066 MHz per channel * The maximum quantity that is supported is shown for two installed processors. When one processor is installed, the maximum quantity that is supported is half of that shown. IBM Flex System x222 Compute Node...
- Page 13 8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP All models RDIMM 00D4968 A2U5 16GB (1x16GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM Load-reduced DIMMs (LRDIMMs) 90Y3105 A291 32GB (1x32GB, 4Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP LRDIMM IBM Flex System x222 Compute Node...
-
Page 14: Internal Disk Storage Options
The x222 does not support an internal optical drive option. However, you can connect an external USB optical drive, such as the IBM and Lenovo part number 73P4515 or 73P4516, or use the remote media feature of the IMMv2 and the Chassis Management Module. - Page 15 FCoE upgrade offering through FoD The following table lists the ordering information for the IBM Flex System Embedded 10Gb Virtual Fabric Upgrade, which enables the iSCSI and FCoE support on the Embedded 10Gb Virtual Fabric Adapter. IBM Flex System x222 Compute Node...
- Page 16 Maximum code supported* 90Y9310 A2TD IBM Virtual Fabric Advanced Software Upgrade (LOM) 1 per server 2 per x222 Compute Node * To enable the FCoE/iSCSI upgrade for both servers in the x222 Compute Node, two licenses are required. Network and storage adapters...
- Page 17 Fibre Channel 95Y2379 A3HU IBM Flex System FC5024D 4-port 16Gb FC Adapter * One adapter is supported per x222. The adapter is shared between the two servers. A compatible switch module must be installed in the corresponding I/O bays in the chassis, as indicated in the following table.
- Page 18 The following figure shows how the IB6132D 2-port FDR InfiniBand adapter and the four ports of the two Embedded 10 GbE VFAs are connected to the Ethernet and InfiniBand switches that are installed in the chassis. Figure 9. Logical layout of the interconnects - Ethernet and InfiniBand IBM Flex System x222 Compute Node...
-
Page 19: Supported Switches
None required† FDR InfiniBand Adapter * IBM Redbooks Product Guide for the IBM Flex System FC5022 SAN Scalable Switch can be found at the following website: http://www.redbooks.ibm.com/abstracts/tips0870.html † A switch upgrade is not required to activate the necessary ports. However, to run the ports at FDR speeds, you need the FDR upgrade 90Y3462. -
Page 20: Integrated Virtualization
(see Figure 3). The supported USB memory keys are listed in the following table. There are two types of USB keys: preload keys or blank keys. Blank keys allow you to download an IBM customized version of ESXi and load it onto the key. Each server supports one or two keys that are... -
Page 21: Light Path Diagnostics Panel
A non-maskable interrupt (NMI) has occurred. TEMP An over-temperature condition occurs that was critical enough to shut down the server. A memory fault has occurred. The corresponding DIMM error LEDs on the system board are also lit. IBM Flex System x222 Compute Node... -
Page 22: Remote Management
Remote management The two servers in the x222 each contain an IBM Integrated Management Module II (IMM2), which interfaces with the advanced management module in the chassis. The combination of these features provides advanced service-processor control, monitoring, and an alerting function. If an environmental condition exceeds a threshold or if a system component fails, LEDs on the system board are lit to help you diagnose the problem, the error is recorded in the event log, and you are alerted to the problem. -
Page 23: Physical Specifications
Width: 430 mm (16.9 in.) Supported environment The IBM Flex System x222 server complies with ASHRAE Class A3 specifications when it is installed within the Flex System Enterprise Chassis. Here is the supported operating environment: Power on: Temperature: 5 - 40 °C (41 - 104 °F) ... -
Page 24: Warranty Options
Not all covered types of ServicePac might be available in a particular country. For more information about the IBM ServicePac offerings that are available in your country, see the IBM ServicePac Product Selector at the following website: https://www-304.ibm.com/sales/gss/download/spst/servicepac... -
Page 25: Regulatory Compliance
51318.249, GOST R 51317.3.2, GOST R 51317.3.3 IEC 60950-1 (CB Certificate and CB Test Report) CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, and EN61000-3-3) CISPR 22, Class A TUV-GS (EN60950-1/IEC 60950-1, EK1-ITB2000) IBM Flex System x222 Compute Node... - Page 26 IBM Global Financing IBM Global Financing can help you obtain the IT solution that you need while preserving your funding for other strategic investments and optimizing cash flow. Our Fair Market Value (FMV) lease helps ensure that you have the latest IBM technology, and with our mid-lease upgrade capability, you can increase the capacity of your system with little to no change in monthly payments.
-
