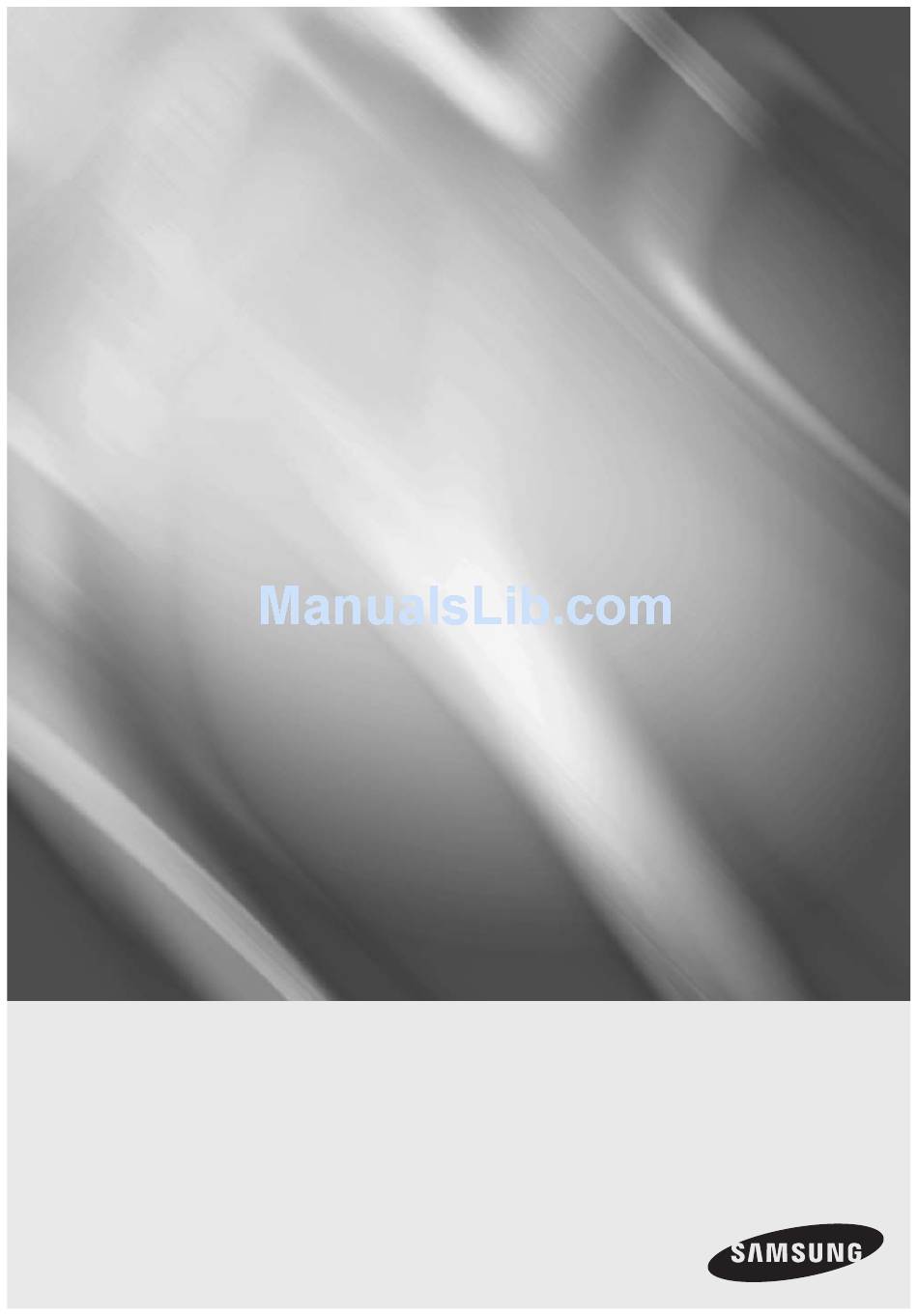

8 Channel/16 Channel DVR
SRD-830/830D/1610/1610D/1630/1630D

User Manual

imagine
the possibilities
Thanks you for purchasing this Samsung product.
To receive a more complete service, please visit
our website
www.samsungsecurity.com
SRD-850/850D/1650/1650D
SRD-870/870D/1670/1670D

Advertisement

Table of Contents
loading

Related Manuals for Samsung SRD-830

Summary of Contents for Samsung SRD-830

  • Page 1: User Manual

    SRD-830/830D/1610/1610D/1630/1630D SRD-850/850D/1650/1650D SRD-870/870D/1670/1670D 8 Channel/16 Channel DVR User Manual imagine the possibilities Thanks you for purchasing this Samsung product. To receive a more complete service, please visit our website www.samsungsecurity.com...

  • Page 2: Features

    Mass storage hard disk backup through eSATA (SRD-850/850D/870/870D/1650/1650D/1670/1670D) Backup function using USB 2.0 flash memory and external CD/DVD writer (Internal DVD writer is not available for SRD-830/850/870/1610/1630/1650/1670) Simultaneous Record and Playback of 8/16-channel video data Various Search Modes (Search by Time, Event, Backup, POS and Motion Detection) Various Recording Modes (Time Lapse, Event, Scheduled Recording) Extended Hard Disk Connection (USB 2.0, eSATA) (SRD-850/850D/870/870D/1650/1650D/1670/1670D)

  • Page 3: Important Safety Instructions

    important saFety instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth.

  • Page 4: Before Start

    You have to keep in mind the following notices : SAMSUNG retains the copyright on this manual. This manual cannot be copied without SAMSUNG’s prior written approval. We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of instructions mentioned in this manual.

  • Page 5: Standards Approvals

    HDD Fixing Screw (SRD-830D/850D/870D/1610D/ Audio Extension Cable (optional) (SRD-830D/850D/870D/1610D/1630D/ 1630D/1650D/1670D : 4EA) (SRD-850/850D/870/870D/ 1650D/1670D : 16EA) (SRD-830/850/870/1610/1630/ 1650/1650D/1670/1670D) (SRD-830/850/870/1610/1630/1650/ 1650/1670 : 5EA) 1670 : 20EA) Bracket Fixing Screw(4EA) Bracket Rack For models that are not equipped with the HDD, one SATA cable is provided for HDD installation.

  • Page 6: Table Of Contents

    overview contents overview Features Important Safety Instructions Before Start Part Names and Functions (Front) Part Names and Functions (Rear) Remote Control instaLLation Checking the installation environment Rack Installation HDD Addition connecting with other device Connecting the Video, Audio, and Monitor Connecting the USB Connecting External SATA HDD Connecting POS Device...
  • Page 7 Introducing Web Viewer Connecting Web Viewer Using Live Viewer Using Search Viewer Viewer Setup About BacKup viewer SEC Backup Viewer appendix 100 Product Specification (SRD-830/830D/1610/ 1610D/1630/1630D) 103 Product Specification (SRD-850/850D/870/ 870D/1650/1650D/1670/1670D) 106 Product Overview 107 Default Setting 110 Troubleshooting English _...

  • Page 8: Part Names And Functions (Front)

    overview part names and Functions (Front) 830/850/870 ALARM NETWORK BACKUP ZOOM FREEZE BACKUP SEARCH SHR-6 TELE WIDE VIEW PRESET MODE AUDIO ALRAM MENU RETURN 1610/1630/1650/1670 ALARM NETWORK BACKUP ZOOM FREEZE BACKUP SEARCH SHR-6 TELE WIDE VIEW PRESET MODE AUDIO ALRAM MENU RETURN 830d/850d/870d...
  • Page 9 Part Names Functions ALARM : Lights on when an event occurs. HDD : Displays the normal access to HDD. Upon access to HDD, LED repeats on and off. LED Indicator NETWORK : Displays both network connection and data transfer status. BACKUP : Displays when Backup is in progress.

  • Page 10: Part Names And Functions (Rear)

    overview part names and Functions (rear) 830/830d    9 10 11 1610/1610d/1630/1630d    9 10 11 850/850d     9 10 11 1650/1650d     9 10 11 10_ overview...
  • Page 11 870/870d     9 10 11 1670/1670d     9 10 11 English _11...
  • Page 12 - ALARM IN 1~16(SRD-1610/1610D/1630/1630D/1650/1650D/1670/1670D) : Alarm Input port. ALARM - ALARM IN 1~8(SRD-830/830D/850/850D/870/870D) : Alarm Input port. - ALARM RESET IN : Alarm Reset port. - ALARM OUT 1~4 : Alarm Output port. A live screen output port, separate from the VIDEO OUT.

  • Page 13: Remote Control

    remote controL Available after switching to DVR mode by pressing the [dvr] button on the remote control. BacKup search Displays the search menu. Displays the Backup Menu. open/cLose mode Opens or closes the CD tray. Changes the screen mode. Activates the DVR function. power Displays the Exit pop up screen.
  • Page 14 overview monitor Available after switching to Monitor mode by pressing the [monitor] button on the remote control. auto id reset Selects the screen status automatically. Initializes the ID value to 00. p.mode Selects the screen mode. power monitor Turns the monitor power on/off. Activates the monitor function.

  • Page 15: Checking The Installation Environment

    Life (Unit: HOURS) [Figure 1] The followings are the recommendations when Samsung DVR is installed on a rack. Please ensure that the rack inside is not sealed. Please ensure the air is circulated through the inlet/outlet as shown in the picture.

  • Page 16: Rack Installation

    Number of HDDs supported : SRD-830D/850D/870D/1610D/1630D/1650D/1670D : Default 1 HDD + Up to 4 HDDs added SRD-830/850/870/1610/1630/1650/1670 : Default 1 HDD + Up to 5 HDDs added Make sure to unplug the power cord from the wall outlet before proceeding with the installation.
  • Page 17 First, loosen the screws in the left and right sides and remove the cover. Cover Loosen the screws (x4) in the left/right and upper sides and remove the upper brackets. Upper Bracket Lower Bracket Install HDDs (x2) on the lower bracket and fix them with screws.
  • Page 18 Note that the order of the HDD data cable is nothing to do with the operation. Just make arrangements of the connectors considering the length of each connector. SRD-830/1610/1630 do not support DVD media. if adding hdds to srd-830d/850d/870d/1610d/1630d/1650d/1670d First, loosen the screws in the left and right sides and remove the cover.
  • Page 19 Install a HDD (x1) on the lower bracket and fix it with screws. Upper Bracket Install HDDs (x3) on the upper bracket and fix them with screws. Lower Bracket When the installation of additional HDDs is done, insert the lower and upper brackets into the DVR and fix them with the provided screws.

  • Page 20: Connecting With Other Device

    connecting with other device The following figures are based on Model SRD-1670D. connecting the video, audio, and monitor SPOT AC 100-240V~IN VIDEO IN VIDEO IN AUDIO OUT AUDIO IN VIDEO OUT VIDEO OUT HDMI (composite) (VGA) connecting the usB There are two USB ports at the front and one at the back of the product. You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port.

  • Page 21: Connecting External Sata Hdd

    SRD-830/830D/1610/1610D/1630/1630D does not support a port for SATA connection. There are two external SATA ports on the rear side of the product. If an external SATA HDD is connected to the system, recognition and settings are available in “menu > device >...

  • Page 22: Connecting The Rs-485 Device

    ALARM IN 1 ~ 8 (SRD-830/830D/850/850D/870/870D) : Alarm Input Port ALARM IN 1 ~ 16 (SRD-1610/1610D/1630/1630D/1650/1650D/1670/1670D) : Alarm Input Port ALARM RESET : On receiving an Alarm Reset signal, the system cancels the current Alarm Input and resumes sensing.

  • Page 23: Connecting The Network

    connecting the networK connecting to internet through ethernet (10/100/1000Baset) RJ-45 Ethernet Cable (Direct Cable) INTERNET Back Bone Hub/Switcher Hub/Switcher Windows Network Viewer connecting to the internet using the router INTERNET xDSL or Cable xDSL or Cable Modem Modem Router External Remote DDNS Server (Data Center) English _...
  • Page 24 connecting with other device connecting to internet through adsL RJ-45 Ethernet Cable (Direct Cable) INTERNET Phone(ADSL) Line ADSL MODEM Hub/Switcher Windows Network Viewer _ connecting with other device...

  • Page 25: Live

    live getting started starting the system Connect the power cable of the DVR to the wall outlet. Press the Power button on the front panel. You will see the initialization screen. The initialization process will last about 1 minute in the order of icons appeared.

  • Page 26: Locking All Buttons

    live Login To access a DVR or restricted menu, you should have logged in to the DVR. In live mode, right-click any area of the screen. You will see the context sensitive menu as in the right Scene Mode  figure.

  • Page 27: Live Screen Configuration

    Live screen conFiguration icons on the Live screen You can check the status or operation of the DVR with the icons on the live screen. 2010-01-01 00:00:01 CAM 01 Name Description Current Date, Time Displays the current time and date. Login Information When you are logged in, the “LOG ON”...
  • Page 28 live error information If you turn on the system in the condition that the internal HDD is not connected or an error occurs, the “HDD FAIL” icon ( ) will be displayed on the top left corner. In this case, make sure you contact the service center for assistance as this may cause a failure of recording, playback or backup.
  • Page 29 Menu Description Scene Mode Refer to “Live Mode”. (Page 31) Spot Out Refer to “Spot Out”. (Page 33) Audio On/Off Refer to “Audio ON/OFF”. (Page 34) Freeze Refer to “Freeze”. (Page 34) Stops the alarm output and the event monitoring. Refer to “Event Monitoring”. Stop Alarm (Page 35) Record/Stop...

  • Page 30: View The Launcher Menu

    Move the cursor to the bottom and click a desired item in the Launcher menu. If no input is entered for 10 seconds, the menu will disappear. The Launcher menu can be accessed only using the mouse. SRD-830/830D/850/850D/870/870D do not support the 16-split screen mode. Alarm Freeze Menu Description Displays the current time and date.

  • Page 31: Live Mode

    To switch the split mode, select a screen mode in the launcher menu, or right-click to select a screen mode in the context menu. Press the [mode] button on the front panel or the remote control to switch the mode in the sequence of the launcher menu items. SRD-830/830D/850/850D/870/870D do not support the 16-split screen mode. CH10 CH11 CH12...
  • Page 32 CH10 CH11 CH12 CH13 CH10 CH11 CH12 CH10 CH11 CH12 CH13 CH14 CH15 CH16 CH13 CH14 CH15 CH16 live CH10 CH10 CH11 CH10 CH11 CH12 CH11 CH12 CH13 CH12 CH13 CH13 manual switching CH10 CH11 CH12 Press the left/right button on the front panel or the remote control, or click the arrow <_/+> key to move to CH13 CH14 CH15...

  • Page 33: Spot Out

    CH16 switching to single mode In a split mode, select and double-click a desired channel to switch to its Single mode. CH10 CH13 CH14 Press the number corresponding to a desired channel on the front panel or the remote control to switch to its Single mode.

  • Page 34: Zoom

    live Zoom This is available only in Single Live mode. In Single mode, select a desired area and use the Zoom function to enlarge it twice. Select <Zoom> in the right-click menu. Press the [Zoom] button on the front panel or the remote control, or simply click < >...

  • Page 35: Event Monitoring

    event monitoring This will display the channel in sync with a specific event (Sensor/Motion/Video Loss) if it occurs. In “monitor > event display”, set the event monitoring to ON/OFF and specify the event display time. (Page 52) If multiple events occur simultaneously, the screen will switch to a split mode. - 2~4 events : 4-split mode - 5~9 events : 9-split mode - 10~16 events : 16-split mode...

  • Page 36: Using The Dvr

    using the DVR You can setup the system properties, devices, and options for recording, event, backup and network. SyStem Setup You can setup Date/Time/Language, Permission, System Properties and Log. Date/time/Language You can check and setup the current Date/Time and time related properties, as well as the language used for the interface on the screen.

  • Page 37: Using The Calendar

    - Time Server : Enter an IP or URL address of the time server. Date/Time/Language Date/Time/Language - Last Sync Time : Displays the most recent Holiday synchronization time from the selected time server.  Date 2010 -01-01 YYYY-MM-DD Time Synchronization Setup - Activate as Server : Set to <use>...
  • Page 38 using the DVR permission management You can set permissions of each user over the DVR's specific function and settings. Setting the Administrator You can set and change Administrator’s ID and password. The administrator can use and set all menu items and functions. Using the mouse may help easy setup.

  • Page 39: Setting The Group

    Setting the Group You can create a user group, and setup permissions of a user group. You can register a user for each group in <user>. Using the mouse may help easy setup. Use the up/down buttons (▲▼) in <system> window to move to <permission management>, and press Permission Management Group...

  • Page 40: To Change The User Password

    using the DVR to restrict the user permissions If the admin restricts all permissions of an added group, the users belonging to that group can access only the default minimum menus and can change the user’s own password only. Start the DVR. If all permissions are restricted, only the Login dialog should appear.
  • Page 41 Setting the user Users can be added only if a group was created in <group> menu. Using the mouse may help easy setup. Use the up/down buttons (▲▼) in <system> window to move to <permission management>, and press Permission Management User Admin Group...

  • Page 42: System Management

    using the DVR Manual Input of ID : Prompts you to enter the user ID manually for the login process. - Checked ( ) : Encloses the registered user IDs with the [  ] symbols. Login Use the virtual keyboard to enter the user ID. ...

  • Page 43: Updating The Software

    updating the software Connect a device storing the software to be updated. System Management (It may take about 10 seconds to recognize the device.) System Information Settings Upgradeable devices include USB memory, CD/DVD and System Information  Software Version network device. V1.00h_100315180929 System Upgrade ...

  • Page 44: Log Information

    using the DVR Settings You can copy and import the DVR settings by using a storage media. Using the mouse may help easy setup. Use the up/down buttons (▲▼) in <system> window to move to <system management>, and press [enter] System Management Settings System Information...

  • Page 45: Event Log

    event Log Event log shows recorded events on alarms, motion detections and video loss. It also shows the log and its timestamp. Using the mouse may help easy setup. Use the up/down buttons (▲▼) in <system> window to move to <Log information>, and press [enter] button. Log Information Event Log System Log...

  • Page 46: Setting The Device

    - If set to <oFF>, the channel’s audio is off on the Live screen and not recorded. Audio output is available for only 1 channel. SRD-830/830D/1610/1610D/1630/1630D supports 1~4 channels of sound inputs. CH Name : Up to 15 characters including blanks are allowed.

  • Page 47: Setting The Ptz

    Progressive : You can set the progressive camera to ON/OFF. If you set it to <ON> for the progressive camera, screen flickering will be reduced. Screen Setup : The video appeared on the screen may vary depending on the channel’s camera, configure the DVR display to your preferences.

  • Page 48: Storage Device

    - USB memory is used only for backups. External USB HDD, SATA HDD are used for extension and backup. SRD-830/830D/1610/1610D/1630/1630D does not support a port for SATA connection. Status/Management : Shows the current status of the HDD, as in Normal/Check/Replace.
  • Page 49 Formatting You can format a storage device. Using the mouse may help easy setup. Use the up/down buttons (▲▼) in <device> window to move to <storage device>, and press [enter] button. Storage Device Format Device HDD Alarm Select <Format>. Device Select Used/Total Usage...
  • Page 50 using the DVR Duration : Sets the alarm duration for the alarm signal and beep sound. - Check Alarm, Replace Alarm signals will output through the selected alarm out ports (1, 2, 3, and 4). - If <Beep> was selected, a beep will sound. - If <all>...
  • Page 51 POS Device Setup : Sets the communication setups for the POS Device POS device and DVR. POS USE POS Device Setup It is independent to the Remote Device setup. Preset  Port/Ethernet None No preset None POS Device Setup None No preset None None...

  • Page 52: Screen Setup

    In this case, press and hold the [mode] and [Zoom] buttons simultaneously for around 5 seconds to change the video output. SRD-830/830D/1610/1610D/1630/1630D does not support the HDMI signal. Sharpness : You can adjust the sharpness of the video output signal.

  • Page 53: Setting The Spot Out

    Setting the Spot Out You can set the DVR to output information / video apart from the monitor out. Using the mouse may help easy setup. Use the up/down buttons (▲▼) in <device> window to Monitor move to <monitor>, and press [enter] button. Spot Out Monitor Mode...

  • Page 54: Setting The Recording

    using the DVR SettInG tHe ReCORDInG You can setup scheduled recording, event recording and other recording related settings. Recording Schedule Make your reservation on a date and time to schedule the recording on specified time. Using the mouse may help easy setup. Press the [menu] button on the remote control or front panel.

  • Page 55: Event Record Duration

    Previous/Next Page each resolution will be recalculated. Cancel The <Remaining count> will be displayed only for SRD-830/ 830D/850/850D/1610/1610D/1630/1630D/1650/1650D models. SRD-870/870D/1670/1670D models have no limitations on the remaining rate. English _55...

  • Page 56: Record Option

    Resolution : Sets the resolution of the recorded screen. If you set the resolution to <Full D1(L)>, SRD-850/850D/1650/ Cancel 1650D support up to 4 channels while SRD-1630/1630D support up to 2 channels and SRD-830/830D/1610/1610D support just one channel. Resolution name resolution...

  • Page 57: Setting The Event

    Disk End Mode : If selected <overwrite>, recording will continue despite the HDD full while overwriting the oldest. If selected <stop>, the recording will stop when the HDD is full. Disk End Beep : If selected <stop>, the button is activated. If you check it, the beep will sound on the disk full and the recording stops.

  • Page 58: Motion Detection

    using the DVR Alarm : Sets the alarm output method. Sensor Detection For further information on alarm output, refer to “HDD Alarm > Sensor Operation  Cam  Alarm  Duration  Alarm”. (Page 49) Sensor   None 10 sec ...

  • Page 59: Video Loss Detection

    Video Loss Detection You can set the alarm to be generated on a camera disconnection, which causes a video loss. Using the mouse may help easy setup. Use the up/down buttons (▲▼) in <event> window to move to <video Loss detection>, and press [enter] Video Loss Detection button.

  • Page 60: Backup

    (such as Windows Media Player) on a PC. - DVR : Saved data can be played back only by the DVR. - SEC : Saves data in the Samsung’s proprietary format with built-in viewer, which supports immediate playback on a PC.

  • Page 61: Network Configuration

    When the backup setup is done, press <oK>. If no available device is recognized for backup, <OK> button is not activated. The application may slow down during the backup. You can switch to the menu screen during the backup in operation, but playback of data is not available. When a CD/DVD or memory device is used for backup, it is not available to use the full capacity of the media since the system consumes a part of its capacity.

  • Page 62: Setting The Protocol

    using the DVR IP, Gateway, Subnet Mask, and DNS - For <static ip> : You can directly input IP address, Connection Mode Connection Protocol Gateway, Subnet Mask and DNS.  Connection Mode ADSL - For <dynamic ip> : IP address, Gateway, and Subnet ...

  • Page 63: Connecting And Setting The Network

     Host Name  User Name Refer to “Using Virtual Keyboard”. (Page 38)  User Password ******** If selected <OFF> or <Samsung DDNS>, input fields are deactivated. When the DDNS setup is done, press <oK>. Cancel Refer to <DDNS Setting>. (Page 65)
  • Page 64 using the DVR when a router is used To avoid IP address conflict with the DVR's static IP, check followings : setting the dvr with a static ip - Internet connection : You can connect the DVR to a router which is connected to an ADSL/Cable modem or a router in a Local Area Network (LAN) environment.

  • Page 65: Ddns Setting

    Set <protocol type> in the <protocol> menu of the connected DVR to the following : Ex) Protocol Type : TCP Port (TCP) : 0554,0555,0556,0557 DDNS Site : Samsung DDNS ddns settings of the router Select the corresponding menu for the network transfer protocol of the router.

  • Page 66: Mailing Service

    using the DVR mailing Service You can send an e-mail to a DVR-registered user at a specific time interval, or if an event occurs. If an event occurs with a channel where the camera’s video is set to <OFF> or the remaining recording count is set to <OFF>, only the text notification will be sent to the applicable email address.

  • Page 67: Group Setting

    Group Setting You can set the group to whom the e-mail is sent, and specify the permission for each group. You can add recipients for each group in the <recipient> menu item. The recipient is set separately from the DVR user group. Using the mouse may help easy setup.

  • Page 68: Controlling A Ptz Device

    using the DVR COntROLLInG A ptZ DeVICe The DVR enables you to adjust the settings of a PTZ camera as well as an ordinary one to your preference. ptZ Device The PTZ device can be activated only if a channel in connection with the PTZ camera is selected. Getting started with ptZ The PTZ camera is available, only if a channel is selected, in the following way : Using the button on the remote control or the front panel...

  • Page 69: Camera Setting

    Pattern : Makes the PTZ camera remember and follow the past route. The functions of Auto Pan, Scan and Pattern are supported in the protocols of Samsung, Panasonic and Pelco, and are different in terms of the name and setting, depending on the protocols of Samsung, Panasonic and Pelco.

  • Page 70: Search & Play

    search & play SeARCH You can perform the search for recorded data by the time or by the search criteria such as an event. You can access the <search> menu directly in Live mode. In Live mode, right-click any area of the screen. Scene Mode ...

  • Page 71: Event Search

    Zoom In : The map enlarges in detail. Time Search It will switch in the sequence of 24 hours - 4 hours - 1 hour 2010-01-01 Go to First Go to Last - 5 minutes. Overlapped Data List1 Zoom In Zoom Out Zoom Out : The map will switch in the reverse order of the 00:01...

  • Page 72: Pos Search

    search & play pOS Search You can search for data in the POS device that is connected to the DVR. You can use the mouse to select the related items. Select <pos search> in the <search> menu. POS Search Use direction buttons (▲▼_ +) to set the search criteria Date/Time 2009-12-25 03:41:18 2010-01-01 03:41:18...

  • Page 73: Playback

    pLAyBACK play You can play data stored in the HDD and backup a desired portion of the data. Using the mouse may help easy setup. In Live mode, click <play> in the right-click menu or < > in the launcher menu, or press the Play button on Scene Mode ...

  • Page 74: Web Viewer

    web viewer IntRODuCInG weB VIeweR what is web Viewer? Web Viewer allows remote access to your DVRs. You have access to live video, archived video, PTZ control (if configured), etc. pRODuCt FeAtuReS Remote access from a standard browser Supports PTZ camera controls Supports 1, 4, 8, 16 camera viewing formats (maximum of 16 cameras in the list).

  • Page 75: Connecting Web Viewer

    COnneCtInG weB VIeweR Open your web browser and type the IP address or URL of DVR into the URL address box. The basic URL of the DVR is as following in case of MAC address : 00-00-F0-ab-cd-ef : nabcdef.websamsung.net 00-16-6c-ab-cd-ef : mabcdef.websamsung.net 00-68-36-ab-cd-ef : pabcdef.websamsung.net You can also use registered URL which setups up in the Setup menu of your DVR.
  • Page 76 web viewer You may have “windows Security Alert” that attempts to block this with the Windows Firewall. In that case, click <unblock> to start Web Viewer. Installation is complete. Now you can see the main screen of Live Viewer. 76_ web viewer...

  • Page 77: Using Live Viewer

    uSInG LIVe VIeweR The Live Viewer screen consists of following : This displays the IP address and the model name of the connected DVR. These menus consist of <LIVe>, <SeARCH>, <Setup>, <ABOut>. These buttons are used for the screen split and full screen mode. Shows the IP address and model name of the connected DVR.
  • Page 78 web viewer OSD InFORmAtIOn DISpLAy The channel number, video size, and IP address of the connected DVR are displayed. The current date and time will be displayed according to the selected time information display setting <DVR time> or <pC time>. Alarm icon appears when alarm is issued.
  • Page 79 COnneCteD DVR This displays the IP address and the status of the connecting DVR. Connection failure message No Response : Appears when the DVR does not respond. Access Denied : Appears when the maximum number of users is exceeded. The number of simultaneous connections are limited to 10. Setting the display of the OSD time information Select <DVR time>...
  • Page 80 SAVInG tHe LIVe SCReen On tHe pC CAptuRe : Saves the current screen into a BMP or JPEG file. The default saving path is “C:\Program Files\Samsung\Dvr Web Viewer\SnapShot\Live”. To change the saving path, click <SAVE PATH ( )> button and then select the path you want.

  • Page 81: Using Ptz Camera

    ReCORD : Saves the current image on the screen and saves it as a avi video file. To record it, it is required at least 1GB of available space. The default saving path is “C:\Program Files\Samsung\Dvr Web Viewer\VideoClip\Live”. To change the saving path, click <SAVE PATH ( )>...
  • Page 82 Upward dragging will zoom out, while downward dragging will zoom in. Tilt of Power PTZ operates properly within 45°. Power and Pan Tilt functions are only available for camera supporting the functions. Ex : Samsung SCC-C6475 82_ web viewer...

  • Page 83: Using Search Viewer

    uSInG SeARCH VIeweR The Search Viewer screen consists of following : This displays the IP address and the model name of the connected DVR. These menus consist of <LIVe>, <SeARCH>, <Setup>, <ABOut>. These buttons are used for the screen split and full screen mode. Shows the IP address and model name of the connected DVR.
  • Page 84 web viewer SpLIt-SCReen You can change the split mode by clicking each number icon. SINGLE MODE QUAD MODE Click < > button. The screen displays the selected camera connected to the DVR in “SInGLe mODe”. Click < > button. The screen displays the selected camera connected to the DVR in “QuAD mODe”.
  • Page 85 <SAVE PATH ( )> button and then select the path you want. For Windows Vista or 7, the saving path is “C:\users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\Video-Clip\” and it cannot be modified. The file is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index”...

  • Page 86: Searching The Recorded Video In The Calendar

    web viewer SeARCHInG tHe ReCORDeD VIDeO In tHe CALenDAR If the video data has been recorded on a date, the date is distinguished in green. If you click the date, the recorded video information is displayed in the time line. When you click <today>, it is changed to today’s date.

  • Page 87: Controlling Playback

    COntROLLInG pLAyBACK Fast Backward : Reverse-plays faster(2x). Reverse play : Performs Reverse Play. play : Performs playback. Fast Forward : Plays faster(2x). Go to First : Moves the beginning time of recorded video in the time line. Step Backward : Performs one step reverseplay by one frame. Stop : Stops playing.
  • Page 88 web viewer time Synchronization Setup Set the time synchronization. Display Date Format : Set the date type. Time : Select a time format to display on the screen. DSt (Daylight Saving time) DST is displayed an hour ahead of the standard time of the time zone.
  • Page 89 Group Users are classified into groups and the permission can be set according to the group. First of all, add a group. user You can add, change or remove a user or users. Setup You can set the user permission. System management For more information, refer to <System management>...
  • Page 90 Camera Camera You can configure the settings of the camera that is connected to the DVR. SRD-830/830D/1610/1610D/1630/1630D supports 1~4 channels of sound inputs. You can configure the settings of the PTZ camera that is connected to the DVR. Set the ID and protocol.

  • Page 91: Remote Device

    POS device that is connected to the DVR. You cannot set to use the POS device remotely. monitor monitor You can configure the monitoring screen settings and set the output system. SRD-830/830D/1610/1610D/1630/1630D does not support the HDMI signal. English _91...

  • Page 92: Recording Schedule

    web viewer Spot Out The registered user can view the event screen for the duration set in <event Display> if an event occurs from the appropriate channel. The number of Spot Out terminals differs according to the model. mode You can switch between live mode and play mode. Record For more information, refer to <Setting the Recording>.

  • Page 93: Sensor Detection

    event Record Duration You can set the start and end times of recording that will be activated if an event occurs. ReC Quality & Resolution Standard/event You can set the resolution, frame rate and recording quality for each channel. Record Option You can set the Disk End Mode.
  • Page 94 web viewer motion Detection You can set the motion detection mode and the sensitivity as well as the alarm output type and the duration. motion Region Set the target motion detection area Video Loss Detection You can set the alarm output time if a video loss occurs. Alarm Schedule You can schedule the alarm output according to the day of the week and the time.

  • Page 95: Live Transfer

    network For more information, refer to <network Configuration>. (Page 61) Connection A remote user can access the DVR via the network to check the current mode and the IP address. Connection You can set the network connection route. protocol You can configure the protocol related settings. DDnS You can check the DDNS settings.
  • Page 96 web viewer mailing Service You can specify the SMTP server that sends a mail if an event occurs and set the recipient group and users. Smtp You can set the server that sends mails and specify if you use the authentication process. event You can set the event interval and specify which events the server sends mails for.

  • Page 97: About

    ABOut Click <ABOut>. Displays the model name of connected DVR and the version of Web Viewer. English _97...

  • Page 98: Recommended System Requirements

    backup viewer SeC BACKup VIeweR You can play a file that is backed up in the format of SEC. Backup in the format of SEC will involve in generating two files: one for the backup data and one for the viewer. If you run the backup file viewer, the backup data file will be automatically played.
  • Page 99 Name Description A toggle button. Each time you press this button, the audio output will toggle between activated and deactivated. Audio You can adjust the volume level from 0 to 100. Saves the current screen as an image file. Supported file formats include BMP and JPEG.

  • Page 100: Product Specification (Srd-830/830D/1610/1610D/1630/1630D)

    SpeCIFICAtIOn (SRD-830/830D/1610/1610D/1630/1630D) Item Details Note Operating System Embedded OS Broadcast Format NTSC/PAL System Input Voltage AC 100~240V Power Consumption SRD-830/830D/1610/1610D/1630/1630D : 55W Composite 16(8) Channel - 1.0Vp-p - 75Ω Hi Z Termination Video In BNC Type Loop Through Out 16(8) Channel...
  • Page 101 PAL : 0.8, 1.6, 3.1, 6.2, 12.5, 25ips SRD-830D/1610D/1630D : SATA HDDx5(MAX) If you want to MAX HDD size : 1TB x 5 = 5TB add an internal SRD-830/1610/1630 : SATA HDDx6(MAX) HDD, please Storage Internal MAX HDD size : 1TB x 6 = 6TB refer to “Adding a...
  • Page 102 Serial Communication Remote Control Device RS-232C  POS Input : SRD-1610/1610D/1630/1630D : 16 channels Alarm SRD-830/830D : 8 channels CPU : Intel Core 2 Quad 2.5GHz or higher RAM : 2G PC Requirements VGA : 32M RAM(64M or more) DirectX 8.1...

  • Page 103: Product Specification (Srd-850/850D/870/ 870D/1650/1650D/1670/1670D)

    pRODuCt SpeCIFICAtIOn (SRD-850/850D/870/870D/1650/1650D/ 1670/1670D) Item Details Note Operating System Embedded OS Broadcast Format NTSC/PAL System AC 100~230V (PAL) Input Voltage AC 110~220V (NTSC) SRD-1670/1670D : 60W Power Consumption SRD-870/870D : 56W SRD-850/850D/1650/1650D : 55W Composite 16(8) Channel - 1.0Vp-p - 75Ω Hi Z Termination Video In BNC Type Loop Through Out 16(8) Channel...
  • Page 104 appendix Item Details Note Compression Video : H.264 Method Audio : G.723 Resolution Spec. (Quality) Max Recording Rate CIF(S) Level8 (high) 480(240)ips(NTSC)/ SRD-1650/D 352X240(NTSC) ~ Level1 (low) 400(200)ips(PAL) (SRD-850/D) /352X288(PAL) Half D1(M) Level8 (high) 240(120)ips(NTSC)/ SRD-1650/D 704x240(NTSC) ~ Level1 (low) 200(100)ips(PAL) (SRD-850/D) /704x288(PAL)
  • Page 105 Item Details Note Resolution Specification CIF(S) 480(240)ips(NTSC)/ SRD-1650/D 352X240(NTSC) 400(200)ips(PAL) (SRD-850/D) /352X288(PAL) Half D1(M) 240(120)ips(NTSC)/ SRD-1650/D 704x240(NTSC) 200(100)ips(PAL) (SRD-850/D) Resolution & /704x288(PAL) Specification Full D1(L) 120(60)ips(NTSC)/ SRD-1650/D 704x480(NTSC) Play 100(50)ips(PAL) (SRD-850/D) /704x576(PAL) CIF(S) 480(240)ips(NTSC)/ SRD-1670/D /Half D1(M) 400(200)ips(PAL) (SRD-870/D) /Full D1(L) Display Mode Single /4-/9-/13-/16-splits Play, Pause, Stop, 2xDigital Zoom...

  • Page 106: Product Overview

    appendix pRODuCt OVeRVIew SRD-1670D 106_ appendix...

  • Page 107: Default Setting

    DeFAuLt SettInG This returns the factory default settings. The settings are made as follows; Use System/Load Factory Default in MENU The default settings are based on SRD-1670D. Category Details Factory Default Date YYYY-MM-DD Time Format 24 hours Time Zone Date/Time/Language Date/Time/Language Time Synchronize System Settings...
  • Page 108 appendix Category Details Factory Default POS Device Display Switch to Split Screen 5 sec Monitor 800x600 HDMI 480p Spot Out 1 CH1 ~ CH4 Device Monitor Spot Out 2 CH5 ~ CH8 Spot Out Spot Out 3 CH9 ~ CH12 Spot Out 4 CH13 ~ CH16 Event Display...
  • Page 109 Category Details Factory Default Connection Mode Static IP Bandwidth 2Mbps 192.168.1.200 Connection Gateway 192.168.1.1 Subnet Mask 255.255.255.0 Connection Mode 168.126.63.1 Protocol Type Protocol Port (TCP) 554~557 Webviewer Port DDNS DDNS Site Network Resolution CIF(S) Live Transfer Quality Server Port SMTP Use Authentication Secure Transfer Never...

  • Page 110: Troubleshooting

    appendix tROuBLeSHOOtInG Symptom Countermeasures The system does not turn on and the indicator on the Check if the power supply system is properly connected.  front panel does not work at all.  Check the system for the input voltage from the power source. ...
  • Page 111 Symptom Countermeasures I've found that the DVR does not recognize as many  It takes time for the DVR to recognize multiple external HDDs. Try again disks as installed when I have connected multiple in a moment and if the problem (of failure to recognize as many HDDs external HDDs to the DVR.
  • Page 112 appendix Symptom Countermeasures Recording does not work.  If your player does not display a Live image at all, that indicates recording does not work so first check if you see an image on the screen. Recording does not work if the recording settings are not properly ...

  • Page 113: Gnu General Public License

    Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to help.cctv@samsung.com If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution might be charged.
  • Page 114 of the Program a copy of this License along with the Accompany it with a written offer, valid for at least Program. three years, to give any third party, for a charge no more than your cost of physically performing You may charge a fee for the physical act of transferring source distribution, a complete machine-readable a copy, and you may at your option offer warranty...
  • Page 115 7. If, as a consequence of a court judgment or 10. If you wish to incorporate parts of the Program into allegation of patent infringement or for any other reason other free programs whose distribution conditions are (not limited to patent issues), conditions are imposed on different, write to the author to ask for permission.
  • Page 116 with the library. If this is what you want to do, use the How to Apply these terms to your GNU Lesser General Public License instead of this new programs License. If you develop a new program, and you want it to be of Gnu GeneRAL puBLIC LICenSe the greatest possible use to the public, the best way to achieve this is to make it free software which everyone...

  • Page 117: Terms And Conditions

    Some devices are designed to deny users access to To “convey” a work means any kind of propagation that install or run modified versions of the software inside enables other parties to make or receive copies. Mere them, although the manufacturer can do so. This is interaction with a user through a computer network, fundamentally incompatible with the aim of protecting with no transfer of a copy, is not conveying.
  • Page 118 The Corresponding Source for a work in source code You may charge any price or no price for each copy form is that same work. that you convey, and you may offer support or warranty protection for a fee. 2. Basic permissions. All rights granted under this License are granted for the 5.
  • Page 119 offer spare parts or customer support for that “Installation Information” for a User Product means any product model, to give anyone who possesses methods, procedures, authorization keys, or other the object code either (1) a copy of the information required to install and execute modified Corresponding Source for all the software in the versions of a covered work in that User Product from a product that is covered by this License, on a...
  • Page 120 Notwithstanding any other provision of this License, for However, if you cease all violation of this License, then material you add to a covered work, you may (if your license from a particular copyright holder is authorized by the copyright holders of that material) reinstated (a) provisionally, unless and until the copyright supplement the terms of this License with terms: holder explicitly and finally terminates your license, and...
  • Page 121 litigation (including a cross-claim or counterclaim in a A patent license is “discriminatory” if it does not include lawsuit) alleging that any patent claim is infringed by within the scope of its coverage, prohibits the exercise making, using, selling, offering for sale, or importing the of, or is conditioned on the non-exercise of one or more Program or any portion of it.
  • Page 122 and conditions either of that numbered version or of any END OF TERMS AND CONDITIONS later version published by the Free Software Gnu LeSSeR GeneRAL puBLIC Foundation. If the Program does not specify a version number of the GNU General Public License, you may LICenSe choose any version ever published by the Free Software Foundation.
  • Page 123 To protect each distributor, we want to make it very The precise terms and conditions for copying, clear that there is no warranty for the free library. Also, if distribution and modification follow. Pay close attention the library is modified by someone else and passed on, to the difference between a “work based on the library”...
  • Page 124 2. You may modify your copy or copies of the Library or Once this change is made in a given copy, it is any portion of it, thus forming a work based on the irreversible for that copy, so the ordinary GNU General Library, and copy and distribute such modifications or Public License applies to all subsequent copies and work under the terms of Section 1 above, provided that...
  • Page 125 the work for the customer’s own use and reverse 7. You may place library facilities that are a work based engineering for debugging such modifications. on the Library side-by-side in a single library together with other library facilities not covered by this License, You must give prominent notice with each copy of the and distribute such a combined library, provided that work that the Library is used in it and that the Library...
  • Page 126 If any portion of this section is held invalid or unenforceable EXPRESSED OR IMPLIED, INCLUDING, BUT NOT under any particular circumstance, the balance of the LIMITED TO, THE IMPLIED WARRANTIES OF section is intended to apply, and the section as a whole is MERCHANTABILITY AND FITNESS FOR A intended to apply in other circumstances.

  • Page 127: Openssl License

    write to the Free Software Foundation, Inc., 51 Franklin TORT (INCLUDING NEGLIGENCE OR OTHERWISE) Street, Fifth Floor, Boston, MA 02110-1301 USA Also ARISING IN ANY WAY OUT OF THE USE OF THIS add information on how to contact you by electronic SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY and paper mail.
  • Page 128 PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.The licence and distribution terms for any publically available version or derivative of this code cannot be changed.
  • Page 131 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
  • Page 132 TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 1480 Charles Willard St, Carson, CA 90746, UNITED STATES Samsung House, 1000 Hillswood Drive, Hillswood Business Tol Free : +1-877-213-1222 FAX : +1-310-632-2195 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS www.samsungcctvusa.com TEL : +44-1932-45-5300 FAX : +44-1932-45-5325 www.samsungsecurity.com...

This manual is also suitable for:

Srd-830dSrd-1630dSrd-1610Srd-850Srd-850dSrd-1650 ... Show all

Table of Contents
