High Definition &
06-2011
Easy Graphical User Interface
16Ch/8Ch H.264 Real-time DVR

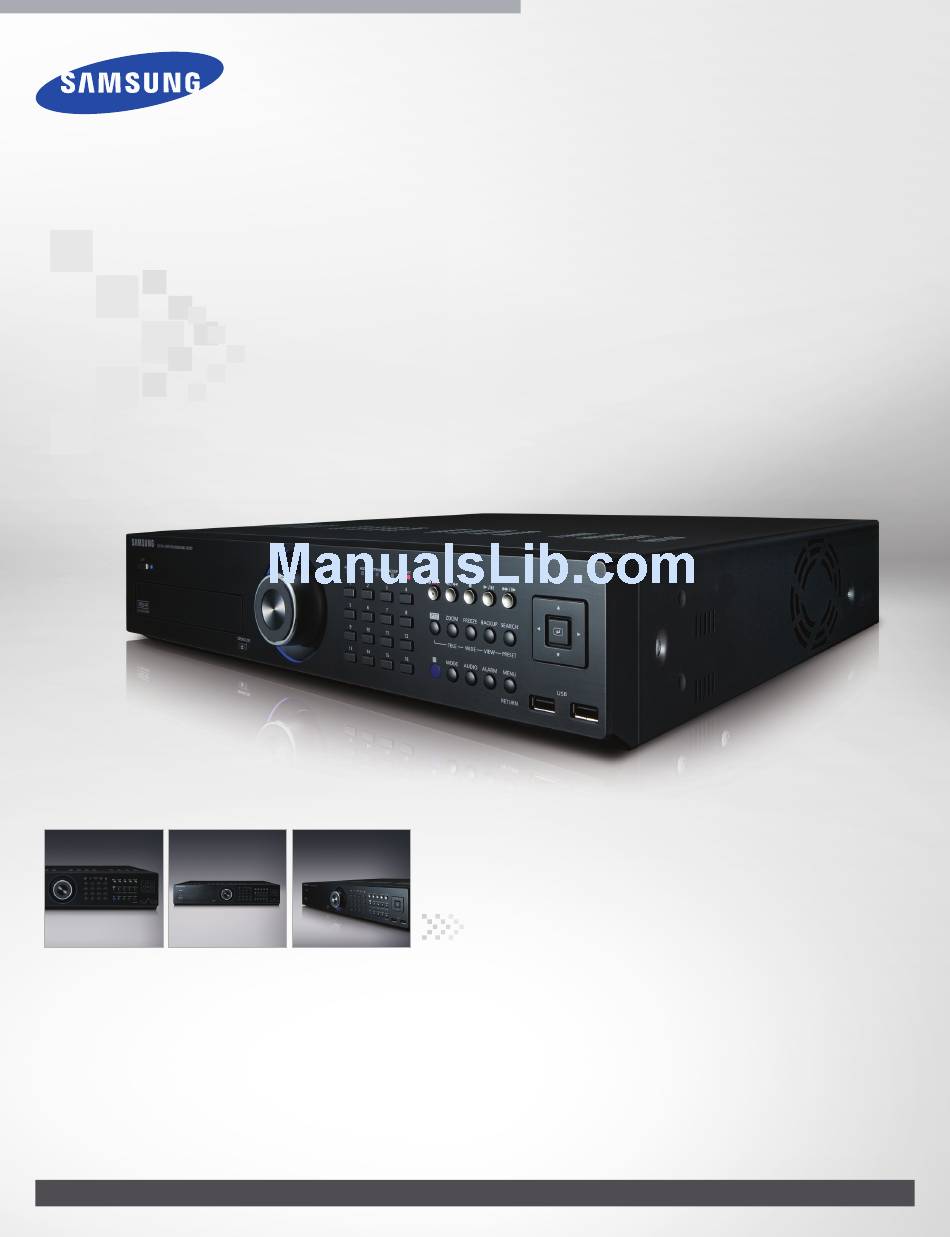

16CH/8CH H.264 Digital Video Recorder
SRD - 1670DC /870DC
• 16ch 4CIF real-time DVR :SRD-1670DC
8ch 4CIF real-time DVR : SRD-870DC
• H.264 compression, Embedded Linux
• Up to 480 (NTSC) / 400 (PAL)ips: SRD-1670DC
240 (NTSC) / 200 (PAL)ips @ 4CIF : SRD-870DC
• Up to 16ch audio inputs and 1ch audio outputs : SRD-1670DC
8ch audio inputs and 1ch audio outputs : SRD-870DC
• HDMI video output for HD display
• Up to 5 Internal Drives
• Free DDNS
• Built-in web viewer, DVD-RW
• PTZ control via Coaxial cable
www.samsung-security.com
Advertisement
Related Manuals for Samsung SRD-1670DC
Summary of Contents for Samsung SRD-1670DC
- Page 1 • Up to 480 (NTSC) / 400 (PAL)ips: SRD-1670DC 240 (NTSC) / 200 (PAL)ips @ 4CIF : SRD-870DC • Up to 16ch audio inputs and 1ch audio outputs : SRD-1670DC 8ch audio inputs and 1ch audio outputs : SRD-870DC • HDMI video output for HD display • Up to 5 Internal Drives...
-
Page 2: Specifications
Application Support Mouse, Remote controller Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Protocol Support DIAMOND, ERNA, KALATEL, VCL TP, Vicon PTZ control via coaxial cable [Samsung CCVC, Pelco-C (Coaxitron)] GENERAL Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, Autoranging Electrical Power Consumption Max.
