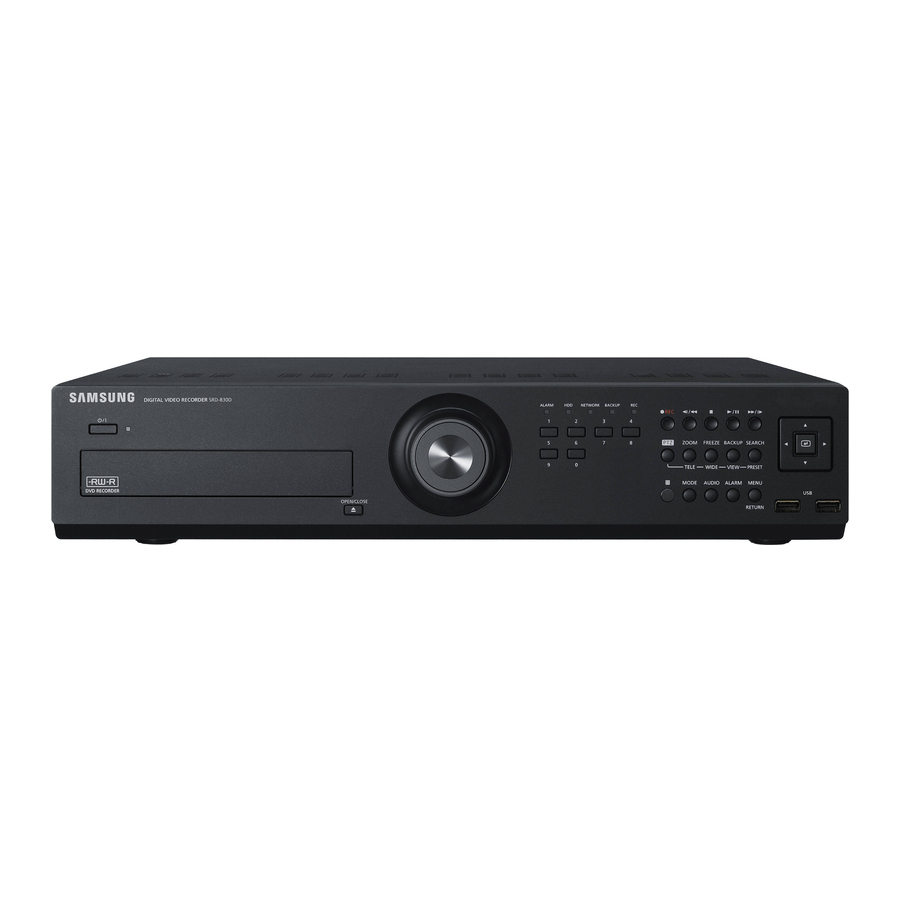

- Page 1 8 CHANNEL/ 16 CHANNEL DVR SRD-830/830D/830DC/ 850/850D/850DC/870/870D/870DC/ 1610/1610D/1610DC/1630/1630D/1630DC/ Quick Guide 1650/1650D/1650DC/1670/1670D/1670DC English...
- Page 2 • CIF(S) Size Recording in 480 (NTSC)/400 (PAL) fps speed (SRD-1650/1650D/1650DC/1670/1670D/1670DC) • CIF(S) Size Recording in 240 (NTSC)/200 (PAL) fps speed (SRD-850/850D/850DC/870/870D/870DC/1630/1630D/ 1630DC) • CIF(S) Size Recording in 120 (NTSC)/100 (PAL) fps speed (SRD-830/830D/830DC/1610/1610D/1610DC) • 8/16-channel Loop Through Video port connection • Hard Disk overwrite function •...
-
Page 3: Standards Approvals
Standards Approvals This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 4: Checking The Installation Environment
Life (Unit: HOURS) [Figure 1] The followings are the recommendations when Samsung DVR is installed on a rack. 1. Please ensure that the rack inside is not sealed. 2. Please ensure the air is circulated through the inlet/outlet as shown in the picture. -
Page 5: Rack Installation
Number of HDDs supported : SRD-830D/830DC/850D/850DC/870D/870DC/1610D/1610DC/1630D/1630DC/1650D/1650DC/ 1670D/1670DC : Default 1 HDD + Up to 4 HDDs added SRD-830/850/870/1610/1630/1650/1670 : Default 1 HDD + Up to 5 HDDs added Make sure to unplug the power cord from the wall outlet before proceeding with the installation. - Page 6 If adding HDDs to SRD-830/850/870/1610/1630/1650/1670 The following figures are based on Model SRD-1630. 1. First, loosen the screws on both sides and remove the cover. Cover 2. Disconnect the power and HDD Signal cable from the existing HDDs, then loosen the screws (x4) in...
- Page 7 6. When the installation of additional HDDs is done, connect the power cable and connect the HDD signal cables (SATA Cable) to connectors ~ on the main board. You can check the HDD map directly on the DVR. Refer to “Storage Device >...
- Page 8 3. Install a HDD (x1) on the lower bracket and fix it with screws. Upper Bracket 4. Install HDDs (x3) on the upper bracket and fix them with screws. Lower Bracket 5. When the installation of additional HDDs is done, insert the lower and upper brackets into the DVR and fix them with the provided screws.
-
Page 9: Connecting The Video, Audio, And Monitor
CONNECTING THE VIDEO, AUDIO, AND MONITOR SPOT AC 100-240V~IN VIDEO IN VIDEO IN AUDIO OUT AUDIO IN VIDEO OUT VIDEO OUT HDMI (composite) (VGA) CONNECTING THE USB 1. By factory default, a USB port is provided for external connection. 2. You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port. 3. -
Page 10: Connecting External Sata Hdd (Esata)
CONNECTING EXTERNAL SATA HDD (eSATA) The external SATA connection port is not available in SRD-830/830D/830DC/1610/1610D/1610DC/1630/1630D/ 1630DC. 1. Two external SATA ports are provided on the rear panel by factory default. 2. If connected to the system, the external SATA HDD (eSATA) can be recognized and configured in “Menu >... -
Page 11: Connecting The Rs-485 Device
• ALARM IN 1 ~ 8 (SRD-830/830D/830DC/850/850D/850DC/870/870D/870DC) : Alarm Input Port • ALARM IN 1 ~ 16 (SRD-1610/1610D/1610DC/1630/1630D/1630DC/1650/1650D/1650DC/1670/1670D/ 1670DC) : Alarm Input Port • ALARM RESET : On receiving an Alarm Reset signal, the system cancels the current Alarm Input and resumes sensing. -
Page 12: Connecting The Network
CONNECTING THE NETWORK Connecting to Network through Ethernet (10/100/1000BaseT) RJ-45 Ethernet Cable (Direct Cable) NETWORK Back Bone Hub/Switcher Hub/Switcher Windows Network Viewer Connecting to the Network using the router NETWORK xDSL or Cable xDSL or Cable Modem Modem Broadband Router External Remote DDNS Server (Data Center) -
Page 13: Connecting To Internet Through Adsl
Connecting to Internet through ADSL RJ-45 Ethernet Cable (Direct Cable) INTERNET Phone(ADSL) Line ADSL MODEM Hub/Switcher Windows Network Viewer When no router is used • Static IP mode - Internet connection : Static IP ADSL, leased line, and LAN environments allows connection between the DVR and remote user. -
Page 14: Correct Disposal Of Batteries In This Product
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. - Page 16 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 Samsung House, 1000 Hillswood Drive, Hillswood Business Toll Free : +1-877-213-1222 Direct : +1-201-325-6920 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS Fax : +1-201-373-0124 TEL : +44-1932-45-5300 FAX : +44-1932-45-5325 www.samsungcctvusa.com...
