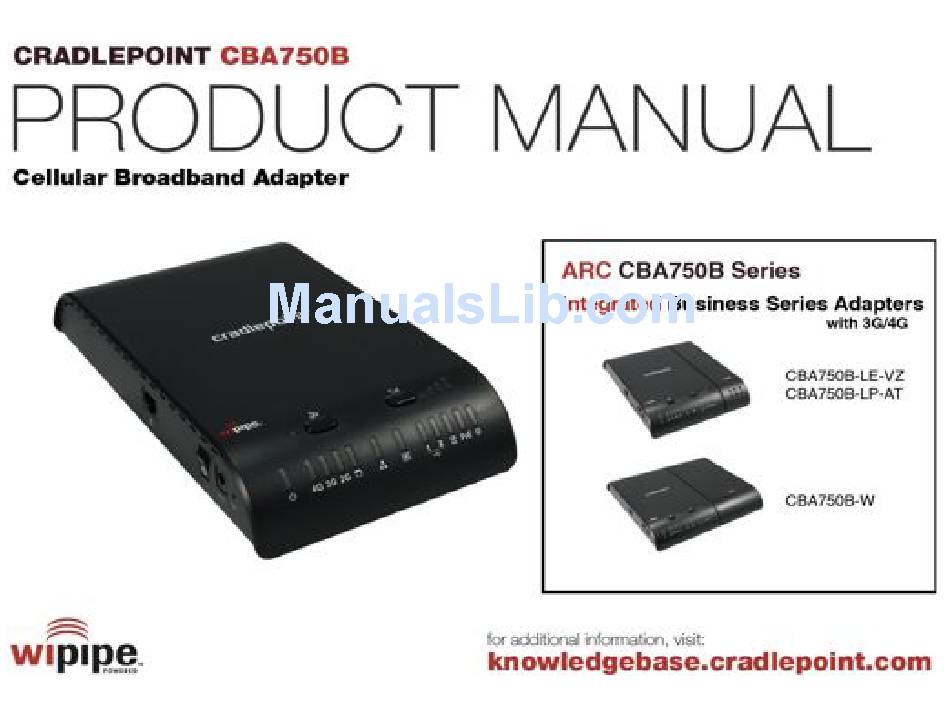

Cradlepoint CBA750B Product Manual

Cba750b series celllular broadband adapter
Hide thumbs Also See for CBA750B:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Product Manual

Advertisement

Table of Contents
loading

Related Manuals for Cradlepoint CBA750B

Summary of Contents for Cradlepoint CBA750B

  • Page 2: Manual Revisions

    All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2013 by CradlePoint, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written consent by CradlePoint, Inc.
  • Page 3 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Table of Contents !! "#$%&'()$"&#*+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++* , ! 8#<! 5 & ! # #####################################################!.?! +,)2+),! *++)&,5*+- 8#8! 2 ! # #########################################################################!<?! *4,5+( "#"! $ & !#############################################################!.! %&'%()! *+,)+,- 8#?! - !########################################################################!<7! ,%,5-,5&- "#/! - !########################################################!.!
  • Page 4 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT <! ?;&66/%B* + +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++* ! -@! !3! /DD1#'"E*++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++* ! 7!! "9#"! 2 !############################!"<"! )(4>%,*20!%+=! %C),0! +C*21%,5*+ "9#/! ; > #! # ################################!"</! %22%+,0 5%65>5,0 25:%&0 !),& !3+,! - !#############################################################!"<.! $)&5C5&%,5*+- © 2013 CRADLEPOINT, INC.

  • Page 5: Package Contents

    CBA750B-LP – 4G LTE / HSPA+ for AT&T o CBA750B-W – 4G WiMAX for Sprint or CLEAR 1.2 System Requirements • An Internet source: a CradlePoint 3G/4G business-grade modem or broadband data modem (USB, ExpressCard) with active subscription. • Windows 2000/XP/7, Mac OS X, or Linux computer.
  • Page 6 For most applications, simply connect the CBA750B to an existing CPE router configured for WAN failover, and it’s ready to go. The CBA750B handles the wireless WAN connection through a 3G/4G modem (included with ARC models) when failover occurs.
  • Page 7 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 1.3.2 CRADLECARE SERVICES The CBA750B comes with a standard 1-year warranty. For extended warranties and other enhanced services including enterprise-level support, site surveys, and expert installation, check out CradlePoint’s CradleCare suite of services. Subscription required. See cradlepoint.com/cradlecare for details.
  • Page 8 CRADLEPOINT 1.4 CradlePoint ARC CBA750B Series ARC Series includes a CradlePoint 3G/4G business-grade modem with the CBA750B and creates an effortless instant network from high-speed wireless broadband. CradlePoint integrated business-grade modems are specifically designed to provide the highest level of performance, reliability, and security for 24x7 business-critical applications.
  • Page 9 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT CBA750B-LE-VZ 4G LTE/EVDO for Verizon Technology: LTE, EVDO Rev A Downlink Rates: LTE 100 Mbps, EVDO 3.1 Mbps (theoretical) Uplink Rates: LTE 50 Mbps, EVDO 1.8 Mbps (theoretical) Frequency Band: • LTE Band 13 (700 MHz) •...
  • Page 10 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT CBA750B-LP-AT 4G LTE/HSPA+ for AT&T Technology: LTE, HSPA+ Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps (theoretical) Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps (theoretical) Frequency Band: • LTE Band 17 (700MHz), Band 4 (AWS) •...
  • Page 11 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT CBA750B-W 4G WiMAX for Sprint or Clear Technology: WiMAX 802.16e Wave 2 Downlink Rates: 10M bps peak, 6 Mbps average Uplink Rates: 5 Mbps peak, 1.2 Mbps average Frequency Band: 2,500 MHz band Power: 23.5 +/! 0.5 dBm (RSU/CPE)

  • Page 12: Hardware Overview

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 2 HARDWARE OVERVIEW © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 10...

  • Page 13: Ports, Buttons, And Switches

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 2.1 Ports, Buttons, and Switches 40 mm 130 mm USB 2.0 LAN Port USB 2.0 ExpressCard Lock ExpressCard Slot Power On/Off DC Power Port Router/Passthrough Reset Switch &% '% !"# R I G H T S I D E...
  • Page 14 10 seconds if the modem does not support concurrent data connection and signal strength measurement. A blinking LED indicates " bar. LAN Port: The CBA750B has one Ethernet port for a local network connection. Use this for connectivity and also for Power-over-Ethernet (optional).
  • Page 15 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 2.2 LEDs © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 13...

  • Page 16: Quick Start

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 3 QUICK START 3.1 Basic Setup 1) Connect a CradlePoint business-grade modem or USB/ExpressCard wireless broadband data modem with an active subscription. Integrated Business-Grade Modem (Optional) A) Purchase a data plan. Insert SIM B) Connect modem to CBA750B.

  • Page 17: Accessing The Administration Pages

    IP address “192.168.0.1” into the address bar. • Enter your Default Password. This password can be found on the bottom of the CBA750B. Then click the LOGIN button. • When you log in for the first time, you will be automatically directed to the First Time Setup Wizard.

  • Page 18: Common Problems

    (Status ! Dashboard). If you have a weak signal in your location, contact your service provider. If you are still not online after activating the modem, call CradlePoint Technical Support for further assistance. © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 19 If your USB Modem has not been updated recently, it is recommended that you do so if it is having trouble connecting to the CBA750B. Insert your USB data modem into your PC and access the Internet using the software provided by your cellular carrier.
  • Page 20 Go to System Settings ! System Software and click on “Manual Firmware Upload”. If you are still unable to access the Internet after following the above directions, contact CradlePoint Technical Support for further assistance.
  • Page 21 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 4 WEB INTERFACE -- ESSENTIALS The CBA750B has a Web interface for configuration and administration of all features. The interface is organized with 5 tabs at the top of the screen: • Getting Started •...

  • Page 22: Administrator Login

    The Administrator Login page will appear. Log in using your administrator password. Initially, this password can be found on the bottom of the CBA750B unit as the Default Password. This password is also the last eight digits of the unit’s MAC address.
  • Page 23 If you have forgotten your personalized password, you can reset the CBA750B to factory defaults. When you reset the router, the administrator password will revert back to the Default Password. Press and hold the reset button on the router unit until the lights flash (approximately 10-15 seconds).

  • Page 24: Getting Started - First Time Setup

    2) When prompted for your password, type the eight character Default Password found on the product label on the bottom of the CBA750B (this is also the last 8 digits of the router’s MAC address). 3) When you log in for the first time, you will be automatically directed to the FIRST TIME SETUP WIZARD.
  • Page 25 6) Configuring Your Access Point Name (APN): If you are using a SIM-based modem (LTE/GSM/HSPA) with your CradlePoint router, you may need to configure the APN before it will properly connect to your carrier. Wireless carriers offer several APNs, so check with your carrier to confirm the appropriate one to use.
  • Page 26 CBA750B| USER MANUAL Firmware version 4.2 CRADLEPOINT 7) Configuring Failure Check: It is possible for a WAN interface to go down without the router recognizing the failure. (For example: the carrier for a cellular modem goes dormant.) Enable Failure Check to ensure that you can get out to the Internet via your primary WAN connection.
  • Page 27 CBA750B| USER MANUAL Firmware version 4.2 CRADLEPOINT 8) Review the details and record your administrative password. Click APPLY to save the settings and update them to your router. © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 28: Quick Links

    CBA750B| USER MANUAL Firmware version 4.2 CRADLEPOINT 4.3 Quick Links The CradlePoint logo in the upper left-hand corner of all the administration pages is a link to the Dashboard (Status ! Dashboard), which displays fundamental information about the router. The black bar across the top provides quick access to important information and controls.

  • Page 29: Configuration Pages

    CBA750B | Firmware version 4.2 CRADLEPOINT 4.4 Configuration Pages The following table shows the navigation layout of the administration pages. Click on the tabs along the top bar to reveal the following dropdown menus. Getting Started Status Network Settings Internet...
  • Page 30 LAN (Local Area Network) Examples: • If you want to change the content filtering settings for the network created by the CBA750B, go to the Network Settings tab. • If you want to track the data usage for your Internet source (such as your CradlePoint business-grade modem), go to the Internet tab.

  • Page 31: Ip Passthrough Setup

    4.5 IP Passthrough Setup The CBA750B’s IP passthrough function takes the IP address of the attached modem and passes it through to the LAN. By default, the CBA750B is configured for IP passthrough – the device ships with the ROUTER/PASSTHROUGH SWITCH set to the I position (“O”...
  • Page 32 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5 STATUS The Status tab displays information about many different aspects of the router. It provides access to 7 submenu options: • Client List • Dashboard • GPS • Internet Connections • Routing •...

  • Page 33: Client List

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.1 Client List The Client List displays the Hostname, IP, and MAC of the device connected to your router. Hostname: The name by which each computer or device in a network is known.
  • Page 34 After the initial setup of the router, every time you log in you will automatically be directed to this Dashboard. Also, you can click on the CradlePoint logo in the upper left-hand corner to return to the Dashboard from any page.
  • Page 35 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Router Information: “Detailed Info” links to System Settings ! Administration. • Product: CBA750B • Serial: Device serial number • Firmware: Gives the number of the current firmware version • Build Date: Year-month-day-hours-minutes-seconds for the most recent firmware upgrade •...
  • Page 36 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Local Networks: “Detailed Info” links to Network Settings ! Local Networks. • Clients: The number of current clients. For each network, the following information is displayed: • Network Name: IP Address/Netmask o Route Mode: NAT (Network Address Translation), Standard (NAT-less), IP Passthrough, or Disabled.
  • Page 37 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.3 GPS If GPS support is enabled and a modem capable of providing GPS coordinates is connected, this page shows a graphical view of your router's location. See the GPS section in System Settings ! Administration to enable GPS support.

  • Page 38: Internet Connections

    The Internet Connections submenu option provides a list of attached WAN devices used as the Internet source for the CBA750B. Select one of these devices to see detailed information about that particular device. For each type of modem, different information will be included in the Device Information section. Possible devices...
  • Page 39 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.4.1 LTE Modem (PANTECH UML290) Diagnostics • Home Address • MN-HA SPI • Modem Firmware Version • Battery Status • MN-HA SS • Network Address Identifier (NAI) • Signal Strength(dBm) • Rev Tun •...
  • Page 40 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT General Information • Product PANTECH UML290 • Protocol IP DHCP • Unique Identifier • ESN/IMEI • Model UML290VW • Type modem • Port • Manufacturer Pantech, Incorporated IP Information • Netmask • IP Address •...
  • Page 41 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.4.2 HSPA+ Modem (Nokia Datacard) Diagnostics • Manufacturer Nokia • Product Nokia Datacard • Model Nokia Internet Stick CS-18 • ESN/IMEI • Modem Firmware Version • Mobile Directory Number • Carrier ID AT&T •...
  • Page 42 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT IP Information • DNS Servers • IP Address • Gateway Statistics • Incoming Bytes • Outgoing Bytes • Connection Uptime (secs) © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 43 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.4.3 WiMAX Modem (U300 – 4G) Diagnostics For a WiMAX modem, the CINR and Signal Strength values are important as they show how strong the signal is and that has significant effects on how much data the router can download or send.
  • Page 44 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT • Type WiMAX • Port • Manufacturer Franklin Wireless Corporation Statistics • Outgoing Bits/Second • Incoming Bits/Second • Incoming Bytes • Outgoing Bytes © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 45 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.4.4 GSM Modem (Nokia Datacard) Diagnostics • Signal Error Rate • Modem Firmware Version • Battery Status • Battery Level • Carrier Status • Signal Strength(dBm) • PIN Status • Connection State (connected, idle, etc.)
  • Page 46 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT • Incoming Bits/Second • Incoming Bytes • Outgoing Bytes © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 44...
  • Page 47 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.4.5 EVDO Modem: (MC760 Comcast) Diagnostics • Modem Firmware Version • PRL Version • Service Display EVDO • Carrier Status • Signal Strength(dBm) • Connection Type CDMA • Connection State (connected, idle, etc.) General Information •...
  • Page 48 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.5 Routing System Routes displays routes associated with networks connected to the router. Static Routes displays user-specified routes configured in Network Settings ! Routing, © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 49 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.6 Statistics The Statistics submenu option displays basic traffic statistics. Wireless Statistics: View the signal strength and other wireless modem information. The wireless device’s signal strength will only be displayed as long as it supports “Live Diagnostics.” Sample rate and size can be adjusted from the dropdown boxes.
  • Page 50 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Data Usage: A measure of amount of information that is currently being sent or received through the network. Sample rate and size can be adjusted from the dropdown boxes. © 2013 CRADLEPOINT, INC.
  • Page 51 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Failover/Failback/Load Balance: An easy way to view current connective states of the devices plugged into the router as compared to the past. Sample rate and size can be adjusted from the dropdown boxes.

  • Page 52: System Logs

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 5.7 System Logs The router automatically logs (records) events of possible interest in its internal memory. If there is not enough internal memory for all events, logs of older events are deleted, but logs of the latest events are retained. The log options allow you to filter the router logs so you can easily find relevant messages.

  • Page 53: Network Settings

    6 NETWORK SETTINGS The Network Settings tab provides access to 7 submenu options for administering the following functions/tasks. These functions are all related to controlling the LAN (Local Area Networks), the networks you set up with the CBA750B. • Content Filtering •...

  • Page 54: Content Filtering

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.1 Content Filtering You have two main options for filtering content in a network created by your router. 1) Network WebFilter Rules: Create a list of websites that will be either disallowed or allowed. Customize the filter settings for each network.
  • Page 55 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Click Add or Edit to open the Filter Rule Editor. • Assigned Network: Select either “All Networks” or one of your LAN networks from the dropdown list. • Domain/URL/IP: Enter the Domain Name or URL (address) of the website you wish to control access for, e.g.
  • Page 56 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.1.2 Default Filter Settings Use Default Network Filter Settings together with Network WebFilter Rules to control website access. All of your networks are set to allow website access by default. Select a network and click Edit to change the default filter settings.
  • Page 57 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.1.3 OpenDNS OpenDNS is a service that protects you online by filtering websites. OpenDNS protects you from phishing websites and URL typos. Enter your OpenDNS account information in order to use your OpenDNS Content Filtering settings.

  • Page 58: Dhcp Server

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.2 DHCP Server DHCP stands for Dynamic Host Configuration Protocol. The built-in DHCP server automatically assigns IP addresses to the computers and other devices on each local area network (LAN). In this section you can view a list of assigned IP addresses and reserve IP addresses for particular devices.
  • Page 59 DNS, or Domain Name System, is a naming system that translates between domain names (www.cradlepoint.com, for example) and Internet IP addresses (206.207.82.197). A DNS server acts as an Internet phone book, translating between names that make sense to people and the more complex numerical identifiers. The DNS page for the CBA750B has these distinct functions: •...
  • Page 60 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.3.2 Dynamic DNS Configuration The Dynamic DNS feature allows you to host a server (Web, FTP, etc.) using a domain name that you have purchased (www.yourname.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses.
  • Page 61 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.3.3 Advanced Dynamic DNS Settings Update period (hours). (Default: 576) The time between periodic updates to the Dynamic DNS if your dynamic IP address has not changed. The timeout period is entered in hours so valid values are from 1 to 8760.
  • Page 62 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.4 Firewall The router automatically provides a firewall. Unless you configure the router to the contrary, the router does not respond to unsolicited incoming requests on any port, thereby making your LAN invisible to cyber attackers.
  • Page 63 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT • Local Port(s): The port number(s) that corresponds to the service (Web server, FTP, etc) on a local computer or device. For example, you might input “80” in the Local Port(s) field to open a port for a Web server on a computer within your network.
  • Page 64 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.4.2 IP Filter Rules (Advanced) An "Incoming" IP filter rule restricts remote access to computers on your local network. "Outgoing" filter rules prevent computers on your local network from initiating communication to the address range specified in the rule.
  • Page 65 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT that is NOT in the specified port range. • Port(s): Use for a single port or a range of ports. Fill in the left side for a single port. Use Network IP, Netmask, and Port(s) to specify the ports and addresses for which the rule applies. You can specify a range of ports or a single port.
  • Page 66 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.4.3 DMZ: DeMilitarized Zone (Advanced) A DMZ host is effectively not firewalled in the sense that any computer on the Internet may attempt to remotely access network services at the DMZ IP address. Typical uses involve running a public Web server or sharing files.
  • Page 67 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT • FTP: To allow normal mode when using File Transfer Protocol. This is not needed for passive mode. This is enabled by default. • IRC: For Direct Client to Client (DCC) transfer when using Internet Relay Chat. You may wish to forward TCP port 113 for incoming identd (RFC 1413) requests.
  • Page 68 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Remote Administration Access Control Editor IP Address: The IP address that will be allowed to access administrative services through the WAN. Netmask (Optional): The netmask allows you to specify what IP address sets will be allowed access. If this field is left empty a netmask of 255.255.255.255 will be used,...

  • Page 69: Local Networks

    This section is used to configure the settings for networks created by your router. The user can set up multiple networks on the CBA750B, each with its own unique configuration and its own selection of interfaces. Each local network can be attached to either (or both) of the following types of interfaces: •...
  • Page 70 IP Settings: Name: This primarily helps to identify this network during other administration tasks. Hostname: [Default: cp (for CradlePoint)] The hostname is the DNS name associated with the router's local area network IP address. NOTE: You can access the router’s administration pages by typing the hostname into your browser, so if you change “cp” to another hostname, you can access the administration pages through the new hostname.
  • Page 71 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Each network must have a distinct IP address. Most users will want an address from one of the following private IP ranges: • 10.0.0.1 - 10.255.255.1 • 172.16.0.1 - 172.31.255.1 • 192.168.0.1 - 192.168.255.1 NOTE: The final number does not have to be 1, but it is a simple, logical convention for routers that leaves higher numbers free for other devices.
  • Page 72 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Interfaces: Select network interfaces to attach to this network. Choose from the Ethernet port and VLAN interfaces. Double-click on an interface shown on the left in the Available section to move them to the Selected section on the right (or highlight an interface and click the “+”...
  • Page 73 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Access Control: Tune the access control settings of this network to match the intended use. Simply select or deselect any of the following: • LAN Isolation: When checked, this network will NOT be allowed to communicate with other local networks.
  • Page 74 (default: 72 to 200, as in 192.168.0.72 to 192.168.0.200). Example: The CBA750B uses an IP address of 192.168.0.1 for its primary network by default. A computer designated as a Web server has a static IP address of 192.168.0.3. Another computer is designated as an FTP server with a static IP address of 192.168.0.4.
  • Page 75 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Custom Options: Input a custom DHCP option by first clicking the Custom Options field to enable it and then clicking “Add” at the top of the table that appears. There are close to 200 possible DHCP options available. One of the more common uses is to assign a VoIP phone server using option 66 (Server name).
  • Page 76 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Schedule: Set up a schedule for this network interface. This allows an interface to be enabled or disabled during specific hours of a day. For example, use this to limit a Hotspot network to business hours.
  • Page 77 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.5.3 Local Network Interfaces Each LAN type—Ethernet and VLAN—has a separate section with configuration options. Unless the default configuration is sufficient, YOU MUST CONFIGURE EACH INTERFACE SEPARATELY in order to create the desired interface options for a network.
  • Page 78 Since the CBA750B has only 1 Ethernet port, this feature will rarely be necessary. The only use is to switch the port to a different local network.
  • Page 79 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT VLAN Interfaces A virtual local area network, or VLAN, functions as any other physical LAN, but it enables computers and other devices to be grouped together even if they are not physically attached to the same network switch.

  • Page 80: Mac Filter / Logging

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.6 MAC Filter / Logging A MAC (Media Access Control) address is a unique identifier for a computer or other device. This page allows you to manage clients by MAC address. You can filter clients by MAC addresses and/or keep a log of devices connected to your router.
  • Page 81 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.6.2 MAC Logging Configuration Enable MAC Logging: Enabling MAC Logging will cause the router to log MAC addresses that are connected to the router. MAC addresses that you do not want to have logged (addresses that you expect to be connected) should be added to the “Ignored MAC Addresses”...
  • Page 82 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 6.7 Routing Add a new static route to the IP routing table or edit/remove an existing route. Static routes are used in networks with more than one layer, such as when there is a network within a network so that packet destinations are hidden behind an additional router.
  • Page 83 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 7 INTERNET The Internet tab provides access to 3 submenu items for managing a variety of Internet connection options. • Connection Manager • Data Usage • WAN Affinity / Load Balancing © 2013 CRADLEPOINT, INC.

  • Page 84: Connection Manager

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 7.1 Connection Manager The router can establish an uplink via any modems plugged into a modem port. If there is more than one modem attached and the primary connection fails, the router will automatically attempt to bring up a new link on another device. This feature is called failover.
  • Page 85 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 7.1.2 Device Configuration Clicking on a device reveals the following information: • State (Connected, Available, etc.) • Port • UID (Unique identifier. This could be a name or number/letter combination.) • IP Address •...
  • Page 86 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 7.1.3 General Settings • Enabled: Select/deselect to enable/disable. • Force NAT: Normally the LAN Route Mode controls the use of NAT (network address translation). When this option is selected the router will always perform NAT when traffic is sent out from this device.
  • Page 87 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Failure Check (Advanced) If this is enabled, the router will check that the highest priority active WAN interface can get to the Internet even if the WAN connection is not actively being used. If the interface goes down, the router will switch to the next highest priority interface available.
  • Page 88 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Failback Configuration (Advanced) This is used to configure failback, which is the ability to go back to a higher priority WAN interface if it regains connection to its network. Usage: Fail back based on the amount of data passed over time.
  • Page 89 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 7.1.4 Modem Settings On Demand: Typically modem connections are not always on. When this mode is selected a connection to the Internet is made as needed. When this mode is not selected a connection to the Internet is always maintained.
  • Page 90 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT AT Dial Script: This is included for legacy devices only. Most users will not use this option. Go to SIM/APN Settings instead if you need to select a specific Access Point Name.
  • Page 91 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT CDMA Settings • Persist Settings: • Active Profile: Select a number from 0-5 from the dropdown list. The following fields can be left blank. If left blank they will remain unchanged in the modem.
  • Page 92 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT SIM/APN Settings SIM PIN: PIN number for a GSM modem with a locked SIM. Access Point Name (APN): Some wireless carriers provide multiple Access Point Names that a modem can connect to. Some APN examples are ‘isp.cingular”...
  • Page 93 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT WiMAX Settings WiMAX Realm: Select from the following dropdown options: • Clear – clearwire-wmx.net • Rover – rover-wmx.net • Sprint 3G/4G – sprintpcs.com • Xohm –xohm.com • BridgeMAXX – bridgeMAXX.com • Time Warner Cable – mobile.rr.com •...
  • Page 94 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT IP Settings IP overrides allow you to override IP settings after a device’s IP settings have been configured. Only the fields that are filled out will be overridden. Override any of the following fields: •...
  • Page 95 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 7.1.5 Update/Activate a Modem Some 3G modems can be updated and activated while plugged into the router. Updates and activation methods vary by modem model and service provider. Possible methods are: PRL Update, Activation, and FUMO. All supported methods will be displayed when you select your modem and click “Control”.
  • Page 96 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Process Timeout: If the process fails an error message will display. Activation has a 3-minute timeout, PRL update has a 4-minute timeout, and FUMO has a 10-minute timeout. Configuration Rules (Advanced) 7.1.6...
  • Page 97 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT WAN Configuration Rule This section allows you to create simple or complex rules that affect how individual Internet sources or classes of sources (perhaps all WiMAX modems or all modems from Sierra Wireless) behave in the router.
  • Page 98 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Value: If the correct values are available, select from the dropdown list. You may need to manually input the value. The condition will be of the following form: “ (When) is/is not (value) ”...

  • Page 99: Data Usage

    Agreement shown to the right. The purpose of this agreement is to ensure that you understand that the data numbers for the CBA750B may not perfectly match those of your carrier: CradlePoint cannot be held responsible. You must accept the agreement by clicking Yes in order to begin creating data usage rules.
  • Page 100 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 7.2.1 Data Usage Rules The Date Usage Rule display shows basic information for each rule you have created (including rules created with a template). The following information is displayed: • Rule Name •...
  • Page 101 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT keep all interfaces with these rules at a similar percentage utilization of data (e.g. 10%, 50%, 90%) as the cycle progresses, rather than quickly using 100% of a fast 1GB capped interface while using only a fraction of a slow 10GB capped interface, thus leaving the rest of the cycle with only the slow interface.
  • Page 102 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Template Configuration 7.2.2 Templates allow you to control multiple WAN devices with the same rule. Each WAN device that matches a template will automatically have its own rule created. For example, you can set a template rule for all mobile data modems that causes your router to send an alert after 1000 MB of usage in a month.

  • Page 103: Wan Affinity And Load Balancing

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 7.3 WAN Affinity and Load Balancing WAN affinity and load balancing both require multiple WAN devices, which is not typical usage Load Balance Select the Load Balance Algorithm from the following dropdown options: •...
  • Page 104 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Name: Give a name for your rule that is meaningful to you. DSCP (DiffServ): Differentiated Services Code Point is the successor to TOS (Type of Service). Use this field to select traffic based on the DSCP header in each IP packet. This field is sometimes set by latency sensitive equipment such as VoIP phones.
  • Page 105 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Source Netmask: 255.255.255.0 • Failover: (Default: Selected.) When this is selected and traffic from the chosen WAN device for this rule is interrupted, the router will fail over to another available WAN device. Deselect this option to restrict this traffic to only the selected WAN interface.
  • Page 106 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT • Spillover: This was the default algorithm in older (version 3) firmware. Load is always given to devices with the most available bandwidth. The estimated bandwidth rate is based on a combination of the upload and download configuration values and the observed capabilities of the device.

  • Page 107: System Settings

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8 SYSTEM SETTINGS The System Settings tab has 6 submenu items that provide access to tools for broad administrative control of the CBA750B: • Administration • Device Alerts • Managed Services • Serial Redirector •...
  • Page 108 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8.1 Administration Select the Administration submenu item in order to control any of the following functions: • Router Security • System Clock • Local Management • Remote Management • GPS • System Logging 8.1.1...
  • Page 109 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Advanced Security Mode When you enable Advanced Security Mode, you have three different options for the Authentication Mode: • Local Users • TACACS+ • RADIUS Local Users Create users with administrative privileges by inputting usernames and passwords in the Advanced User Management table.
  • Page 110 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT "host.domain.com". Only lower case letters are allowed for a DNS name. Port: Port 49 is default for TACACS+. Shared Secret RADIUS RADIUS stands for “Remote Authentication Dial In User Service”. The router will use a RADIUS server (or two, optionally) to authorize administration.
  • Page 111 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8.1.2 System Clock Enabling NTP will tell the router to get its system time from a remote server on the Internet. If you do not enable NTP then the router time will be based on when the router firmware was built, which is guaranteed to be wrong. Whenever the Internet connection is re-established and once a week thereafter the router will ask the server for the current time so it can correct itself.
  • Page 112 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8.1.3 Local Management Enable Internet Bounce Pages: Bounce pages show up in your web browser when the router is not connected to the Internet. They inform you that you are not connected and try to explain why. If you disable bounce pages then you will just get the usual browser timeout.
  • Page 113 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Local Domain: The local domain is used as the suffix for DNS entries of local hosts. This is tied to the hostnames of DHCP clients as DHCP_HOSTNAME.LOCAL_DOMAIN. System Identifier: This is a customizable identity that will be used in router reporting and alerting. The default value is the MAC address of the router.
  • Page 114 8.1.4 Remote Management Configure the ability to manage the CBA750B remotely with HTTP/HTTPS or SSH. This tab also allows a user to enable incoming WAN pings. Allow WAN pings: When enabled the functionality allows an external WAN client to ping the router.
  • Page 115 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8.1.5 If you have an attached device with GPS support, you can enable a graphical view of your router’s location which will appear in Status ! GPS. Users can also configure GPS NMEA GGA format sentence reporting, available through a router-based server and/or a remote server.
  • Page 116 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8.1.6 NMEA GGA sentences http://aprs.gids.nl/nmea/, http://www.gpsinformation.org/dale/nmea.htm#nmea, and/or http://gpsd.berlios.de/NMEA.txt for more information about GPS NMEA reporting. $GPGGA – Essential fix data including 3D location and accuracy information Example: $GPGGA,1753405,4916.450,N,12311.127,W,2,06,1.5,117.3,M,!26.574,M,6.0,0138*47 1753405 Time of fix – 17:34:05 UTC 4916.450,N...
  • Page 117 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8.1.7 System Logging Logging Level: Setting the log level controls which messages are stored or filtered out. A log level of Debug will record the most information while a log level of Critical will only record the most urgent messages. Each level includes all messages from all of the levels below it on the list (e.g.
  • Page 118 If this occurs, disable this option. Log to attached USB stick: Only enable this option if instructed by a CradlePoint support agent. This will write a very verbose log file to the root level of an attached USB stick. Please disable the feature before removing the USB stick, or you may lose some logging data.

  • Page 119: Device Alerts

    Alert sent. 8.2.1 SMTP Mail Server Since the CBA750B does not have its own email server, to receive alerts you must enable an SMTP server. This is possible through most email services (Gmail, Yahoo, etc.) © 2013 CRADLEPOINT, INC.
  • Page 120 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Each SMTP server will have different specifications for setup, so you have to look those up separately. The following is an example using Gmail: • Server Address: smtp.gmail.com • Server Port: 587 (for TLS, or Transport Layer Security port;...
  • Page 121 WiPipe Central client will not start unless the WAN is Ethernet. Registration URL: Register your router using the code provided by CradlePoint when you purchase WiPipe Central. 8.3.1 SNMP Configuration SNMP, or Simple Network Management Protocol, is an Internet standard protocol for remote management.
  • Page 122 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT LAN port #: Use the LAN port # field to configure the LAN port number you wish to access SNMP services on. (Default: 161) Enable SNMP on WAN: Enabling SNMP on WAN will make SNMP services available to the WAN interfaces of the router.
  • Page 123 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT • MD5 with DES encryption • SHA with DES encryption • MD5 with AES encryption • SHA with AES encryption Username: Enter the Username configured on your SNMP host in the username field.

  • Page 124: Serial Redirector

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8.4 Serial Redirector A single USB Serial device can be used to establish a serial link to a host port on the router. The USB Serial device can also be accessed by running "serial" from an SSH session.
  • Page 125 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT • 1200 • 1800 • 2400 • 4800 • 9600 • 19200 Byte Size: The number of bits in a byte. Select from: 5, 6, 7, and 8. Parity: Change this value to enable parity bit checking. Select from the following dropdown options: •...

  • Page 126: System Control

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8.5 System Control Restore to Factory Defaults: This changes all settings back to their default values. Reboot The Device: This causes the router to restart. Advanced: System Automatic Reboot and Ping Test Scheduled Reboot: This causes the router to restart at a user-determined time.

  • Page 127: System Software

    This allows the administrator to load new firmware onto the router to add new features or fix defects. If you are happy with the operation of the router, you may not want to upgrade just because a new version is available. Check the firmware release notes (www.cradlepoint.com/firmware) for information to decide if you should upgrade. Current Firmware Version: Shows the number of the current firmware and the date it was updated.
  • Page 128 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 8.6.2 System Config Save/Restore Backup Current Settings: Click on “Save to disk” to save your current settings to a file on a computer. Restore Settings: Click on “Upload from file” to restore your previous settings from a file on a computer.
  • Page 129 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 9 GLOSSARY 802.11 Alphanumeric A family of specifications for wireless local area networks Characters A-Z and 0-9. (WLANs) developed by a working group of the Institute of Antenna Electrical and Electronics Engineers (IEEE).
  • Page 130 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Authentication BOOTP To provide credentials, like a Password, in order to verify Bootstrap Protocol. Allows for computers to be booted up that the person or device is really who they are claiming and given an IP address with no user intervention.
  • Page 131 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Client DB-25 A program or user that requests data from a server. A 25-pin male connector for attaching External modems or RS-232 serial devices. Collision DB-9 When do two devices on the same Ethernet network try and transmit data at the exact same time.
  • Page 132 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT DHCP Dynamic Host Configuration Protocol: Used Digital Subscriber Line. High bandwidth Internet automatically assign IP addresses from a predefined pool connection over telephone lines. of addresses to computers or devices that request them.

  • Page 133: Full-Duplex

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Ethernet The most widely used technology for Local Area File Transfer Protocol. Easiest way to transfer files Networks. between computers on the Internet. Fiber optic Full-duplex A way of sending data through light impulses over glass Sending and Receiving data at the same time.
  • Page 134 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Hashing IGMP Transforming a string of characters into a shorter string Internet Group Management Protocol is used to make with a predefined length. sure that computers can report their multicast group membership to adjacent routers.
  • Page 135 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Internet Protocol Security Java IPsec provides security at the packet processing layer of A programming language used to create programs and network communication. applets for web pages. Internet Service Provider Kbps An ISP provides access to the Internet to individuals or Kilobits per second.
  • Page 136 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT LPR/LPD MPPE “Line Printer Requestor”/”Line Printer Daemon”. A Microsoft Point-to-Point Encryption is used to secure data TCP/IP protocol for transmitting streams of printer data. transmissions over PPTP connections. MAC Address A unique hardware ID assigned to every Ethernet Maximum Transmission Unit is the largest packet that adapter by the manufacturer.
  • Page 137 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Network Interface Card routers in the network as opposed to sending the entire routing table at a regular interval, which is how RIP NIC. A card installed in a computer or built onto the functions.
  • Page 138 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT channel) but can have multiple ports (logical channels) Rendezvous each identified by a number. Apple’s version of UPnP, which allows for devices on a network to discover each other and be connected without the need to configure any settings.
  • Page 139 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Session key An encryption and decryption key that is generated for Secure Shell is a command line interface that allows for every communication session between two computers. secure connections to remote computers.
  • Page 140 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT TFTP Upload Trivial File Transfer Protocol is a utility used for To send a request from one computer to another and transferring files that is simpler to use than FTP but with have a file transmitted from the requesting computer to less features.
  • Page 141 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Wake on LAN WiFi Protected Access Allows you to power up a computer through it’s Network An updated version of security for wireless networks that Interface Card. provides authentication as well as encryption.
  • Page 142 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT Yagi antenna A directional antenna used to concentrate wireless signals on a specific location. © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 140...

  • Page 143: Regulatory And Safety Information

    CBA750B-LE the maximum antenna gain must not exceed 8 dBi in the cellular band, 3 dBi in the PCS band and 10 dBi in the LTE band. For the CBA750B-LP the maximum antenna gain including cable loss must not exceed 7.5 dBi in the cellular band, 3 dBi in the PCS band, 5.5 dBi in LTE Band 4, and 9 dBi in LTE Band 17. For the CBA750B- W the maximum antenna gain must not exceed 9.2 dBi in the 2.5 GHz band (2496-2690 MHz).
  • Page 144 CradlePoint, Inc. warrants this product against defects in materials and workmanship to the original purchaser (or the first purchaser in the case of resale by an authorized distributor) for a period of one (1) year from the date of shipment. This warranty is limited to a repair or replacement of the product, at CradlePoint’s discretion as purchaser’s sole and exclusive remedy.

  • Page 145: Specifications

    CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT 10.3 Specifications MODEL NAME CBA750B Cellular Broadband Adapter 3G/4G via three modem ports (2 USB 2.0, 1 ExpressCard) One Ethernet port (10/100) BUTTONS / SWITCHES Power, reset, modem signal strength, router/passthrough (allows automatic IP passthrough setting)
  • Page 146 CBA750B | USER MANUAL Firmware version 4.2 CRADLEPOINT http://www.cradlepoint.com/ Copyright © 2013 by CradlePoint, Inc. All rights reserved. © 2013 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 144...
