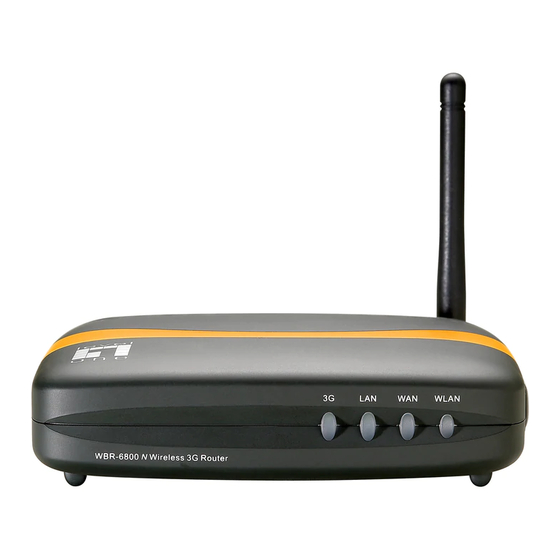

LevelOne WBR-6800 Technical Specifications

N Wireless 3G Router
H/W Version: 1
WBR-6800 offers you a solution to share your 3G
Internet between multiple network devices. Simply
attach your 3G modem into the WBR-6800's USB port
and it will share the Internet connection over Wireless
LAN. It supports 3G data cards covering WCDMA
(HSUPA), CDMA000 and TD-SCDMA. Not only that,
mobile phone tethering is also supported.
The WAN Ethernet port can be configured to be to
be connected to your ADSL/Cable modem for auto-
Key Features
- Integrates with 1-Port Ethernet LAN:10/100Mbps
MDI-MDI-X Auto-Sensing
- Provides 10/100Mbps RJ45 or 3G (USB) WAN
interface for Broadband Internet Access.
- Auto-Fallback Feature to Ensure Always-On
Connectivity
- Secured Wireless with WEP, WPA or WPA-PSK
Encryption
- Backwards compatible with IEEE 80.11g/b
standards
- Built-in Firewall and Quality of Service functions
- Quick Setup or Web-Based Interface Configuration
and Management
- Features Built-In VPN Pass-Through, Universal Plug
and Play and Advanced DDNS Services

1 2 3
failover Internet connection. While the LAN interface
can be used to connect another PC via standard LAN
cables.
It supports wireless speeds of up to 150 Mbps using
LevelOne's N wireless technology, while maintaining
compatibility with legacy 801.11g and 11b devices.
1. LED Indicators
. WAN Interface
3. LAN Interface
4. USB.0 Interface
5. Reset Button
6. Power Port
7. WiFi Protected
4 5 6 7 Setup(WPS) Button
Works Well With
WUA-0603
N Wireless USB Adapter
GNS-2000
-Bay Gigabit Network Storage
WBR-6800
