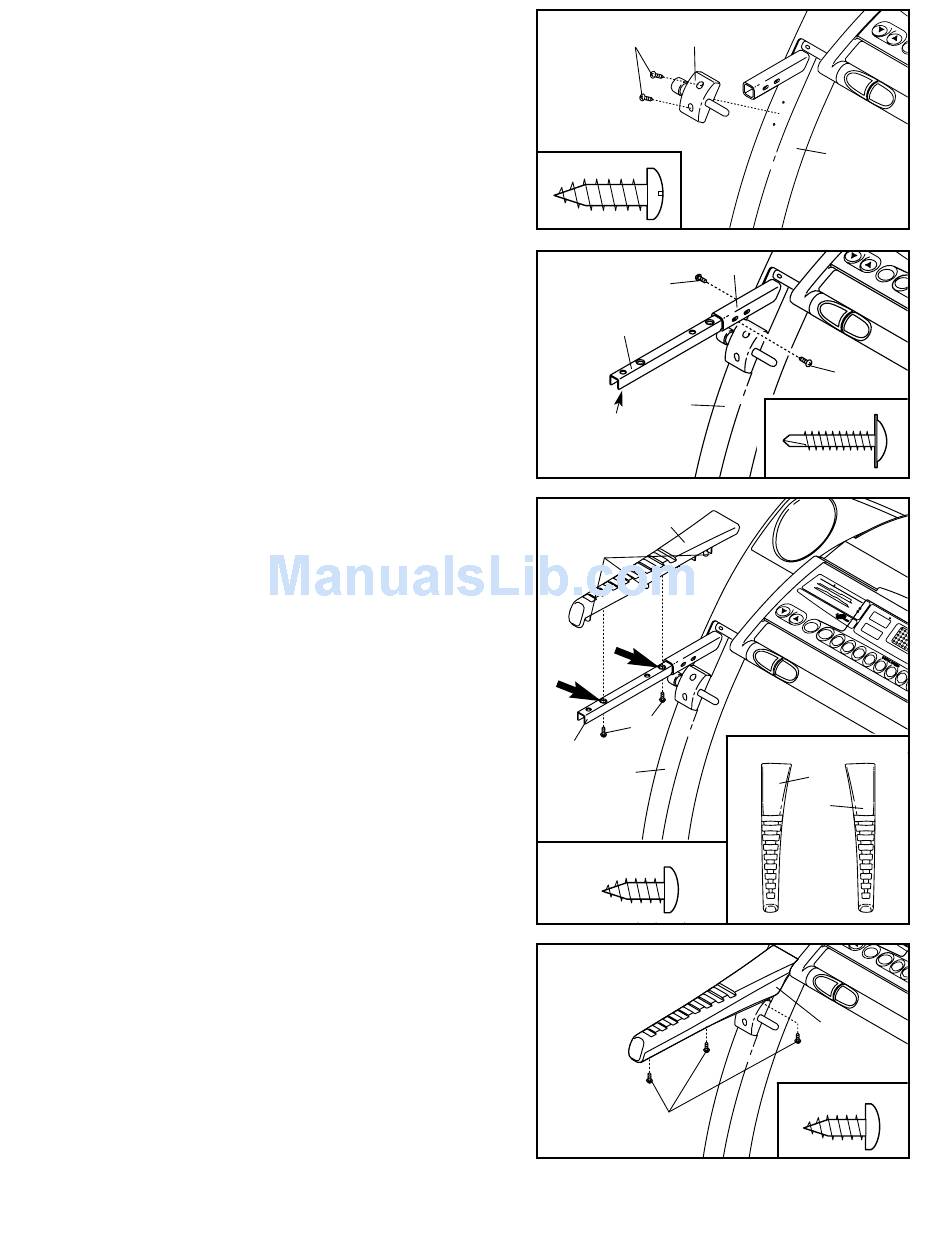

3. With the help of a second person, carefully tip the
Uprights (64) back to the vertical position.
Attach the Latch Assembly (32) to the left Upright (64)
with two Latch Screws (115). Note: The two Latch Screws
may be in the Left Upright (64).
4. Orient one of the Handgrip Extensions (34) so the bottom is
open as shown, and insert it as far as possible into the
post on the left Upright (64). If necessary, tap the
Handgrip Extension with a rubber mallet to fully insert it.
Attach the Handgrip Extension with two Extension
Screws (35), one towards the front of the post, and the
other towards the back.
Attach the other Handgrip Extension to the post on the
right Upright (not shown) in the same way.
5. See the inset drawing. Identify the Left Top Handgrip
(31); there are identifying marks inside of the Handgrips.
Set the Left Top Handgrip on the left Handgrip Extension
(34). Insert two 1/2" Screws (33) into the two holes in
the Handgrip Extension indicated by the arrows.
Tighten the Screws into the Left Top Handgrip.
Important: Do not insert the two 1/2" Screws (33) into
the wrong holes in the Handgrip Extension (34), or
tighten the Screws into the plastic bosses on the bot-
tom of the Left Top Handgrip (31).
6. Attach the matching Left Bottom Handgrip (104) with
three 1/2" Screws (33).
Attach the Right Top Handgrip and the Right Bottom
Handgrip (not shown) as described above.
Remove the plastic ties from the Upper Body Arms (not
shown).
7. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place; the allen wrench is used to adjust the walking belt (see page 25). To protect the
floor or carpet from damage, place a mat under the treadmill.
