S/M No. : VWD71DPET0
Service Manual
DVD Recorder

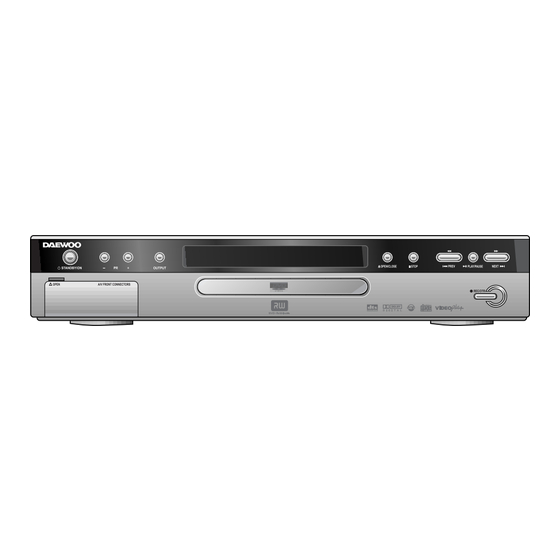

MODEL : DQR-1000D
Caution :
In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the latest
parts information,please refer to PPL(Parts Price List) in Service
Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS Corp.
http : //svc.dwe.co.kr
Jan., 2004
Advertisement
Table of Contents
Related Manuals for Daewoo DQR-1000D
Summary of Contents for Daewoo DQR-1000D
-
Page 1: Dvd Recorder
S/M No. : VWD71DPET0 Service Manual DVD Recorder MODEL : DQR-1000D Caution : In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information,please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr). -
Page 2: Table Of Contents
CONTENTS SPECIFICATIONS ........................2 BLOCK DIAGRAM ........................8 CIRCUIT SCHEMATICS......................15 ANALOG BOARD ...................................15 DIGITAL BOARD ....................................26 FRONT BOARD....................................35 POWER SUPPLY ....................................37 WAVEFORMS.............................38 DISASSEMBLY ..........................44 TROUBLE SHOOTING........................46 ELECTRICAL PARTSLIST.........................94... -
Page 3: Specifications
SPECIFICATIONS SECTION DVD+RW RECORDER REMARK GENERAL DAEWOO Model DQR-1100D/DQR-1000D Description DVD Recorder Target Area Europe Muti Set for UK, France, Continental Europe Mass Production 2003, Middle November Safety Regulation Power Plug 2 Pin ( For EUROPE) Operation temperature 5-35 degree C... -
Page 4: Ch( Ch 02-69, 74-80, Cc
USER INTERFACE & OPERATION Language 11 LANGUAGE Eng/Ger/Fre/Spa/Ita/Dut/Nor/Swe/Dan/Fin/Por- >ENGLISH,GERMAN,FRENCH,SPANISH,ITALIAN, DUTCH, NORWAY,SWEDISH, DENMARK,FINNISH,PORTUGUESE Letter Color refer to UIS Blue Back refer to UIS Super Impose Data Display Disk Type displayed OSD / Front Panel Display Screen saver On/Off Company LOGO DAEWOO Dealer s lock... - Page 5 SPECIFICATIONS Parental lock - By OSD menu Upgradeable Flash Memory Capability TIMER Date Recognized Period 2002~2101 Number of Timer Recording 6 Events / 1 Month Clock display method 24 Hour Manual Clock Setting Auto Clock Setting Auto Daylight Saving Time Timer Recording System - General - ShowView (VideoPlus+)
- Page 6 SPECIFICATIONS Regional Code NTSC / PAL Discs playback VIDEO Video output signal : NTSC / PAL / NTSC / PAL PAL 60Hz / PAL-50Hz / SECAM Video Digital-to-analog converter 10bit/54MHz Progressive Scanning With Component Jack S-Video or RGB : Smooth motion picture in reverse mode AUDIO Audio Digital-to-analog converter 96kHz/24bit...
- Page 7 Scrolling function on FL display Auto power off - 30 minutes REMOTE CONTROL Multi-brand TV Control No. of RMC Button 45EA Code type DAEWOO RF (Radio Frequency) Response IR (Infra-Red) Response Back-lit remote Batteries (included) Joy Stick Jog/Shuttle on Remote Front Panel NO.
- Page 8 TV Out / Antenna In Digital Audio Output - Optical Digital Audio Output - Coaxial IEEE 1394/USB IR Bluster (Cable Box Control) Physical Tool/Design Daewoo Design Graphic Design DVD LOGO Hologram(Silver) Carton Box Carton Size, mm Shipping Weight, kg (lb)
-
Page 9: Block Diagram
BLOCK DIAGRAM... - Page 10 BLOCK DIAGRAM SYSTEM BLOCK DIAGRAM...
- Page 11 BLOCK DIAGRAM SYSTEM BLOCK DIAGRAM...
- Page 12 BLOCK DIAGRAM VIDEO BLOCK DIAGRAM...
- Page 13 BLOCK DIAGRAM AUDIO BLOCK DIAGRAM...
- Page 14 BLOCK DIAGRAM TUNER BLOCK DIAGRAM...
- Page 15 BLOCK DIAGRAM FRONT BLOCK DIAGRAM...
-
Page 16: Circuit Schematics
CIRCUIT SCHEMATICS 1. ANALOG BOARD - Tuner... - Page 17 CIRCUIT SCHEMATICS - Canal Switch...
- Page 18 CIRCUIT SCHEMATICS - Audio Switch...
- Page 19 CIRCUIT SCHEMATICS - Power Connector...
- Page 20 CIRCUIT SCHEMATICS - Multi Sound Process...
- Page 21 CIRCUIT SCHEMATICS - Digital Audio Out...
- Page 22 CIRCUIT SCHEMATICS - Audio AD/DA Converter...
- Page 23 CIRCUIT SCHEMATICS - VPS/PDC...
- Page 24 CIRCUIT SCHEMATICS - FOME...
- Page 25 CIRCUIT SCHEMATICS - Micom...
- Page 26 CIRCUIT SCHEMATICS - Micom Fan Controller & EEPROM...
-
Page 27: Digital Board
CIRCUIT SCHEMATICS 2. DIGITAL BOARD - Chrysalis Connector... - Page 28 CIRCUIT SCHEMATICS - DV1394...
- Page 29 CIRCUIT SCHEMATICS - Chrysalis Control CLK...
- Page 30 CIRCUIT SCHEMATICS - Chrysalis Main...
- Page 31 CIRCUIT SCHEMATICS - 1.8V...
- Page 32 CIRCUIT SCHEMATICS - Progressive Scan DAC...
- Page 33 CIRCUIT SCHEMATICS - Flash SDRAM EEPROM...
- Page 34 CIRCUIT SCHEMATICS - Video IO to Analog(Main Board)
- Page 35 CIRCUIT SCHEMATICS - Video Decoder...
-
Page 36: Front Board
CIRCUIT SCHEMATICS 3. FRONT BOARD - VFD... - Page 37 CIRCUIT SCHEMATICS - FRONT INPUT & DV1394...
-
Page 38: Power Supply
CIRCUIT SCHEMATICS 4. POWER SUPPLY (DVD+RW FREE) -
Page 39: Waveforms
WAVEFORMS... - Page 40 WAVEFORMS...
- Page 41 WAVEFORMS...
- Page 42 WAVEFORMS...
- Page 43 WAVEFORMS...
- Page 44 WAVEFORMS...
-
Page 45: Disassembly
DISASSEMBLY DW-P71D1D and DW-P71D1P... - Page 46 TROUBLESHOOTING 1. POWER CIRCUIT 1. No output voltage of Power Circuit Check POWER CODE Replace POWER CORD. Check F801, L801, L802, D801, (+) Voltage of C805. R802. Switching Waveform on Drain of Check D805, IC802, Q801 Q801? ** DVM Voltage Measure ** On 110 Voltage input, DC 80–10 Voltage On 220 Voltage input, DC 190–20 Voltage Output voltage of D821, D822,...
-
Page 47: Troubleshooting
TROUBLESHOOTING POWER TOP... - Page 48 TROUBLESHOOTING 2. SYSTEM CIRCUIT 1. NO BOOTING Check all connectors P750 Check +3V3STBY Check POWER Circuit (Pin 1,2,3 &4) Check +5VSTBY(Pin8) P602 Check SDA_front(Pin5)& Check FRONT Circuit SCL_front(Pin6) Check +5STBY(Pin7) Spinning of Loader FAN on Replace IC506(EEPROM) Spinning 2 times plugging in on Analog Board Case A...
- Page 49 TROUBLESHOOTING Case A) Analog Board P750 Check +3V3STBY (Pin 1,2,3 &4) Check POWER Circuit Check +5VSTBY(Pin8) RESET IC (IC501) Check Pin1 Replace IC501 High>>Low>>High MICOM Crystal (X500) Replace X500 Check whether X500(24.576MHz) Oscillates Check Soldering MICOM(IC500) or Replace IC500 Check SDA(Pin84)&SCL(Pin85) ION Check Pin68 Replace IC506(EEPROM) Low>>High>>Low After RESET...
- Page 50 TROUBLESHOOTING SYSTEM NO BOOTING MAIN TOP...
- Page 51 TROUBLESHOOTING SYSTEM NO BOOTING MAIN BOTTOM...
- Page 52 TROUBLESHOOTING Case B)Digital Board PC07 Check +3V3STBY(Pin 9,10,11 &12) Check Analog Board Check +5VSTBY(Pin4) RESET IC (ICC13) Check Soldering Check Pin1 or Replace ICC13 High>>Low>>High ICC01 Input signal Check Soldering Check that Pin2>>Pin3 at Pin2 &Pin13? or Replace ICC01 Pin13>>Pin11 Follow Yes step ICC02 Input signal...
- Page 53 TROUBLESHOOTING EEPROM for boot (ICM03) Reprogramming Check SDA1(Pin5)& or Replace ICM03 SCL1(Pin6) EEPROM after boot (ICM04) Reprogramming Check SDA0(Pin5)& or Replace ICM04 SCL0(Pin6) Check CM21 (+3V3STBY) FLASH (ICM07) Check Soldering or Check CE(Pin26), Replace ICM07 WE(Pin11) & OE(Pin28) Check LM01 & LM02 (+3V3STBY) SDRAM (ICM02 &...
- Page 54 TROUBLESHOOTING SYSTEM NO BOOTING DIGITAL BOARD TOP...
- Page 55 TROUBLESHOOTING SYSTEM NO BOOTING DIGITAL BOARD BOTTOM...
- Page 56 TROUBLESHOOTING 2. NOT Working of RTC Crystal (X501) Check whether Replace X501 X501(32.768KHz)oscillates Check C512 & C513 (27pF) Replace C512 &C53 Check C501 (+3V3) Replace C501 Check Soldering of other parts...
- Page 57 3. STOP at DAEWOO on VFD Check Soldering of Front MICOM (IC702) Check Soldering of FLASH (IC502) on Analog Board Check Soldering of SDRAM (IC504) on Analog Board Check Soldering of FLASH (ICM07) on Digital Board Check Soldering of SDRAM (ICM02 & ICM06) on Digital Board Check ICD01 &...
- Page 58 TROUBLESHOOTING SYSTEM RTC & DAEWOO MAIN TOP...
- Page 59 TROUBLESHOOTING SYSTEM RTC & DAEWOO MAIN BOTTOM...
- Page 60 TROUBLESHOOTING SYSTEM DAEWOO & NO DISC DIGITAL BOARD TOP...
- Page 61 TROUBLESHOOTING SYSTEM DAEWOO & NO DISC DIGITAL BOARD BOTTOM...
- Page 62 TROUBLESHOOTING 3. VIDEO CIRCUIT 1) Input Part A. Front Input In case of no EE Screen Is there video input Pin1: Check C311, C727,R727,D714 signal at pin 1,11,14 of I600 ? (Front C Input) Pin11: Check C612, R736,D713 (Front Y Input) Pin14 :Check C613, C614,C615,R734, R735,D711 (Front CVBS Input)
- Page 63 TROUBLESHOOTING B. EURO AV1, AV2 Input(Scart 1,2) In case of no EE Screen Is there video input Pin41: Check R613, C603,D600 signal at pin 1,19,41 of I601 ? (AV1 Input) Pin19: Check C625, R662,C635,D607 (AV2 Input) Pin1 : See Tuner Part (Tuner Input) Is there video signal Check C607 &...
- Page 64 TROUBLESHOOTING 2)Output Part A. R,G,B Output Check RV19~RV27,LV03 Is there video signal LV04,LV05,CV21~CV29,PV02 Check ICN03 at pin 9,10,11 of I601? ,P605,C625,C626,C627 Check R616,R617,R618,D603 , Is there video signal at pin 27,29,31 of I601 ? D604,D605 &IC601 B. CVBS Output Check RV10,RV11,RV12,LV09, Is there video signal QV01,CV13,CV14,PV02,P605, Check ICN03...
- Page 65 TROUBLESHOOTING C.S-Video Output Pin6 :Check RV16,RV17,RV18, Is there video signal CV19,CV20,C629,LV02,QV03, Check ICN03 at pin6 of I601 and Pin8 of PV02,P605 (C OUT ) I602? Pin8 :Check RV13,RV14,RV15, CV16,CV17,C646,LV01,QV02, Check ICN03 PV02,P605 (Y OUT) Pin23 :Check R675,R676,R678, Is there video signal at pin23 of I601 R679,Q611,R677,D614,C637 &...
- Page 66 TROUBLESHOOTING 4) IEEE1394 Part(Option) In case of no DV1394 screen Is there input signal Check P706,P705,PD02,T701, at pin34~37 of ICD02 ? T702,RD01~RD05,CD03,CD04 Check RD17~RD27,XD01 & the Is there signal at pin73~82 of ICD01? power of ICD02 Is there signal at Check RD36~RD50, RD69~ pin98~103,108~11 1&...
- Page 67 TROUBLESHOOTING VIDEO MAIN TOP...
- Page 68 TROUBLESHOOTING VIDEO MAIN BOTTOM...
- Page 69 TROUBLESHOOTING VIDEO DIGITAL TOP...
- Page 70 TROUBLESHOOTING VIDEO DIGITAL BOTTOM...
- Page 71 4. AUDIO CIRCUIT 1. No audio on EXIT & EXIT 2 Input R624,R634,D632,D633,C202 Place noninserted parts. Signals in Pin 1,5,12,14 of IC200 ? D626,D627,C212,R208,R200 R620,D622,D623,C213,R209 R631,D628,D629,C203,R201 Inserted ? Table 1. B pin 9 pin 10 Is Pin 16 of IC200 +5V? Check Power Circuit EXT1 Audio EXT2 Audio...
- Page 72 TROUBLESHOOTING 2. No audio on CAM1 Input Check P603 & Cable Signals in Pin 2,15 of IC200 ? C204,R202,C205,R203 Inserted? Place noninserted parts. 3. No RF audio Input R211,C214,C215,R210 Place noninserted parts. Signals in Pin 4,11 of IC200 ? R012,R013,C024,C025 inserted ? Check RF circuit...
- Page 73 TROUBLESHOOTING 4. Input Signals in Pin 3,5 of IC201 ? Place noninserted parts. R204,R205 Inserted? Is Pin 16 of IC201 +5V? Check Power Circuit Is Pin 16 of IC201 -5V? R206,R207 Inserted? Replace noninserted parts. Signals in Pin 1,7 of IC201 ? Replace IC201 C248,R264,R265 Signals in Pin 1,3 of IC208 ?
- Page 74 TROUBLESHOOTING 5. MPEG PCB Check PA02 & FFC Signals in Pin 2,3,5,7 of PA02 ? Cable Place noninserted Signals in Pin 4 of ICV06 ? LA01,RA03 Inserted? parts. Is Pin 5 of ICV06 +3.3V? Check Power Circuit ignals in Pin 2 of ICV06 ? Signals in Pin 2,5,9,12,3,6,8 and Pin 11 Is Pin 14 of ICC11 +3.3V? Check Power Circuit...
- Page 75 TROUBLESHOOTING 6. Output Signals in Pin 9,11,12,14 of P201 ? Check P201 & FFC Cable R247,R248,R249,R250 Place noninserted Signals in Pin 1,2,3,6 of IC206 ? Inserted? parts. Check Pin 4,13 of IC206 is +3.3V? Power Circuit Replace Signals in Pin14,16 of IC206 ? Pin 8 of IC206 is +3.3V? IC206 Check SYSTEM Circiut...
- Page 76 TROUBLESHOOTING 7. EURO AV Output C216,C217,R212,R213 Replace Signals in Pin 4,11 of IC203 ? Inserted? IC206 Check Signals in Pin 3,13 of IC203 ? Pin 16 of IC203 is +5V? Power Circuit Replace IC203 Check Signals in Pin 3,13 of IC202 ? is Pin 16 of IC202 +5V? Power Circuit Replace IC202...
- Page 77 TROUBLESHOOTING 8. Composite Output C650,R692,R693,C647, Place noninserted parts. Signals in Pin 2,4 of P607 ? R687,R688 inserted ? Pin 1 of Q612 is +5V? Replace P607 Pin 1 of Q613 is +5V? Check SYSTEM Circiut...
- Page 78 TROUBLESHOOTING 9. COAXIAL Output Place noninserted Signals in Pin 1 of IC205 ? R240 Inserted? parts. Check ICN03 Check Signals in Pin 4 of IC205 ? Pin 14 of IC205 is +5V? Power Circuit Replace IC205 Check C236,D200,D204,P200...
- Page 79 TROUBLESHOOTING AUDIO MAIN TOP...
- Page 80 TROUBLESHOOTING AUDIO MAIN BOTTOM...
- Page 81 TROUBLESHOOTING AUDIO DIGITAL TOP...
- Page 82 TROUBLESHOOTING 5. Repairing the RF Trouble When RF screen doesn’t come out. Is there video output signal on 20 communication. pin of RF001? Check the power of RF001. Is there video input signal Check the C605. on 1 pin of IC601? Is there video output signal on Check the Power of IC601.
- Page 83 TROUBLESHOOTING When RF sound doesn’t come out. Is there sound output signal on Check the power of RF001. 17,18 pin of RF001? Is there sound input signal on 2,43 Check the C011, C012. pin of IC001? Is there sound output Check the Power of signal on 30,31 pin of IC001? IC001 (1,11 pin :5V,33 pin:8V,...
- Page 84 TROUBLESHOOTING When RF CHANEL TUNNING is not working. Check the IIC communication on air channel Is there 3.3 voltage on pin Check the power of RF001. 19 of RF001? Check the R569,R579,C525 Is there video input signal ,C526and "When RF screen doesn’t on 1 pin of IC505? come out."...
- Page 85 TROUBLESHOOTING Check the power of RF001. Is there 6 voltage on pin Check the C001, C002, C003, L001. Check the circuit of power. 1 of RF001? Is there 5 voltage on pin Check the C004, C005, L002 Check the circuit of power. 9,10 of RF001? Is there 32 voltage on pin Check the circuit of power.
- Page 86 TROUBLESHOOTING Check the IIC communication. Is there voltage change on pin 7,8 of RF001 during operating by Working well. remote control? Is there voltage change same Check the R018,R019,R007, as above on 2 pin of R008,R153,R154,C046, C017. Q614,Q615? Check the R582,R584 and Is there voltage change same as power of IC506(1,2,3,4 pin :5V ).
- Page 87 TROUBLESHOOTING RF MAIN TOP...
- Page 88 TROUBLESHOOTING RF MAIN BOTTOM...
- Page 89 TROUBLESHOOTING Is case of No display in VFT No Dipsplay in VFT After boot. Is Power for VFT and PO W ER SA VIN G I701 on? Please remind th a t the VFD Check the F+(1,2) : -17~ -18V display shows not h ing before connection F-(29,30)
- Page 90 TROUBLESHOOTING FRONT PANEL first TOP (DW-P71D1D/DW-P71D1P only)
- Page 91 TROUBLESHOOTING FRONT PANEL first BOTTOM (DW-P71D1D/DW-P71D1P only)
- Page 92 ELECTRICAL PARTSLIST Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) PARTS_CODE PARTS_NAME PARTS_DESCRIPTION...
- Page 93 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK C261 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608 D204 DUDZ6R8B-B CHIP ZENER DIODE UDZ-6.8B C262 HCQK390JBA C CHIP CERA 50V CH 39PF J 1608 D500 DRB551H30B DIODE CHIP SCHOTTKY RB551H-30 C264 HCFH104ZBA...
- Page 94 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK I206 1UDA1334BC UDA1334BTS SSOP 16PIN REEL R008 HRFS101JBA R CHIP 1/16 100 OHM J 1608 IC CHIP LOW POWER AUDIC DAC I207 1MC33078DC IC CHIP OP AMP MC33078DR2 DUAL(S08) 8 PIN R010 HRFS103JBA R CHIP...
-
Page 95: Electrical Partslist
ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK R519 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 R656 HRFS103JBA R CHIP 1/16 10K OHM J 1608 R520 HRFS223JBA R CHIP 1/16 22K OHM J 1608 R662 HRFS151JBA R CHIP 1/16 150 OHM J 1608 R522 HRFS473JBA... - Page 96 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK C250 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 R018 HRFS101JBA R CHIP 1/16 100 OHM J 1608 C252 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 R019 HRFS101JBA R CHIP 1/16 100 OHM J 1608...
- Page 97 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK R306 HRFS333JBA R CHIP 1/16 33K OHM J 1608 R607 HRFS473JBA R CHIP 1/16 47K OHM J 1608 R307 HRFS333JBA R CHIP 1/16 33K OHM J 1608 R612 HRFS750JBA R CHIP 1/16 75 OHM J 1608 R308 HRFS472JBA...
- Page 98 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK C028 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP U100 97P65345MA PCB MAIN I (ANALOG) 242X128.5(245X242/2) C2V C152 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP Z001A 7173300811 SCREW TAPPTITE TT2 BIN 3X8 MFZN C200 CEXF1A101V...
- Page 99 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK SW707 5S50101Z90 SW TACT THVV502GDA R704 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J SW708 5S50101Z90 SW TACT THVV502GDA R706 RD-AZ103J- R CARBON FILM 1/6 10K OHM J SW709 5S50101Z90 SW TACT THVV502GDA R708...
- Page 100 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK CD22 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 ICN03 1PNX7103EQ IC CHIP VIDEO DISC REC PNX7103EH D/V INPUT EUROP BGA 388PIN TRAY CM08 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 ICV01 1SAA7115HQ IC CHIP VIDEO DECODER SAA7115 LQFP 100PIN TRAY...
- Page 101 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK RC83 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 RM30 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RC94 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RM31 HRFS220JBA R CHIP 1/16W 22 OHM J 1608 RC97 HRFS103JBA...
- Page 102 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK RN34 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 RV14 HRFT750FBA R CHIP 1/10 75 OHM F 1608 RN37 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608 RV15 HRFS102JBA R CHIP 1/16 1K OHM J 1608 RN38 HRFS472JBA...
- Page 103 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK CD29 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 ICM06 1ADS7616AQ IC CHIP SDRAM ADS7616A4A-6 128MB 166MHZ 54 PIN CD30 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 ICM07 1AM29DL32F IC CHIP FLASH MEMORY...
- Page 104 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK RC84 HRFS104JBA R CHIP 1/16 100K OHM J 1608 RM03 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RC85 HRFS104JBA R CHIP 1/16 100K OHM J 1608 RM04 HRFS103JBA R CHIP 1/16 10K OHM J 1608 RC86 HRFS104JBA...
- Page 105 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK XD01 5XJ24R57SE CRYSTAL QUARTZ HC-49/S 24.576000MHZ 30PP(SMD) C832 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP Z005A 7173300811 SCREW TAPPTITE TT2 BIN 3X8 MFZN C833 CMXL1J104K C MYLAR MEU 63V 0.1MF K Z008 PVPWMSE316 PCB POWER MANUAL AS DW-P71D1D-DA...
- Page 106 ELECTRICAL PARTSLIST PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK PARTS_CODE PARTS_NAME PARTS_DESCRIPTION REMARK R804 RD-4Z244JS R CARBON FILM 1/4 240K OHM J SMALL R829 RN-AZ182F- R METAL FILM 1/6 1.8K OHM F R805 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R830 RN-AZ182F- R METAL FILM 1/6 1.8K OHM F R821...
