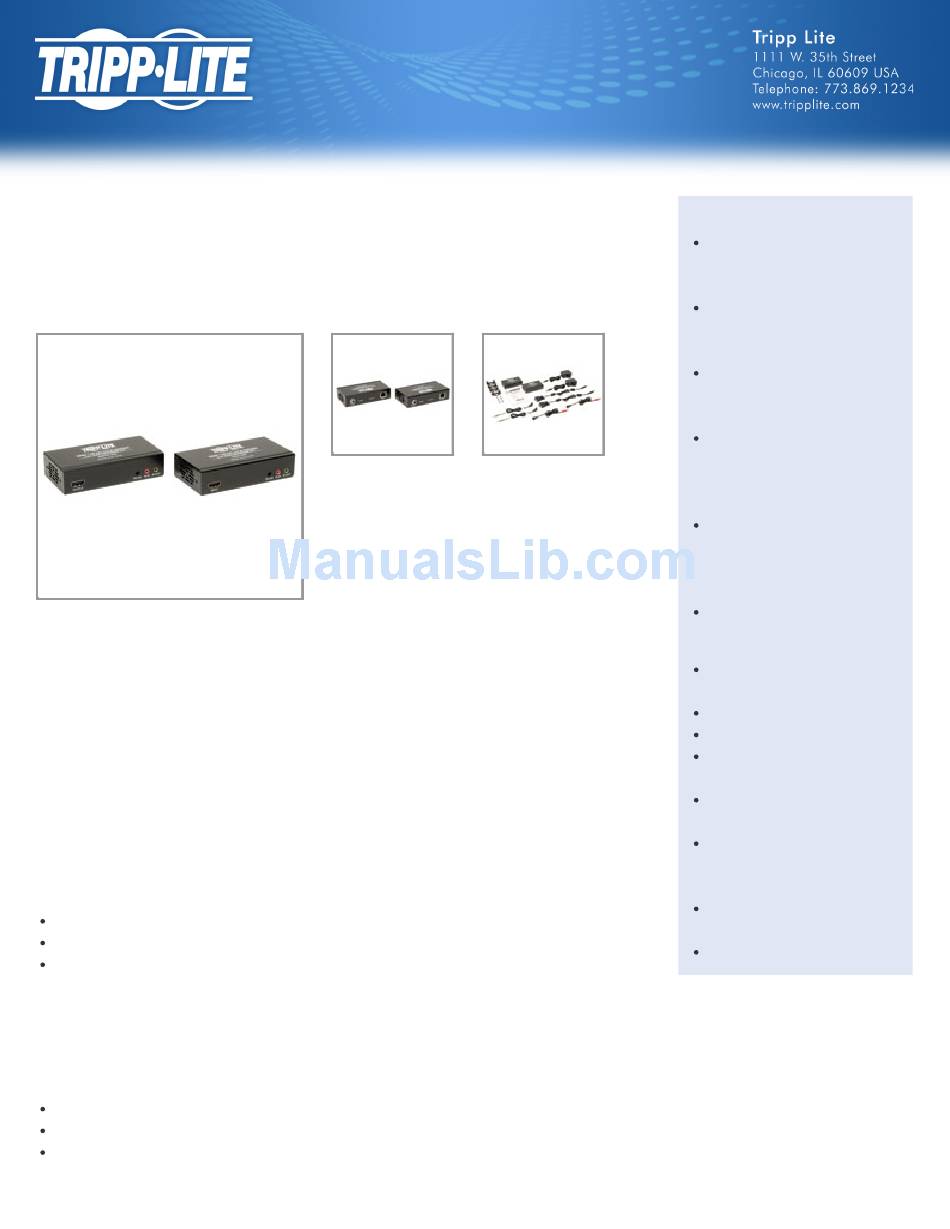

Tripp Lite B126-1A1SR Quick Manual

HDMI with Serial and IR Over Cat5 / Cat6 Extender,
Extended Range HDBaseT Transmitter and
Receiver, 1920x1200 1080p at 60Hz
MODEL NUMBER: B126-1A1SR
Description
The B126-1A1SR transmits HDMI, IR Remote, and Serial RS232 up to 328 ft. (100 m.) using a single
Cat5e/6/6a cable. It supports Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160 @ 24Hz,.
HDCP and 3D compliant, and supports 7.1 channel surround sound, DTS-HD, and Dolby TrueHD audio.
Meets HDBaseT 1.0 specifications for transmitting audio/video and control signals. RS232 connection allows for
use with scanners and touch-screen monitors, supporting Baud rates up to 115kbps full duplex. IR functionality
allows you to use your HDMI source's remote control in the same location as your extended monitor/TV. (IR
frequency @ 39Khz) Kit includes mounting hardware to be wall mounted, rack mounted, or pole mounted.
When extending a 3840 x 2160 @ 24Hz Ultra High Definition (UHD) 4Kx2K video signal, use the following cables
(sold separately):
Cat6A (available from Tripp Lite as a custom order) for up to 328 ft. (100 m.)
Cat6 cable (24AWG, Solid Wire cable required, such as Tripp Lite's N202-Series) for up to 230 ft. (70 m.)
Cat5e cable (26AWG, Solid Wire cable required, such as Tripp Lite's N001- and N002-Series) for up to 150 ft.
(45.7 m.)
When extending computer video resolutions of 1920 x 1200 @ 60Hz, or HD video resolutions of 1080p @ 60Hz, use Cat5e/6 cable (24AWG, Solid Wire cable
required, such as Tripp Lite's N202-Series) to extend the signal up to 328 ft. (100 m.).
Features
Meets HDBaseT 1.0 specifications for transmitting audio/video and control signals
Supports Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160 @ 24Hz
Extend a 3840 x 2160 @ 24Hz signal up to 328 ft. (100 m.) using Cat6a cable (available from Tripp Lite as a custom order)
1 / 3
Highlights
Meets HDBaseT 1.0
specifications for transmitting
audio/video and control signals
Supports Ultra High Definition
(UHD) 4Kx2K video resolutions
up to 3840 x 2160 @ 24Hz
Supports 7.1 channel surround
sound, DTS-HD, and Dolby
TrueHD audio
IR functionality allows you to use
your HDMI source's remote
control in the same location as
your extended monitor
Supports RS232 Serial baud
rates up to 115kbps full duplex,
for control of devices such as
touchscreens or scanners
HDCP and 3D compatible
Package Includes
Local Transmitter and Remote
Receiver Units
Two sets of IR-IN Cables
Two sets of IR-OUT Cables
3.5 mm Male-to-DB9-Female
Adapter Cable
3.5 mm Male-to-DB9-Male
Adapter Cable
Two sets of External Power
Supplies (Input: 100-240V, 50/60
Hz, 0.5A Output: 5V, 2A)
Two sets of Mounting Hardware
Kits
Owner's Manual
