Owner's Manual

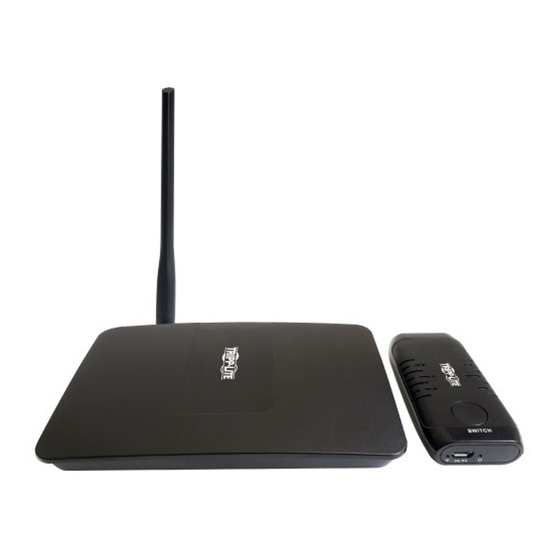

Wireless HDMI
Extender Switch Kit
Model: B126-1D10-WHD1
10x1 Wireless
HDMI Transmitter
Model: B126-1D10-TXH
Este manual esta disponible en español en la página de Tripp Lite:
tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite :
tripplite.com
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved.
1
Advertisement
Table of Contents
Related Manuals for Tripp Lite B126-1D10-WHD1
Summary of Contents for Tripp Lite B126-1D10-WHD1
- Page 1 Model: B126-1D10-TXH Este manual esta disponible en español en la página de Tripp Lite: tripplite.com Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com WARRANTY REGISTRATION Register your product today and be automatically entered to win an ISOBAR ®...
-
Page 2: Package Contents
Package Contents B126-1D10-WHD1 • Wireless Transmitter Extender • Wireless Receiver Extender • USB-A to USB Micro-B Cable, 3.3 ft. (1 m) • Right-Angle HDMI Adapter (M/F) • Wireless Coaxial Antenna • External Power Supply (Input: 100–240V; Output: 5V 2A) with North America Power Adapter •... -
Page 3: Product Features
• Plug-and-play operation with no software required for easy, immediate installation. B126-1D10-TXH • Transmitter works exclusively with B126-1D10-WHD1 receiver (sold separately). • Wirelessly extends a 1080p (60 Hz) HDMI signal up to 50 ft. (15 m) from the source. -
Page 4: Port Descriptions
Port Descriptions The following panels depict B126-1D10-WHD1. B126-1D10-TXH is the transmitter only. Transmitter HDMI INPUT DC 5V SWITCH... - Page 5 Port Descriptions HDMI Input – Plugs into the source’s HDMI port. Wireless Connection LED – Turns red when power is connected. Flashes slowly when successfully connected to the receiver. Flashes rapidly when transmitting data. DC 5V Input – Transmitter can be powered directly from the source.
- Page 6 Port Descriptions Receiver DC 5V Input – Connects to the included external power supply. Wireless Connection LED – Turns green when power is connected. Flashes when successfully connected to the transmitter. Data Transmission LED – Turns green only when transmitting data. HDMI Output –...
-
Page 7: Installation
Installation Notes: • This extender kit operates in line-of-sight only. Install in a good environment where few obstacles are present. • Wireless signal cannot be transmitted between walls, glass or other objects, as signal loss will occur. • External wireless devices, such as wireless mice/keyboards, can affect the wireless transmission between the transmitter(s) and receiver units. - Page 8 Installation Application with Multiple Sources Notebook HDMI Extender TX Sender 10 pcs HDMI Output HDMI Extender HDMI RX Receiver Display HDMI Extender TX Sender Notebook Connect the HDMI male end of the transmitter to an HDMI source (ex. laptop, Blu-ray player). Repeat Step 1 as many as 9 more times.
-
Page 9: Troubleshooting
Troubleshooting 1) The image is not fluent or stable. • Change the location of the transmitter and the receiver, ensuring they are within signal coverage of 50 ft. (15 m). • Connect the included USB Micro-B cable to the transmitter for extra power. -
Page 10: Specifications
Specifications Model B126-1D10-WHD1 B126-1D10-TXH Input HDMI (Female); HDMI (Female); USB Micro-B (Female) USB Micro-B (Female) Output HDMI (Male) Support Video 480p @ 60 Hz, 576p @ 480p @ 60 Hz, 576p @ Resolutions 50 Hz, 720p @ 50/60 Hz, 50 Hz, 720p @ 50/60 Hz,... -
Page 11: Warranty And Product Registration
Warranty and Product Registration 1-Year Limited Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of one (1) year from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. - Page 12 Warranty and Product Registration Product Registration Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply.
