Shure CM 6680 F Datasheet

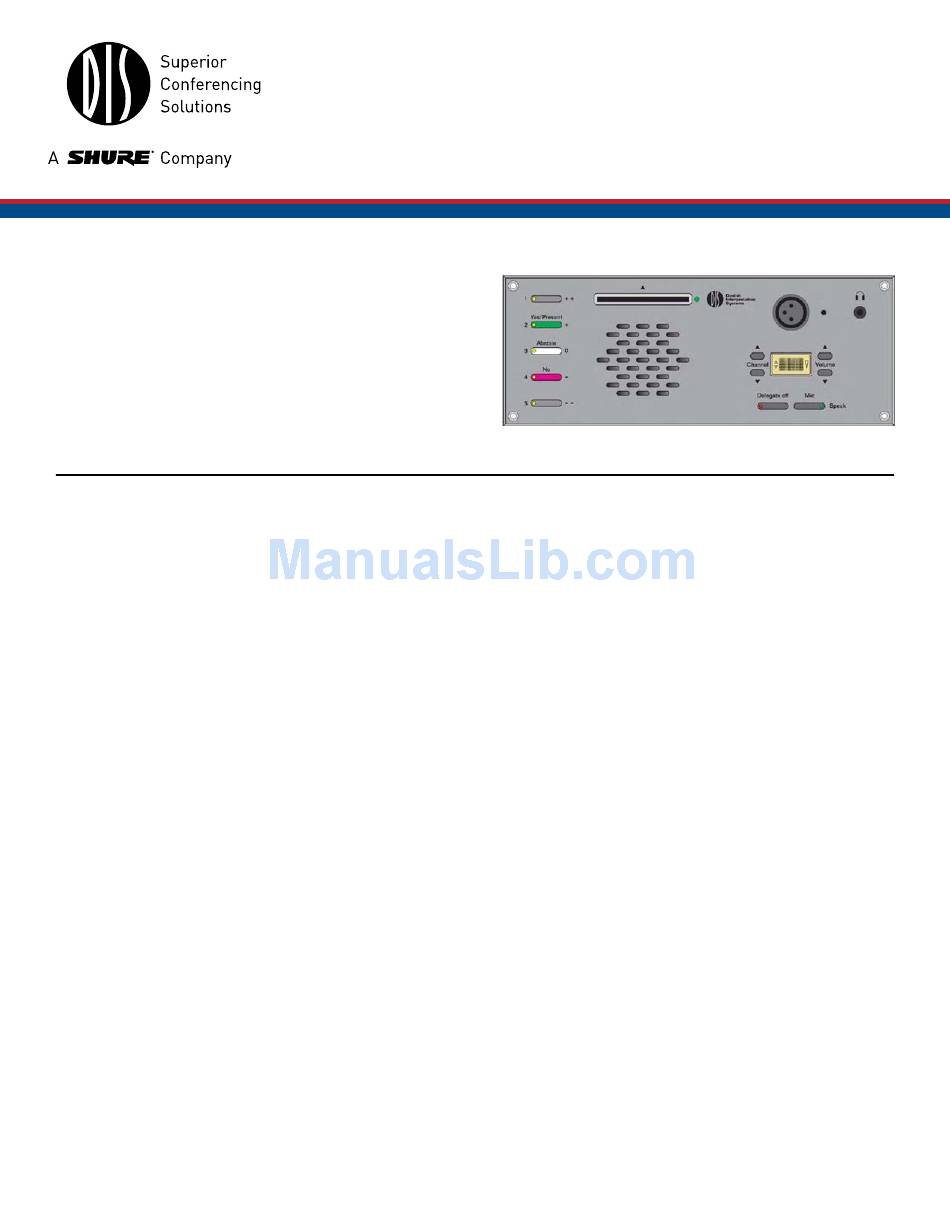

CM 6680 F Conference Unit
• Flush-mounted chairman conference unit
• Chip card reader
• 3-button and 5-button voting and attendance check
• Channel selector
• Loudspeaker
• Lockable XLR microphone connector
Description
The CM 6680 F is a fully digital flush-mounted conference unit in the DIS DCS
6000 Digital Conference System.
The unit is designed as a full featured conference unit with a chip card reader, vot-
ing and channel selector functionality. It features a microphone button, a delegate
off button, a chip card reader, five voting buttons, a headphone jack, channel se-
lector, a loudspeaker and a lockable XLR microphone connector.
The microphone button enables the user to activate/deactivate the microphone. A
button LED indicates when the microphone is on.
The delegate off button enables the user to turn off all active delegate micro-
phones, A button LED indicates that the button is activated.
The floor channel is distributed through the built-in loudspeaker, except when the
microphone is turned on. The user can also listen to the floor channel by inserting
headphones in the headphone jack and adjusting the volume with the volume but-
tons. Optionally, the channel selector can be used for listening to an interpretation
channel.
The voting buttons enable the user to participate in attendance checks and 3-but-
ton or 5-button voting sessions. Attendance checks and voting sessions are started
from the SW 6000 or a DC 6990P conference unit.
The use of the unit can be restricted by using the login with chip cards feature.
Chip card login is enabled from the SW 6000 and hence only available in combina-
tion with the SW 6000.
The CM 6680 F can be used in combination with the gooseneck microphones GM
652x or GM 6622 or the boundary microphone BM 6620.
The gooseneck microphones GM 652x or GM 6622 can be locked to the unit with
a 2 mm hex key. The lock is accessible from the small hole to the right of the XLR
socket. Turn the hex key clockwise to enable the lock and insert the gooseneck
microphone into the XLR socket. Turn the hex key counter clockwise to disable the
lock and remove the gooseneck microphone.
The boundary microphone BM 6620 can be retrofitted by replacing the XLR insert
in the plastic adaptor with the boundary microphone. The molex mini-connector fits
with the microphone connector on the PCB.
The CM 6680 F can be mixed with any conference units from the DCS 6000 Digital
Conference System.
DIS Digital Conference Systems
CM 6680 F Conference Unit
Features
The CM 6680 F has the following standard features:
• Standard conference unit for chairmen
• Fully digital audio transmission
• Daisy chain topology with loop-through connections or star
topology using junction boxes
• CAT 5e (or higher) F/UTP or U/FTP (screened) cabling
• Maximum of 3800 conference units per system
• Support for four microphone operation modes; Automatic,
FIFO, Manual and VOX (voice activation)
• Support for three microphone interrupt modes enabling 'ping
pong' mode
• Auto off of microphones
• Lockable XLR gooseneck microphone connector
• One high-quality loudspeaker
• A channel selector supporting the floor channel and 31
interpretation channels
• One headphone socket
• One chip card reader
• A microphone button with LED indicator for speak
• A delegate off button with LED indicator for delegates off
• Five voting buttons for:
• 3-button voting
• 5-button voting
• Attendance check
By connecting a PC running the SW6000 Conference
Management Software, the following additional feature can be
made available:
• Login with chip card
Data sheet DS-CM 6680 F-e
