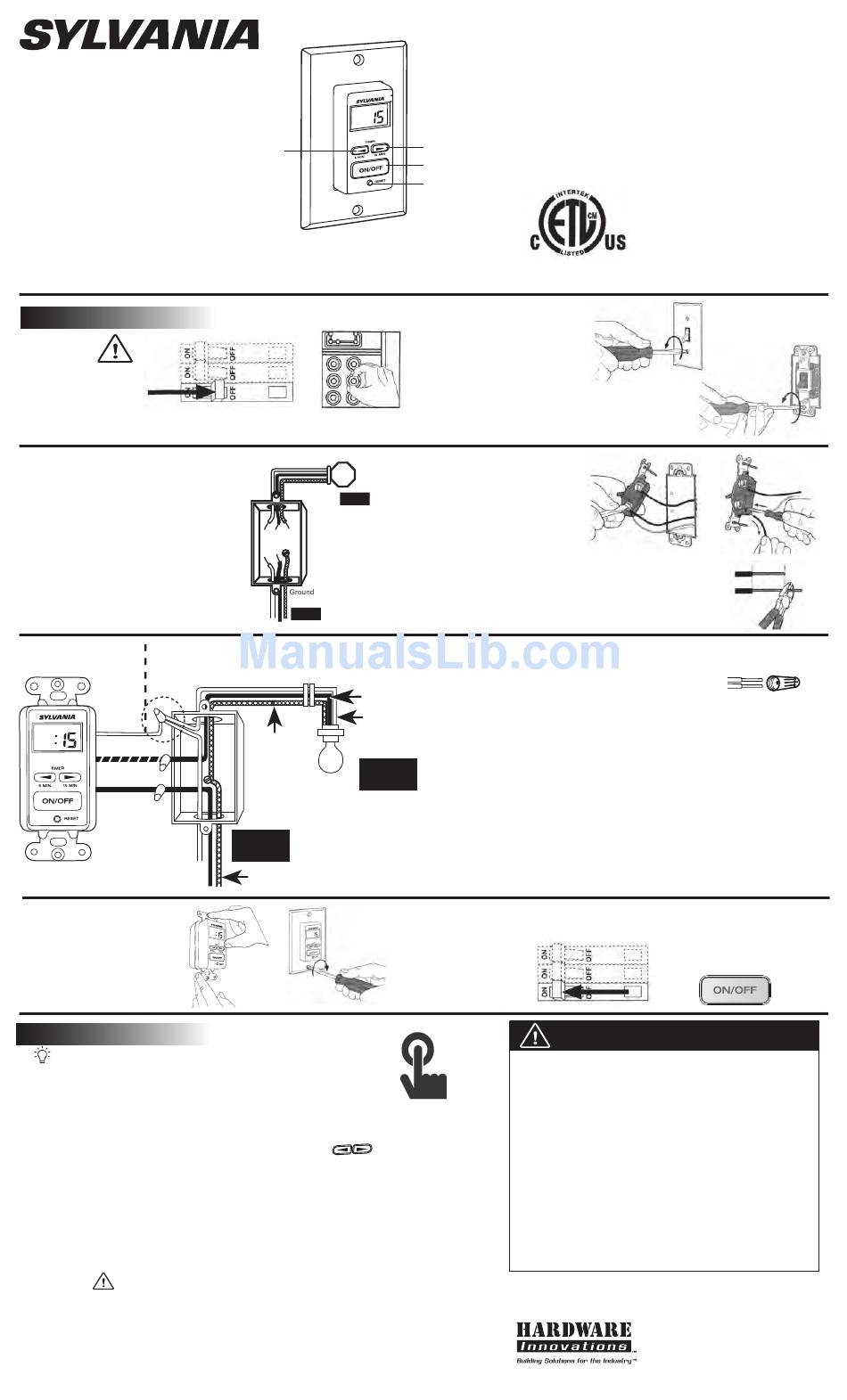

Sylvania SA 150 Installation Manual

Model SA 150: Single-Pole
Digital Wall Switch
15 Minute Digital
Auto Shut-Off Timer
Before installing your new Sylvania Timer, please read this manual first.
Installation
Step 1
WARNING:
Turn power OFF at
circuit breaker or
remove fuse.
Step 3
Confirm there is a neutral
line wire and that you are
replacing a single pole
switch.
Tip: Identify and mark all
neutral wires for quicker
installation.
Three (3) white (neutral) wires are
Step 5
Install your timer:
connected together
WHITE
BLUE
BLACK
Neutral
Step 7
Mount and align timer
securely and then install
wall plate..
Timer Operation
1. For manual switch operation, simply press the On/Off button.
0
The LCD will show " n", confirming the switch is on.
2. For timed switching, simply press the 5 min. or 15 min. button
on the face of the timer. The switch will stay on for the selected
time period and the LCD display will show the time remaining.
3. You can fine-adjust the turn-off time by pressing the 5 min.
or 15 min. button. When the display flashes, press the
(< or > button) to adjust the time up or down.
4. If you want to reset the unit, just press the Reset button.
5. Memory Setting: The next time you press and set either the 5 min.
or 15 min. button, the timer will remember your last setting.
RATINGS:
Total load: 20 Amp Resistive and Inductive, 8 Amp Tungsten, 120VAC, 60Hz, 1HP.
Rated Impulse voltage: 1500V Type 1.B control action.
WARNINGS :
DO NOT USE THE TIMER TO TURN OFF POWER FOR MAINTENANCE WORK
(repairs, removing broken bulbs, etc.). ALWAYS TURN POWER OFF AT THE
SERVICE PANEL BY REMOVING A FUSE OR SHUTTING OFF THE CIRCUIT
BREAKER BEFORE DOING ANY CIRCUIT REPAIRS.
In an environment with electrostatic discharge, the unit may malfunction.
If so, press the Reset button to reset the unit.
5 min / < button
This Timer works for the wiring shown below
Load
(to Bulb, Heater, or Fan)
Single Pole:
Controls light
from one location
Neutral
(white)
Line
(Black or red)120V feed
Ground
Wiring
Line
Diagram
Ground
Hot
15 min / > button
On/Off button
Reset button
Step 2
Remove the wall plate
and existing single
pole switch, if
applicable, by it's
mounting screws.
Step 4
Disconnect wires
from the switch you
are replacing.
Prepare Wiring-
Prepare appropriate wires (if necessary) by
stripping 5/8 inch of the wire insulation.
Step 6
Review which wires to connect. Securely connect all wires
Black
with twist-on wire nut connectors provided.
(Hot)
Use the wire nut connectors (supplied)
White
to secure your wires as follows:
(Neutral)
• Connect Black wire of Timer to Line side
Black wire
Load
• Connect Blue wire of Timer to Load side
Black wire
• Connect all 3 White neutral wires together- White Timer
wire, Line and Load
?
NOTE: The LINE ground and LOAD ground wires
must be grounded.
Step 8
Restore power at fuse box
or circuit breaker.
Turn Power ON
Risk of Electric Shock
• Always Turn power OFF at circuit breaker
• For indoor use only.
• Turn power OFF at circuit breaker before cleaning timer.
• Do not use in wet or damp areas.
• Do not leave wires exposed.
Risk of Fire
• Do not use to control irons and cooking appliances, etc.
• For permanent installation use only 120 Volts.
• Do not exceed the recommended electrical ratings.
• Install in accordance with all national
Thank you for purchasing the SA 150 Digital
Countdown Timer – an easy to set up and operate
digital timer with 2 independent programmable
timers with minimum 1 minute interval settings.
Features:
• 5 minute countdown shut-off
• 15 minute countdown shut-off
• 1 minute programmable intervals
• Timer Countdown Memory
This product has passed
ETL testing. It is certified
complies with both
and
U.S. and Canadian
product safety standards.
SAFETY WARNING
or remove fuse before installing or replacing.
Use a soft damp cloth only.
Keep children away from timer while installing.
and local electrical codes.
Manual: SA150 1/2006 V-2 Made in China
Designed, Engineered, and Built by
Hardware Innovations LLC.
Technical Support 888-548-4484
5/8"
Step 9
Test Timer;
Press On/Off
Button
