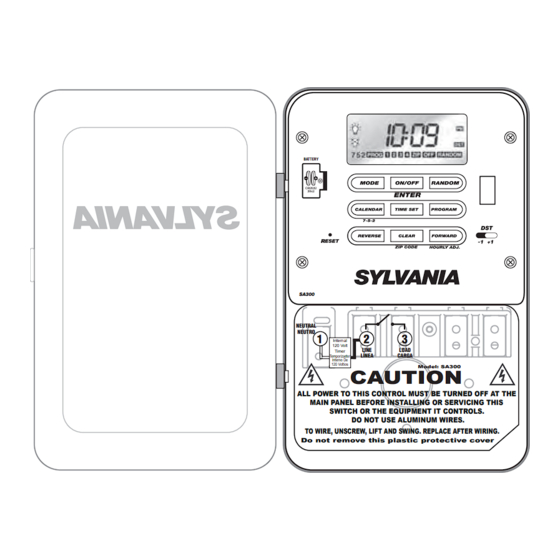

Sylvania SA 300 Manual

Model: SA 300
120 Volt 40 AMP
Digital Industrial Timer Switch
Single-Pole, Single Throw
Indoor Industrial Timer
Zip-Set Technology Auto Sunset On
Illuminated Display and Keypad
Battery Backup (batteries included)

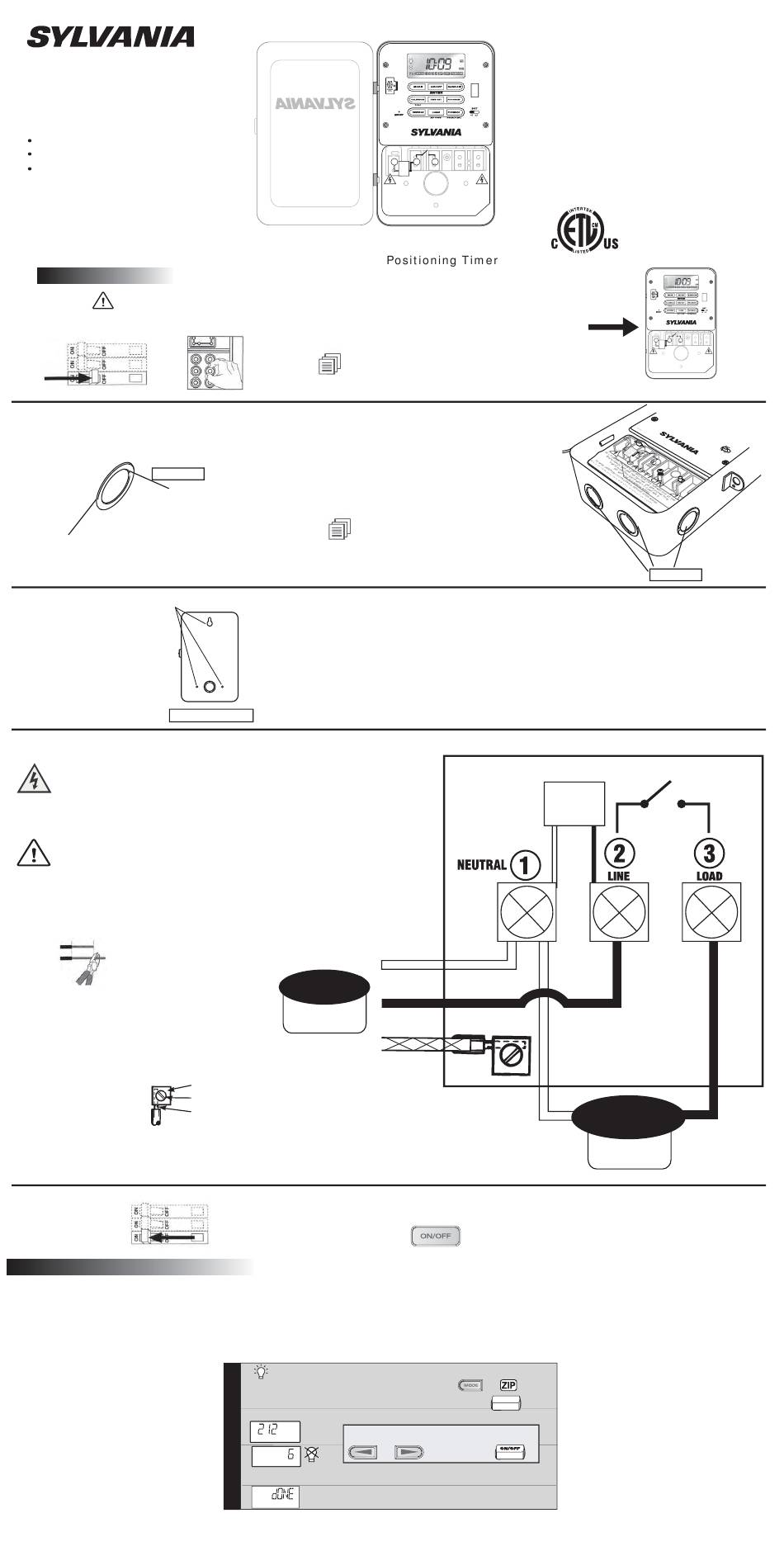

Installation
Step 1
WARNING:
Turn power OFF at circuit
breaker or remove fuse.
Step 3
Study your wiring diagram and decide which knockouts to use. Select the knockouts to be used for your
wire cable clamp or conduit connector and remove the appropriate knockout. Install the wire cable clamps with locknuts.
You are now ready to mount the timer on the wall.
Knockout
Outer Circle is fit for a 3/4 inch
cable
clamp wire connector or
conduit
Indoor Timer's 3 mounting hole location
Step 4
Mount case in a vertical position
using mounting holes provided.
Step 5
WIRING:
Connect in accordance with Local and
National Electrical Codes (NEC). See
suggested circuit diagram below. DO
NOT USE ALUMINIUM WIRE.
Caution: Only use for 120 VAC
loading only. Otherwise the
timer can be damaged.
Easy wiring
1. Strip 5/8 inch of the wire insulation.
5/8"
2. Unscrew, lift and twist plastic protective cover
to access the terminals.
3. Identify your Line and Load wires.
4. Run your wires through the knockouts and
cable clamp wire connectors (not provided).
5. Connect and tighten the ground wire to
grounding terminal at bottom of case.
7.Insert the wire ends under the proper terminal
plates and tighten the screws firmly.
8. Replace the plastic protective cover.
Step 6
Restore power at fuse
box or circuit breaker.
Turn Power ON
Zip-Set Quick Set-up
Zip-set Technology "Sunset Auto on" is easy to program. The clock is set at the factory to the (212) Eastern time zone so you just need to enter
your area code before using. The timer will automatically adjust for your location to turn your appliances and lighting on at sunset. Your SA 300 will
automatically adjust to the changing sunset times as the year progresses.
Your program settings are protected by the integrated back-up battery; even with brown-outs or black-outs, the Zip-set will store settings and turn
your lights and appliances correctly on at sunset once the electric current resumes.
Please read this manual, before installing your new Sylvania Timer.
Inner circle is fit for 1/2 (3/8) inch
cable clamp wire connector or
conduit
Mount the timer in the desired location using the three mounting holes (A,B,C) provided. The best
A
mounting position for the timer is at eye level with sufficient room for the door cover to swing fully open.
Affix box to wall
The top mounting hole (A) is a slotted type mounting hole, so measure and secure this to the wall with the first (A) screw.
The head of the screw (or fastener) should be slightly larger than the narrow portion of the slotted hole.
B C
Hang the timer on screw A. Screw timer into the wall using the remaining two mounting holes (B & C) to provide
a secure permanent mounting for the timer.
Back of timer unit
Line
120 VAC
Input Only
PRESSURE PLATE
TERMINAL SCREW
MAKE SURE WIRE
INSULATION CLEARS
PRESSURE PLATE
Fast Set Up Instructions for Zip-Set™ Timers
Find and press "Mode" button, until you see the Zip-Set icon
1
Then depress & hold the Clear (Zip-Set) button until the display flashes.
Set your area code
2
3
Set how many hours after sunset that you wish the fixture to
turn the power off (2, 4, 6, 8, 10, 12, 14 or 16 hrs).
Detailed set up and function instructions are on back side of this manual.
BATTERY
SA300
NEUTRAL
NEUTRO
1 2 3
Internal
120 Volt
LINE LOAD
Timer
LÍNEA CARGA
Temporizador
Interno De
120 Voltios CAUTION Model: SA300
ALL POWER TO THIS CONTROL MUST BE TURNED OFF AT THE
MAIN PANEL BEFORE INSTALLING OR SERVICING THIS
SWITCH OR THE EQUIPMENT IT CONTROLS.
DO NOT USE ALUMINUM WIRES.
TO WIRE, UNSCREW, LIFT AND SWING. REPLACE AFTER WIRING.
Do not remove this plastic protective cover
Step 2
Remove the old timer, identify wiring and
disconnect wires from the timer you are replacing
or map out a new location for your timer.
ounting the timer, it is important
When m
that it is in an environment which is free from
excessive contaminant such as oil, moisture, or dirt.
Always mount timer case in a vertical position.
Do not mount indoor timer where rain
or water can get in.
Ensure that the timer position and its knockouts are
in line with your planned wiring. Knockouts
are made to industrial standards: 1/2 , 3/8, or 3/4 inch wire
cable clamp connectors and locknuts.
Attach appropriate wire cable clamps to the timer box.
Neutral
Hot
Ground
Step 7
Test Timer:
Press ON/OFF
Button
To set:
use "Reverse" / "Forward" buttons and ON/OFF
to Confirm or Enter.
then to set press
or
Yes- You are DONE!
Thank you for purchasing the SA 300 an Industrial 40
Amp digital Timer.
It is an easy to set up and operate industrial timer with
Zip-Set Auto Sunset On Technology and other
advanced features.
Features:
• Zip-Set Technology; automatically turns lights on at
sunset time – just enter your phone area code.
• 4 independent on/off programmable timers with 1 minute
setting intervals.
• Daylight Savings Time (DST) switch.
• Timers can be set to work weekends(2), weekdays(5), or
all week(7).
• Random function for security.
• Manual Override.
• 40 Amp Heavy Duty Relay
This product has passed
ETL testing. It is certified
and complies with both
U.S. and Canadian
product safety standards.
Internal
120 Volt
Timer
Load
120 VAC
Input Only
to
CLEAR
ZIP-SET
BATTERY
(200mm) H
7.9 inch
SA300
NEUTRAL
NEUTRO
1 2 3
Internal
120 Volt
Timer LINE LOAD
Temporizador LÍNEA CARGA
Interno De
120 Voltios Model: SA300
CAUTION
ALL POWER TO THIS CONTROL MUST BE TURNED OFF AT THE
MAIN PANEL BEFORE INSTALLING OR SERVICING THIS
SWITCH OR THE EQUIPMENT IT CONTROLS.
DO NOT USE ALUMINUM WIRES.
TO WIRE, UNSCREW, LIFT AND SWING. REPLACE AFTER WIRING.
Do not remove this plastic protective cover Indoor timer case
(130mm) W
5.1 inch
Knockouts
