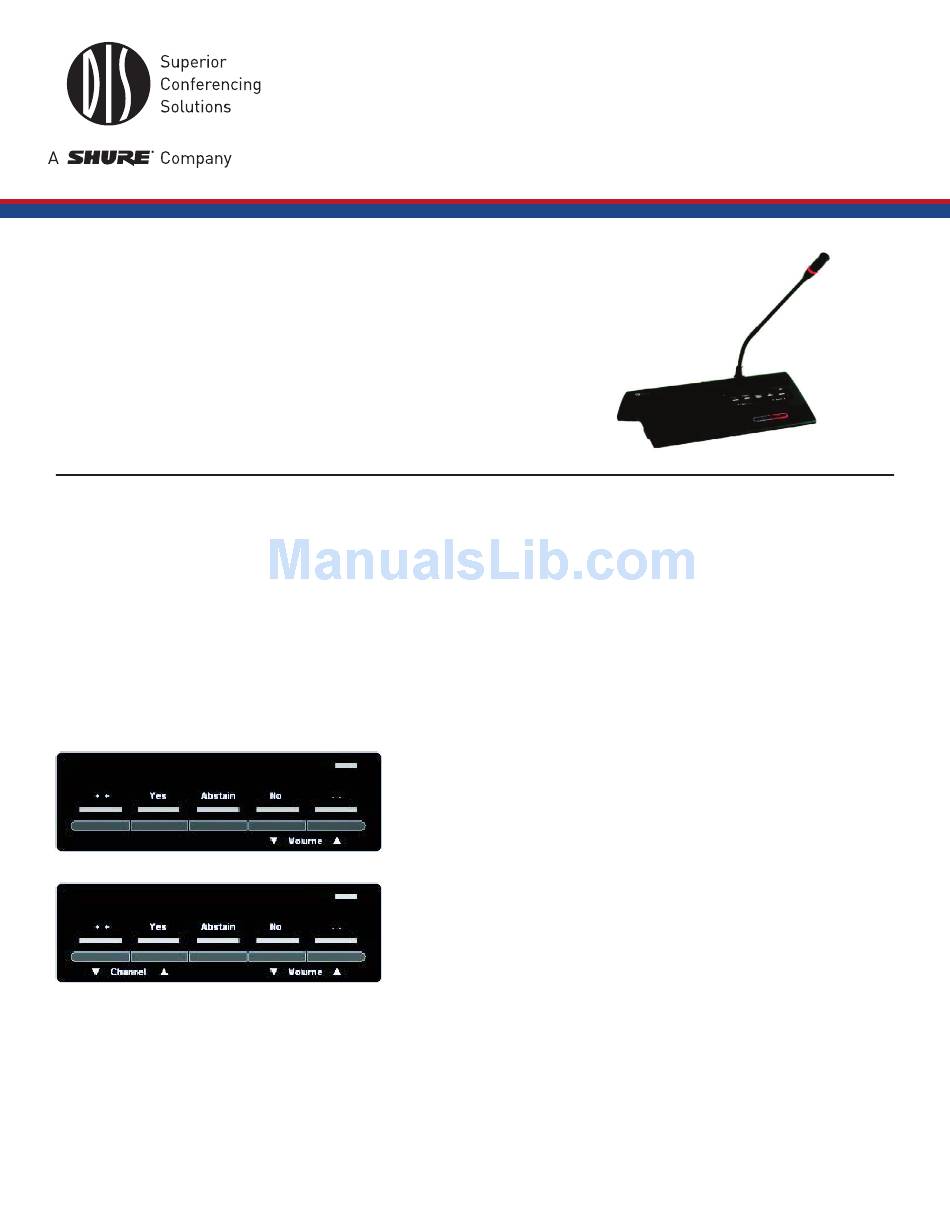

DIS DM 6680 P Datasheet

DM 6680 P Conference Unit
• Delegate conference unit
• 3-button, 5-button and proxy voting
• Attendance check
• Chip card reader
• Channel selector
• Lockable XLR microphone connector
• Loudspeaker
• Customizable buttons/button overlays
Description
The DM 6680 P is a fully digital portable conference unit in the DIS DCS 6000 Digital
Conference System. Along with ordinary microphone functionality, the unit features
3-button, 5-button and proxy voting in addition to attendance check in one system
configuration.
The unit is designed for one delegate. The microphone and mute buttons enable the
user to activate/deactivate the microphone. The floor channel is distributed through the
built-in loudspeaker except for when the microphone is turned on.
The DM 6880P also features five buttons that change functionality depending on the
system status. During normal operation the two buttons on the left change the interpre-
tation channels, while the two buttons on the right change the volume of the channel
selector.
During voting sessions the buttons act as voting buttons, whether it is a 3-button or
5-button voting session taking place. The unit comes with two standard button overlays:
Standard button overlay 1
Standard button overlay 2
Non-standard overlays with different functionality and in other languages are also avail-
able in a of minimum 100 pieces.
The gooseneck microphones GM 652x or GM 6622 can be locked to the unit with a 1.5
mm hex key. The lock is accessible from the small hole to the left of the XLR socket.
Turn the hex key counter clockwise to lock the gooseneck microphone to the unit and
turn the hex key clockwise to unlock the gooseneck microphone from the unit.
The unit can be fixed to a table top using the two mounting holes underneath the unit,
please refer to the drawing.
The DM 6680 P can be combined with any conference units from the DCS 6000 Digital
Conference System.
DIS Digital Conference Systems
DM 6680 P Conference Unit
Features
The DM 6680 P has the following standard features:
• Standard conference unit for delegates
• Fully digital audio transmission
• Daisy chain topology with loop-through connections or star
topology using junction boxes
• CAT 5e (or higher) F/UTP or U/FTP cabling
• Maximum 3800 conference units per system
• Support for four microphone operation modes; Automatic,
FIFO, Manual and VOX (voice activation)
• Support for three microphone interrupt modes enabling 'ping
pong' mode
• Auto off of microphones
• Lockable XLR gooseneck microphone connector
• A high-quality loudspeaker
• One channel selector supporting the floor channel and 31
interpretation channels
• Two headphone sockets
• A chip card reader
• Microphone and mute buttons
• Exchangeable buttons for changing the button labels to other
languages
• Five buttons for:
• 3-button and 5-button voting
• Attendance check
• Channel selector (language channel and volume)
• Exclusive design and finish
By connecting a PC running the SW 6000 Conference
Management Software, additional features can be made
available:
• Login with chip card
• Proxy voting
Data sheet DS-DM6680 P-c
