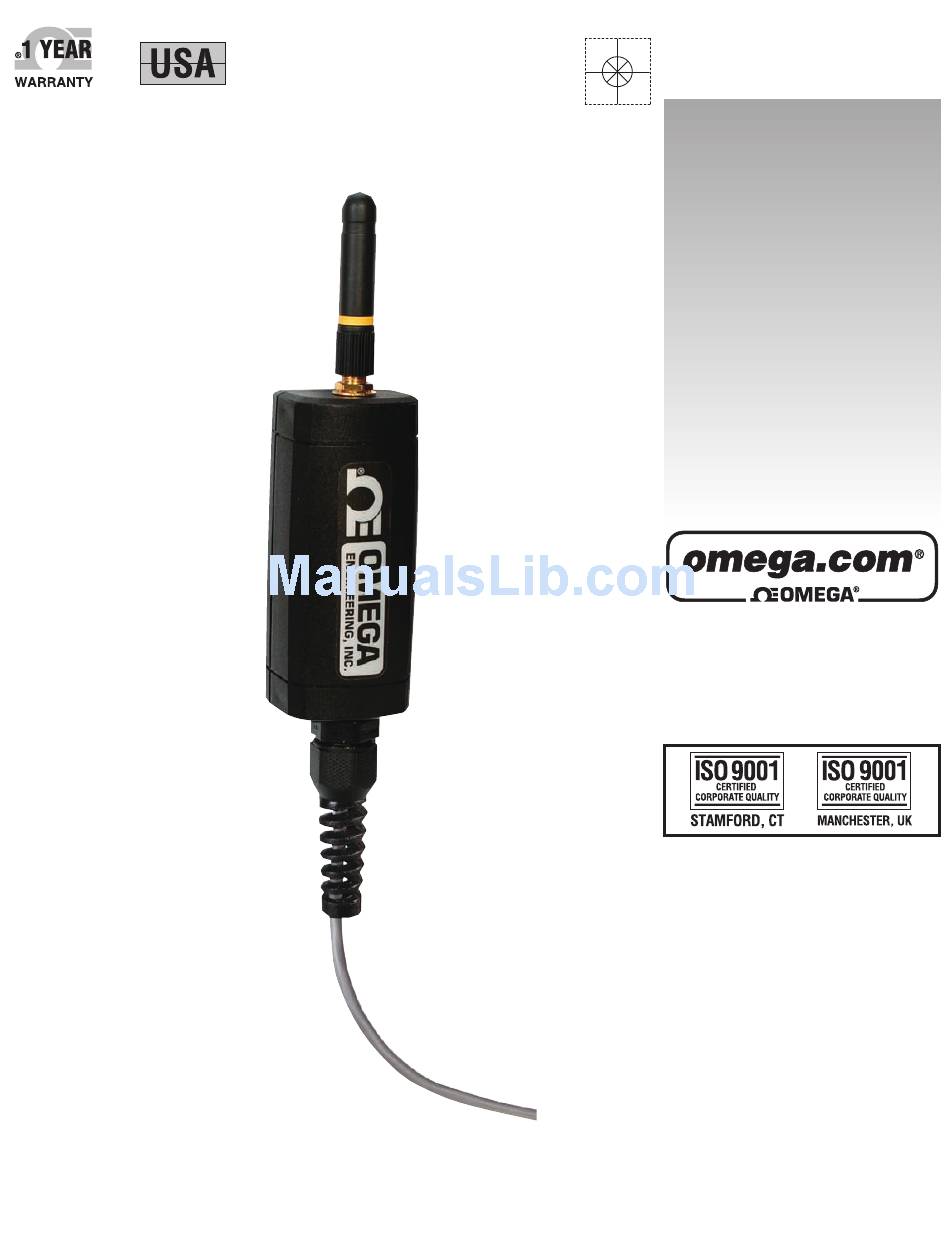

- Page 1 User’ s Guide MADE IN Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info PATENT PENDING MWTC-REC6/UWTC-REC6 Wireless Transceiver...
- Page 2 Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
MWTC-REC6/UWTC-REC6 Table of Contents Section Page Section 1 General Description ................1 Section 2 FCC/CE Statement ................1 Section 3 Software Installation ................1 Section 4 Receiver Setup & Output Scaling ............. 2 Power/Analog Output Connection ............ 2 Setup/Programming Cable Connection ..........2 Configuration Software ................ -
Page 4: Section 1 General Description
This allows the host instrument to receive wireless sensor readings. Model MWTC-REC6 can receive wireless data from Omega’s MWTC Series of wireless thermocouple connectors. Model UWTC-REC6 can receive wireless data from Omega’s UW Series of wireless thermocouple connectors, RTD connectors, Nema Transmitters and industrial probe assemblies. -
Page 5: Section 4 Receiver Setup & Output Scaling
MWTC-REC6/UWTC-REC6 2. Click “Next” to continue with the installation. 3. If you accept the terms of the License Agreement, select “I accept the terms in the license agreement” and click “Next.” 4. Click “Install” to begin installing the software. 5. Once the program has been installed, Click “Finish” to close the installation wizard screen. -
Page 6: Configuration Software
This cable is only used during setup and scaling and should be removed before placing your transceiver into operation. The transceiver configuration software is imbedded into Omega’s universal wireless software known as TC-CENTRAL. To open and run the configuration program for your transceiver, follow the steps shown below. -
Page 7: Setup And Scaling Screen
MWTC-REC6/UWTC-REC6 From the “Tools” tab, select “Configure Receiver”. This will open the Setup and Scaling window shown below. From here you must set the transceiver up to match the same parameters you used when you setup and programmed your wireless transmitter. Follow and set each required parameter. -
Page 8: Section 5 Installation
MWTC-REC6/UWTC-REC6 (5) Scaling Scaling sets and adjusts the analog voltage output to match a user defined temperature range. (6) Transfer Functions This feature has been provided to aid you in determining and understanding what effect changes to the “scaling” setting will have on the output of your transceiver. -
Page 9: Horizontal Antenna Placement
MWTC-REC6/UWTC-REC6 5.1 Horizontal Antenna Placement Figure 5-2. Proper Installation (Horizontal) If your Connector/Transmitter is mounted in a horizontal position in your application you should mount your receiving so that the same polarization is achieved with the receiving antenna. As shown in the “Horizontal” example above. -
Page 10: Section 6 System Operation
MWTC-REC6/UWTC-REC6 Section 6 – System Operation 6.1 Transmit Time Vs. Battery Life Your MWTC wireless thermocouple connector will operate on any of the three battery types listed below. Estimated battery life examples are given. For 3.6 V (AA) Lithium Transmit Time... - Page 11 MWTC-REC6/UWTC-REC6 For 1.5 V (AA) Alkaline Transmit Time Estimated Battery Life 1 Sample/2 Seconds 30 days 1 Sample/3 Seconds 42 days 1 Sample/5 Seconds 60 days 1 Sample/10 Seconds 90 days 1 Sample/15 Seconds 110 days 1 Sample/30 Seconds 140 days...
-
Page 12: Section 7 Specifications
12 to 24 Vdc @ 50 mA max Power: USB Compatibility: USB 1.1, USB 2.0 Radio Frequency (RF): MWTC-REC6: 915 Mhz or 868 Mhz, UWTC- REC6: 2.4 GHz Analog Output: 1, non-isolated, 0 to 5 Vdc or 0 to 10 Vdc Programming Connector Type:... - Page 13 MWTC-REC6/UWTC-REC6 NOTES:...
- Page 14 MWTC-REC6/UWTC-REC6 NOTES:...
- Page 15 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 16 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References Recorders, Controllers & Process Monitors...
