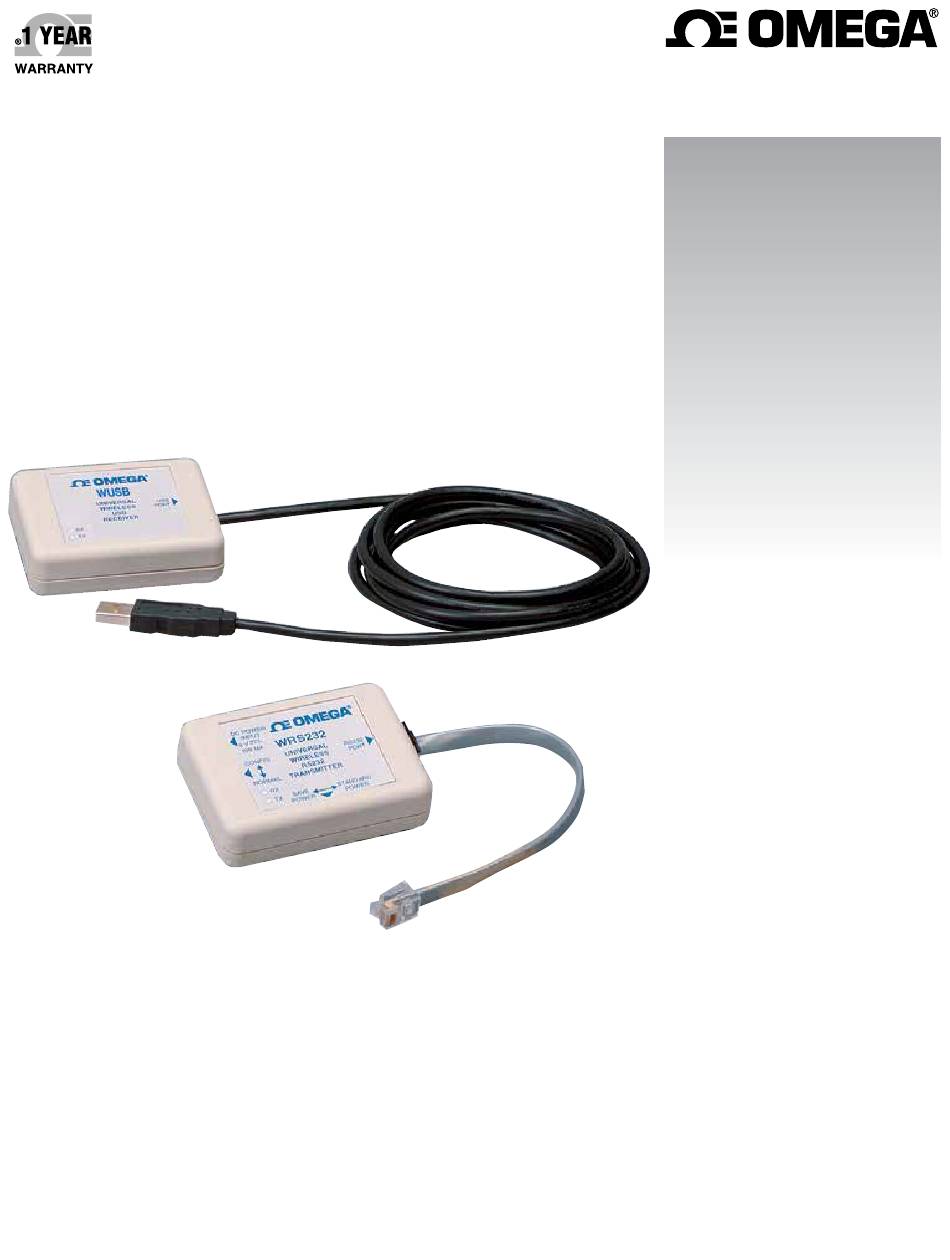

- Page 1 User’s Guide RoHS 2 Compliant WUSB WIRELESS RECEIVER Shop online at omega.com ® e-mail: info@omega.com For latest product manuals: www.omegamanual.info WRS232 WIRELESS TRANSMITTER WRS232-USB Universal Wireless RS232 to USB Transceiver, WRS232 Wireless Transmitter, WUSB Wireless Receiver...
- Page 2 For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARNING: These products are not designed for use in, and should not be used for, human applications.
-
Page 3: Table Of Contents
WRS232-USB Transmitter/Receiver Table of Contents Section Page Section 1 Introduction ..................1-1 1.1 Precautions ....................1-1 1.2 Safety Warnings and IEC Symbols ............1-1 1.3 Statement on FCC and Marking ............ 1-2 1.4 General Description & System Components ........1-2 Section 2 Setup and Configuration .............. - Page 4 WRS232-USB Transmitter/Receiver List of Figures Figure Description Page Section 1 Introduction Figure IEC Symbols ..................1-1 WRS232 Wireless Transmitter Module ........1-2 WUSB Wireless Receiver Module ..........1-3 FCC Warning Label ................1-3 Section 2 Setup and Configuration Figure USB Cable Connection ..............2-1 Welcome To The Found New Hardware Wizard Screen ..
- Page 5 After examining and removing contents, save packing material and carton in the event reshipment is necessary. The following items are supplied with the WRS232-USB product: • Wireless Transmitter, WRS232 • Wireless Receiver, WUSB • USB 4P(A) Male to Mini 5P(B) Male cable •...
- Page 6 NOTES:...
-
Page 7: Section 1 Introduction
Introduction Section 1 - Introduction Please read this manual completely before installing and operating your wireless connector/transmitter and receiver system. It’s important to read and follow all notes, cautions, warnings and safety precautions before operating this device. “Device” refers to your wireless/transmitter or receiver unit. 1.1 Precautions •... -
Page 8: Statement On Fcc And Marking
Marking It is the policy of OMEGA to comply with all worldwide safety and EMI/ EMC regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the mark to every appropriate device upon certification. - Page 9 Introduction 69.9 20.3 (2.75) (0.80) WUSB 50.8 UNIVERSAL (2.00) WIRELESS PORT RECEIVER PORT DIIMENSIONS: mm (in) Figure 1-3 WUSB Wireless Receiver Module FCC ID: OUR-XBEEPRO IC #4214A-XBEEPRO This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1.
-
Page 10: Section 2 Setup And Configuration
Setup and Configuration 2 Setup and Configuration Connect the wireless receiver module to the PC with USB cable provided. Fig. 2-1 shows the cable connection. Connect to PC Connect to Wireless Receiver Module Figure 2-1 USB Cable Connections 2.1 USB Driver Installation To install the USB software drivers that are required for your wireless receiver to operate correctly follow these procedures. - Page 11 Setup and Configuration Figure 2-2 Welcome To The Found New Hardware Wizard Screen From this box you should check the “No, not at this time” button. Then click the “Next >” button to continue with the driver installation process. Figure 2-3 Install Software Automatically Screen Next, check the “Install the software automatically”...
-
Page 12: Wireless Transmitter Module
Setup and Configuration Figure 2-4 Completing The Found New Hardware Wizard Screen This screen will be displayed to indicate that the software drivers have been installed. You should click the “Finish” button to complete the process. 2.2 Wireless Transmitter Module The transmitter module is connected to an RS232 device with the RJ12 to DB9 connector cable provided. -
Page 13: Mounting Bracket
Setup and Configuration 2.2.1 Mounting Bracket The wireless transmitter/receiver can be mounted using the optional mounting bracket. Fig 2-5 shows the mounting bracket general dimensions. Fig 2-6 shows the transmitter/ receiver mounting bracket assembly. In order to assemble the mounting bracket to the module, the two case module screws are used. - Page 14 Setup and Configuration TWO MOUNTING CASE SCREWS TWO 4-40 MOUNTING BRACKET SCREWS WIRELESS TRANSMITTER/ RECEIVER Figure 2-6 Transmitter Mounting Bracket Assembly Figure 2-7 Transmitter Bracket With 1/4-20 Mounting Screw For Tripod Mount 1/4-20 FLAT HEAD SCREW WASHER & HEX NUTS TWO MOUNTING CASE SCREWS WIRELESS TRANSMITTER/...
- Page 15 Setup and Configuration When mounting your wireless transmitter, care should be taken to make sure it is as far away from any metal objects. Otherwise, it has the potential to interfere with the way the unit radiates and may cause signal lose or possibly even the inability to communicate at all with your receiver.
-
Page 16: Section 3 Transmitter/Receiver Configuration
Transmitter/Receiver Configuration 3 – Transmitter/Receiver Configuration The Configuration CD comes with a Wizard software which allows the user to read or change the configuration of the transmitter/receiver. You need to install the software by following the menus. Once the wizard software is installed, you can configure the transmitter (Thru RS232 connection) or receiver (Thru USB connection) from the PC software. -
Page 17: Environment/Operating Conditions
Transmitter/Receiver Configuration 3.2 Environment/Operating Conditions The wireless transmitter and receiver modules have been designed to be operated in a clean and dry indoor environment. Care should be taken to prevent the components of your wireless system from being exposed to moisture, toxic chemicals and extreme cold or hot temperature that are outside the specifications listed in this manual. -
Page 18: Determining And Maximizing Range
Transmitter/Receiver Configuration 3.3 Determining and Maximizing Range NOTE: The available maximum range specified for this wireless system is only achievable under optimum installation conditions. Mounting height, obstructions in your “Fresnel Zone” and ambient conditions can affect the signal strength resulting in a shorter range between your transmitter and receiver unit. -
Page 19: Building Materials
Transmitter/Receiver Configuration 3.4 Operation in Buildings The Wireless Transmitter sends wireless data transmissions to a receiver connected to your PC. Radio signals are electromagnetic waves. A radio signal becomes weaker the further it travels. Range is decreased by different types of materials found in the direction of the signals propagation. - Page 20 Specifications Section 4 – Specifications Wireless Transmitter, WRS232 Operating Ambient conditions 0 to 50ºC (32 to 122ºF) 0 to 95% Relative Humidity (Non-Condensing) Device interface RS232 RS232 Cable RJ12 to DB9 connector (Female) RJ12 Pin # DB9 Pin # Normal (Config) 3 RX (TX) 2 RX 4 TX (RX)
- Page 21 Approvals and Regulatory Compliance Approvals, Regulatory Compliance & Patent Notice FCC (Domestic Use: USA & Canada) (USA) FCC ID: OUR-XBEEPRO (CANADA) IC #4214A-EXBEEPRO This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference. 2.) This device must accept any interference received, including interference that may cause undesired operation.
- Page 22 System Operation NOTES:...
- Page 23 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 24 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
