Page 1: Installation And

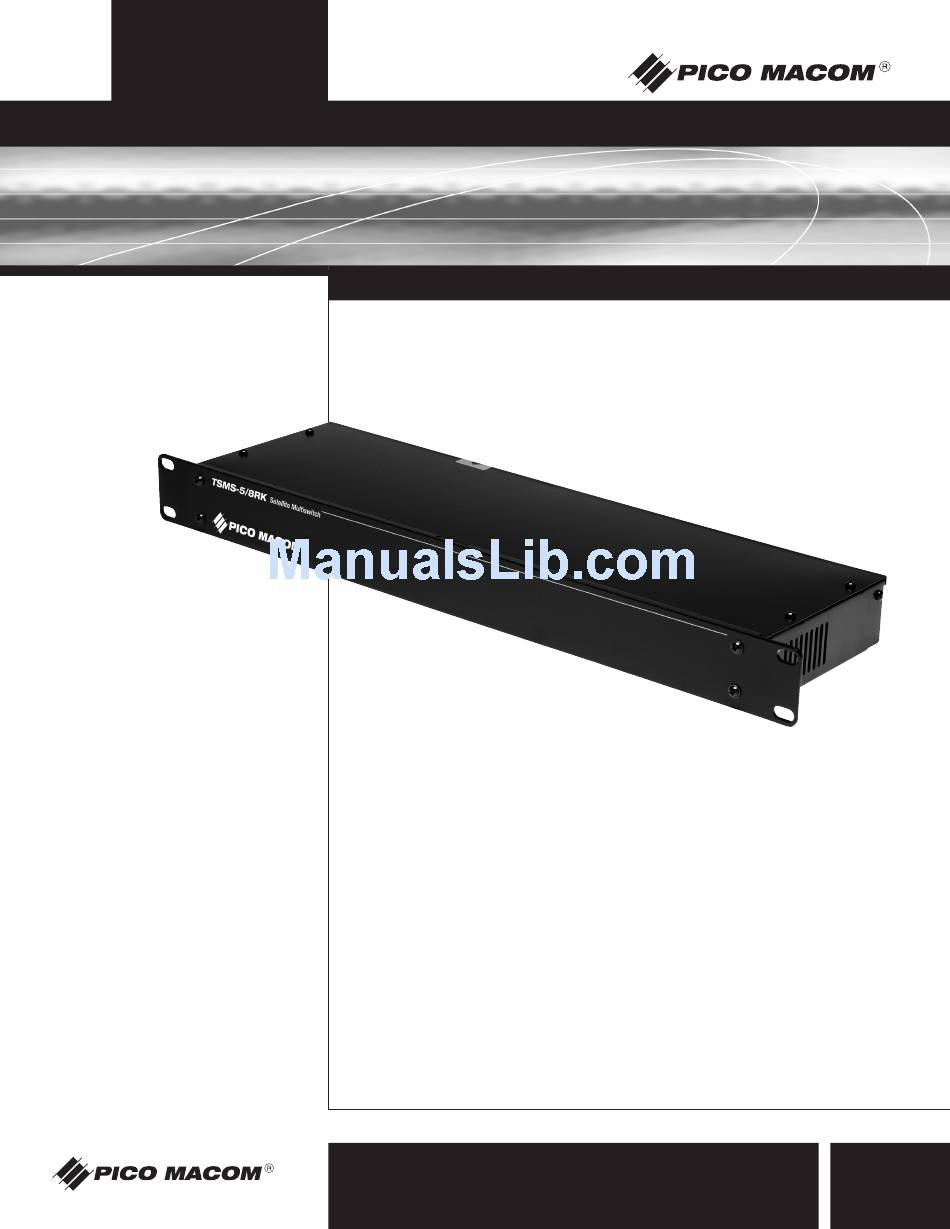

TSMS-5/8RK Rack-Mounted 14V/18V Satellite Multiswitch Installation and Operation Manual Operation Ph: 800-421-6511 www.picomacom.com Manual Rev. 07/05... -
Page 2: Important Safety Instructions
To insure proper installation and operation, take a moment to read this guide before proceeding with the installation. If you have any questions or comments about the TSMS-5/8RK Rack-Mounted Satellite Multiswitch, please contact your dealer or have him contact the PICO MACOM Service Center at these phone numbers: 800-421-6511, 818-493-4300. - Page 3 Safeguards TSMS-5/8RK 11. Power Sources: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.
- Page 4 The external combining, reducing TSMS-5/8RK is compatible with DIRECTV phase three dish reception systems by cost and clutter allowing 4 LNB inputs and 1 antenna and providing 8 outputs. A constant 22 kHz tone...
-
Page 5: Specifications
Specifications TSMS-5/8RK Rack-M Front View Rear View Specifications Input Capability 1 dB Compression Frequency Range 54-2150 MHz Antenna In 106 dBµV min. at 67.25 MHz Input Antenna In 54-806 MHz Satellite In 108 dBµV at 950 MHz Input Satellite In... -
Page 6: Operation And Controls
Operation and Controls TSMS-5/8RK Back Panel Control 14V/0kHz: 24Vac / 1A: Connect cable from wall adaptor. Connect the 14Vdc 0kHz output of a LNB to this port. ANT IN: OUT: Connect the cable from an off-air antenna to this port. -
Page 7: Installation Procedure
Connect a cable from the LHCP port of an LNB to the LNB LHCP (18V) port of the TSMS-5/8RK. Connect a cable from the RHCP port of an LNB to the LNB RHCP (14V, 22kHz) port of the TSMS-5/8RK. Connect a cable from the LHCP port of an LNB to the LNB LHCP (18V, 22kHz) port of the TSMS-5/8RK. -
Page 8: Limited Warranty
List Price of the loaner unit plus shipping costs. When you receive the loaner unit, pack the failed unit in the loaner unit’s box and ship it freight prepaid to Pico Macom for repair. When you receive the repaired unit, a new RMA number will be provided in the box. Carefully pack the loaner unit and affix the new RMA number on the box and ship it back to us for full credit excluding shipping costs.
