Diono Monterey Instruction Manual

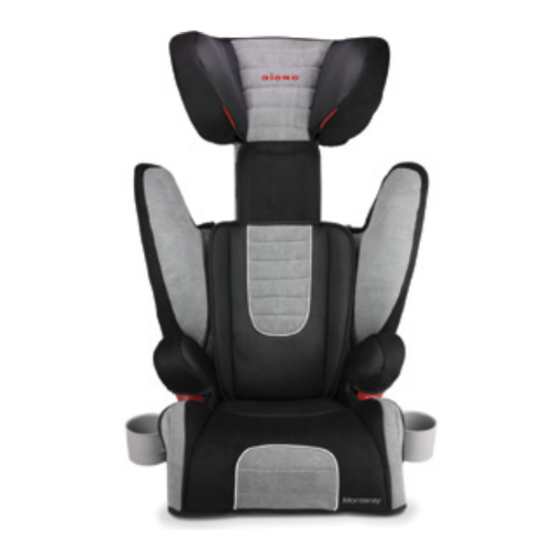

Monterey expandable booster
Hide thumbs Also See for Monterey:

Advertisement

Table of Contents

See also: Instruction Manual
Meijer.com
Instruction Manual
US English Version
Scan QR codes inside for installation videos.

Advertisement

Table of Contents
loading

Related Manuals for Diono Monterey

Summary of Contents for Diono Monterey

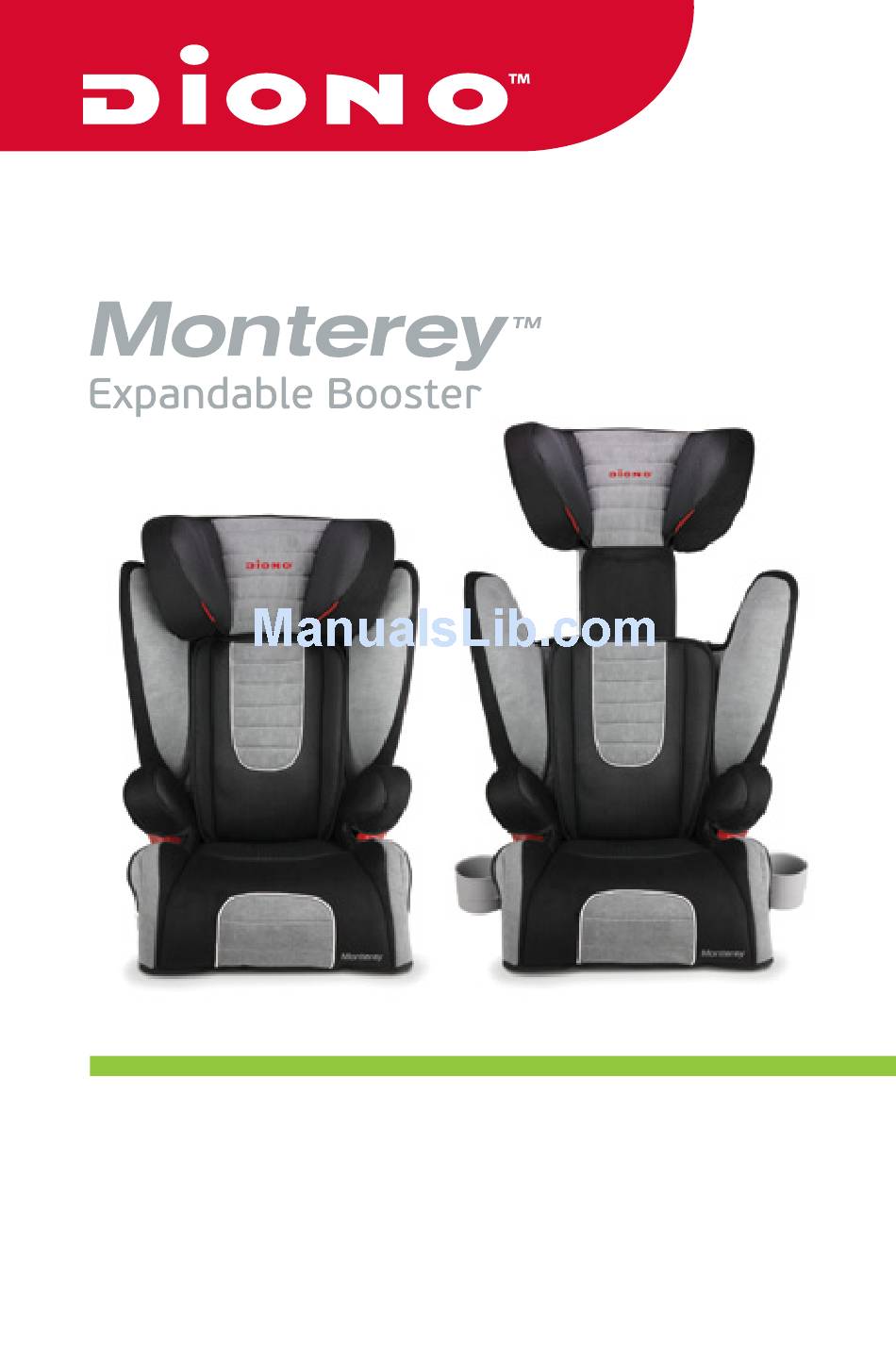

  • Page 1 Meijer.com Instruction Manual US English Version Scan QR codes inside for installation videos.
  • Page 2 Meijer.com Product: Monterey child booster seat Model: 15000 Mfg. by: Diono LLC 418 Valley Avenue NW Puyallup, WA 98371 CUSTOMER SERVICE Tel: 855 GO DIONO Email: us-sales@diono.com diono.com...

  • Page 3: Table Of Contents

    Meijer.com Contents Page Warnings Safety Information ASSEMBLY AND ADJUSTMENT Parts for Assembly & Installation Booster Seat Assembly Headrest Adjustment Backrest Width Adjustment USING THE BOOSTER SEAT LATCH Installation Booster Seat Positioning Adjusting Recline Angle Securing the Child Seat Belt Buckle Position Backless Booster Use CARE AND MAINTENANCE WARRANTY INFORMATION...

  • Page 4: Warnings

    Carefully read and understand this instruction manual prior to using this restraint. If you have any questions visit diono.com or contact Diono LLC. To insure proper long-term use, store this manual under the bottom of the base.
  • Page 5 Meijer.com WARNING ! Death or SERIOUS INJURY can occur. • DO NOT use this booster seat with any other backrest or cushions. • To prevent injury due to product deterioration, do not use this booster seat if it has been involved in a severe accident or if it is older than six years.
  • Page 6 12. IMPORTANT: Children who weigh 40 lbs (18 kg) or less are best protected in a 5-point harness restraint. Diono recommends that children remain in a 5-point harness restraint until reaching the maximum weight or height allowed.

  • Page 7: Safety Information

    Send your name, address and this restraint’s model and serial number and manufacturing date to Diono LLC, 418 Valley Avenue NW, Puyallup, WA 98371, or call 1-855 GO DIONO. For recall information call the U.S.
  • Page 8 Meijer.com Safety Information (continued) VEHICLE SEAT BELT SYSTEMS IMPORTANT: Some vehicles have no seating positions compatible with booster seats. If in doubt, please contact the vehicle manufacturer for assistance. WARNING: ONLY use this booster seat with a 3-point (lap-and-shoulder) vehicle seat belt that is NOT motorized or anchored to the vehicle door.
  • Page 9 Meijer.com VEHICLE SEATING POSITIONS Diono and the U.S. Department of Transportation warn that children under 12 must ride in the rear seats and away from front airbags. The only exception is if the airbag is turned off. When using a vehicle with airbags, refer to the vehicle owner’s manual for additional booster seat installation instructions and precautions.

  • Page 10: Parts For Assembly & Installation

    Meijer.com Parts for Assembly & Installation Head support adjuster Upper belt guide LATCH adjuster straps Adjuster for seat back width holder LATCH Lower connectors belt guide...

  • Page 11: Booster Seat Assembly

    Meijer.com Booster Seat Assembly ATTACHING THE BACKREST Lay backrest on flat surface with front facing down. Hold seat bottom facing down. Align seat bottom pivot bar at 90 angle with backrest hooks. Push in to attach seat bottom to backrest. Rotate seat bottom downwards and under back rest until a ‘click’...

  • Page 12: Latch Installation

    LATCH anchor locations. WARNING: Unsecured objects can become flying hazards and can cause serious injury in an accident. Diono always recommends utilizing LATCH installation in vehicles equipped with lower anchors. Disengage LATCH connectors from storage slots and lay booster seat on its side.

  • Page 13: Adjusting Recline Angle

    Meijer.com DISENGAGING LATCH INSTALLATION Follow above instructions in reverse: 1) Depress the cam lock lever while pulling child seat away from the vehicle seat back until the LATCH straps are extended all the way. 2) Disconnect LATCH connectors from vehicle anchors. 3) Pull LATCH adjuster straps to recess the LATCH connectors into the back of the booster seat bottom for safe storage.

  • Page 14: Securing The Child

    Meijer.com Securing the Child 1) Make sure booster seat is properly positioned and installed on vehicle seat as per the instructions in pages 12–13. 2) Properly position child: sitting upright and all the way back in the booster seat. 3) Make sure booster seat backrest width is adjusted to narrowest width setting that comfortably fits child (see page 11).

  • Page 15: Seat Belt Buckle Position

    Meijer.com 7) Make sure seat belt is not twisted and lays flat across child’s lap, torso and shoulder. 8) Tighten the seatbelt by pulling the diagonal shoulder belt portion in the direction of the arrows. 9) Confirm seatbelt buckle is in correct position (see below).

  • Page 16: Backless Booster Use

    Meijer.com Backless Booster Seat While this booster seat is designed to offer advanced side- impact protection with its backrest section attached, the seat bottom can also be used alone as a backless booster. 1) Remove seat bottom from backrest section (see page 11). 2) Disengage the two middle elastic straps and unfold padded fabric flap on back of seat bottom.

  • Page 17: Care And Maintenance

    Meijer.com WARNING: If the diagonal seat belt portion does not correctly fit the child, then the seat must only be used with the seatback portion attached and properly adjusted to fit the child. Care & Maintenance CLEANING THE COVER Read all labels attached to cover for washing instructions. Hand wash cover in cold water with mild detergent only.

  • Page 18: Warranty Information

    Meijer.com Warranty Information The manufacturer of this child restraint, Diono LLC, warrants this product only to the original retail purchaser. Visit www.diono.com for complete warranty information and details.
  • Page 19 Making travel safe and easy © Product: Monterey child booster seat Model: 15000 Mfg. by: Diono LLC 418 Valley Avenue NW Puyallup, WA 98371 CUSTOMER SERVICE Tel: 855 GO DIONO Email: us-sales@diono.com diono.com © 2011 Diono LLC. All rights reserved. Monterey US Eng 100411...
