Summary of Contents for Diono Cambria

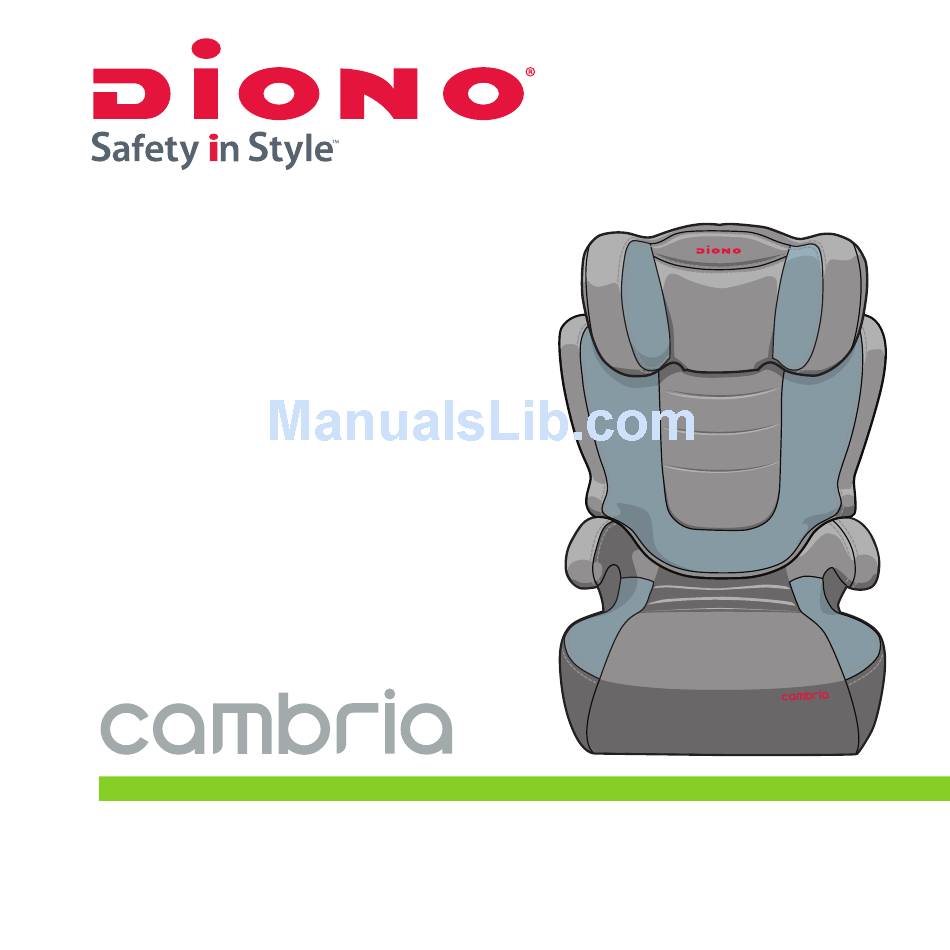

- Page 1 Instruction Manual ENGLISH...
- Page 2 Carefully read and understand this instruction manual prior to using this restraint. If you have any questions visit diono.com or contact Diono LLC. To insure proper long-term use, store this manual under the bottom of the base.
- Page 3 WARNING ! Death or SERIOUS INJURY can occur. • Never leave a child alone in a vehicle, even for a short time. • Always secure this booster seat using vehicle seat belt or LATCH anchors even when not occupied. In a crash, an unsecured item may cause injury to other vehicle occupants. •...
- Page 4 12. IMPORTANT: Children who weigh 40 lbs (18 kg) or less are best protected in a 5-point harness restraint. Diono recommends that children remain in a 5-point harness restraint until reaching the maximum weight or height allowed.
-
Page 5: Safety Information
Diono LLC, 418 Valley Avenue NW, Puyallup, WA 98371, or call 1-855 GO DIONO. For recall information call the U.S. Government’s Vehicle Auto Safety Hotline at 1-888-327-... -
Page 6: Vehicle Seat Belt Systems
Safety Information (continued) VEHICLE SEAT BELT SYSTEMS IMPORTANT: Some vehicles have no seating positions compatible with booster seats. If in doubt, please contact the vehicle manufacturer for assistance. WARNING: ONLY use this booster seat with a 3-point (lap-and-shoulder) vehicle seat belt that is NOT motorized or anchored to the vehicle door. -
Page 7: Vehicle Seating Positions
VEHICLE SEATING POSITIONS Diono and the U.S. Department of Transportation warn that children under 12 must ride in the rear seats and away from front airbags. The only exception is if the airbag is turned off. When using a vehicle with airbags, refer to the vehicle owner’s manual for additional booster seat installation instructions and precautions. -
Page 8: Parts For Assembly & Installation
Parts for Assembly & Installation Head support adjuster Upper belt guide Instruction manual LATCH adjuster straps Lower holder belt guide LATCH connectors... -
Page 9: Booster Seat Assembly
Booster Seat Assembly ATTACHING THE BACKREST • Lay backrest on flat surface with front facing down. Hold seat bottom facing down. Align • seat bottom pivot bar at 90 angle with backrest hooks. Push in to attach seat bottom to backrest. •... -
Page 10: Latch Installation
WARNING: Unsecured objects can become flying hazards and can cause serious injury in an accident. Diono always recommends utilizing LATCH installation in vehicles equipped with lower anchors. Disengage LATCH connectors from storage slots and lay booster seat on its side. -
Page 11: Proper Positioning On Vehicle Seat
DISENGAGING LATCH INSTALLATION Follow above instructions in reverse: 1) Depress the cam lock lever while pulling child seat away from the vehicle seat back until the LATCH straps are extended all the way. 2) Disconnect LATCH connectors from vehicle anchors. 3) Pull LATCH adjuster straps to recess the LATCH connectors into the back of the booster seat bottom for safe storage. -
Page 12: Securing The Child
Securing the Child 1) Make sure booster seat is properly positioned and installed on vehicle seat as per the instructions in page 11. 2) Properly position child: sitting upright and all the way back in the booster seat. 3) Raise the headrest to access upper belt guides. Feed the diagonal portion of the seatbelt through the upper belt guide on the side opposite the seatbelt buckle. -
Page 13: Proper Buckle Position
WARNING: If lap portion and diagonal portion of seatbelt are not positioned correctly, the booster seat is not properly installed: • Diagonal portion of seatbelt should lay over the shoulder and NOT touching the neck. • Lap belt position should be forward and as low as possible over child’s pelvis and contacting the upper thigh. - Page 14 5) Make sure seat belt is not twisted and lays flat across child’s hips, torso and shoulder. 6) Tighten the seatbelt by pulling the diagonal shoulder belt portion in the direction of the arrows. IMPORTANT: Lap belt position should be as far forward and as low as possible over child’s pelvis and contacting upper thighs.
-
Page 15: Removing The Fabric Cover
3) Remove fabric cover pieces from the booster seat sections. ATTACHING THE COVER Follow the above instructions in reverse. Warranty Information The manufacturer of this child restraint, Diono LLC, warrants this product only to the original retail purchaser. Visit www.diono.com for complete warranty information and details. - Page 16 Product: Cambria child booster seat Model: 310000 Mfg. by: Diono LLC 418 Valley Avenue NW Puyallup, WA 98371 CUSTOMER SERVICE Tel: 855.463.4666 Email: dionoUSA@diono.com diono.com Cambria US EN 062014...
