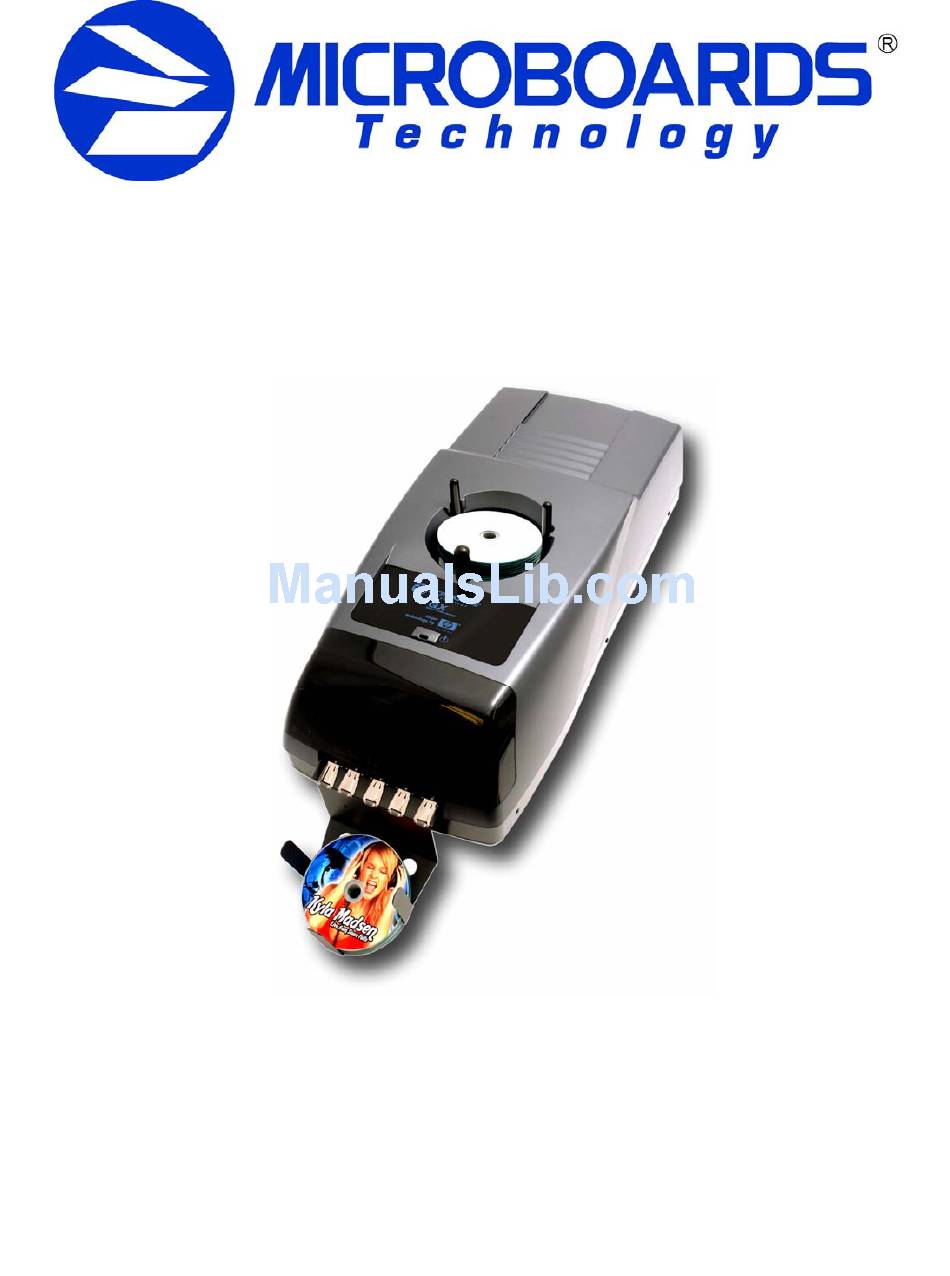

Page 1: Users Manual
GX Auto Printer For Mac OS X Users Manual Microboards Technology LLC Version 1.0... -
Page 3: Table Of Contents
Loading / Replacing Ink Cartridges ..........................7 ........................8 NSTALLATION OF RIVERS AND OFTWARE Driver Installation ................................8 ..............................8 ONNECTING TO A Adding the GX Auto Printer ............................8 SETTING PRINTER ALIGNMENT..........................9 ..................................9 LIGNMENT Print Alignment CD ..............................9 USING THE GX AUTO PRINTER..........................10 ..............................10 REATING ABELS ................................10... -
Page 5: Introduction
GX Auto Printer Introduction The Microboards GX Auto Printer is an auto-loading CD, DVD, and BD disc printer with a 50 disc capacity. Microboards and HP co-developed the printer technology, allowing up to 4800 x 1200 dpi printing. What’s Included When unpacking your GX Auto Printer system, the following items should be included: •... -
Page 6: System Requirements
Remove the GX Auto Printer system from the shipping box and confirm you received all of the items. Place the GX Auto Printer on a stable, flat surface. You will need room both in front and to the left of the system, as discs will be accessed from both locations. -
Page 7: Installing Ink Cartridges
Loading / Replacing Ink Cartridges Cartridges can be changed while the GX Auto Printer is on, but it should never be turned on without an ink cartridge in place. The GX Auto Printer system ships with one Microboards GX-300HC color ink cartridge. -
Page 8: Installation Of Drivers And Software
2. Install a GX-300HC Ink Cartridge (see page 7). 3. Plug in the AC power cord to the back of the GX Auto Printer. Do not turn on power to the GX Auto Printer until an ink cartridge has been installed. -
Page 9: Setting Printer Alignment
These can be found on the label on the back of the GX Auto Printer. You may need to adjust the values, depending on the images you are printing or the media on which you are printing. -
Page 10: Using The Gx Auto Printer
50 discs in the system, as this may cause the discs to feed incorrectly. Printing Discs While the Microboards GX Auto Printer will print from any application, you should always choose the GX Series printer and 120mm disc in the Format For and Paper Size Page Setup selections, respectively. -
Page 11: Microboards Toolbox
GX Auto Printer Microboards Toolbox Access the Toolbox by selecting the System Preferences from the Dock. Select Print & Fax. Highlight the Microboards GX Series icon and click the Utility icon. The Toolbox pages will appear in the following order. Ink Level The Ink Levels show how much remains of all 3 colors, Cyan, Magenta and Yellow. -
Page 12: Clean
Registration webpage. When registering your GX Auto Printer, please be sure you are including the correct serial number, which will be on the back of the GX Auto Printer and on the box product label. This function requires an internet connection. -
Page 13: Troubleshooting
4. Confirm that the Microboards GX-300HC Ink Cartridge is being used. The GX Auto Printer will not function with any other cartridge! Red LED Flashing This indicates an out of media state. Load media and press the OK button on the GX Auto Printer to clear the error state. Disk Loading error 1. -
Page 14: Printing Specifications
Print Quality, Color: up to 4800 x 1200 optimized dpi, with HP PhotoREt Color Technology: HP PhotoREt Memory: 64MB Connectivity: USB 2.0 required Technical Support For technical questions or support issues, please contact Microboards Technology technical support at PH: 952-556-1639, FAX: 952-556-1628, by email at support@microboards.com or on the web at http://www.microboards.com.
