- Page 1 WPM-1 OPERATING MANUAL AND USER GUIDE www.wharfedalepro.com WPM-1 User Manual.indd 2011-1-24 10:29:25...
-
Page 2: Important Warnings & Safety Instructions
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way including but not limited to power supply cord or plug damage, liquid ingress, foreign objects in the chassis, exposure to rain/moisture or impact damage. In addition the unit must be serviced when you experience any abnormal operation. WPM-1 User Manual.indd 2011-1-24 10:29:25... - Page 3 Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use local return and collection systems or contact the retailer where the product was purchased. They can take this product for safe environmentally friendly recycling. WPM-1 User Manual.indd 2011-1-24 10:29:25...
-
Page 4: Table Of Contents
OPERATING MANUAL AND USER GUIDE TABLE OF CONTENTS Important Warnings & Safety Instructions ..........1 Introduction / About the WPM-1 .............. 4 Key Features / Contents ................5 Setup ......................6 Microphone Stand Mounting Procedure ..........7 Wiring Diagrams ..................9 Assembly Diagram ................. -
Page 5: Introduction / About The Wpm-1

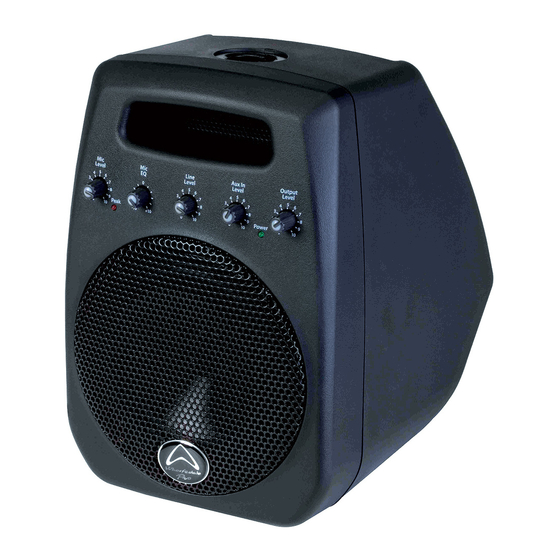

The WPM- also includes an instrument/line level input and mix output, facilitating use as a small format personal mixer with 3 inputs. This versatile interfacing allows the WPM-1 to fit into the widest range of on stage situations. The WPM- uses the same high tech gas-assist injection moulding techniques as used in our famous Titan Series loudspeakers, ensuring road tough reliability and ultra light portability. -
Page 6: Key Features / Contents
Ultra lightweight gas-assist injection moulded enclosure • Dual angle mic stand receptacles and microphone mounting system • IEC receptacle for AC supply CONTENTS • 1x WPM-1 active personal monitoring solution • 1x Stand mount adapter • 1x ⅜” Mic clip / boom arm mounting • 1x ⅝” Mic clip / boom arm mounting • IEC AC power cable WPM-1 User Manual.indd... -
Page 7: Setup
WPM-1 SETUP The WPM- can be used in many different ways to suit the widest range of applications. It’s versatile shape and flexible input/output configurations ensure that the WPM-1 can fit into any situation on stage. The WPM- is effective when fed from a mixing console at larger venues or when used as the overall front of house mixer at small shows. It can be used as a floor based wedge monitor while it is equally at home when mounted at the centre of a microphone stand. -
Page 8: Microphone Stand Mounting Procedure
Place the WPM- onto the stand adaptor. Take care to allow the weight of the WPM-1 to gently rest on the stand adaptor. Before you release the weight of the WPM- make sure that it feels secure and well balanced on the stand. If you do not wish to mount a boom arm and microphone on... - Page 9 When mounting a WPM-1 take steps to ensure that all elements are stable and safe at every step of the setup procedure. If any element feels unbalanced or unsafe revert back to the previous step and ensure that all connections are secure.
-
Page 10: Wiring Diagrams
OPERATING MANUAL AND USER GUIDE WIRING DIAGRAM FOR USE WITH A MIXER To Line Input To Mic Input Mi c Thru to Foldback Mix Mic input on FOH Mixer To PA WPM-1 User Manual.indd 2011-1-24 10:29:46... - Page 11 WPM-1 WIRING DIAGRAM FOR USE AS A MIXER To Mic Input To Inst Input To PA WPM-1 User Manual.indd 2011-1-24 10:30:09...
-
Page 12: Assembly Diagram
OPERATING MANUAL AND USER GUIDE ASSEMBLY DIAGRAM WPM-1 User Manual.indd 2011-1-24 10:30:10... -
Page 13: Mounting Accessories
WPM-1 STAND ADAPTOR Main Section Thread Adaptor ⅝" BOOM ARM MOUNT ADAPTOR ⅜" BOOM ARM MOUNT ADAPTOR WPM-1 User Manual.indd 2011-1-24 10:30:11... -
Page 14: Specifications
Microphone Stand Mounting Bottom Receptacle Boom Arm Mount Receptacle Rubber Base Input/Output Panel Microphone Input Female XLR Microphone Output Male XLR Mic / Line Level Switchable Line / Instrument Input TRS Jack Line / Instrument Output TRS Jack Line / Instrument Level Switchable Aux Input TRS Jack Mix Output TRS Jack Mix Output Pre / Post Switchable Weight 3.5KG Gross Weight 4.9KG WPM-1 User Manual.indd 2011-1-24 10:30:11... -
Page 15: Warranty
