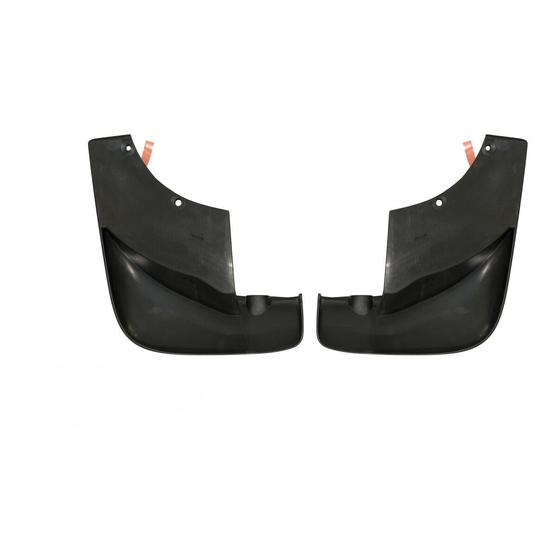

Genuine mud flap (front)
Hide thumbs Also See for CX-9:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Maintenance and Care
GENUINE MUD FLAP (FRONT)
INSTALLATION AND USER'S INSTRUCTIONS
Thank you for purchasing a genuine Mazda accessory.
Before removal and installation, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly install and use the mud flap.
Your safety depends on it.
Keep these instructions with your vehicle records for future reference.
• There are several
safety when installing or removing the mud flap. Always read and follow them in order
to prevent injuries, accidents, and possible damage to the vehicle.
WARNING: Indicates a situation in which serious injury or death could result if
the warning is ignored.
CAUTION : Indicates a situation in which bodily injury or damage to the vehicle
could result if the caution is ignored.
• Do not modify the mud flap.
• Do not install the mud flap in any way other than described in the following instructions.
• If in any doubt, please ask your Mazda dealer to install the accessory in order to
prevent errors in installation.
• If you have any questions about the use of the accessory, ask your Mazda dealer for
proper advice before using it.
• Mazda and its suppliers are not responsible for injuries, accidents, and damage to
persons and property that arise from the failure of the dealer or installer to follow these
instructions.
•
To ensure safety and reliability of the work, installation, removal and disposal work
must carried out by an Authorized Mazda Dealership.
•
Be careful not to lose removed parts, and be sure that they are kept free from
scratches, grease or other dirt.
PART NAME:
PART NUMBER: TD11 V3 450F
VEHICLE:
NOTE
To the dealer
• Please turn over these instructions to the customer after installation.
To the customer
• Keep these instructions after installation. The instructions may be necessary
for installing other optional parts or removal of this accessory.
• Should the vehicle or this accessory be resold, always leave these instructions
with it for the next owner.
WARNING
WARNING and
CAUTION sections in this booklet concerning
MUD FLAP (FRONT)
CX-9
1
KBTD11V3450FX00

Advertisement

loading

Related Manuals for Mazda CX-9

Summary of Contents for Mazda CX-9

  • Page 1 • Do not modify the mud flap. • Do not install the mud flap in any way other than described in the following instructions. • If in any doubt, please ask your Mazda dealer to install the accessory in order to prevent errors in installation.

  • Page 2: Parts List

    1. PARTS ▼ Installation view Mud flap (Front) ▼ Parts list NOTE • Before installation, verify that the kit includes all the following parts and that they are free of dirt, scratches, or damage. Part Part name Part number Mud flap (Front) １...

  • Page 3: Before Installation

    2．BEFORE INSTALLATION REQUIRED TOOLS ☆Screwdriver (Phillips) ☆Torque wrench ☆Soft clean cloth ☆Nipper ☆Jack ☆Protective sheet ☆Isopropyl alcohol (IPA) ☆Primer WARNING • Park the vehicle on a flat, level surface, set the selector lever to P (AT vehicles), apply the parking brake and block the wheels so that the vehicle does not move during installation.
  • Page 4 3．MUD FLAP (FRONT) INSTALLATION NOTE • The figure shows the left side, however, perform the same procedure for the right side. １． Use a soft cloth dampened with IPA (isopropyl alcohol) to clean the surface of the vehicle where the mud flap (front) is to be installed.
  • Page 5 ４． Temporarily tighten the kit bolts (2). Remove tape backing ５． Remove the double-sided adhesive tape backings from the mud Mad flap (Front) flap (front) and affix securely. CAUTION • Do not separate the taped areas once the tape has Over fender adhered, otherwise the subsequent adhesion performance will be greatly reduced.

  • Page 6: Confirmation After Installation

    4．CONFIRMATION AFTER INSTALLATION １． Be sure that here are no excessive gaps. • If there are any gaps, loosen all the bolts and then retighten them in the order of top, middle, and bottom while pressing the mud flap (front) against the vehicle. 2．Be sure that all bolts are securely tightened.
  • Page 7 INSTALLATION CX-9 MUD FLAP (FRONT) INSPECTION TD11 V3 450F SHEET Inspection after installation • Inspect the installed / reinstalled parts for the following items. Check Item （○） Inspection Parts Installation / Fastener, bolt Clearance/Fit Scratches / Dirt Engagement tightening Mud flap (Front) ○...
