Summary of Contents for Homelite BACKPACKER II UT08072
Page 1

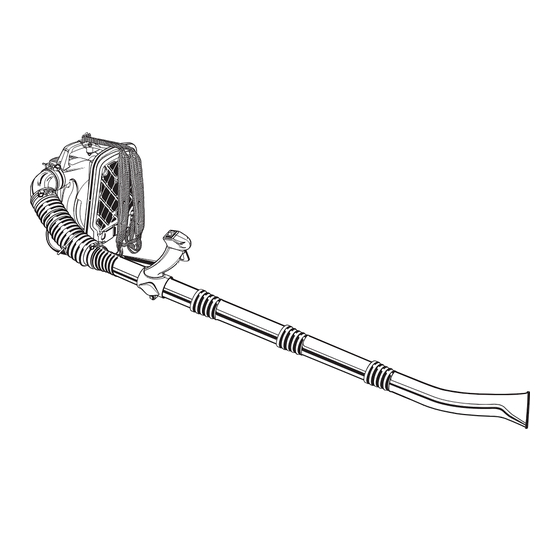

OPERATOR’S MANUAL BACKPACKER II UT08072 and UT08572 Your blower has been engineered and manufactured to Homelite’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
n Introduction ... 2 n General Safety Rules ... 3 n Specific Safety Rules... 3 n Symbols... 4-5 n Features... 6-7 n Assembly ... 7-9 n Operation... 10-12 n Maintenance ... 12-13 n Accessories ... 13 n Troubleshooting ... 14 n Warranty ...
Always disconnect the spark plug before performing maintenance or accessing any movable parts. n Do not point the blower nozzle in the direction of people or pets. n Never run the unit without the proper equipment attached. Always ensure the blower tubes are installed.
SYMBOL NAME Safety Alert Read The Operator’s Manual Eye and Hearing Protection Blower Tubes Long Hair Loose Clothing Gasoline and Oil SYMBOLS DESIGNATION/EXPLANATION Precautions that involve your safety.
The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL DANGER: WARNING: CAUTION: CAUTION: SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair.
2-Cycle Engine Oil Operator’s Manual FEATURES THROTTLE TRIGGER The blower can be operated at any speed between idle and full throttle. TRIGGER LOCK The trigger lock feature is used for easier starting and also allows the user to operate the blower without holding the throttle trigger.
Page 8
NOTE: The position of the throttle control handle may be adjusted for the best comfort after the blower is strapped onto the operator’s back. n Place small clamp on the bottom end of the bellows and install the upper tube onto the bellows;...
Page 9
Harness straps should be adjusted to a comfortable position before starting the blower. To adjust the harness straps: n Blower should be in operating position before adjusting the harness straps. Slip arm through harness strap and onto shoulder, then repeat for the other shoulder.
WARNING: Do not allow familiarity with tools to make you care- less. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING: Always wear safety goggles or safety glasses with side shields when operating this tool. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
TO REMOVE BLOWER: n Move harness straps off your shoulders and let straps slide down arms. n Grasp the straps and lower the blower to the ground. WARNING Do not allow familiarity with the product to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury.
Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away. WARNING: When servicing, use only identical Homelite replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING:...
Drain all fuel from the tank into a container approved for gasoline. Run engine until it stops. n Clean all foreign material from the blower. Store it in a well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts.
IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM CONTACT YOUR AUTHORIZED SERVICING DEALER. PROBLEM POSSIBLE CAUSE Engine will not start. 1. No spark. 2. No fuel. 3. Starter rope pulls harder now than when new. Engine starts but will Carburetor requires “L” (Low jet) not accelerate.
LIMITED WARRANTY STATEMENT Homelite Consumer Products, Inc. warrants to the original retail purchaser that this HOMELITE product is free from defect in material and workmanship and agrees to repair or replace, at Homelite Consumer Products, Inc.’s discretion, any defective product free of charge within these time periods from the date of purchase.
Page 16
Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts, and must be provided free of charge to the owner if the part is still under warranty. Homelite Consumer Products, Inc.
Page 17
5 Hours Every 25 Hours or Yearly CALL US FIRST For any questions about operating or maintaining your product, call the Homelite Your product has been fully tested prior to shipment to ensure your complete satisfaction. Clean Every Replace Every...
CALIFORNIA PROPOSITION 65 SERVICE For parts or service, contact your nearest Homelite authorized service dealer. Be sure to provide all relevant information when you call or visit. For the location of the authorized service dealer nearest you, please call 1-800-242-4672 or visit us online at www.homelite.com.
