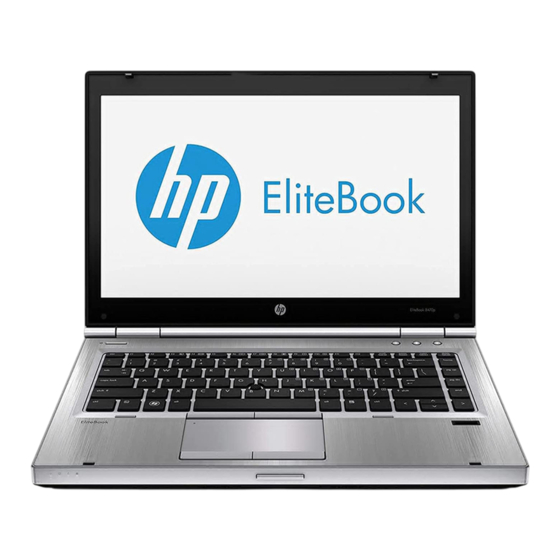

HP EliteBook 8470w Quickspecs

Mobile workstation
Hide thumbs Also See for EliteBook 8470w:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, Technical White Paper
QuickSpecs
Overview
1.
WLAN antennas (3)
2.
WWAN antennas
3.
Dual-microphone array
4.
Webcam light
5.
Optional 720p HD webcam
6.
HP Night Light on/off button
7.
HP Night Light
8.
Wireless on/off button with LED indicator
9.
Web browser launch button with LED indicator
10.
Volume mute button with LED indicator
11.
Pointstick
12.
HP Fingerprint Sensor
13.
Pointstick pick buttons
14.
Touchpad on/off button with LED indicator
15.
Touchpad with scroll zone
16.
Display release latch
DA - 14305 Worldwide — Version 13 — May 8, 2013
HP EliteBook 8470w Mobile Workstation
17.
Touchpad pick buttons
18.
Stereo speakers (see bottom view)
19.
Hard drive activity / HP 3D DriveGuard LED indicator
20.
Battery charging LED indicator
21.
Power/standby LED indicator
22.
Wireless on/off LED indicator
23.
ExpressCard/54 slot
Upgrade Bay (optical drive, second hard drive or weight
24.
saver)
25.
Secure Digital slot
26.
(2) USB 3.0 ports
27.
1394a port
28.
Power connector
29.
Power button with LED indicator
30.
Volume down function key
31.
Volume up function key
32.
HP Power Assistant function key
Page 1

Advertisement

loading

Related Manuals for HP EliteBook 8470w

Summary of Contents for HP EliteBook 8470w

  • Page 1 WLAN antennas (3) Touchpad pick buttons WWAN antennas Stereo speakers (see bottom view) Dual-microphone array Hard drive activity / HP 3D DriveGuard LED indicator Webcam light Battery charging LED indicator Optional 720p HD webcam Power/standby LED indicator HP Night Light on/off button...
  • Page 2 QuickSpecs HP EliteBook 8470w Mobile Workstation Overview Stereo headphone/line out Vents Stereo microphone/line in Security lock slot Integrated Smart Card reader RJ-11/modem port eSATA/USB 2.0 combo port VGA/external monitor connector (1) USB 2.0 charging port RJ-45/Ethernet port DisplayPort DA - 14305 Worldwide — Version 13 — May 8, 2013...
  • Page 3 QuickSpecs HP EliteBook 8470w Mobile Workstation Overview Battery release latch Vents Docking connector Speakers Bottom cover release latch Spill-resistant keyboard drain hole SIM slot* for WWAN (select models) Bluetooth module compartment under bottom cover Battery bay Hard drive, memory, and wireless compartments Secondary battery connector * SIM slot is accessed through battery bay.
  • Page 4 HP Peak Power Manager (web download) and HP Power Assistant (Windows 7 only) allows you to conserve power, stretch battery run-time, accurately monitor the energy usage of the PC and up to four select HP external monitors, and report workforce power consumption.

  • Page 5: Operating System

    QuickSpecs HP EliteBook 8470w Mobile Workstation Features OPERATING SYSTEM Preinstalled Windows 8 Pro 64* Windows 7 Professional (available through downgrade rights from Windows 8 Pro)** Windows 8 64* Windows 7 Professional 32*** Windows 7 Professional 64*** Windows 7 Home Premium 64***...
  • Page 6 EliteBook 8470w supports up to five screens. NOTE: To use AMD's Eyefinity multi-head solution with HPs Advanced Docking Station, it is recommended to use an HP Performance DisplayPort display when connecting more than 2 displays. DVI displays can be substituted when used in conjunction with an approved active DP to DVI dongle.

  • Page 7: Flash Cache Module

    Port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz DVI-D (single link) Video signal available through DVI port in optional HP Docking Station (sold separately) supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.

  • Page 8: Optical Drives

    Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. With Windows Starter 32- bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.
  • Page 9 Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, function keys, and 19.05 x 19.05 mm key pitch (center-to-center spacing).
  • Page 10 See the latest list of certifications at http://www.hp.com/united-states/campaigns/workstations/partnerships.html * HP Peak Power Manager replaces HP Power Assistant for both Win7 and Win8. HP Peak Power Manager will be available on the web for download for existing product owners ** PDF Complete Special Edition 60 day trial; purchase license afterwards for full functionality.
  • Page 11 Optional HP Privacy Filter – Narrows viewing area so that screen data is visible only to persons directly in front of the monitor. Computrace* Pro for HP ProtectTools with GPS Tracking - Subscription based security solution providing the ability to track, initiate physical recovery, conduct asset management, and perform remote data delete by utilizing GPS technology.
  • Page 12 Up to 30 days * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the 9-cell primary battery, HP ST09 Extended Life Notebook Battery, or HP BB09 Ultra Extended Life Notebook Battery.

  • Page 13: Weights And Dimensions

    Features ENVIRONMENTAL US Energy Star IT ECO Declaration EPEAT - Gold where HP registers commercial notebook products. See http://www.epeat.net for registration status in your country. NOTE: This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks.

  • Page 14: Service And Support

    On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.

  • Page 15: System Unit

    BSMI CE Marking Compliance * Configurations of the HP EliteBook 8470w that are ENERGY STAR qualified are identified as HP EliteBook 8470w ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net for registration status by country.
  • Page 16 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications DISPLAY 14.0-inch LED HD (1366 x Dimensions (W x H) 12.74 x 7.56 in (32.4 x 19.2 cm) 768) anti-glare Diagonal Size 14.0 in (35.6 cm) Surface Treatment Anti-glare Contrast Ratio 400:1 (typical)
  • Page 17 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications 750 GB 7200 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 750 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 18 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications 500 GB 7200 rpm SMART Drive Weight 0.25 lbs (115g) SATA II Self Encrypting Capacity 500 GB Drive Height 0.37 in (9.5 mm) Width 2.50 in (63.5 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s...
  • Page 19 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications SATA 6 Gb/s 256 GB, 2.5- Drive Weight 73 Grams inch SATA SED Solid State Capacity 256 GB Drive Height 0.276 in (7 mm) Width 2.76 in (70 mm) Interface SATA 3 (6 Gb/s)
  • Page 20 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications DVD-ROM Drive Access Times Random < 140 ms CD (typical) < 160 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM 8X-DVD Transfer Mode UDMA Mode 5 Interface Gen 1 SATA Supported Media (read)
  • Page 21 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications Blu-ray ROM DVD+/-RW Access Times Random <190 ms CD-ROM (typical) SuperMulti DL Drive < 180ms DVD-ROM (typical) <230 ms BD-ROM (typical) Max Data Transfer Rate 24X CD-ROM 8X DVD-ROM 24X CD-R 16X CD-RW...
  • Page 22 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications Blu-ray R/RE DVD+/-RW Access Times Random <165 ms CD-ROM (typical) SuperMulti DL Drive <185 ms DVD-ROM (typical) <205 ms BD-ROM (typical) Max Data Transfer Rate 24X CD-ROM 8X DVD-ROM 24X CD-R 16X CD-RW...
  • Page 23 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications HP Fingerprint Sensor Mobile Voltage Operation 3.0V-3.6V Single Supply Operating Temperature 32° - 158°F (0° - 70°C) Current Consumption @ Less than 70 mA peak imaging and scrolling Less than 25 mA hardware finger detection 3.3V...
  • Page 24 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications NIC Device Driver Name Intel 82579LM/82579V Ethernet Network Connection V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...
  • Page 25 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications HP un2430 Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) EV-DO/HSPA Mobile Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz Broadband Module (UTRA FDD Band II), AWS (UTRA FDD Band IV), 900MHz(UTRA FDD Band VIII),...
  • Page 26 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications HP hs2350 HSPA+ Mobile Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) Broadband Module Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900Mhz (UTRA FDD Band II), 900Mhz(UTRA FDD Band VIII), 850 MHz (UTRA FDD Band V)
  • Page 27 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications LED Activity LED Off - Radio Off; Solid LED On - Radio On HP lt2522 LTE/EV-DO Technology/Operating CDMA/1xRTT/EvDO: 800MHz (Cell), 1900MHz (PCS) GSM/GPRS/EDGE: 850MHz (Cell), 900MHz (EGSM), 1800MHz (DCS), 1900MHz Mobile Broadband Module...
  • Page 28 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications Humidity, Non-operating 85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing) LED Activity LED Off - Radio Off; Solid LED On - Radio On HP lt2523 LTE/HSPA+ Technology/Operating GSM/GPRS/EDGE: 850MHz (Cell), 900MHz (EGSM), 1800MHz (DCS), 1900MHz...
  • Page 29 6205 (2x2) IEEE 802.11g IEEE 802.11n Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 7, Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz and 5GHz Antenna Structure 2 transmit; 2 receive (2x2) Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps...
  • Page 30 6300 IEEE 802.11g IEEE 802.11n Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 7, Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz and 5GHz Antenna Structure 3 transmit; 3 receive (3x3) Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps...
  • Page 31 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between Access Points Output Power (for CCK and...
  • Page 32 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135, 162, 216, 243, 270, 300 Mbps...
  • Page 33 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications 2. Maximum output power may vary by country according to local regulations. 3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
  • Page 34 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications HP 90W Smart AC Adapter Dimensions 5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm) Weight 0.82 lb (370 g) Input 100 to 240 VAC Input Efficiency 87% min at 115 VAC...
  • Page 35 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications 6-Cell (62 WHr) Lithium- Dimensions (H x W x L) 0.8 x 2.0 x 8.3 in (2.0 x 5.1 x 21.1 cm) Ion battery Weight (max) 0.72 lb (0.325 kg) Cells/Type 6-cell Lithium-Ion...
  • Page 36 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications Optional HP BB09 Ultra Dimensions (H x W x L) 1.2 x 5.9 x 11.4 in (3x15x29cm) Extended Life Notebook Weight (max) 1.5lb, (.682kg) Battery (secondary Cells/Type Lithium-Ion battery) Energy Voltage 11.25V Amp-hour capacity 8.85Ah...
  • Page 37 US Energy Star ® IT ECO declaration EPEAT Gold where HP registers commercial desktop products. See http://www.epeat.net for registration status in your country US Federal Energy Management Program (FEMP)
  • Page 38 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
  • Page 39 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
  • Page 40 QuickSpecs HP EliteBook 8470w Mobile Workstation Technical Specifications http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html DA - 14305 Worldwide — Version 13 — May 8, 2013 Page 40...
  • Page 41 HP 90W Smart AC/Auto/Air Combo Adapter ED493AA Storage - External HP Mobile USB DVDRW A2U57AA Storage HP 2011 BNB Notebook Upgrade Bay 500 GB Hard Drive LX733AA HP 2011 BNB Notebook Upgrade Bay DL DVD+/-RW LZ835AA Batteries HP ST09 Extended Life Notebook Battery...
  • Page 42 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
