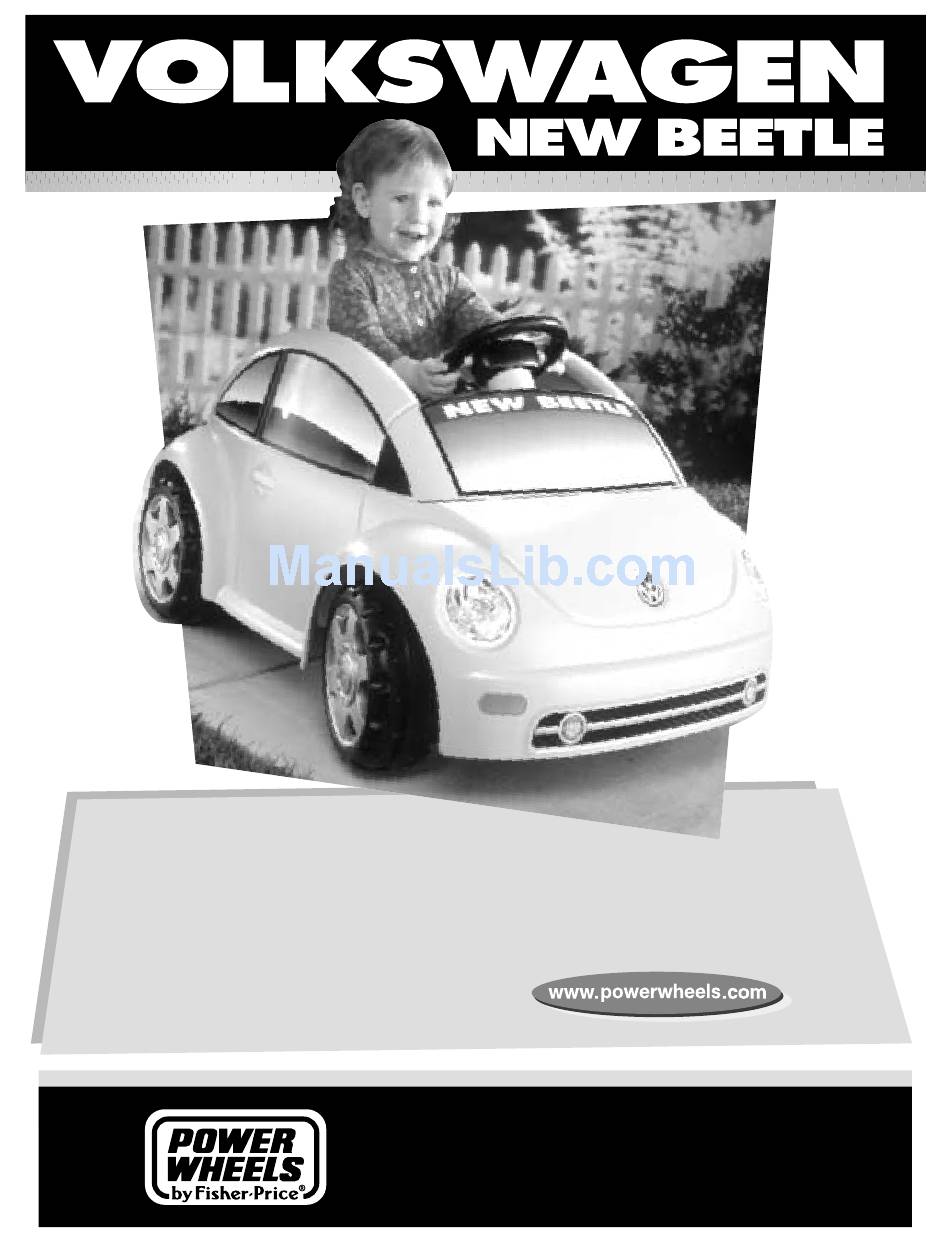

Product features and decoration may vary from the picture above.
Please read this manual and save it with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver, Hammer, Slotted Screwdriver,
Adjustable Wrench and Safety Scissors (tools not included).
Use only with a Power Wheels
®
Type H 6 Volt Battery, Power Wheels
®
25 Amp Fuse and Power Wheels
®
Type H 6 Volt Charger (all included).
Trademarks, design patents and copyrights are used with
the approval of the owner VOLKSWAGEN AG.
Fisher-Price, Power Wheels, Power Wheels by Fisher-Price
and Power Lock are U.S. trademarks of Mattel, Inc.
Owner's Manual
with Assembly Instructions
For Model B1512
Advertisement
Table of Contents
Related Manuals for Power Wheels Volkswagen New Beetle B1512
Summary of Contents for Power Wheels Volkswagen New Beetle B1512
- Page 1 Tools needed for assembly: Phillips Screwdriver, Hammer, Slotted Screwdriver, Adjustable Wrench and Safety Scissors (tools not included). Use only with a Power Wheels ® Type H 6 Volt Battery, Power Wheels ® 25 Amp Fuse and Power Wheels ® Type H 6 Volt Charger (all included).
-
Page 2: Table Of Contents
• You must charge your battery for 18 - 30 hours before you use your vehicle for the first time. We recommend that • If you have any questions about your Power Wheels ® you start charging your battery before beginning assembly. -
Page 3: Warnings And Cautions
WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery clamp. • PREVENT FIRE - Do not bypass a Power Wheels ® fuse. It is a safety device. - Use only a Power Wheels ®... -
Page 4: Parts
Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. - Page 5 Parts *Note: For your convenience, an extra 25 amp fuse is included. Rear Axle 6 Volt Battery (Located in cardboard box inside battery compartment.) Steering Column Front Wheel Front Axle - 2 Traction Band - 2 Driver 6 Volt Charger (Located in cardboard box 25 Amp Fuse - 1* inside battery compartment.)
- Page 6 Parts *Note: For your convenience, an extra .437 white cap nut, .354 black cap nut and lock washer are included. #6 x " Screw - 5 .437 (Large) White Cap Nut – 2* #6 x 1" Screw - 2 " x 1 "...
-
Page 7: Parts Diagram
Parts Diagram Right Rear Wheel Assembly Note: Some parts shown are assembled on both sides of the vehicle. Vehicle Body Hubcap - 4 6 Volt Charger Seat Hubcap Cover - 4 6 Volt Battery Door Hex Bushing - 2 Steering Bracket Wheel - 4 Round Bushing - 6 Front Wheel Traction Band - 2... -
Page 8: Battery Charging
Always use battery clamp. • PREVENT FIRE Important Notes - Do not bypass a Power Wheels ® fuse. • Your new battery must be charged for at least 18 hours It is a safety device. -
Page 9: Battery Charging
Battery Charging IMPORTANT! The battery must be removed from your vehicle for the initial charge in order to complete assembly. After assembly is complete, you do not need to remove the battery from your vehicle to recharge it. Seat Lock Fasteners Cardboard Box Containing Battery and Battery Charger... - Page 10 Battery Charging 25 Amp Fuse • Insert a Power Wheels ® 25 amp fuse into the battery. Note: The top of the fuse will not be flush with the top of the • Plug the charger into a standard 120 volt wall outlet.
-
Page 11: Assembly
Assembly WARNING Gearbox Teeth Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical Large items. Care should be taken in unpacking Opening and assembly of the vehicle. Children should not handle parts, including the Hole Round battery, or help in assembly of the vehicle. - Page 12 Assembly Smooth Surface Ribs Lock Washer Rounded Side UP Assembly Tool with Lock Washer Inside Hubcap Inside of Wheel Outside of Wheel • Identify the inside and the outside of a wheel. • The inside of the wheel has ribs on its surface. The outside Rectangular of the wheel has a smooth surface.
- Page 13 Assembly Base Rear Wheel Well Driver Grooves Rectangular Bushing Rectangular Bushing Round Rear Axle Bushing Spacer Large Washer Outside of Wheel Small Barrel Side Hole Hubcap • Fit another wheel (with a round bushing inserted) onto the Rear Axle end of the rear axle. Make sure the outside of the wheel Assembly (smooth side) faces out and the ribs on the inside of the Round Bushing...
- Page 14 Assembly Lock Washer Assembly Tool Rounded Side UP with Lock Rear Washer Inside Axle Door • Insert eight #8 x " screws into the door, as shown. Bottom View • Tighten the screws with a Phillips screwdriver. Do not over-tighten. •...
- Page 15 Assembly Windshield Hinge Fold around back edge of windshield Inset Back Edge of Windshield Dotted Line Windshield Label 2 • Turn the windshield face down on a flat surface. • Cut label 2 from the large label sheet. • Fit the windshield hinge to the •...
- Page 16 Assembly B Marking A Marking Large Large Washer Washer Front Front Inset Inset Axle Axle Steering Inset Linkage Cover B Marking A Marking Steering Linkage Steering Bottom View Curve Linkage TOWARD Cover Front Large Hole Washer • Slide a large washer onto the short end of each front axle.
- Page 17 Assembly Steering Linkage Assembly Front Axle (Smooth Side Up) Large Washer Inset Bottom View • Fit a large washer onto a front axle. Smooth Surface Ribs Notch Bottom View • Turn the steering assembly over, with the smooth side up. Notch •...
- Page 18 Assembly Outside of Wheel Notches Notches Hubcap Front Axle Front Wheel Traction Band Wheel Small Hole Ridges Ridges • Fit the wheel (with a round bushing and hex bushing inserted) onto the end of the front axle. Make sure the outside of the wheel (smooth side) faces out.
- Page 19 Assembly Steering Wheel Right Spoke Left Spoke Hubcap Label 19 Label 18 Slots Inset Bottom Hubcap Spoke Cover Label 20 • Cut the steering wheel labels (#18, #19 and #20) from the larger label sheet. Now, position the steering wheel labels, as shown in the illustration, around the steering wheel.
- Page 20 Assembly Steering Linkage .354 Cap Nut Steering Bracket Steering Inset Column 2nd Bend Cap Nut Steering Steering Column Bracket Bottom View • Fit a .354 black cap nut onto the end of the steering column. • Tap the cap nut with a hammer to secure it on the •...
- Page 21 Assembly Seat #10 x " Lock Trusshead Fastener Screw Tabs Lock Nut Inset Lock Nut Bottom View • Insert a #10 x " trusshead screw through the front end of the vehicle Screw body and through the hole in the bracket. •...
-
Page 22: Label Decoration
Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •... - Page 23 Label Decoration Front / Left Side View Rear View...
-
Page 24: Battery Installation
Battery Installation IMPORTANT! Use only a Power Wheels Type H 6 volt battery ® with a Power Wheels 25 Amp fuse installed. Use of any other ® battery or fuse will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed... - Page 25 Battery Installation Motor Harness Battery Seat Connector Connector Lock Fastener Tabs Slots Slots • Plug the battery connector into the motor harness connector. Note: If the battery connector will not plug into the motor harness connector, turn it over and try again! Do not force the battery connector into the motor harness connector.
-
Page 26: Battery Care And Disposal
• Charge a new battery for at least 18 hours before first use. • Return exhausted batteries to a federal or state approved Never charge the battery longer than 30 hours. lead-acid battery recycler, such as a Power Wheels ® Overcharging or undercharging the battery may authorized service center, or a local seller of automotive shorten battery life and decrease vehicle running time. -
Page 27: Rules For Safe Driving
Rules for Safe Driving RIDING HAZARD 7. Do not allow your child to drive on sloped or inclined WARNING surfaces. Restrict your child’s driving to generally level ground ONLY! 8. Do not allow your child to drive down or across a Prevent Injuries and Deaths steep slope. -
Page 28: How To Operate Your Vehicle
Evidence of any attempt at consumer repair will void this to move forward. warranty. THIS WARRANTY DOES NOT COVER, AND IS INTENDED TO EXCLUDE, ANY LIABILITY ON THE PART OF POWER WHEELS ® • Press the FORWARD button below the seat. -
Page 29: M Statement Of Limited Warranty
If you still experience a problem, please contact Power Wheels Consumer Relations, toll-free at ® 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels ® authorized service center. For the location nearest you, please refer to the Authorized Service Center list beginning on page 32. -
Page 30: Problems And Solutions Guide
25 amp fuse installed before charging. Do not substitute parts. Blown fuse Make sure that the fuse in the battery is in good condition. Replace a blown fuse with a Power Wheels ® 25 amp fuse. Do not substitute parts. Vehicle is overloaded... - Page 31 If, after reviewing the Problems and Solutions Guide, the vehicle still fails to operate, please contact your nearest authorized service center or contact Power Wheels ® Consumer Relations toll-free at 1-800-348-0751.
-
Page 32: Authorized Service Centers
We are continually expanding our Authorized Service Center Network. Please check this listing for the independently owned and operated Authorized Service Center nearest you. If there is not one in your area, please call Power Wheels ® Consumer Relations at 1-800-348-0751. - Page 33 Authorized Service Centers INDIANA NEW ORLEANS (METAIRIE) - Le Jouet, Inc., ROYAL OAK- McNichols Electric Service, 1700 Airline Hwy., 70001, (504) 837-0533 4115 Thirteen Mile Road, 48072, (248) 288-5135 EVANSVILLE - Electro Hygiene Co., 1614 S Kentucky, 47714, (812) 425-2671 SHREVEPORT - Shreveport Shaver and Appliance, TRAVERSE CITY- Gil-Roy's Hardware, 9750 St.
- Page 34 Authorized Service Centers NEW MEXICO CLEVELAND (MENTOR) - Lake Erie Lawn & Garden, SHAMOKIN DAM - Willard Battery Outlet, 7833 Munson Rd., 44060, (216) 257-9000 138 S. Old Trail, 17876, (570) 743-5383 ALBUQUERQUE - Appliance Service Center, 3219 Candelaria, NE, 87107, (505) 265-7774 CLEVELAND (PARMA) - Majors Appliance, SHIPPENVILLE - Battery Warehouse, 11041 Rt 322 5785 Ridge Road, 44129, (216) 884-7200...
- Page 35 Authorized Service Centers LONGVIEW - Foster’s, 3315 Gilmer Road, 75604, WEST VIRGINIA VIRGINIA (903) 759-3939 BECKLEY - Jerry’s Detectors, Vacuum & Appl. Svc., ALEXANDRIA - D & S Repair Service, 20 South Dove LUBBOCK - Minter’s, 4409 50th Street, 79414, 411 Second Street.
- Page 36 Authorized Service Center list in this manual. ©2001 Mattel, Inc. All Rights Reserved. Fisher-Price and Power Wheels by Fisher-Price are U.S. trademarks of Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. Printed in Mexico...
