Electro-Voice MA-1212 Specifications

MA-1212 - Electrovoice
MA-1212

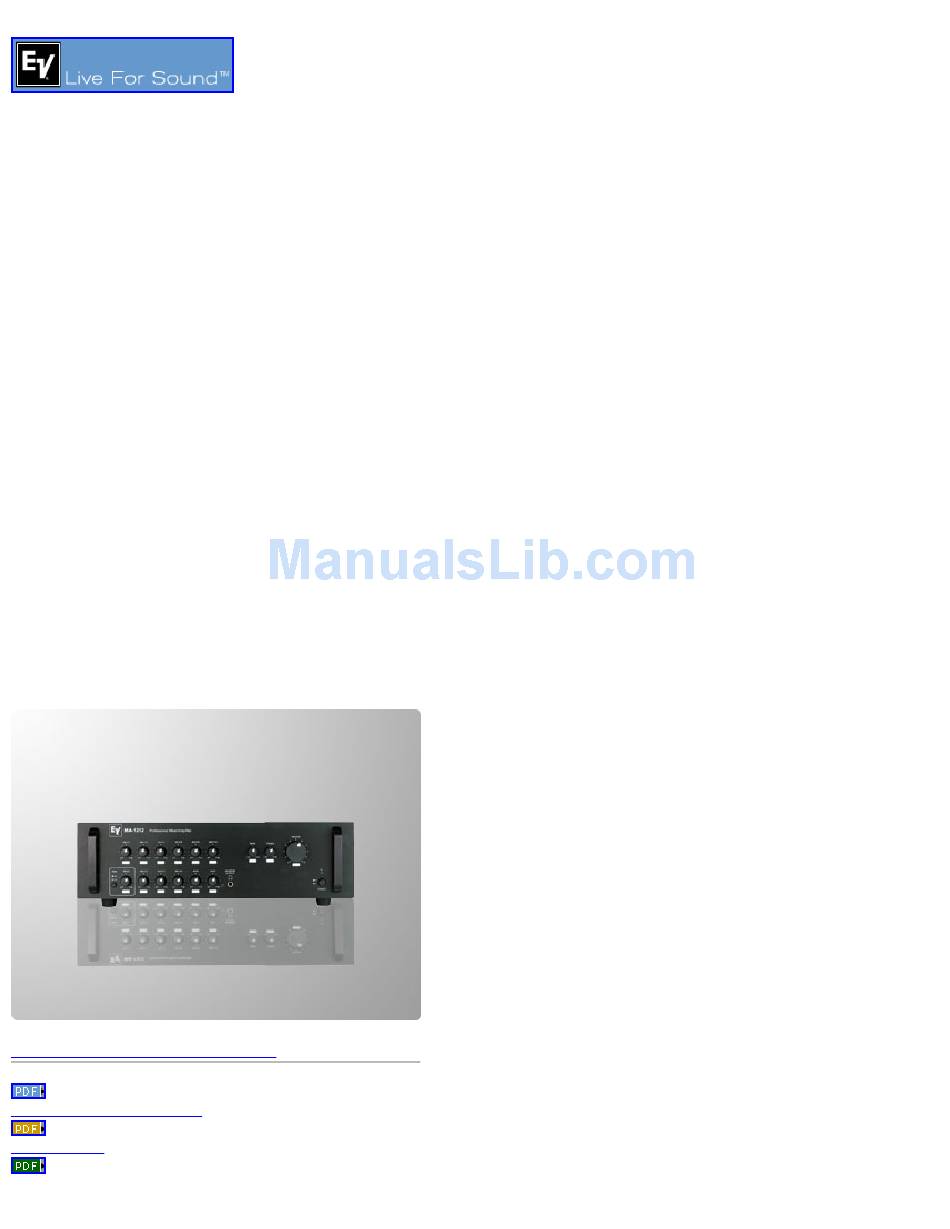

MA-1212 Commercial Mixer Paging Amplifier
The MA-1200 series of professional rackmount mixer/amplifiers are designed for larger background music/
paging and public address system installations where expandibility and flexibility is the ticket. These new units
are exceptional values, loaded with features and are easy to install in a variety of system designs.
The MA1212 features 10 balanced mic or line inputs all available with 24v phantom power and 2 auxiliary
stereo summing inputs with 4 level sensitivity adjustment. 120 watts of amplifier power is available either
into 70/100v or 4 ohm loads. Also included is a balanced line level output for adding additional power
amplifiers. The unit also features 24 volt powered operation for emergency power requirements. An
adjustable level telephone paging input along with a independently adjustable low power monitor output
are included. Integrated rack ears allow for rack mounting without additional accessories.

Specifications

Continuous rated power (1k Hz, THD 1%) 4Ω 120 Watts
Electronics Type
Total harmonic distortion
Intermodulation Distortion (SMTPE)
Signal-to-noise ratio (A–weighted)
Input Impedance (balanced)
Input Sensitivity
Weight Net
Dimensions (HxWxD)
Related Press Releases
TENNESSEE CHURCH STEPS UP TO EV
MA1206/1212 Users Manual
MA-1212 EDS
http://www.electrovoice.com/products/70.html (1 of 2) [11/12/2007 1:52:46 PM]
Amplifier
< 0.5 %
< 0.5 %
> 90 dB
47 kΩ
.75mV
12.7 kg ( 28 lbs )
132.5 x 483 x 320 mm
(5.22" x 19.02" x 12.6")
