Compaq TFT5010 User Manual

Flat panel monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

U
'
G
SER
S
UIDE

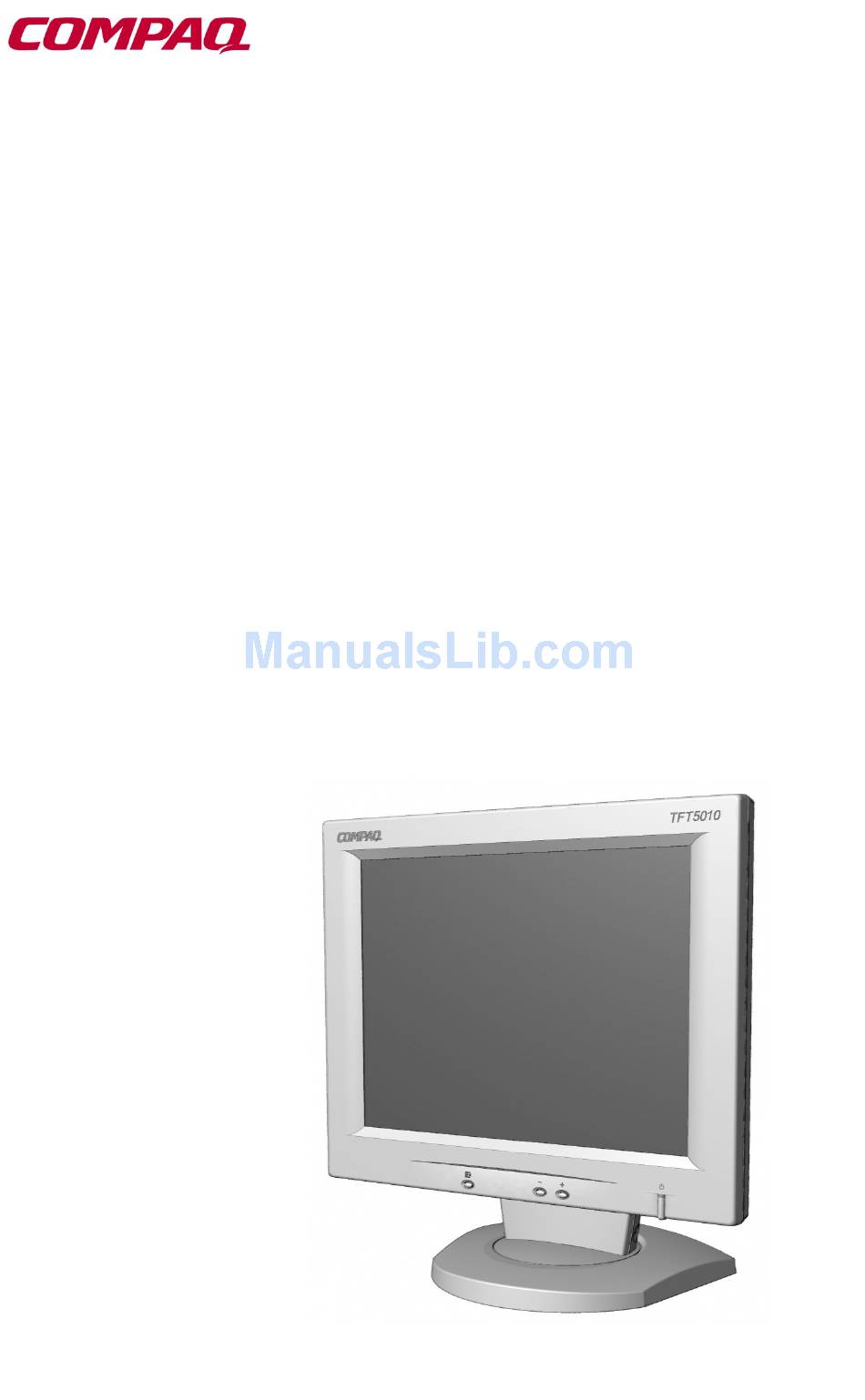

Compaq TFT5010 Flat Panel Monitor

Advertisement

Table of Contents
loading

Related Manuals for Compaq TFT5010

Summary of Contents for Compaq TFT5010

  • Page 1 ’ UIDE Compaq TFT5010 Flat Panel Monitor...
  • Page 2 Compaq Computer Corporation. 1999 Compaq Computer Corporation. All rights reserved. Compaq and Deskpro are registered in the U. S. Patent and Trademark Office. Microsoft, MS-DOS, Windows, Windows NT, and other names of Microsoft products referenced herein are trademarks or registered trademarks of Microsoft Corporation.

  • Page 3: Product Features

    English Product Features The Compaq TFT5010 Flat Panel Monitor has an active matrix, thin- film transistor (TFT), liquid crystal display (LCD). The monitor features include: 15-inch (38.1-cm) viewable area display 1024 × 768 resolution, plus full-screen support for lower resolutions...
  • Page 4 The resulting solution enables customers to manage and control ongoing software maintenance costs. The UDM is available on the Compaq Support Software CD for Compaq Desktop, Portable, and Workstation Products and the Compaq World Wide Web site (www.compaq.com).
  • Page 5 Setting Up the Monitor To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow these steps: 1. Place the monitor in a convenient, well-ventilated location near your computer. 2.
  • Page 6 Agreement packet. IMPORTANT: Always activate a screen saver program, the program- mable sleep timer, the Compaq Display LiteSaver utility, or turn off the monitor when it is not in use for a prolonged period of time. All LCD monitors that display the same static image on the screen for a prolonged period of time may exhibit screen image retention.
  • Page 7 Connecting the DVI-D Cable To connect the DVI-D (Digital Visual Interface-Digital) cable to the DVI-I (Digital Visual Interface-Integrated) connector on the back of the monitor, you must first remove the monitor base cover and the monitor back panel and disconnect the DVI-I connector. Before beginning to disassemble the monitor, be CAUTION: sure the monitor is turned off and the power and signal...
  • Page 8 4. Connect the DVI-D cable to the DVI-I connector 1 on the back panel of the monitor by threading the cable through the neck yoke on the monitor base to the DVI-I connector, then connect the other end of the cable 2 to the DVI connector on the back panel of the computer.
  • Page 9 5. Replace the monitor back panel and monitor base cover. 6. Reconnect the power cable and power on the monitor and computer. The DVI connector on this monitor uses digital video information to provide higher speed for higher display resolution. The results are more precise video displays without manually adjusting screen display quality.
  • Page 10 Adding a Compaq Powered USB Hub The monitor base is designed to house an optional Compaq Powered USB hub. The Compaq Powered USB hub is not included with the monitor. It is sold separately. For information on purchasing the Compaq Powered USB hub (part no. 138638-xxx), call your Compaq authorized dealer, seller, or reseller.
  • Page 11 Removing the Monitor Base Before you can mount the monitor onto a swing arm or other mounting fixture, you must remove the monitor from the base. Before beginning to disassemble the monitor, be CAUTION: sure the monitor is turned off and the power and signal cables are both disconnected.
  • Page 12 Ensure that the bottom of the monitor base is CAUTION: positioned over a table or desktop before removing the base from the monitor. 6. Remove the monitor base from the monitor. When the base is removed, four threaded mounting holes are exposed on the monitor panel to be used for mounting purposes.

  • Page 13: Operating The Monitor

    Operating the Monitor Front Panel Controls No./Icon Control Function Launches 1st and nd-level on-screen menus. Menu button 2. Exits menus and on-screen display. Minus button 1. Selects and adjusts the functions. 2. Activates Auto Adjust when the OSD menu is inactive.
  • Page 14 On-Screen Display Settings The adjustments for screen settings are located in the on-screen display (OSD) and can be viewed in one of six available languages. The following menus show the functions at each level: Main Menu Menu Level 1 Menu Level 2 Menu Level 3 Brightness Adjustment scale...
  • Page 15 Advanced Menu (Continued) Management Full Screen Yes No Power Saver Yes No Mode Display Yes No Serial No. Displays Serial No. Sleep Timer Set Time and On/Off Times Basic Menu Cancel Save and Return Factory Reset Cancel Reset Exit How to Adjust Settings 1.
  • Page 16 After the Advanced Menu has been selected, it remains the default on-screen display each time the monitor is powered on until the Basic Menu option is re-selected. 2. To select an item from the Main Menu, scroll down and highlight an item by pressing the Minus (-) button located on the monitor front panel.
  • Page 17 Special OSD Messages Special OSD messages will appear on the monitor screen when identifying the following monitor conditions: Input Signal Out of Range—Indicates the monitor is unable to access the appropriate input signal. Going to Sleep—Indicates the screen display is entering a sleep mode.
  • Page 18 5. Press the Menu button once to enter the adjustment mode for hours. 6. Press the Minus or Plus buttons to adjust the hour. 7. Press the Menu button again to enter the time for minutes. 8. Press the Minus or Plus buttons to adjust the minutes. 9.

  • Page 19: Adjusting Screen Quality

    Clock and Clock Phase controls explained in the Optimizing Digital Conversion section below. The Compaq LCD Display Assistant utility is used to adjust the screen quality of your monitor. This utility provides on-screen instructions. To install this utility onto your computer, follow the instructions on the “Configuring Your Compaq LCD Monitor”...
  • Page 20 The video controller signal may occasionally call for a mode that is not preset if: You are not using a Compaq standard graphics adapter. You are not using a preset mode. If this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display.

  • Page 21: Energy Saver Feature

    Energy Saver Feature The energy saver feature has four different modes of operation: Full power Suspend/Standby Sleep Programmable Sleep By selecting settings in the computer's Energy Saver utility, you are able to determine the length of the inactivity period before the monitor goes into sleep or programmable sleep mode.
  • Page 22 Care and Maintenance This section explains how to care for and maintain your Compaq monitor during normal everyday use. Protecting the Monitor To protect your monitor from overheating and other types of damage, follow these suggestions: Use only a power source and connection appropriate for this monitor, as indicated on the marking label/back plate and the AC adapter.
  • Page 23 Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those controls that are covered by the operating instructions. If the monitor is not operating properly or has been dropped or damaged, contact your Compaq authorized dealer, reseller, or service provider. Cleaning the Monitor To clean the monitor, follow these steps: 1.

  • Page 24: Agency Regulatory Notices

    Modifications The FCC requires the user to be notified that if any changes or modifications are made to this device, not expressly approved by Compaq Computer Corporation, this may void the user's authority to operate the equipment. Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.
  • Page 25 For questions regarding your product, contact: Compaq Computer Corporation P.O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 Or, call 1-800-652-6672 (1-800-OK COMPAQ) For questions regarding this FCC declaration, contact: Compaq Computer Corporation P.O. Box 692000, Mail Stop 510101 Houston, Texas 77269-2000...
  • Page 26 NERGY requirements of the EPA E program. As an E NERGY NERGY Partner, Compaq Computer Corporation has determined that this product meets the E guidelines for energy NERGY efficiency. Specific details on using the Energy Saving features can be found in the energy saver or power management section of the computer manual.

  • Page 27: Specifications

    Specifications Compaq TFT5010 Flat Panel Monitor Display 15-in 38.1 cm Type Flat panel, Active matrix-TFT LCD Viewable Image Size 15-in diagonal 38.1 cm Face Treatment 3H hardness coating with antiglare treatment Maximum Weight (Unpacked) 16.3 lb 7.4 kg Maximum Dimensions Height 15.8 in...

  • Page 28: Power Cord Set Requirements

    18AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact your Compaq authorized service provider. A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it.
