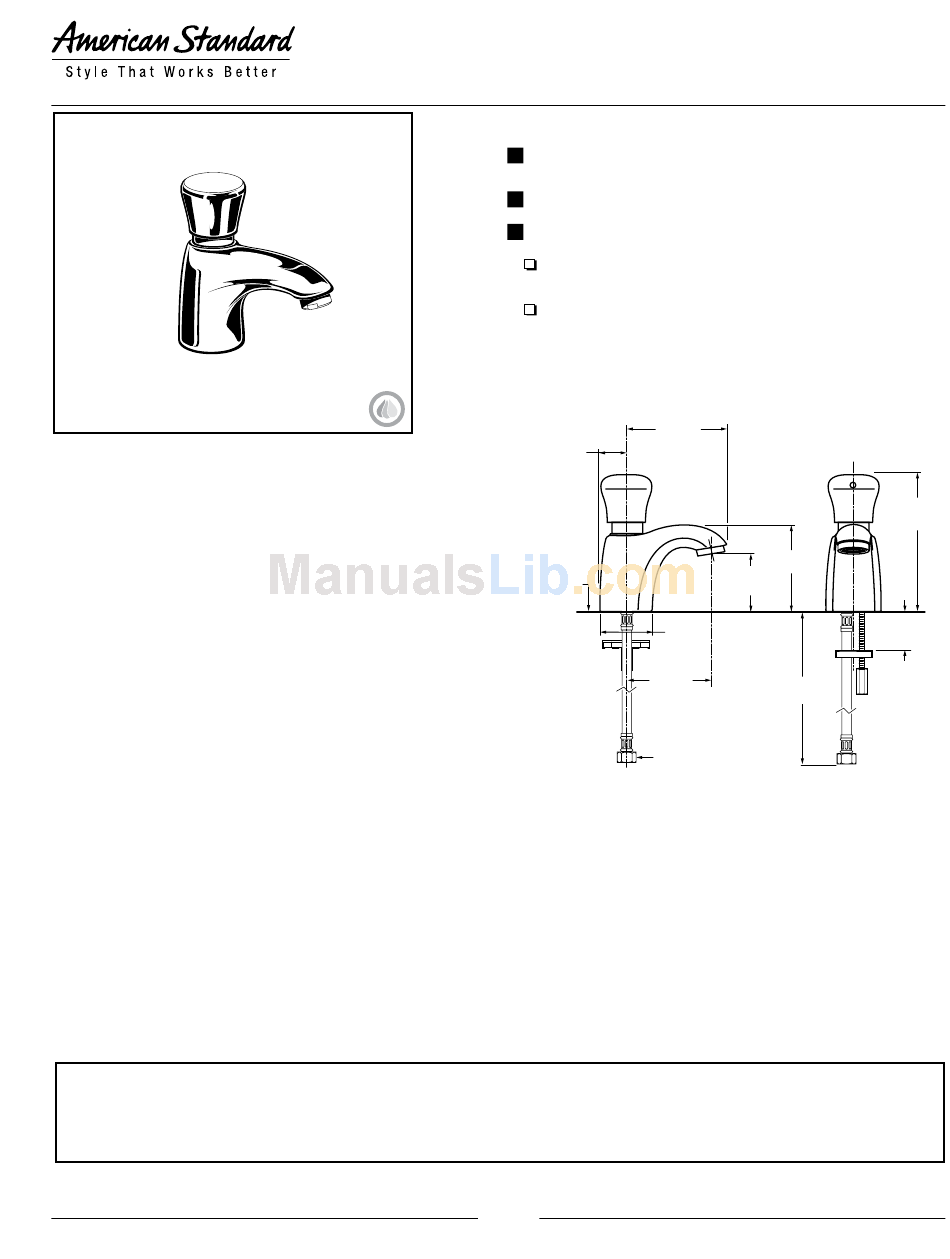

American Standard Metering 1340M.105 Specification Sheet

GENERAL DESCRIPTION:

Metering piller tap faucet. Vandal resistant solid brass
construction. Easy-push handle. Water conserving pressure
compensating 1.5 GPM aerator. Factory set for a maximum of
0.25 gallon flow per activation. Replaceable cartridge. Adjustable
flow cycle.

PRODUCT FEATURES:

• Pressure Compensating Aerator:
water flow of 1.5 gpm throughout the pressure range.
• Vandal-Resistant Brass Construction and Aerator:
Durable - Excellent in high use applications.
• Automatic Shut-off:
Stops water and energy waste. Ideal for
public restrooms where uncontrolled water usage is costly.
• Meets ADA Standard:
force to initiate flow per ANSI A117.1.
• Single Supply:
For cold or tempered water.
• Adjustable Flow Cycle
• Replaceable Valve Cartridge:
replacement.
• Optional Mixing Valves:
• Mechanical (Model # 021943-0070A)
• Thermostatic (Model # 605XTMV)
• Flexible Supply Hose:
• Optional 4" or 8" Deck Plate
SUGGESTED SPECIFICATION
Metering faucet shall feature a single handle vandal-resistant brass construction with a replaceable valve cartridge and an
adjustable flow cycle. Shall also feature a water-conserving pressure compensating 1.5 gpm/5.7L/min vandal-resistant
aerator. Factory set to maintain flow below the maximum 0.25 gallons per cycle required by ANSI A112.18.1M. Push button
activator shall meet ANSI A117.1 Standard. Fitting shall be American Standard Model # 1340.105.002.
© 2008 AS America Inc.
Provides a constant
Requires less than 5 lbs. of operating
Facilitates simple
(sold separately)
With 3/8" Compression Connection
METERING FAUCETS
MODEL NUMBER:
1340.105 Cast spout, 1.5 GPM pressure compensating
vandal-resistant aerator
1340M.105 Same as above with mechanical mixing valve
OPTIONAL 4" or 8" Deck plates
605P.400 4" brass deck plate with 1/4" fixation studs
and quick spin nuts. (6-1/8" x 2-1/8" x 1/2")
605P.800 8" brass deck plate with 1/4" fixation studs
and quick spin nuts. (10-1/8" x 2-3/8" x 1/2")
106mm
(4-3/16)
26mm
(1-1/16)
MOUNTING
SURFACE
52mm
(2)
89mm
(3-1/2)
3/8" COMPRESSION
L13
PILLER TAP FAUCET
130mm
(5-1/8)
78mm
(3-1/8)
51mm
(2)
51mm
(2)
560mm
(22)
