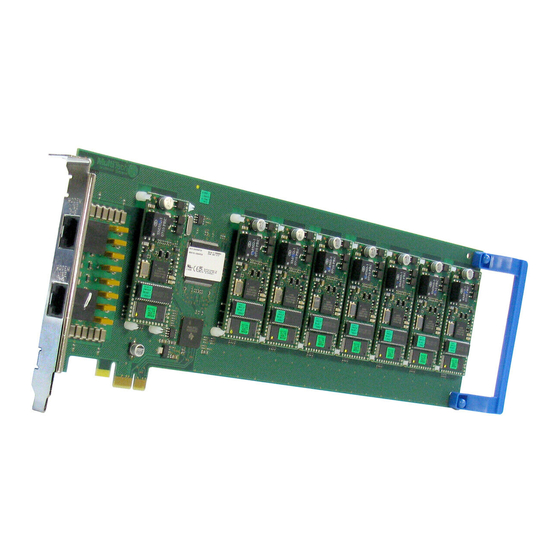

Multitech ISI5634UPCI Quick Start Manual
Intelligent serial interface server cards
Hide thumbs
Also See for ISI5634UPCI:
- Quick start manual (66 pages) ,
- User manual (22 pages) ,
- Command reference manual (33 pages)
Related Manuals for Multitech ISI5634UPCI
Summary of Contents for Multitech ISI5634UPCI
- Page 1 Interface Intelligent Serial Server Cards ISI5634UPCI & ISI9234PCIe Quick Start Guide...
- Page 2 ISI Quick Start Guide Quick Start Guide Models ISI5634UPCI-4 & ISI5634UPCI-8 Models ISI9234PCIe-4 & ISI9234PCIe-8 P/N 82010754L, Revision E This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. All rights reserved.
-
Page 3: Safety Warnings
ISI Quick Start Guide Safety Warnings • This product must be installed by a qualified service person. • When installing or servicing this product, the phone lines must be disconnected to remove the risk of hazardous voltages. • Never install telephone wiring during a lightning storm. •... - Page 4 ISI Quick Start Guide Click on the next button to start the driver pre-installation. You will be prompted 3 times to confirm the installation of the three necessary drivers. Click the Install button to continue each time. There will be a transitory screen, then the process will complete. Click on the Finish button.
-
Page 5: Hardware Installation Procedures
ISI Quick Start Guide Hardware Installation Procedures Before inserting your ISI card into a PCI slot, please run the Windows Installer program from your product CD. This makes all Windows operating systems installations faster than the manual methods described Chapter 3 of the User Guide. - Page 6 Do not touch the gold-plated connectors along the bottom edge. (You may want to save packaging for possible future use.) ISI5634UPCI-8 ISI9234PCIe-8 Locate the unused PCI slot you will be using for your ISI Card and remove the slot cover according to instructions in your computer's manual.
- Page 7 ISI Quick Start Guide Fan-Out Cable for ISI Server Card Configuring your Modems for your Country Different countries have different requirements for how modems must function. Therefore, before you use the modems in your ISI card, you must configure them to match the defaults of the country in which you are using them.
- Page 8 82010754L...
