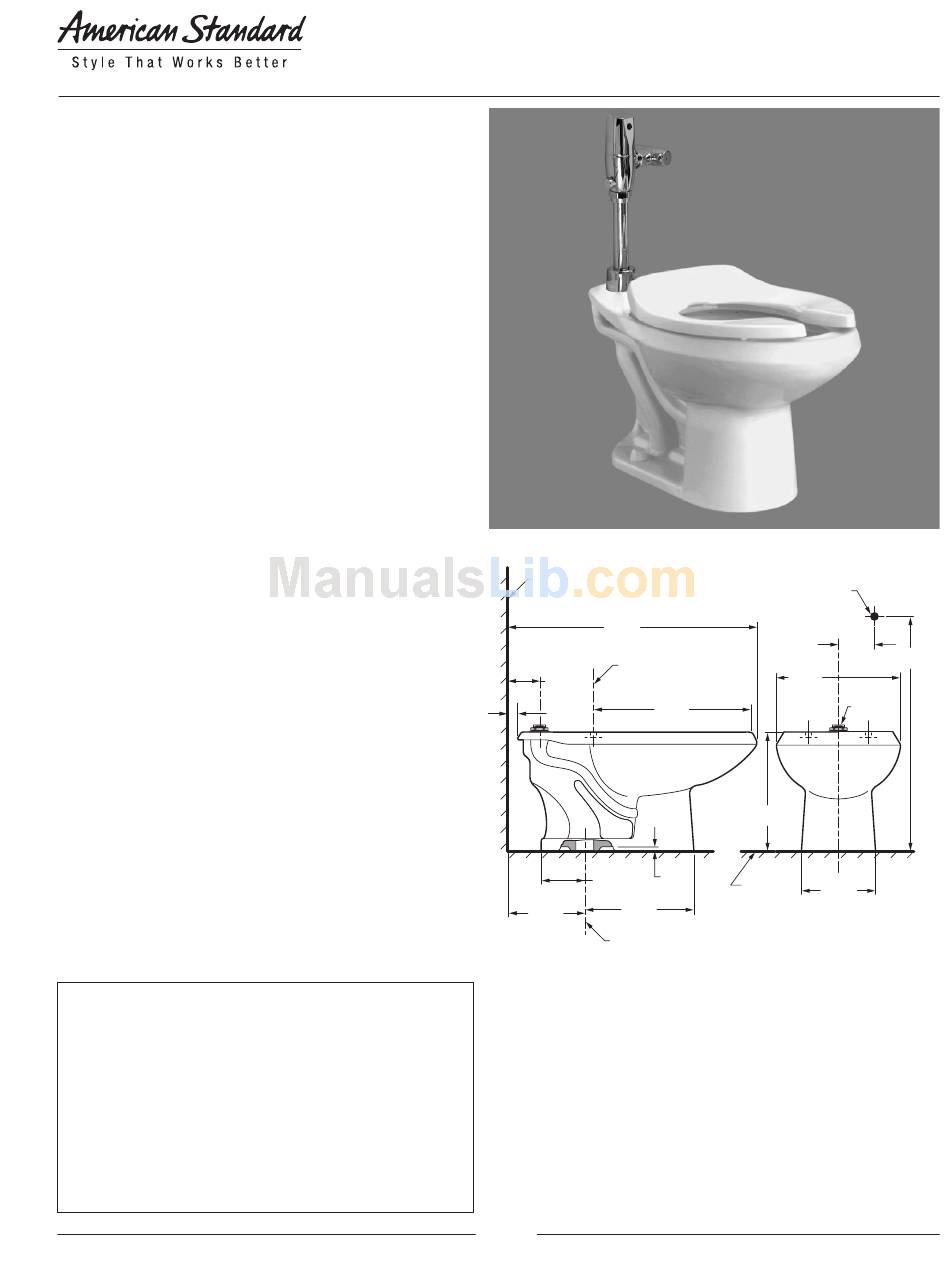

MADERA™ ELONGATED 10" ROUGH
• Flush valve toilet
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• 10" roughing-in
• Elongated bowl
• Direct-fed siphon jet action
• Fully glazed 2-1/8" trapway
• 11" x 13" water surface area
• 1-1/2" top spud
• 2 bolt caps
• 100% factory flush tested
2234.015 Elongated bowl only, top spud
Component Parts:
047007-0070A Inlet spud (furnished with bowl)
481310-100 Bolt caps with retainers
(furnished with bowl)
Nominal Dimensions:
768 x 381 x 359mm
(30-1/4" x 15" x 14-1/8")
Recommended working pressure – between
25 psi at valve when flushing and 80 psi static
Fixture only, less seat, bolt caps and flush valve
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2 for Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Silver ❏ Linen
❏ Seat: 5901.100 American Standard Seat
❏ 5901.110 American Standard Seat with EverClean
❏ Alternate Seat: 5905.100 Heavy Duty
American Standard Seat
❏ 5905.110 Heavy Duty American Standard Seat with
EverClean
❏ Flush Valve:
❏ American Standard Selectronic
DC Power (Top Spud)
© 2008 AS America Inc.
®
#6065.161.002
M63
MADERA™ ELONGATED
FLUSH VALVE TOILET
FINISHED WALL
768mm
(30-1/4)
C/L OF SEAT
POST HOLES
140mm (5-1/2)
102mm
CENTER
(4)
470mm
44mm
(18-1/2)
(1-3/4)
13mm
127mm
(1/2)
(5)
346mm
254mm
(13-5/8)
(10)
C/L OF OUTLET
NOTES:
PRODUCT 2234.015 SHOWN.
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM
BREAKER ON FLUSH VALVE, THE PLUMBER MUST VERIFY
DIMENSIONS SHOWN FOR SUPPLY ROUGHING.
FLUSH VALVE NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION
OF 254MM (10") FROM FINISHED WALL TO C/L OF OUTLET.
IMPORTANT: Dimensions of fixtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
VITREOUS CHINA
1" N.P.T. OR 1" C.W.T. SUPPLY
TO FLUSH VALVE
121mm
(4-3/4)
651mm
(25-5/8)
381mm
(15)
1 -1/2
SPUD
359mm
(14-1/8)
FINISHED
229mm
FLOOR
(9)
Revised 11/08
