DIP switch Calculator

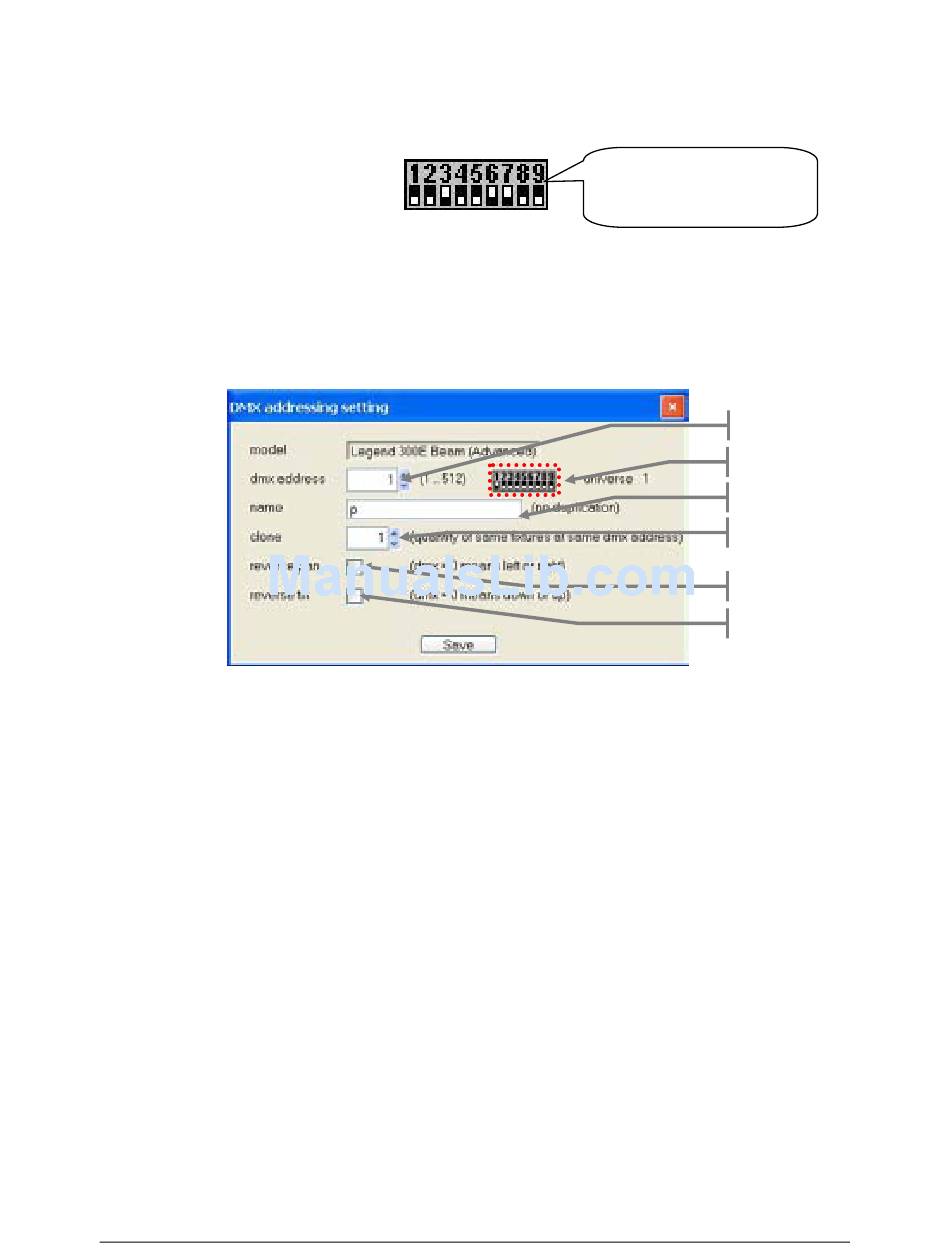

If using a fixture that uses DIP switches to assign the DMX address, ShowXpress™ will automatically
provide the DIP switches that must be used to achieve a given address. For Example, if you type an
address of 100 into the Setup screen for a fixture's DMX address, the software will display an image
showing the following:

DMX Addressing Setting

6. Programming
This shows that DIP switches
3, 6, and 7 must be turned to
the ON position to achieve an
address of 100.
26
DMX Address
DIP Switch Calculator
Fixture Name
3D Fixture Clone
Reverse Pan
Reverse Tilt
Chauvet® ShowXpress™ V6.22
