Aiphone IS-DVF-2RA Instructions

The IS-DVF-2RA is a stainless steel flush mount video door station with standard and emergency
call buttons. The unit is equipped with ADA compliant lettering and Braille signage for both the
standard and emergency buttons. A call status indicator is included to meet ADA rescue assistance
requirements. The IS-DVF-2RA must connect to the IS-CCU or IS-SCU control units.
IS-DVF-2RA
8
9
PACKAGE CONTENTS:
CALL
STEADY GREEN INDICATES CALL ANSWERED
EMERGENCY
IS-DVF-2RA
Vandal-resistant Door Station
Blank name
placard
IS-DVF-2RA
Stainless Steel Flush Mount Video Door Station with
Standard & Emergency Call Buttons
1
2
3
4
5
6
7
Security Driver
Semi-flush backbox &
tamper-resistant screws
-INSTRUCTIONS-

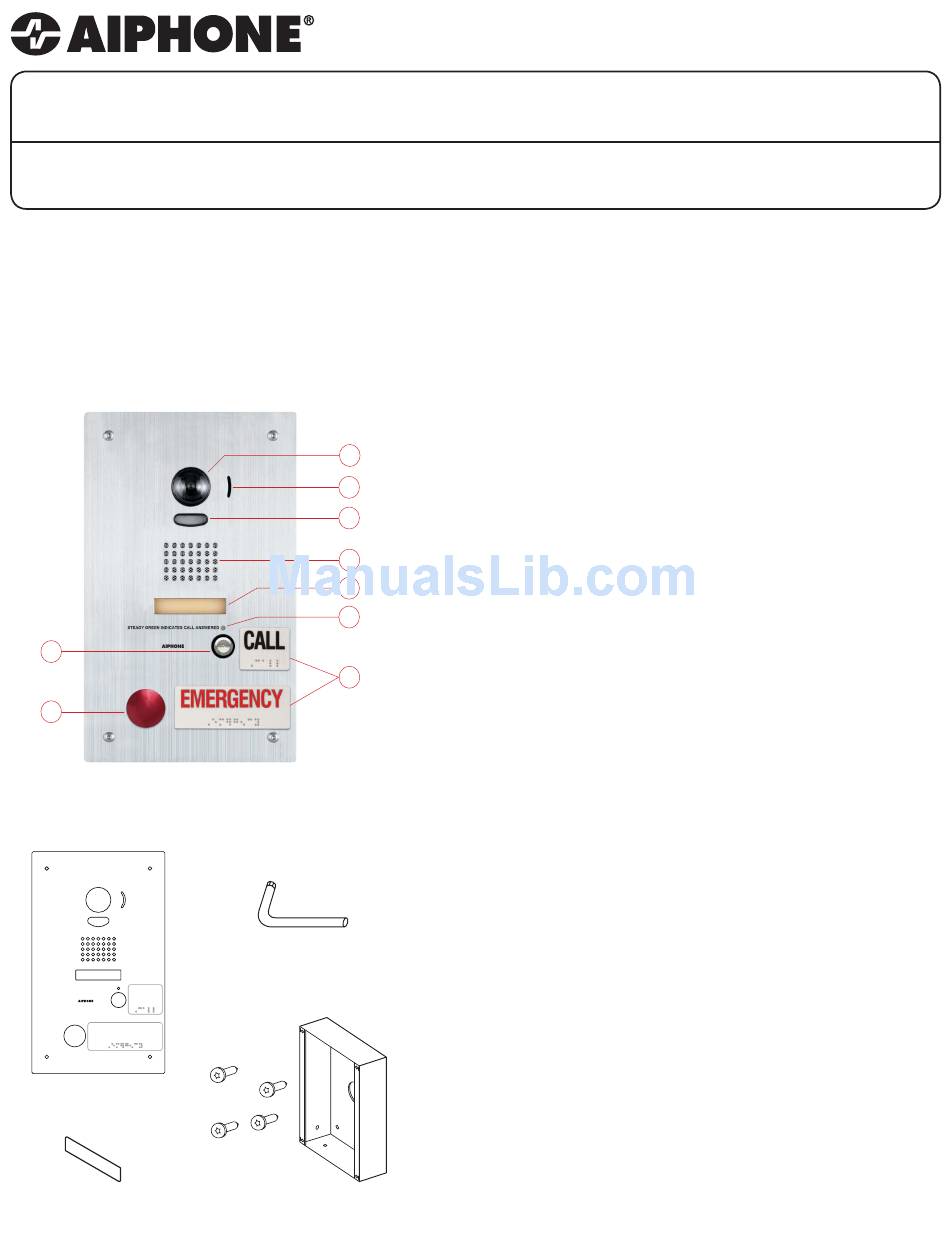

NAMES & FUNCTIONS:
1. Camera
2. Microphone
3. LED Light
4. Speaker
5. Name Placard
FEATURES:
• Audio communication with visual indentification
of calling area
• Two call buttons: Standard and Emergency
• ADA compliant lettering and Braille signage
• LED call status indicator
• CCTV input
• Red mushroom button for emergency call
• Two programmable relay outputs for activation
of external systems/devices
• Name placard
• Stainless steel faceplate with tamper resistant
screws
INSTALLATION:
• For flush mounting, cut a hole in the wall and
use supplied back box.
Box dimensions are:
11-1/16" H x 5-13/16" W x 1-3/4" D
• For surface mounting, use the SBX-ISDVFRA
surface mount box. This box can mount to a
standard 1-gang box or to any flat surface.
6. Call status indicator
7. Signage with Braille
8. Call button
9. Emergency button
Pg.1
