Programming the Remote
The Enventis remote can be programmed to control your Digital
TV service and up to two other devices.
The remote can be setup by following these simple instructions.
Before you begin, check the following items:
• Your television(s) is tuned to the correct channel.
TV1 = Channel 10
TV2 = Channel 23
TV3 = Channel 39
• Two AA batteries are installed into the remote.
IMPORTANT: Use only new AA Alkaline replacement batteries to
insure consistent operation.

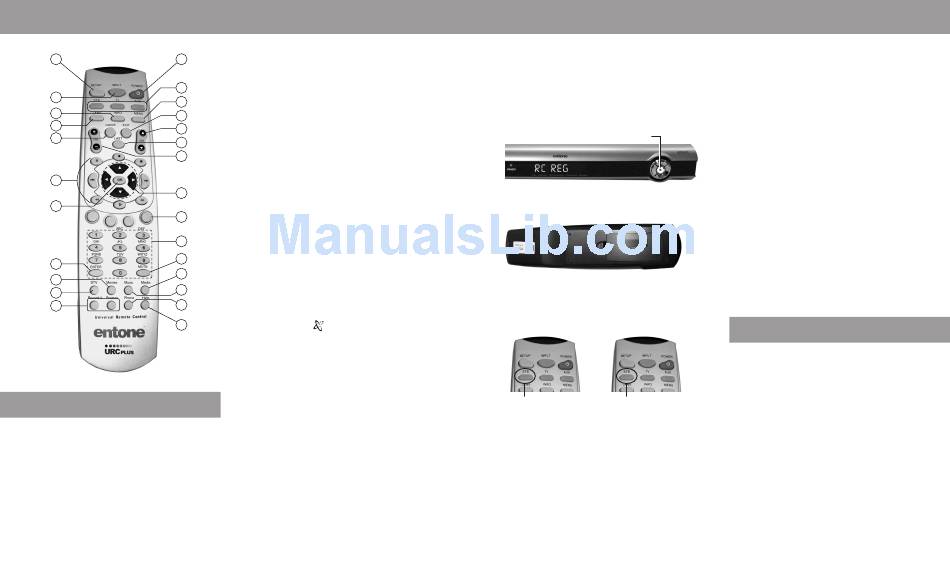

Understanding the Remote
The following is a brief description of the numbered remote
control buttons that are shown in the diagram on page 1. Refer
to your User's Guide for complete information.
1. SETUP
Special Key reserved for remote programming
functions.
2. INPUT
Used to change the current A/V input of the
selected device.
INFO
3. Displays on-screen information about the current
television program.
4. LANG
Activates Closed Captioning on TV1.
GUIDE
5. Displays the on-screen television guide which
provides information about current and future television
programming.
VCR
6. Controls Buttons used for VCR play/stop/ffwd/rwd/
pause controls. These buttons can also be used for
VCR-like controls with VOD services.
OK
7. Executes the currently selected menu option.
8. ENTER Confirms the channel number entered .
9. MOVIES
Displays the VOD menu. (currently unavailable).
10. DTV
Returns user to live programming.
11. RESERVED USE KEYS
Reserved for future use.
12. POWER
Turns the currently selected service on or off.
13. DEVICE KEYS
Selects the device that you would like to
control. (STB/ , TV, AUX)
14. MENU
Displays the on-screen menu.
15. EXIT Exits the current menu item.
16. CH
Changes channel up/down. Page up/down in
the Guide.
17. LAST
Changes channel to the most recently
viewed channel.
18. VOL
Raises or lowers volume of the currently
selected device.
19. NAVIGATION KEYS
Navigates right, left, up, down in the
on-screen guide.
20. SPECIAL FUNCTION
Reserved buttons for future use.
21. NUMBERED BUTTONS Allows direct access to specific
channels and menu items.
22. MUTE
Turns the volume of the currently selected
device off.
23. MEDIA
Reserved for future use.
24. MUSIC
Displays available music channels.
25. PHONE
Displays the Caller ID Menu.
26. HELP Displays the on-screen help menu.
Set the Remote Control ID
First, you must program your remotes for use with your Gateway.
The Gateway comes with 3 URC remotes. Each remote can be
programmed for use with a different TV/Room.
1.
Press and hold the OK button on the Gateway front panel
for about 5 seconds. When the OK button is released, the
Gateway front panel Standby/On LED blinks twice (alter-
nates red and green), then stays lit red to indicate that the
Gateway is now in remote registration mode.
Press "OK" Button for 5 seconds
2.
Identify the remote control, which is labeled with a number
1, 2, or 3 on the battery cover plate on the bottom of the
remote, as shown below:
3.
Press and hold the STB button on the remote control for about
4 to 5 seconds. The "STB" button backlight LED will light.
4.
Press the "STB" button once again. Both the "STB and "AUX"
button backlight LED will light to indicate that the remote
control is in registration mode.
Press for 5 seconds Press "STB" once again
5.
Use the number keys to enter the remote control ID (same as
what's on the back of the remote:
Remote Control ID 1: Operates TV1
2: Operates TV2
3: Operates TV3
6.
If you press a key other than "1", "2" or "3", or if you do not
press a button within about 10 seconds, the STB button
backlight LED will turn off, and the remote control registra-
tion process terminates.
After you enter a registration event, the "STB" button back-
light LED on the remote control and the Gateway front panel
LED will blink twice to indicate that the registration process
was successful.
7.
Repeat the steps above for each remote control.
Programming the TV Code and Other Devices
Perform the following steps to program the TV and AUX device:
1.
Locate the device code for your desired device in the device
code table provided on the back side. If you could not find
the device code for your device or it does not work after try-
ing the listed device codes for your device brand, then you
can go to the next section to try the auto-search procedures.
2.
Turn on your device and with media inserted (if applicable).
3.
On the remote control, press a device key once (i.e., TV or
AUX). NOTE: Use the "AUX" mode key to program control of
VCR, DVD player, cable box, satellite set-top-box and audio
device.
4.
Press and hold the "SETUP" key until the selected mode
key backlight blinks twice, then release "SETUP". The device
mode key will light up.
5.
Enter the four-digit device code for your device. If you
perform this procedure correctly, the selected device mode
key backlight will blink twice. NOTE: If you enter an invalid
device code, the selected device mode key will fast blink 7
times. Device program mode will be terminated.
6.
Aim the remote control at your device and press the
"POWER" once. The device should be turned off. If it does not
respond, repeat the above steps.
Autosearch for Other Devices
If your device does not respond to the remote control after try-
ing all devices codes listed for you brand, or if your brand is not
listed at all, try searching for your device code as follows:
1.
Power on the device and on the remote control, press the
desired device key once. Then press and hold SETUP until
the device key blinks twice, then release "SETUP".
2.
Press the "POWER" key once and aim your new remote at the
device.
3.
Press either the "CHANNEL UP" key or "CHANNEL DOWN" key
to do device autosearch.
Note: In this search mode, the remote control will send IR
codes from the library in 5 second intervals. The device key
will be on and blink every 5 seconds while in the device
search mode.
4.
If the device turns off, a working code has been found. Press
"OK" once to lock in the code. The selected mode key will
blink twice.
5.
If all code sets of that device are exhausted in the search and
the "OK" is not pressed, the selected device key will fast blink
7 times and the search mode will be terminated.
