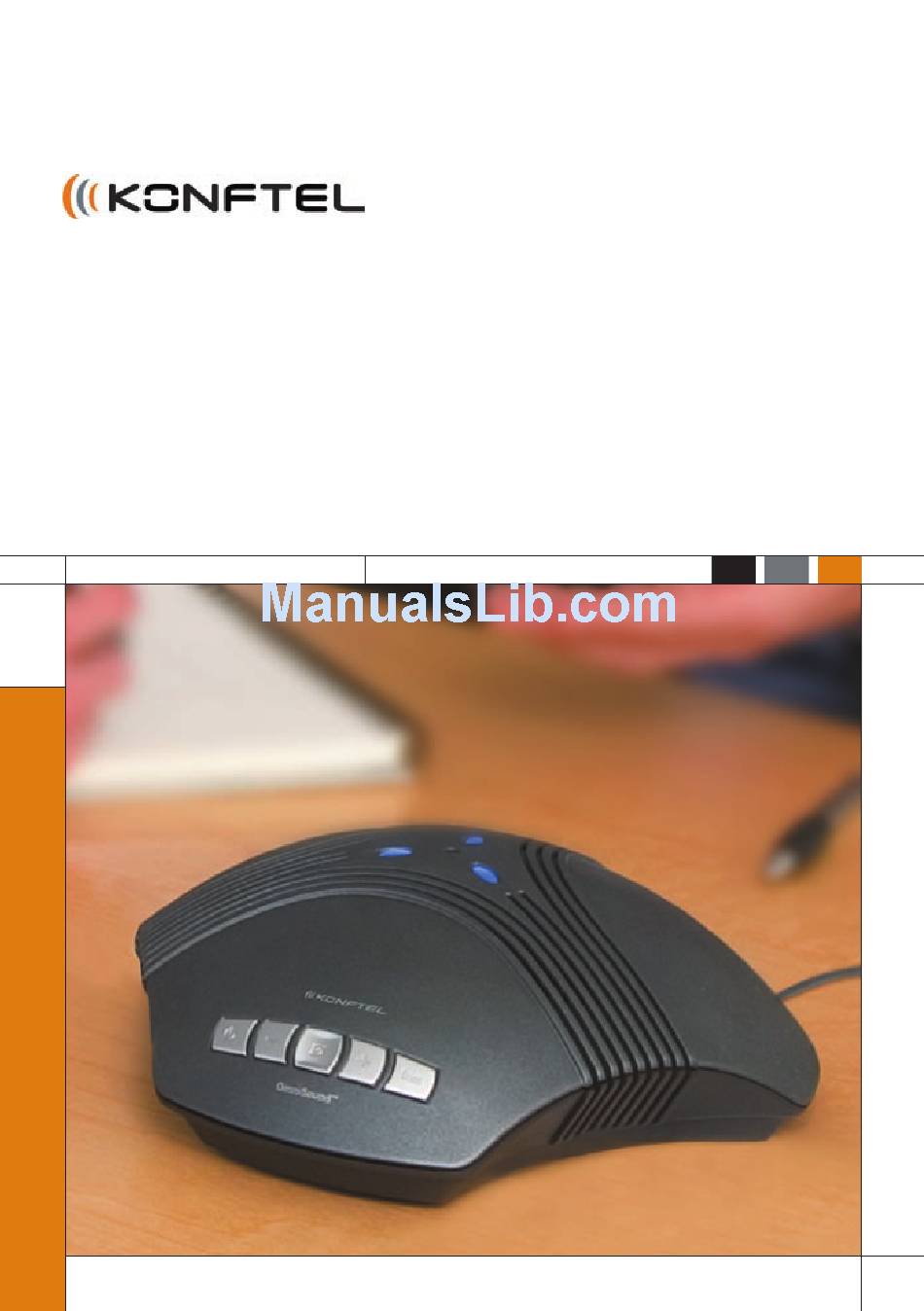

- Page 1 User Guide Konftel 60W Conference Unit US English Conference phones for every situation...
- Page 2 The Bluetooth trademark and logos are owned by the Bluetooth SIG, Inc. and any ® use of such trademarks by Konftel is under license. Other trademarks and trade names belong to their respective owners. This product is equipped with OmniSound , the crystal clear sound.
-
Page 3: Table Of Contents
CONTENTS Description Maintenance ..............3 Using Bluetooth Connecting and settings ..........4 Answering a call .............7 Making a call ..............7 During a call ..............8 Ending a call ..............9 After calls ..............9 Advanced functions ............0 Using a system telephone Connecting and settings .......... Answering a call ............4 Making a call ..............4 During a call ..............4... -
Page 4: Description
Konftel 60W is a conference unit for connecting to existing fixed system tele phones, DECT telephones, cell phones or computers, with a cable or wireless connection via Bluetooth. Konftel 60W has a omnidirectional, highlysensitive microphone and three speakers which, together with Konftel’s OmniSound provide ®... -
Page 5: Maintenance
Konftel’s website www.konftel.com offers suggestions for various applications and accessories for the 60W and other products. Konftel 60W is designed to handle headset and handsfree profiles as per Bluetooth standard .. Please note that not all telephones support all functions. More information is contained in your telephone handbook. -
Page 6: Using Bluetooth
Konftel 60W CONNECTING AND SETTINGS Plug Konftel 60W in the mains using the power adapter as shown in the picture. General information on Bluetooth In order for two Bluetooth units to be able to communicate with each other, they must first be “paired”, which means that the second unit is added to a list of... - Page 7 USING BLUETOOTH Adding your telephone and retaining other stored telephones Konftel 60W can store up to eight telephones. If you want to retain previous pairings and add a new one, follow the instructions below. If you want to remove a previous pairing, go to the next section.
- Page 8 The volume can be adjusted in 5 steps. Please note that different telephones may have differ ent volumes and the microphone volume on Konftel 60W may need to be adjusted if you connect a differ ent make of telephone. ...
-
Page 9: Answering A Call
Changing the ringtone The LEDs start flashing when there is an incoming call. You can also activate a ringtone in Konftel 60W. Press and hold the – button for seconds to activate the ringtone for incoming calls. -
Page 10: During A Call
USING BLUETOOTH DURING A CALL Transferring a call between Konftel 60W and a telephone Press and hold the on/off button for seconds to transfer the call back to your telephone. 2 sec Adjusting the speaker volume Increase the speaker volume using + and reduce it using –. -
Page 11: Ending A Call
Disconnecting the Bluetooth link The Bluetooth link between the telephone and Konftel 60W is kept open until it is disconnected or until the units are out of range of each other. If you do not intend to use the phone for a while, you can choose to disconnect the link to save power. -
Page 12: Advanced Functions
Making a call using voice command This is a function you can normally activate on your telephone. If you have done this, you can also initiate voice dial mode from Konftel 60W. More informa tion on voice dialing is contained in the telephone handbook. - Page 13 USING BLUETOOTH Multi-party calls Once you have answered another call as per the previ ouss ection, you can add them to a multiparty call. Press and hold the – and + buttons at the same time for seconds. 2 sec Rejecting a call ...
-
Page 14: Using A System Telephone
(30 V in Europe) Plug adapter Konftel 60W CONNECTING AND SETTINGS Connect Konftel 60W to the telephone via the switchbox as per the pictures above. Plug Konftel 60W in using the power adapter as shown in the picture. ... - Page 15 USING A SySTEM TELEPHONE Using a headset instead of the handset You can connect a headset to the switchbox instead of a handset. Please note that the headset must be suitable for the telephone system. Adjusting the microphone sensivity The microphone volume can be adjusted during the call, but to avoid disturbing the call, it may be best to adjust it during a test call following connection.
-
Page 16: Answering A Call
ANSWERING A CALL Answer the call using the telephone in the normal way. Press the on/off button to switch on Konftel 60W and change to speaker call. Place the handset to one side – it is now discon nected. -
Page 17: Ending A Call
It also senses changes in the room and continually adapts during the call. If, despite this, you still experience reduced sound qual ity, Konftel 60W can be tuned manually at any time. Press trim. -
Page 18: Using A Computer
USING A COMPUTER GENERAL Konftel 60W functions as a speaker and microphone for all computers that have a microphone input and a line output for sound. Konftel 60W can also be connected via a USB sound card or wirelessly via Bluetooth. The manner of connection may require accessories and is described in the section Other connection options on pages 0–. - Page 19 USING A COMPUTER Connect Konftel 60W to the sound card using the accompanying Ycable as per the picture. LINE OUTPUT OUT Green MICROPHONE INPUT IN Pink Plug Konftel 60W in using the power adapter as shown in the picture.
- Page 20 Konftel 60W to the maximum level, which may lead to fuzzy sound and a low sound level. A high sound level means that the volume on Konftel 60W can be set to an intermediate setting and still produce excellent sound through the speakers.
- Page 21 Connect a call and adjust the volume if required. It is best to use the communication program you intend to use with Konftel 60W when testing the microphone volume. Adjusting the microphone sensivity on Konftel 60W Adjust the microphone volume on Konftel 60W if required.
-
Page 22: Other Connection Options
Connect the USB adapter to a USB port on the computer as shown in the picture. Plug Konftel 60W in using the power adapter as shown in the picture. Check the sound properties and adjust the sound volume in the same way as for a computer with builtin inputs and outputs for sound (see pages... -
Page 23: Connecting A Computer Using Bluetooth (Accessory)
If possible, use Konftel’s own adapter, sold as an accessory. Plug Konftel 60W in using the power adapter as shown in the picture. - Page 24 Choose to search for new Bluetooth units in the Windows control panel. Select Konftel 60W in the list of units detected. Enter the password 0000. If the pairing was successful, a short audible signal will be heard and the LEDs will stop flashing. (Page 5 contains information on the handsfree and headset profile if pairing fails.)
-
Page 25: Connecting To A Mobile Or Dect Telephone Via A Cable
CONNECTING TO A MOBILE OR DECT TELEPHONE VIA A CABLE (ACCESSORy) The Konftel 60W can be connected to a GSM or wireless DECT telephone using an accessory cable, as illustrated. Cables are available for most models on the market. Visit www.konftel.com for more informa... -
Page 26: Extra Microphones (Accessory)
4 and 8 ft (.5 and .5 m). Place the extra microphones at least 3 ft (0.8 m) and no more than 9 ft (.5 m) from Konftel 60W and connect them using the accompanying cables. A short audible signal specifies that the connection has been successfully established and that the software in Konftel 60W has been upgraded. - Page 27 ExTRA MICROPHONES (ACCESSORy) Mute function Press the mute button on one of the extra micro phones to switch off the microphones. The LEDs change from blue to red. The other party cannot hear what you are saying. Press the mute button again to switch the micro phones back on again.
-
Page 28: Troubleshooting
CONNECTION Bluetooth . If Konftel 60W is not displayed when you try to add a new unit to the telephone, or if any particular Bluetooth function is not working, Konftel 60W may need to be presented as a handsfree unit instead of a headset. Repeat the instructions for “Adding your telephone”... -
Page 29: Sound
TROUBLESHOOTING Computers If a call can be heard via the computer’s headset or builtin speaker, but not via Konftel 60W, check that the software and sound card can handle full duplex. SOUND No sound . Are the LEDs red? If so, the mute button is activated. Press to deactivate. -
Page 30: Technical Data
Diameter 9.5 inches (3 mm) Weight: .6 pounds (700 grams) Switchbox Input telephone handset: Modular 4/4 Input Konftel 60W: Cable, modular 6/6 Output telephone: Cable, modular 4/4. The contact for connecting a switchbox to a system telephone may only be connected to SELV current in accordance with SSEN60950... - Page 31 TECHNICAL DATA Computer cable Ycable: x modular 6/4, x Tele 3 inches (3.5 mm). Contact for connecting a Konftel 60W to a computer may only be connected to SELV current in accordance with SSEN60950 Extra microphones (accessory) Cabling: Modular 4/4contacts, x4 ft (.5m) and x8 ft (.5m)
-
Page 32: Accessories
Extension cord electrical, 3 ft (0 m) 9000038 Extension cord telephone, 3 ft (0 m) 9000058 USB adapter for sound 9000074 Extra microphones ( pair) 9000067 Soft bag 900007 USB Bluetooth adapter Connection cables GSM/DECT see www.konftel.com, under Accessories Konftel 60W... -
Page 33: Limited Warranty
Konftel. The repaired or replaced item will be shipped to the Customer, at Konftel’s expense, not later than twelve days () days after Konftel has received the defec tive product, and Konftel will retain risk of loss or damage until the item has been delivered to the Customer. -
Page 34: Service Agreements
SERVICE AGREEMENTS For information on Konftel service agreements, or if you should experience trouble with this equipment, please contact Konftel Support. Konftel Support in USA and Canada: +(866)606478 Monday through Friday 8.00 AM to 5.00 PM Central Standard Email: konftel.usa@konftel.com Konftel Support International: +4690706489 Monday through Friday 8.00 AM to 5.00 PM (GMT:) -
Page 35: Fcc Statement
NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this Konftel 60W does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. -
Page 36: Industry Canada (Ic) Statement
However, your equipment might cause TV or radio interference even when it is operating prop erly. To eliminate interference, you can try one or more of the following corrective measures: • reorient or relocate the receiving antenna. • increase the distance between the equipment and the radio or TV. •... - Page 38 Konftel is a leading company within loudspeaker communication and audio technology. We develop and sell products and technology for telephone meetings based on cuttingedge expertise within acoustics and digital signal processing. Characteristic of our products is that all conference telephones contain the same high quality audio technology – OmniSound –...
