Centerset Lavatory Faucet with
EverClean™ Finish & SpeedConnect™ Drain
Congratulations on purchasing your American Standard faucet with
EverClean finish and SpeedConnect drain, two features found only
on American Standard faucets.
EverClean Finish
• One wipe effortlessly removes spots
• Eliminates the need for cleaners and scrubbing
• Permanent surface protectant remains beautiful
for the life of the faucet
• EverClean™ available on: Polished Chrome, Satin Nickel,
Stainless Steel, Polished Brass (or any combination of these finishes)
*Your new American Standard faucet is designed to work only with the SpeedConnect drain. Heplful tips for
removing your current drain can be found in the Troubleshooting section of these instructions.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Required tools
Screwdriver
1

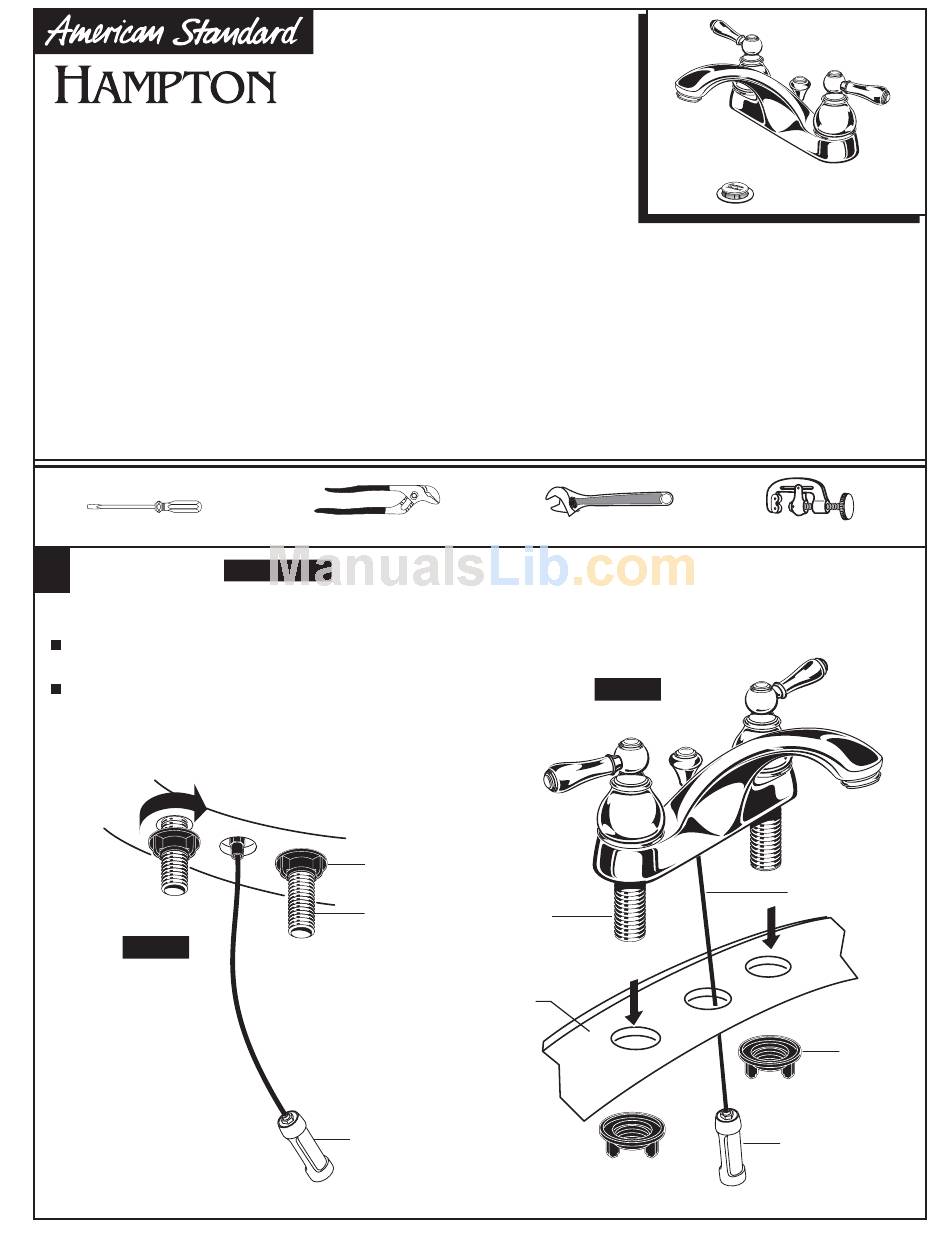

INSTALL FAUCET
Turn off hot and cold water supplies before beginning.
Insert FAUCET (1) and CABLE CONNECTOR (2) through
mounting holes of Sink or mounting surface.
Assemble LOCKNUTS (3) onto SHANKS (4) from under
side of Sink. Hand tighten firmly.
(HAND TIGHTEN)
Fig. B.
Channel Locks
Turn off hot and cold water
CAUTION
supplies before beginning.
Fig. A.
Fig. B.
3
4
2
Installation
Instructions
7411.702
7411.712
7411.722
7411.732
SpeedConnect Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
Adjustable Wrench
Fig. A.
4
SINK OR
MOUNTING
SURFACE
1
Certified to comply with ANSI A112.18.1
U S 6 0 4 0 2 R e v. 1 . 1
Tubing Cutter
POP-UP
CABLE
3
2
Advertisement
Related Manuals for American Standard Hampton 7411.702
Summary of Contents for American Standard Hampton 7411.702
- Page 1 Stainless Steel, Polished Brass (or any combination of these finishes) *Your new American Standard faucet is designed to work only with the SpeedConnect drain. Heplful tips for removing your current drain can be found in the Troubleshooting section of these instructions.
- Page 2 POP-UP DRAIN Remove CLEAR PLASTIC COVER (1). Remove CARDBOARD SPACER (2) from under DRAIN POP-UP (3). Tighten TAILPIECE (4) on DRAIN BODY before Fig. B. installing DRAIN BODY. REMOVE FLANGE Thread FLANGE (1) counter-clockwise and remove FLANGE (1) and FOAM GASKET (2) from drain Fig.
- Page 3 ATTACH CABLE CONNECTOR Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4” O.D. Fig. B. CHECK OPERATION OF POP-UP Operate LIFT KNOB (1) to verify that STOPPER (2) opens and closes.
- Page 4 90˚. EverClean™ Finish Care Instructions American Standard’s EverClean finish will wipe clean with a soft, dry cloth. A soft cloth with clean water may also be used, if desired. No additional cleaning products are required. DO NOT USE: Soaps, acid, polish, abrasives, harsh cleaners, or a cloth with a coarse surface.
-
Page 5: Cable Adjustment Procedure
SpeedConnect™ Drain Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •... - Page 6 To install the stopper in “Unlocked” mode, insert the Stopper into the Drain so that the Plastic Loop is facing toward the front of the Sink and the American Standard logo is facing rear. Rotate Stopper slightly if necessary so that the Stopper slides all the way down.
