Summary of Contents for Pride Mobility Quantum 1107

  • Page 1 1-800-800-8586 (Exeter, PA) • 1-888-570-1113 (St. Catharines, ON) • www.quantumrehab.com...
  • Page 2 PROHIBITED! These actions should be prohibited. These actions should not be performed at any time or in any circumstances. Performing a prohibited action can cause injury to personnel and/ or damage to equipment (black symbol with red circle and red slash). Copyright © 2006 Pride Mobility Products Corp INFMANU2882/Rev B/Feb06 www.quantumrehab.com Quantum 1107...

  • Page 3: Table Of Contents

    This owner’s manual is compiled from the latest specifications and product information available at the time of publication. We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. Quantum 1107 www.quantumrehab.com...

  • Page 4: Introduction

    I N T R O D U C T I O N SAFETY WELCOME to Quantum Rehab, a division of Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 These message boards invite you to communicate with other Pride customers as well as Pride represen- tatives who are available to assist you with any questions or concerns you may have. My Quantum Rehab Specialist: Name:_____________________________________________________________________________________ Address:___________________________________________________________________________________ Phone Number:______________________________________________________________________________ Purchase Date:_______________________________________________________________________________ Quantum 1107 www.quantumrehab.com...
  • Page 6 T T T T T = Terminal Post Connect Red wire to T T T T T with + + + + + Connect Black wire to T T T T T with – – – – – www.quantumrehab.com Quantum 1107...
  • Page 7 3-pronged adapter to an electrical outlet having 2-pronged plug access. Failure to heed could result in personal injury and/or property damage. Prevent personal injury and equipment damage. Do not connect an extension cord to the AC/DC converter or the battery charger. Quantum 1107 www.quantumrehab.com...

  • Page 8: Safety

    ! Check all controller connections to the power base. Make sure they are secured properly. ! Check the brakes. See VIII. “Care and Maintenance.” ! Check battery charge. See VI. “Batteries and Charging.” NOTE: If you discover a problem, contact your Quantum Rehab Specialist for assistance. www.quantumrehab.com Quantum 1107...

  • Page 9: Your Power Chair

    WARNING! When on any sort of an incline or decline, never place the power chair in freewheel mode while seated on it or standing next to it. Doing so may result in personal injury and/or damage to your power chair. WARNING! Never travel down an incline backward. This may result in personal injury. Quantum 1107 www.quantumrehab.com...
  • Page 10 ! Reduce your power chair’s speed when driving on uneven terrain and/or soft surfaces. ! Avoid tall grass that can entangle the running gear. ! Avoid loosely packed gravel and sand. ! If you feel unsure about a driving surface, avoid that surface. www.quantumrehab.com Quantum 1107...
  • Page 11 Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator. WARNING! Never use your power chair to negotiate steps or escalators. You may cause injury to yourself and to others and/or damage your power chair. Quantum 1107 www.quantumrehab.com...
  • Page 12 ! Determine if the door opens toward or away from you. ! Drive your power chair gently and slowly forward to push the door open. Or drive your power chair gently and slowly backward to pull the door open. www.quantumrehab.com Quantum 1107...
  • Page 13 This may cause your power chair to tip, possibly resulting in personal injury. WARNING! Prevent personal injury! Keep your hands away from the tires when driving. Be aware that loose fitting clothing can become caught in drive tires. Quantum 1107 www.quantumrehab.com...
  • Page 14 WARNING! Do not operate your power chair while you are under the influence of alcohol, as this may impair your ability to operate your power chair in a safe manner. www.quantumrehab.com Quantum 1107...
  • Page 15 NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Call Pride at 800-424-8205 to report the incident. Quantum 1107 www.quantumrehab.com...

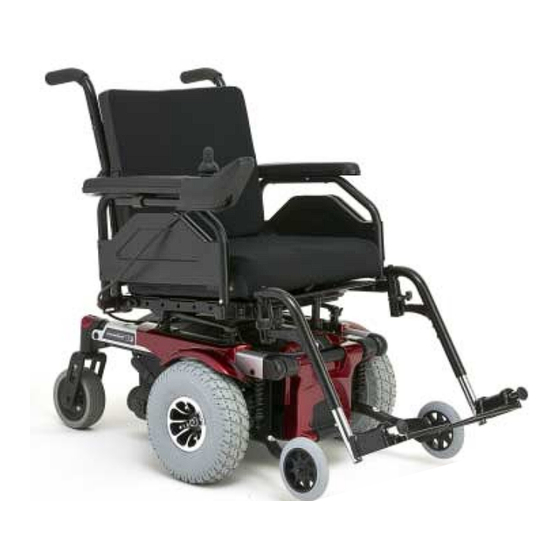

  • Page 16 THE QUANTUM 1107 The Quantum 1107 has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assem- blies, two drive wheels, two anti-tip wheels, two caster wheels, two battery boxes, and wiring harnesses.
  • Page 17 I I I . Y O U R P O W E R C H A I R QUANTUM 1107 SPECIFICATIONS Suspension: Active-Trac Drive Wheels: 10 in., pneumatic, (10 in., solid are optional) Caster Wheels: 6 in., solid, rear-mounted Anti-tip Wheels: 5 in., solid, front-mounted...
  • Page 18 Y O U R P O W E R C H A I R SIDE FRAME HANDLES BATTERY BOXES FRONT TRAPEZE BAR CONTROLLER CABLE CONNECTOR MANUAL FREEWHEEL LEVER MOTOR/BRAKE ASSEMBLY Figure 6. The Quantum 1107 Power Base www.quantumrehab.com Quantum 1107...
  • Page 19 Battery Harness Connector: This is where the controller connects to the battery boxes. CONTROLLER CABLE CONNECTOR BATTERY HARNESS CONNECTOR MOTOR CONNECTOR MOTOR CONNECTOR CONTROLLER POWER MODULE Figure 7. Quantum 1107 Electrical Components Quantum 1107 www.quantumrehab.com...
  • Page 20 WARNING! It is important to remember that when your power chair is in freewheel mode, the braking system is disengaged. MANUAL FREEWHEEL LEVER MANUAL FREEWHEEL LEVER Figure 8. Drive Mode (Drive Engaged) Figure 9. Freewheel Mode (Drive Disengaged) www.quantumrehab.com Quantum 1107...

  • Page 21: Assembly/Disassembly

    Replacement nylon insert lock nuts are available at local hardware stores or through your Quantum Rehab Specialist. SEAT INSTALLATION ARMREST ANGLE ADJUSTMENT SEAT HEIGHT/ANGLE ADJUSTMENT CONTROLLER POSITION ANTI-TIP WHEEL HEIGHT ADJUSTMENT FOOT PLATFORM HEIGHT/ DEPTH ADJUSTMENT Figure 10. Quantum 1107 Assembly View Quantum 1107 www.quantumrehab.com...
  • Page 22 A S S E M B L Y / D I S A S S E M B L Y Seat Installation The Quantum 1107 use a seat interface system to attach the seat assembly to the power base assembly. This en- REAR EXTRUSION ables you to install and remove the seat quickly and easily.
  • Page 23 A S S E M B L Y / D I S A S S E M B L Y Power Base Disassembly The Quantum 1107 power base disassembles into six parts for easy transportation and storage. See figure 13. To disassemble the power chair: 1.
  • Page 24 A S S E M B L Y / D I S A S S E M B L Y BATTERY BOX LATCH BATTERY BOX LATCH CENTER SECTION LATCH (UNLOCKED) (LOCKED) Figure 14. Quantum 1107 Battery Box Removal and Frame Separation www.quantumrehab.com Quantum 1107...

  • Page 25: Comfort Adjustments

    8. Remove each screw from the front trapeze bar and side frame handles and apply thread lock. 9. Reinstall each screw into the front trapeze bar and side frame handles and tighten. Figure 16. Side Seat Interface Height Adjustment Quantum 1107 www.quantumrehab.com...
  • Page 26 2. Lean forward or backward to the desired position. 3. Release the lever. Figure 18.Seatback Angle Adjustment Armrest Width Adjustment You can change each armrest’s width independently of the other. NOTE: Changing the armrest width may increase the overall width of your power chair. www.quantumrehab.com Quantum 1107...
  • Page 27 8. Route the controller cable so that it will not be pinched in the seat hinge. 9. Connect the controller cable to the power base. 10. Secure the controller cable to the armrest with wire ties. Figure 21. Foot Platform Adjustment Quantum 1107 www.quantumrehab.com...
  • Page 28 1. Flip up the foot platform and locate the setscrew. ADJUSTMENT SCREWS 2. Turn the setscrew counterclockwise to raise the front of the foot platform. 3. Turn the setscrew clockwise to lower the front of the foot platform. Figure 24. Swing-Away Footrests www.quantumrehab.com Quantum 1107...
  • Page 29 (C), and angle (D). See figure 26. To change leg rest length (A): 1. Remove the hardware. 2. Move the leg rest to the desired position. 3. Reinstall the hardware. SETSCREW Figure 26. Multi-Axis Foot Plate (ELR Shown) Quantum 1107 www.quantumrehab.com...
  • Page 30 2. Remove bolt B. 3. Raise or lower the anti-tip wheel. Each hole is 1/2-in. apart. 4. Reinstall bolt B. 5. Tighten nut A. 6. Raise or lower the other anti-tip wheel so that it is at the same height. www.quantumrehab.com Quantum 1107...

  • Page 31: Batteries And Charging

    If the battery charger is exposed to adverse or extreme weather conditions, then it must be allowed to adjust to the difference in environmental conditions before use indoors. Refer to the manual supplied with the battery charger for more information. Quantum 1107 www.quantumrehab.com...
  • Page 32 When the battery is fully charged, the amperage from the charger is nearly at zero. This is how the charger maintains a charge but does not overcharge the battery. www.quantumrehab.com Quantum 1107...
  • Page 33 Deep-cycle batteries are specifically designed to provide power, drain down their charge, and then accept a relatively quick recharge. AGM and Gel-Cell batteries should be charged as often as possible. They do not have a “memory” like nickel-cadmium batteries. Quantum 1107 www.quantumrehab.com...
  • Page 34 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.quantumrehab.com Quantum 1107...

  • Page 35: Operation

    Unless the joystick is damaged, this action should stop your power chair. Keypad The keypad is located in front of the joystick. It contains keys necessary to operate your power chair. See figure 30. Figure 29. FLIGHT Controller Quantum 1107 www.quantumrehab.com...
  • Page 36 Actuator Keys and Actuator Lights (For Optional Equipment) Actuator keys and actuator lights are used for optional equipment such as power elevating leg rests. For specific operation of the actuator keys and actuator lights, contact your Quantum Rehab Specialist. www.quantumrehab.com Quantum 1107...
  • Page 37 Check the communications connections and wiring. FLIGHT Power Module Fault Check the communications connections and wiring. FLIGHT Communications Fault Check the communications connections and wiring. Unknown Fault Contact your Quantum Rehab Specialist. Incompatible Controller Fault Contact your Quantum Rehab Specialist. Quantum 1107 www.quantumrehab.com...
  • Page 38 Figure 31. VSI Controller the joystick is damaged, this action should stop your power chair. Keypad The keypad is located in front of the joystick. It contains keys necessary to operate your power chair. See figure 32. www.quantumrehab.com Quantum 1107...
  • Page 39 If your power chair was programmed with a drive profile, contact your Quantum Rehab Specialist for more information. NOTE: We recommend that the first few times you operate your power chair, you use the lowest speed setting until you become familiar with your new power chair. Quantum 1107 www.quantumrehab.com...
  • Page 40 The actuator connector connects the VSI to optional powered systems such as elevating leg rests. Controller Connector The controller connector connects the VSI to the power chair’s batteries, motors, and motor brakes. WARNING! Failure to properly align the connectors can result in damage to the VSI, the charger, and the connectors. www.quantumrehab.com Quantum 1107...
  • Page 41 The parking brakes have a bad connection. Check the parking brake and motor connections. Make sure the controller connections are secure. An excessive voltage has been applied to the controller. This is usually caused by a poor battery connection. Check the battery connections. Quantum 1107 www.quantumrehab.com...
  • Page 42 WARNING! Unless faced with an emergency situation, do not use the on/off key to stop the chair. This will cause the power chair to stop abruptly. WARNING! Always turn the power off when you are stationary to prevent unexpected movement. www.quantumrehab.com Quantum 1107...
  • Page 43 “ripple up and down of lights,” turn off the controller and allow the joystick to return to the neutral position. Then turn on the controller. NOTE: If you still get “ripple up and down of lights,” contact your Quantum Rehab Specialist. Quantum 1107 www.quantumrehab.com...
  • Page 44 122° F, the voltage is reduced by 5 volts. This reduces your power chair’s speed and allows the electrical components to cool down. When the temperature returns to a safe level, your power chair resumes its normal speed. www.quantumrehab.com Quantum 1107...
  • Page 45 Unplug charger. Check connections. Right Motor Wiring Fault Check right motor wiring. Right Motor Disconnected Check right motor wiring. Left Motor Wiring Fault Check left motor wiring. Left Motor Disconnected Check left motor wiring. Low Battery Voltage Check batteries/battery wiring. Quantum 1107 www.quantumrehab.com...
  • Page 46 Unless the joystick is damaged, this action should stop your power chair. Figure 35. Microdrive Controller with Joystick Interface Module www.quantumrehab.com Quantum 1107...
  • Page 47 NOTE: When a toggle switch is set to “J/S,” the joystick has control of a particular function. When the toggle switch is set to “Local,” control of this function is disabled at the joystick. Figure 36. Microdrive Display Pad Quantum 1107 www.quantumrehab.com...
  • Page 48 Error codes are displayed as a number of flashing lights. For instance, if the first light is flashing rapidly, the battery voltage is nearly depleted. The table below identifies the individual error codes, probable causes, and possible solu- tions. If you get one of these error codes, contact your Quantum Rehab Specialist. www.quantumrehab.com Quantum 1107...
  • Page 49 Unplug charger. Check connections. Right Motor Wiring Fault Check right motor wiring. Right Motor Disconnected Check right motor wiring. Left Motor Wiring Fault Check left motor wiring. Left Motor Disconnected Check left motor wiring. Low Battery Voltage Check batteries/battery wiring. Quantum 1107 www.quantumrehab.com...

  • Page 50: Care And Maintenance

    ! Use a rubber conditioner on the tire sidewalls to help preserve them. WARNING! Never use a rubber conditioner on the tread area of the tires; doing so may make the tires slippery and cause your power chair to skid. www.quantumrehab.com Quantum 1107...
  • Page 51 Storage Your power chair should be stored in a dry place, free from temperature extremes. When storing, disconnect the batteries from the power chair. See VI. “Batteries and Charging.” Quantum 1107 www.quantumrehab.com...
  • Page 52 WARNING! Completely deflate pneumatic tires before attempting repair. TIRE WHEEL HUB AXLE KEY TUBE AXLE FRONT RIM HALF REAR RIM SLOT DRIVE WHEEL HALF NUTS DRIVE WHEEL WASHER WASHERS Figure 37. Quantum 1107 Drive Wheel Figure 38. Quantum 1107 Drive Wheel Disassembled www.quantumrehab.com Quantum 1107...
  • Page 53 “Your Power Chair.” 3. Remove the battery boxes. See IV. “Assembly/Disassembly.” 4. Disconnect the wiring harness from the batteries. 5. Remove the batteries from the battery boxes. 6. Place new batteries in the battery boxes. See figure 39. Quantum 1107 www.quantumrehab.com...
  • Page 54 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your Quantum Rehab Specialist. www.quantumrehab.com Quantum 1107...
  • Page 55 Pride to be defective in material and/or workmanship: ! Bearings and bushings ! Plastic components, except body The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride. Quantum 1107 www.quantumrehab.com...
  • Page 56 Circumstances beyond the control of Pride Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation Repairs and/or modifications made to any part without specific consent from Pride...
  • Page 57 N O T E S Quantum 1107 www.quantumrehab.com...
  • Page 58 N O T E S www.quantumrehab.com Quantum 1107...
  • Page 59 We have Q u a l i t y C o n t r o l - M o d e l 1 400 Quality Control - Quantum 1107 thoroughly inspected your Quantum 1107. Inclusion of all Parts...
