Network Card Diagnostic Utility

The SMC SuperDisk contains a Windows-based diagnostic utility
that provides a quick, convenient way for Windows 95/98 and
Windows NT v4.0 and v3.51 users to test the basic functions of
their EtherPower II 10/100 network card. When you install an SMC
EtherPower II 10/100 network driver, this utility is automatically
created in a new program group on your Windows desktop.
After installing an SMC EtherPower II 10/100 network driver, use
the following procedure to run the network card diagnostic utility:
1. Windows 95/98 and Windows NT v4.0 users: From the
Start bar, click "Programs" and select "SMC" and then "Diag."
The main window appears.
Windows NT v3.51 users: From DOS or a DOS window,
change to the WINNT\SYSTEM32 subdirectory. Then type
"DIAG" and press the Enter key. The main window appears
(see Figure 4-1).

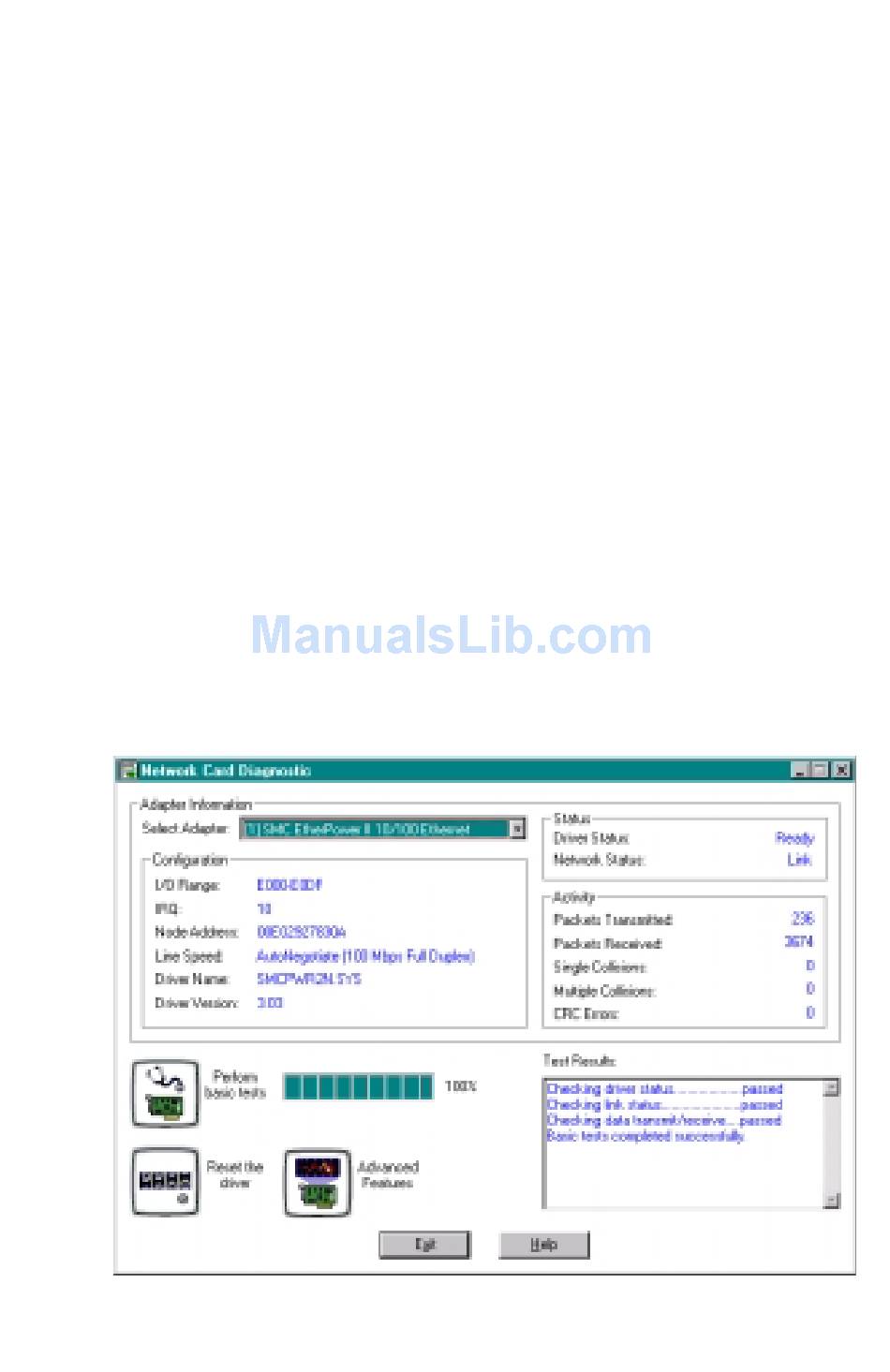

Figure 4-1. Main Window
